Toyota CAMRY 制动助力器和真空管 — Figure 4703

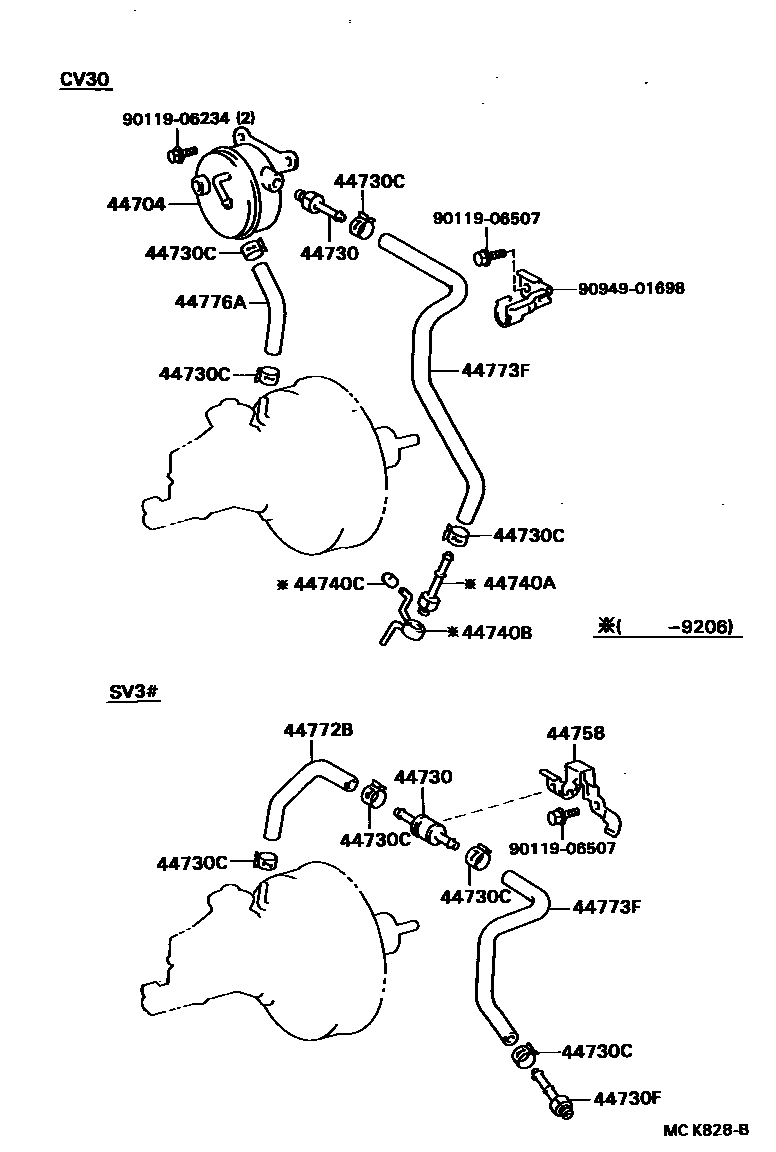

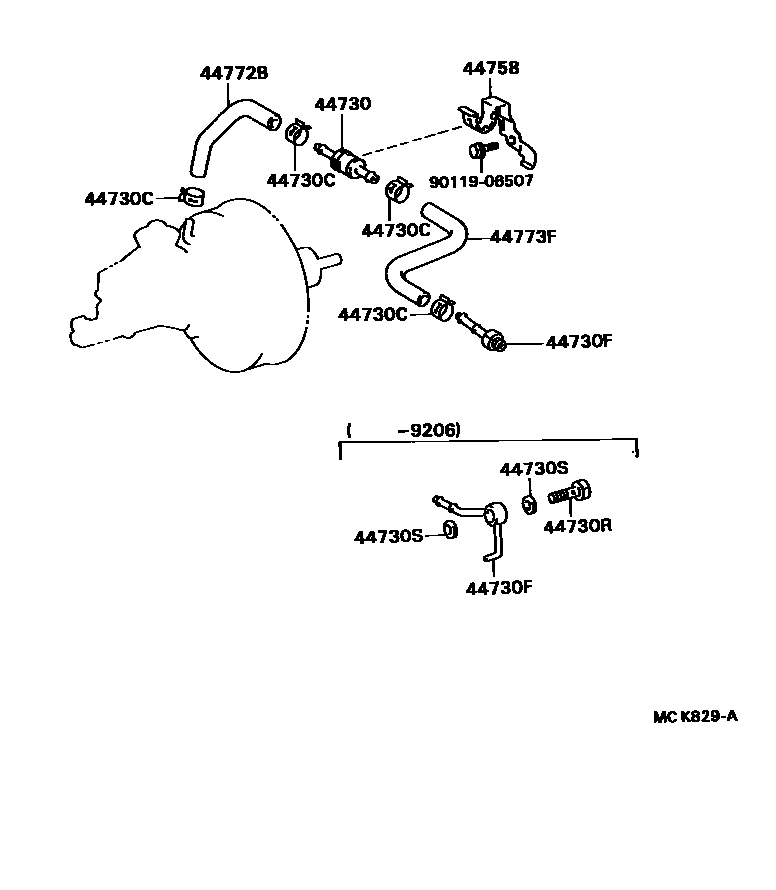

Toyota CAMRY EPC diagram 4703, 制动助力器和真空管, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-32360 · 44610-32370 · 44610-32371 · 44610-32390 · 44610-32410 · 44610-32430 · 44610-32510 |
| 44704 | Vacuum liquid tank sub-assembly | 44704-32050 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-20120 · 44730-60050 |
| 44730C | Clip (for vacuum hose) | 90467-16002 · 90467-16017 |
| 44730F | Vacuum hose connector (for manifold side) | 90404-51319 · 90405-09125 |
| 44730R | Connector bolts (for vacuum hose connectors) | 90401-12012 |
| 44730S | Gasket (for vacuum hose coupling) | 90430-12005 |
| 44740A | Connector No. 1 (for vacuum pump) | 90404-09006 |
| 44740B | Connector No. 2 (for vacuum pump) | 90405-04003 |
| 44740C | Screw plug (for connector) | 90339-03005 |
| 44758 | Vacuum check valve bracket | 44758-32050 |
| 44772B | Hoses (check valve to brake booster) | 44772-32070 · 44772-32080 · 44772-32090 |
| 44773F | Hoses (connector to check valve) | 44773-32120 · 44773-32121 · 44773-32130 · 44773-32140 · 44773-32150 · 44773-32160 · 44773-32170 · 44773-32180 |
| 44776A | Hoses (vacuum reservoir to brake booster) | 44776-32050 |
| 44785 | brake booster pad | 44785-32010 |
