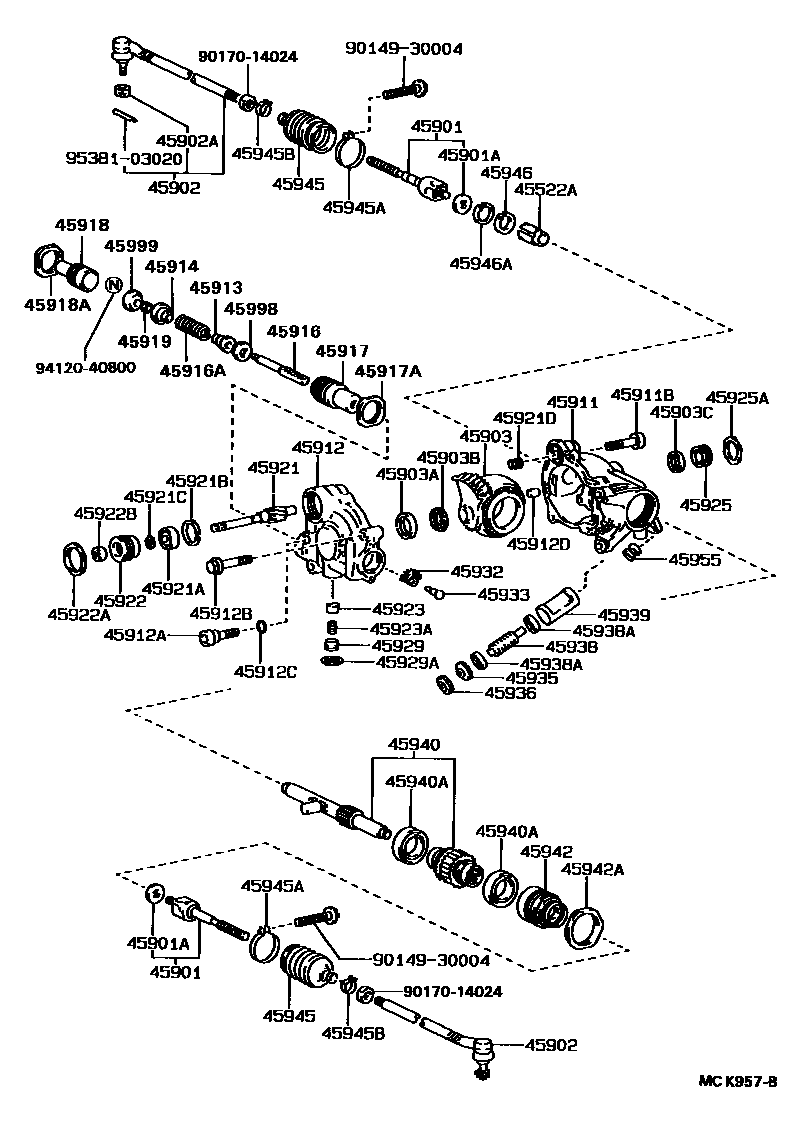

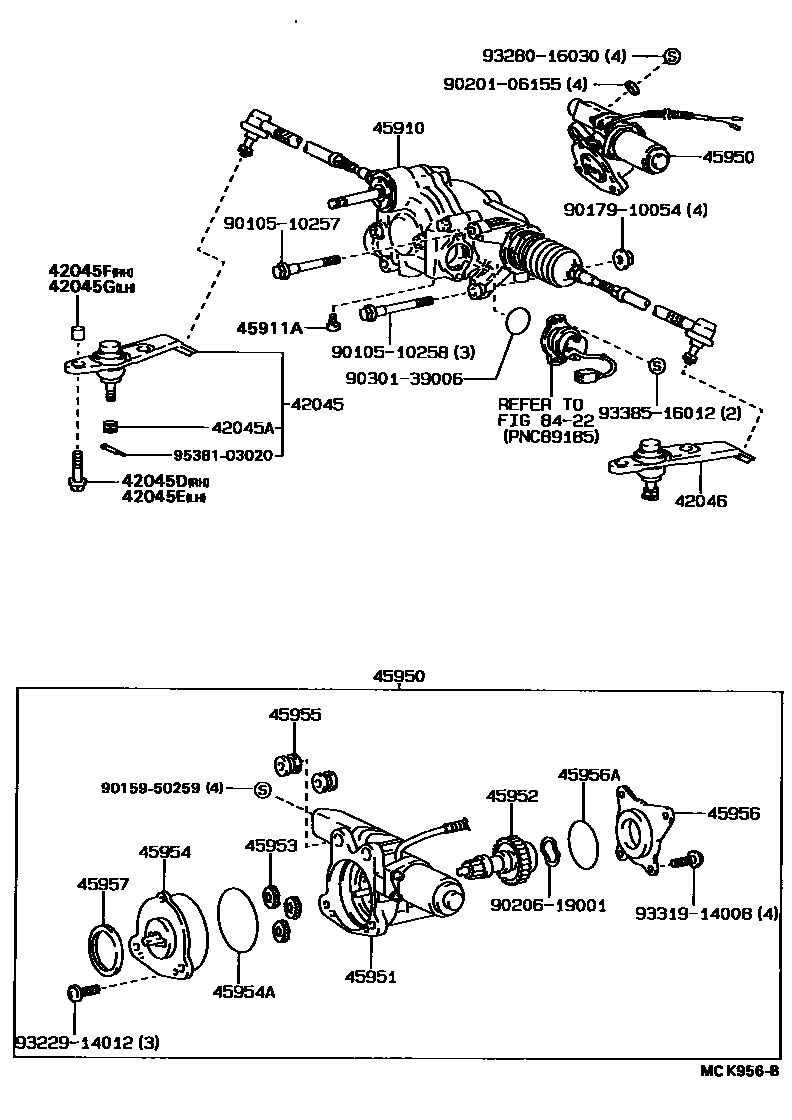

Toyota CAMRY 后转向齿轮(4WS) — Figure 4507
Toyota CAMRY EPC diagram 4507, 后转向齿轮(4WS), with 2 images and 76 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42045 | Right rear steering knuckle arm sub-assembly | 42045-29015 |
| 42045A | Nut (for rear knuckle arm) | 90171-14002 |
| 42045D | Bolt (for right rear knuckle arm) | 90105-12191 |
| 42045E | Bolt (for left rear knuckle arm) | 90105-12191 |
| 42045F | Pin (for right rear knuckle arm) | 90253-15016 |
| 42045G | Pin (for left rear knuckle arm) | 90253-15016 |
| 42046 | Left rear steering knuckle arm sub-assembly | 42046-29015 |
| 45522A | steering rack bushing | 45522-17010 · 45522-17020 |
| 45901 | Rear steering rack end sub-assembly | 45901-29015 |
| 45901A | Claw washer (for rear steering gear assembly) | 90214-14007 |
| 45902 | Rear steering tie rod end sub-assembly | 45902-39015 |
| 45902A | Castle nut (for rear tie rod end) | 90171-12028 |
| 45903 | Rear steering pivot bearing sub-assembly | 45903-20010 · 45903-20020 |
| 45903A | Front bearing (for rear steering pivot bearing) | 90369-39002 |
| 45903B | No. 2 front bearing (for rear steering pivot bearing) | 90369-39003 |
| 45903C | Rear bearing (for rear steering pivot bearing) | 90369-27001 |
| 45910 | Rear steering gear assembly | 45910-32010 |
| 45911 | Rear steering casing | 45911-32010 |
| 45911A | Bolt No. 1 (for rear steering housing) | 90110-08021 |
| 45911B | No. 2 bolt (for rear steering housing) | 90119-08787 |
| 45912 | rear steering cover | 45912-20010 |
| 45912A | Head bolts (for rear steering cover) | 90110-08022 |
| 45912B | Bolt (for rear steering cover) | 90119-08788 |
| 45912C | O-ring (for rear steering cover) | 90301-07007 |
| 45912D | Slotted spring pin (for rear steering gear) | 90254-10002 |
| 45913 | Rear steering return spring seat | 45913-20010 |
| 45914 | No. 2 rear steering return spring seat | 45914-20010 |
| 45916 | Rear steering return rack | 45916-20010 |
| 45916A | Compression spring (for rear steering return rack) | 90501-45034 |
| 45917 | Rear steering return rack spring retainer | 45917-20010 |
| 45917A | Nut (for rear steering return rack assembly) | 90179-48001 |
| 45918 | No. 2 rear steering return rack spring retainer | 45918-20010 |
| 45918A | No. 2 nut (for rear steering return rack assembly) | 90179-42002 |
| 45919 | Rear steering return spring seat ring stop | 45919-20010 |
| 45921 | Rear steering gear pinion | 45921-20010 |
| 45921A | Front bearing (for rear steering gear pinion) | 90363-17009 |
| 45921B | Snap ring (for No. 1 rear steering gear pinion) | 96151-04000 |
| 45921C | Snap ring (for No. 2 rear steering gear pinion) | 96150-01700 |
| 45921D | Rear bearing (for rear steering gear pinion) | 90364-12007 |
| 45922 | Rear steering gear pinion bearing adjustment screw | 45922-20010 |
| 45922A | Nut (for rear steering pinion bearing adjustment screw) | 90179-50001 |
| 45922B | Oil seal (for rear steering pinion bearing adjustment screw) | 90311-15002 |
| 45923 | Rear steering return rack guide block | 45923-20010 |
| 45923A | Spring (for rear steering return rack guide block) | 90501-16119 |
| 45925 | Rear steering pivot bearing cap | 45925-20010 |
| 45925A | Nut (for rear steering pivot bearing cap) | 90179-42002 |
| 45929 | Rear steering return rack guide block spring cover | 45929-20010 |
| 45929A | Nut (for rear steering return rack guide block spring cover) | 90179-25002 |
| 45932 | No. 2 rear steering sensor driving gear | 45932-20010 |
| 45933 | Rear steering sensor driving gear shaft | 45933-20010 |
| 45935 | No. 1 rear steering worm adjustment nut | 45935-20010 |
| 45936 | No. 2 rear steering worm adjustment nut | 45936-20010 |
| 45938 | Rear steering lever angle proportional control worm | 45938-20010 |
| 45938A | Bearing (for rear steering rod angle proportional control worm) | 90363-15014 |
| 45939 | Rear steering worm control cam | 45939-20010 |
| 45940 | Rear steering intermediate worm assembly | 45940-32010 · 45940-32020 |
| 45940A | Bearing (for rear steering intermediate worm) | 90363-45014 |
| 45942 | Rear steering intermediate tie rod cover | 45942-20010 |
| 45942A | Nut (for rear steering center tie rod cover) | 90179-70001 |
| 45945 | Rear steering intermediate tie rod dust cover | 45945-20010 |
| 45945A | Clamp (for rear steering intermediate tie rod dust boot) | 90460-55011 |
| 45945B | Clamp (for rear steering intermediate tie rod dust cover) | 90467-16014 |
| 45946 | Rear steering intermediate tie rod stop | 45946-20010 |
| 45946A | Snap ring (for rear steering intermediate tie rod stop) | 96151-04500 |
| 45950 | Rear steering angle proportional converter assembly | 45950-32010 |
| 45951 | Rear steering angle proportional converter housing | 45951-32010 |
| 45952 | Rear steering angle proportional converter shaft | 45952-20010 |
| 45953 | Rear steering angle proportional converter gear | 45953-20010 |
| 45954 | Rear steering angle proportional converter bracket | 45954-32010 |
| 45954A | O-ring (for rear steering angle proportional converter bracket) | 90301-67002 |
| 45955 | Rear steering angle proportional converter bushing | 45955-20010 |
| 45956 | Rear steering angle proportional converter cover | 45956-20010 |
| 45956A | O-ring (for rear steering angle proportional converter cover) | 96711-24047 |
| 45957 | Seal (for rear steering angle proportional converter) | 45957-20010 |
| 45998 | Cushion pad (for rear steering return rack) | 45998-20010 |
| 45999 | No. 2 buffer pad (for rear steering return rack) | 45999-20010 |
