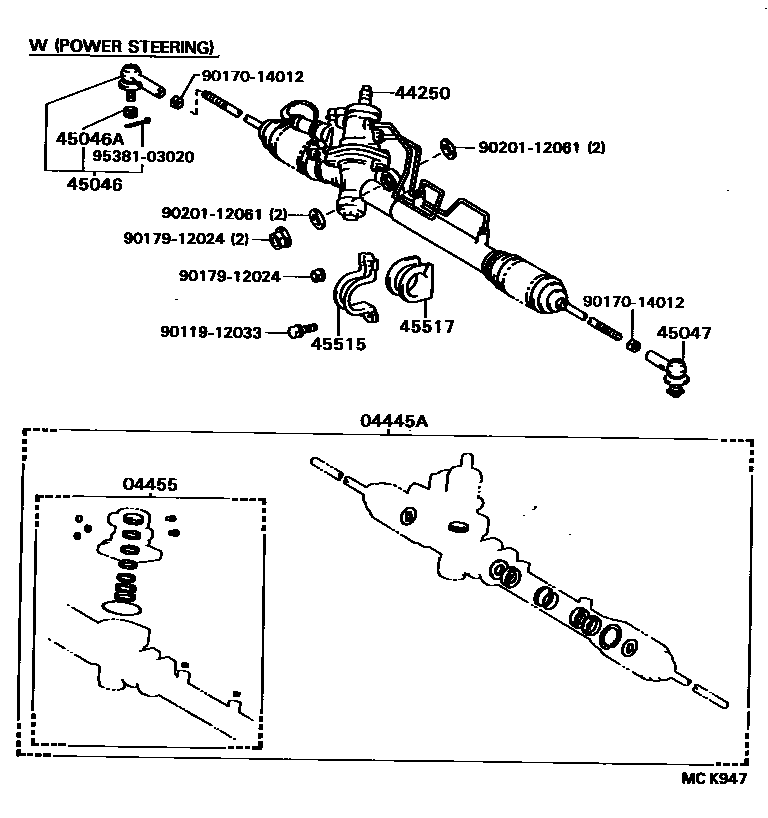

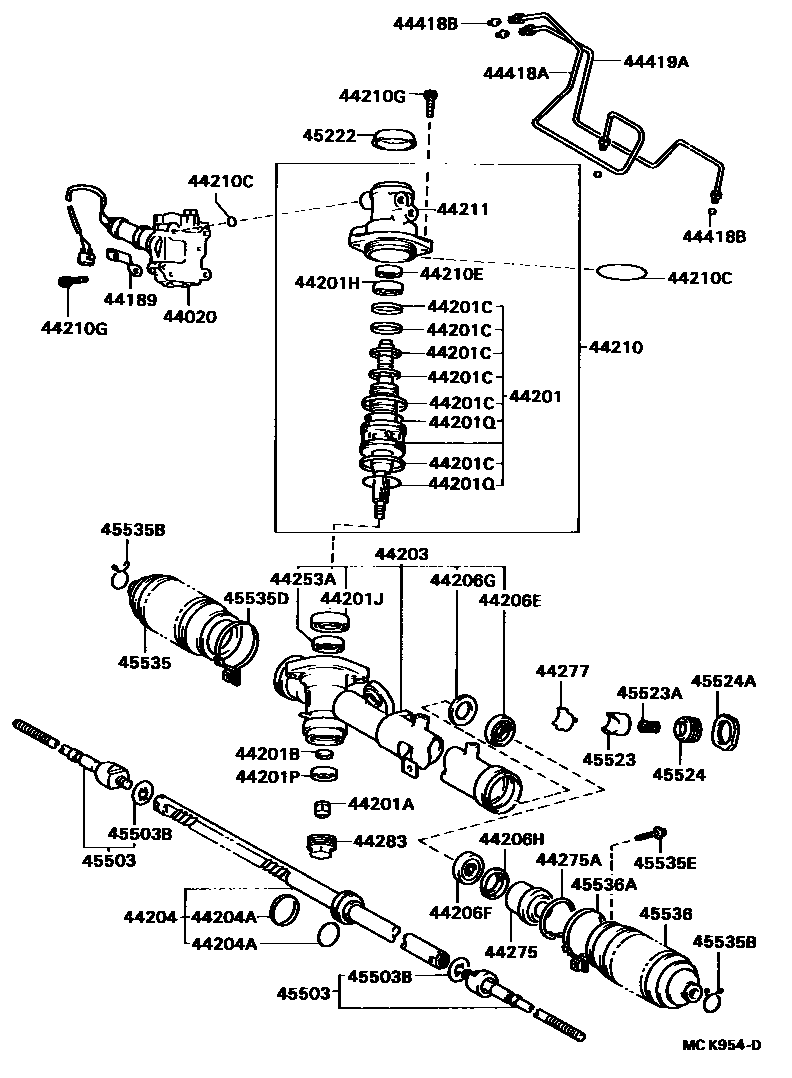

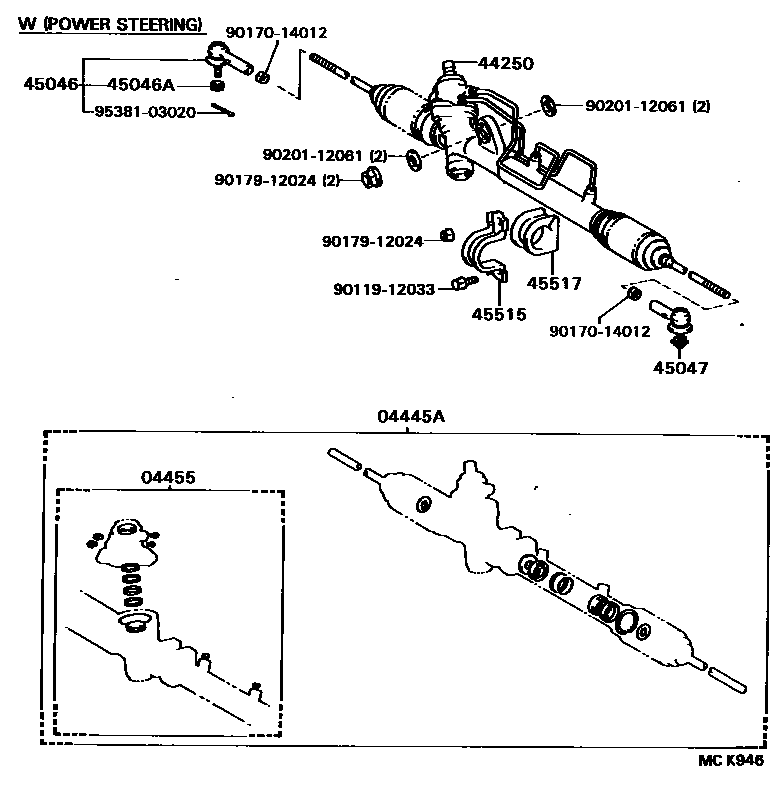

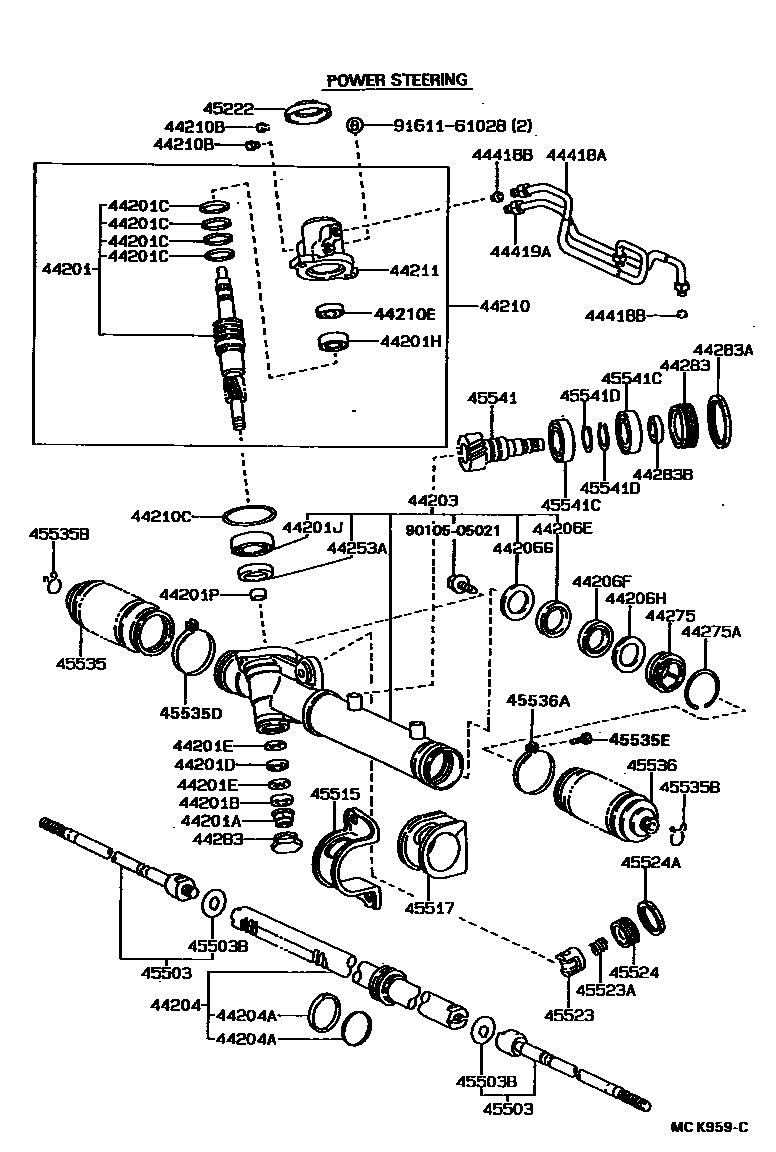

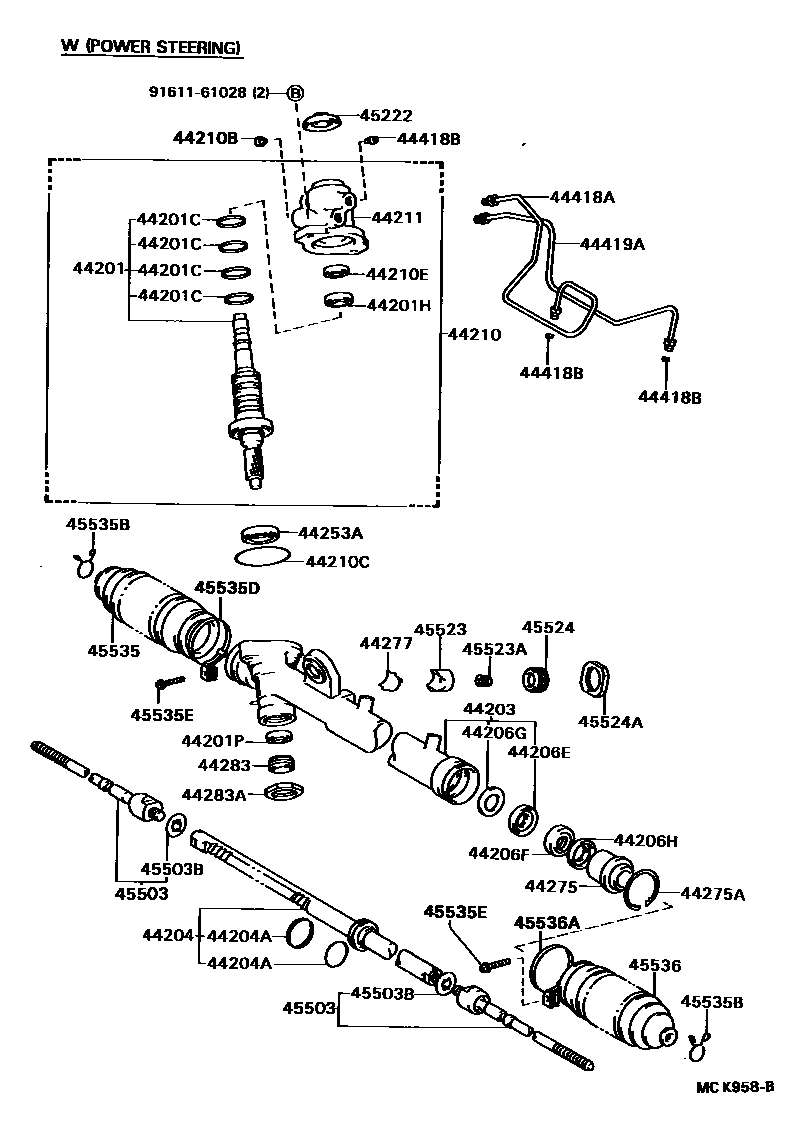

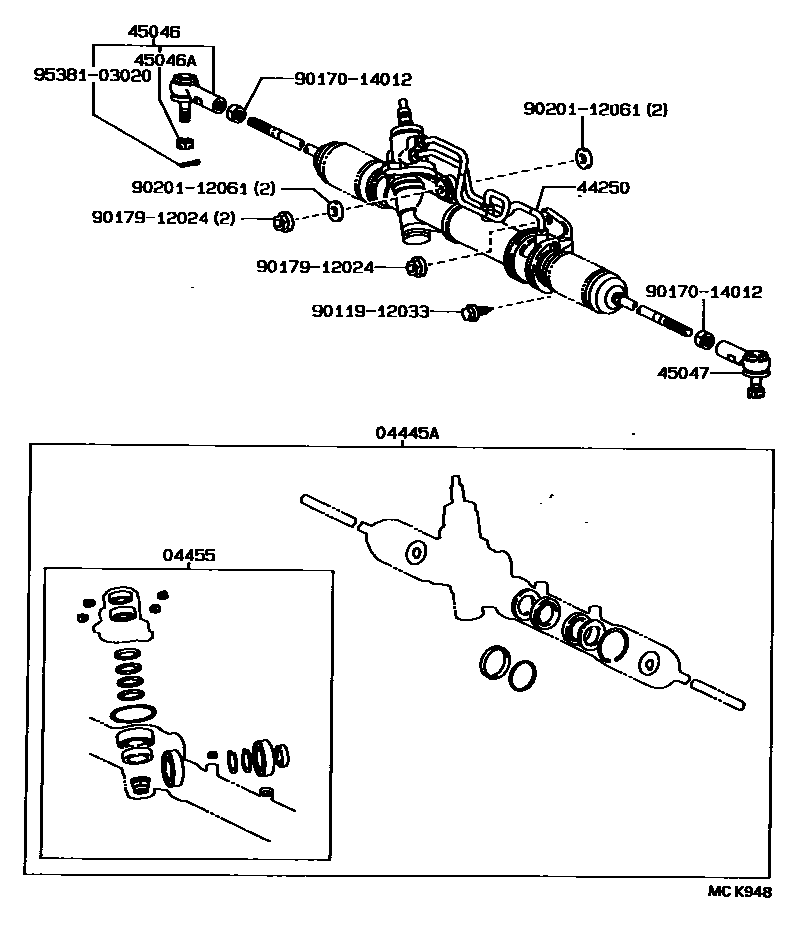

Toyota CAMRY 前转向齿轮和连杆 — Figure 4505
Toyota CAMRY EPC diagram 4505, 前转向齿轮和连杆, with 6 images and 59 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04445A | Power steering gear gasket assembly (for rack and pinion) | 04445-32050 · 04445-32051 · 04445-32060 · 04445-32061 · 04445-32070 |
| 04455 | Power steering control valve overhaul gasket assembly | 04455-32020 · 04455-32022 · 04455-32040 · 04455-32050 |
| 44020 | Pressure control valve assembly with solenoid valve | 44020-32030 · 44020-32040 |
| 44189 | Solenoid valve terminal clamp | 90949-01699 |
| 44201 | Power steering control valve sub-assembly | 44201-32030 · 44201-32050 · 44201-32051 · 44201-32080 · 44201-32081 · 44201-32090 · 44201-32100 · 44201-32111 · 44201-32130 |
| 44201A | Lock nut (for power steering control valve) | 90179-12089 · 94184-61200 |
| 44201B | Spacer (for power steering control valve) | 90560-12030 · 90560-12043 |
| 44201C | Ring (for power steering control valve) | 90562-33002 · 90562-33005 · 90562-50001 |
| 44201D | Thrust needle roller bearing (for power steering control valve) | 90374-12001 |
| 44201E | Flat Washer (for power steering control valve) | 90201-12062 · 90201-12063 |
| 44201H | Bearing (for upper power steering control valve) | 90363-19002 |
| 44201J | Bearing (for central power steering control valve) | 90363-28007 · 90363-30054 |
| 44201P | Bearing (for lower power steering control valve) | 90363-12008 · 90363-13002 · 90364-12004 |
| 44201Q | O-ring (for power steering control valve) | 90301-45002 |
| 44203 | Power steering rack housing sub-assembly | 44203-32090 · 44203-32091 · 44203-32100 · 44203-32101 · 44203-32110 |
| 44204 | Power steering rack sub-assembly | 44204-20190 · 44204-32030 · 44204-32040 · 44204-32060 · 44204-32070 |
| 44204A | Ring (for steering rack piston) | 90301-36004 · 90301-38004 · 90562-40002 · 90562-41002 |
| 44206E | No. 1 oil seal (for power steering cylinder barrel) | 90310-25013 · 90310-30010 |
| 44206F | No. 2 oil seal (for power steering cylinder barrel) | 90310-25011 · 90310-25013 · 90310-30010 |
| 44206G | No. 1 spacer (for power steering cylinder barrel) | 90560-26009 · 90560-30009 |
| 44206H | No. 2 spacer (for power steering cylinder barrel) | 90560-26009 · 90560-30009 |
| 44210 | Power steering control valve assembly | 44210-32050 · 44210-32070 · 44210-32071 · 44210-32090 · 44210-32100 · 44210-32111 · 44210-32130 · 44210-32140 · 44210-32150 · 44210-32151 · 44210-32170 |
| 44210B | Connector seat (for power steering control valve) | 90410-04006 · 90410-06002 |
| 44210C | O-ring (for power steering control valve) | 90301-11009 · 90301-57003 · 96711-24060 |
| 44210E | Oil seal (for power steering control valve) | 90311-19006 |
| 44210G | Bolt (for power steering control valve) | 90110-08012 |
| 44211 | control valve housing | 44211-20100 · 44211-32050 |
| 44250 | Power steering gear assembly (for rack and pinion) | 44250-32120 · 44250-32121 · 44250-32140 · 44250-32141 · 44250-32150 · 44250-32151 · 44250-32160 · 44250-32170 · 44250-32180 · 44250-32220 · 44250-32230 · 44250-32231 |
| 44253A | Oil seal (for power steering rack housing) | 90310-28001 · 90310-28003 · 90310-30005 |
| 44275 | Cylinder end stop | 44275-20070 · 44275-32020 |
| 44275A | Bore snap ring (for cylinder end stop) | 90521-53002 · 90521-54002 |
| 44277 | Rack guide block seat | 44277-20040 · 44277-24010 |
| 44283 | Rack housing cover | 44283-12010 · 44283-20020 · 44283-32010 · 45524-16010 · 45524-20030 · 45524-50010 |
| 44283A | Nut (for rack housing cover) | 90179-36002 · 90179-55001 |
| 44283B | Oil seal (for rack housing cover) | 90311-20004 |
| 44418A | Right steering pressure oil pipe | 44418-32080 · 44418-32081 · 44418-32090 · 44418-32100 |
| 44418B | Joint seat (for steering pressure oil pipe) | 90410-04003 · 96390-71200 |
| 44419A | Left steering pressure oil pipe | 44419-32080 · 44419-32081 · 44419-32090 · 44419-32100 |
| 45046 | Right tie rod end sub-assembly | 45046-19175 |
| 45046A | Castle nuts (for tie rod ends) | 90171-12028 |
| 45047 | Left tie rod end sub-assembly | 45046-19175 |
| 45222 | Steering gear dust cover | 45222-32010 · 45222-32020 · 45222-32030 |
| 45503 | Steering rack end sub-assembly | 45503-29245 |
| 45503B | Jaw washer (for steering rack end) | 90214-14002 |
| 45515 | No. 2 steering rack housing bracket | 45515-20110 · 45515-32080 |
| 45517 | No. 2 steering rack housing seal | 45517-20030 · 45517-32050 |
| 45523 | Rack guide block (for steering gear) | 45053-20010 · 45523-20040 · 45523-24010 |
| 45523A | Spring (for steering gear rack guide block) | 90501-23023 · 90501-29016 · 90501-29026 · 90501-29036 |
| 45524 | Steering rack guide block spring cover | 45524-16010 · 45524-20020 · 45524-20030 · 45524-50010 |
| 45524A | Nut (for steering rack guide spring cover) | 90179-36002 · 90179-36004 |
| 45535 | No. 1 steering rack dust cover | 45535-20050 |
| 45535B | Clamp (for steering rack dust boot) | 90467-18003 |
| 45535D | Clamp (for No. 1 steering rack dust boot) | 90949-01082 |
| 45535E | Screw (for steering rack boot clip) | 93269-63020 |
| 45536 | No. 2 steering rack dust cover | 45535-20070 · 45535-32030 |
| 45536A | Clamp (for No. 2 steering rack dust boot) | 90461-09004 · 90461-10709 |
| 45541 | steering pinion | 45541-32070 |
| 45541C | Radial ball bearing (for steering pinion) | 90363-28007 |
| 45541D | Shaft snap ring (for steering pinion) | 90520-26047 |
