Toyota CAMRY Steering Wheel — Figure 4504

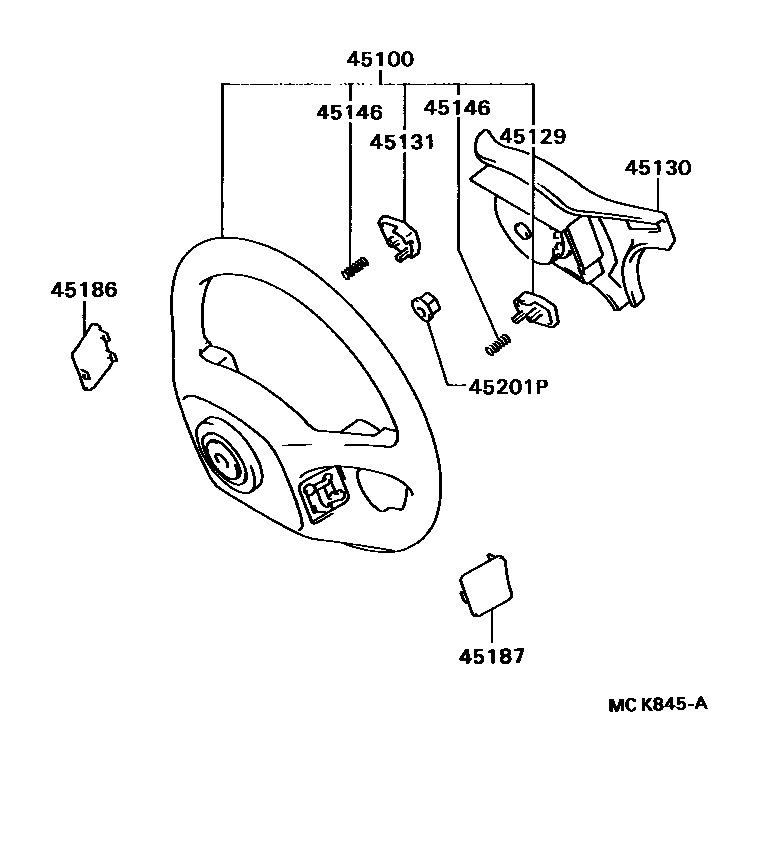

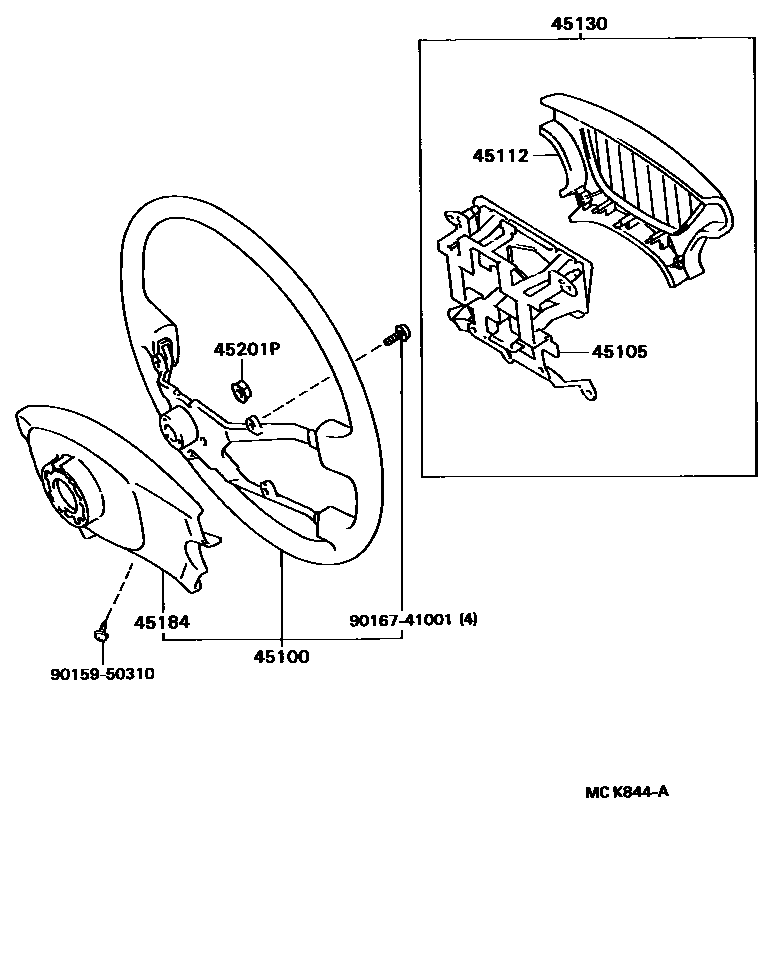

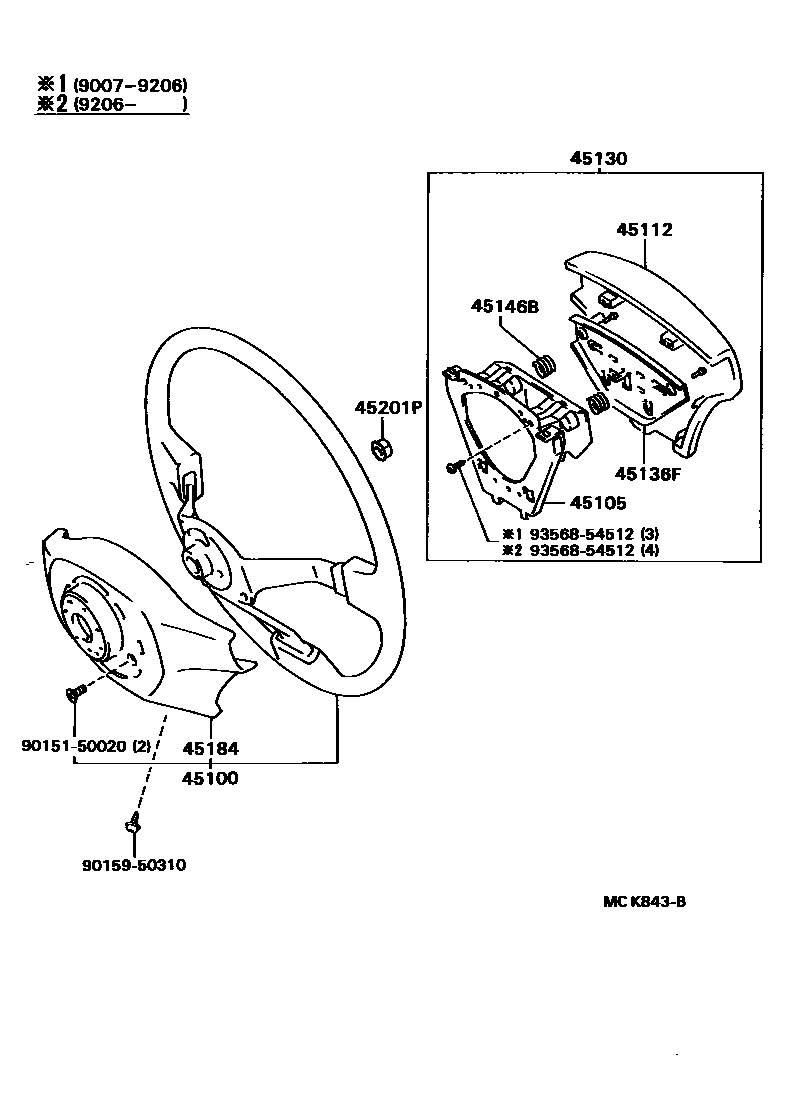

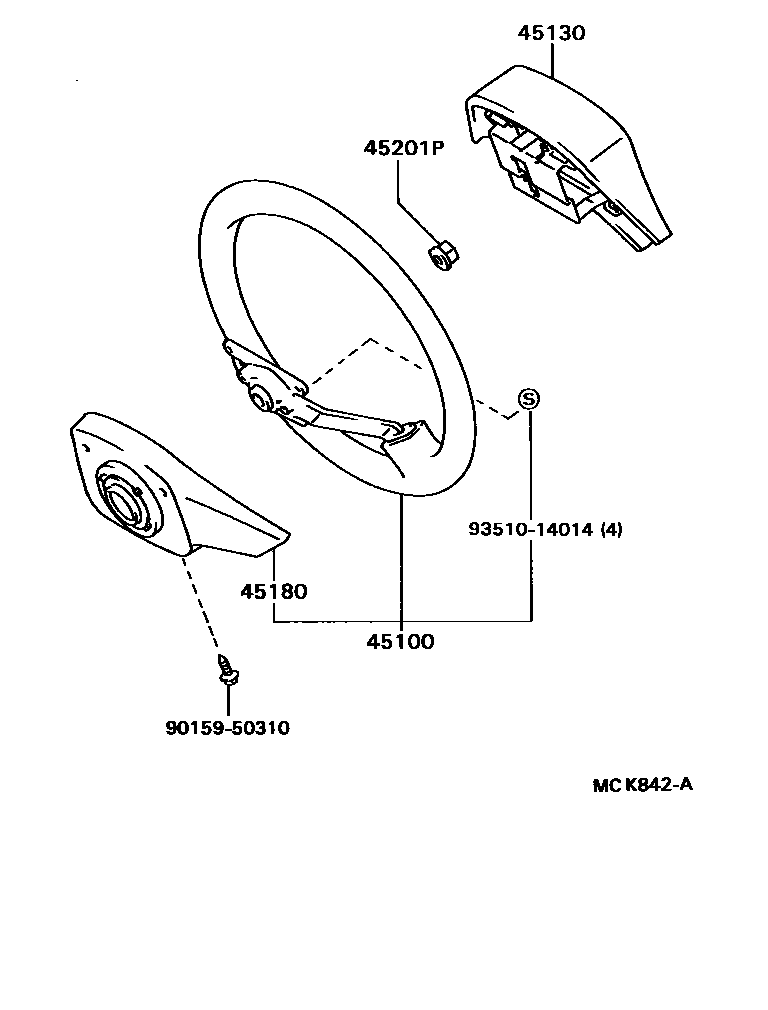

Toyota CAMRY EPC diagram 4504, Steering Wheel, with 4 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45105 | No. 1 horn button contact piece sub-assembly | 45105-20320 · 45105-32060 · 45105-32100 · 45105-33020 |
| 45136F | No. 1 horn button contact piece | 45136-32110 · 45136-32120 |
| 45146 | Horn button contact spring | 45146-20230 |
| 45146B | No. 1 horn button contact spring | 45146-20140 |
| 45201P | Steering wheel fixing nut | 90179-12071 · 90179-12086 |
