Toyota CAMRY 动力转向配管 — Figure 4503

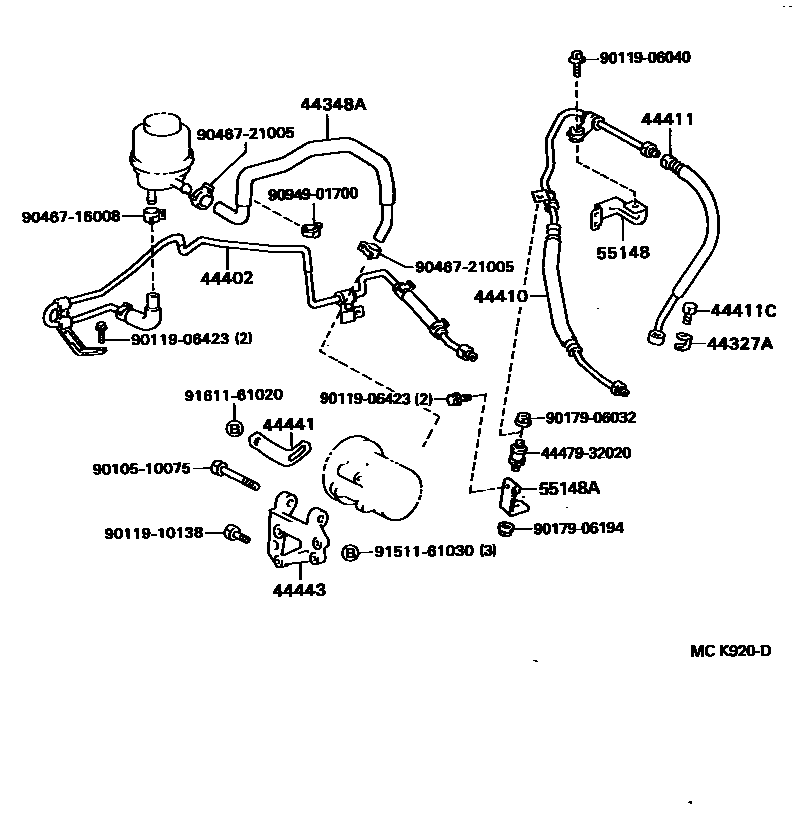

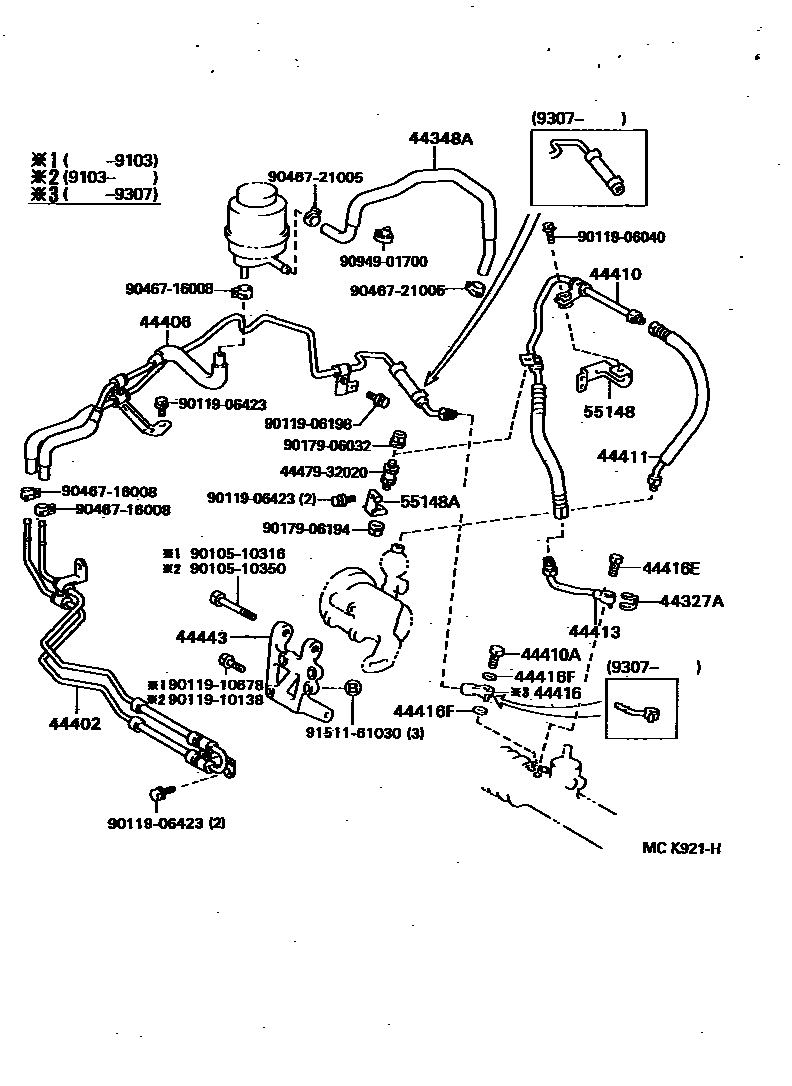

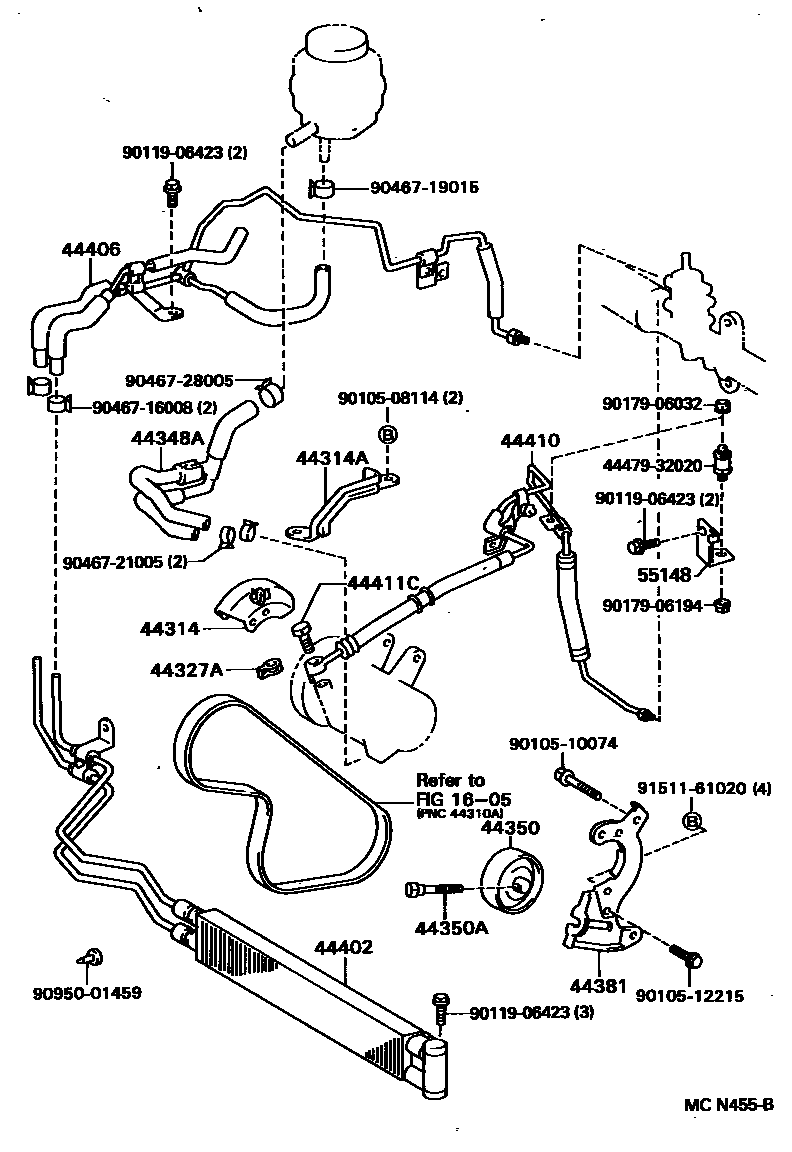

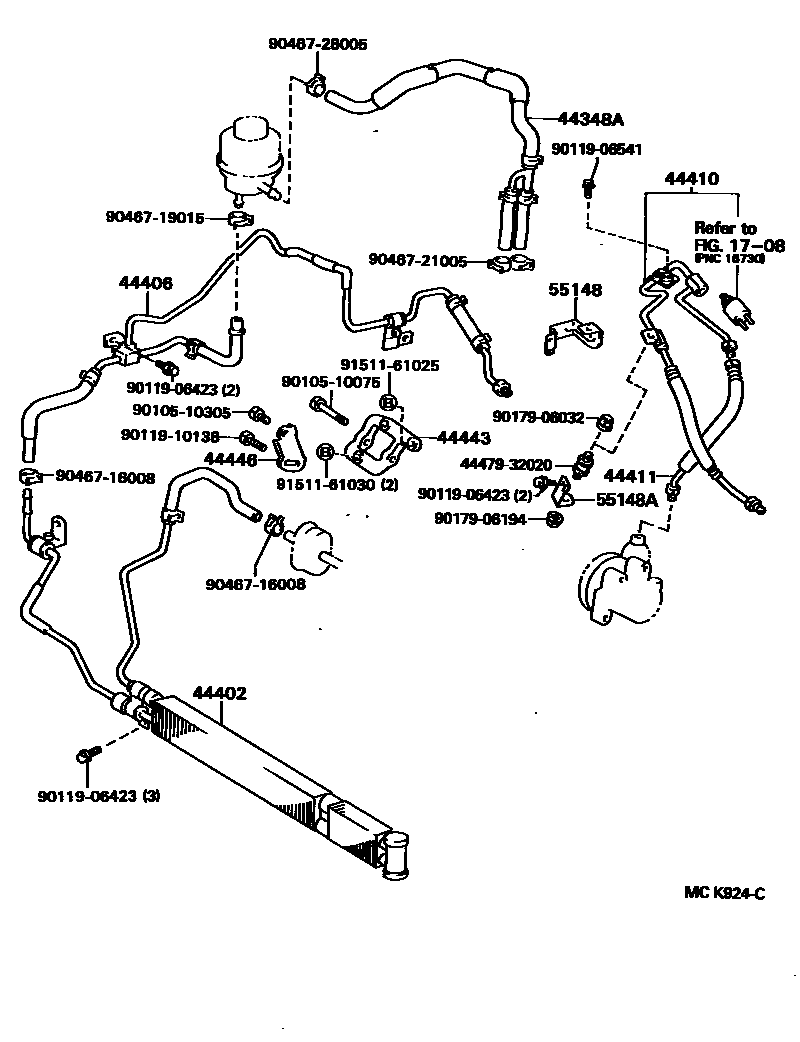

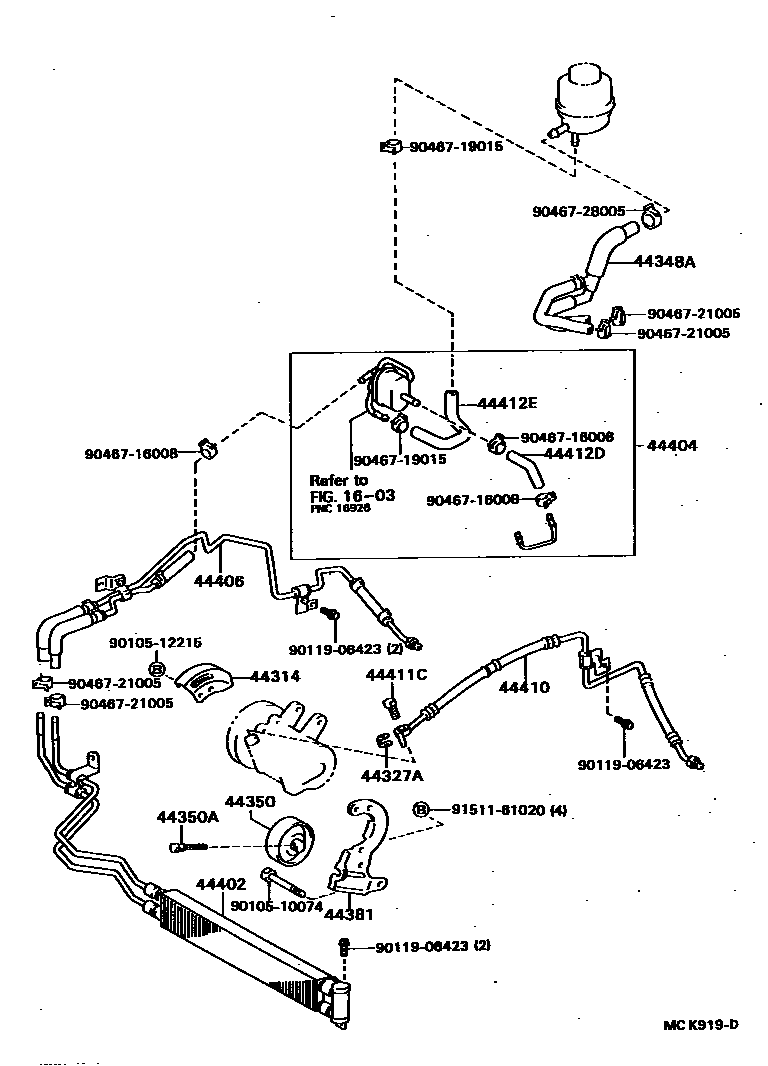

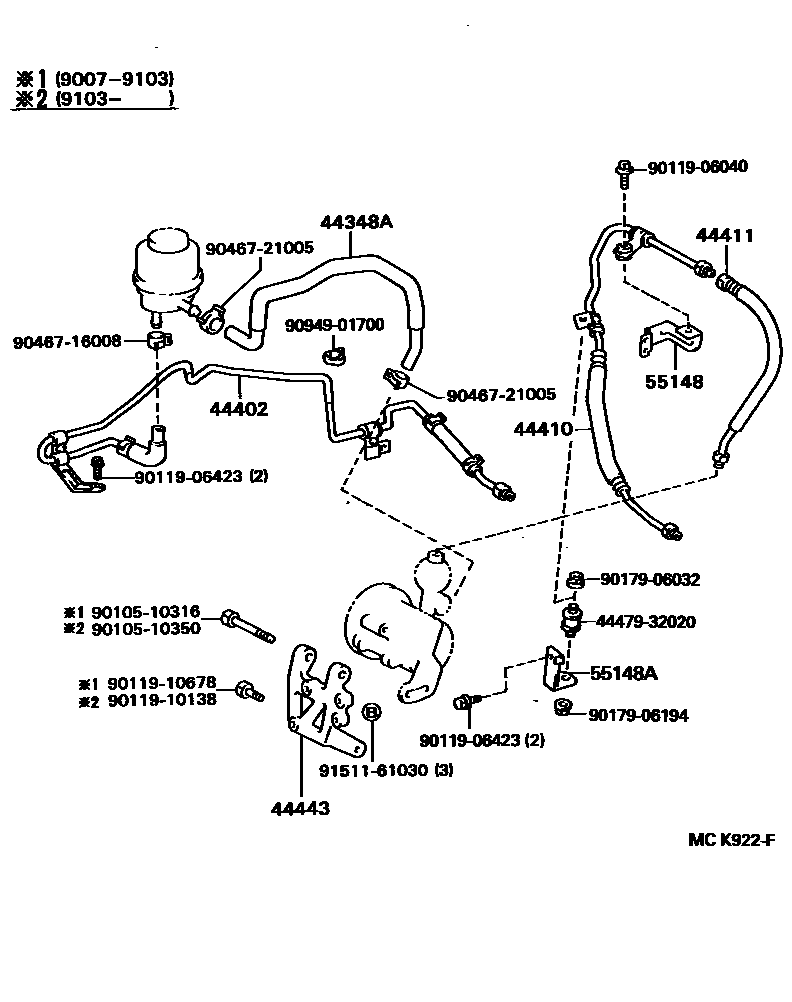

Toyota CAMRY EPC diagram 4503, 动力转向配管, with 7 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44314 | pulley cover | 44314-32010 · 44314-32030 |
| 44314A | No. 2 pulley cover | 44314-32020 |
| 44327A | No. 1 pressure hole gasket | 44327-12010 · 44327-12020 |
| 44348A | No. 1 hose (tank to pump) | 44348-32140 · 44348-32150 · 44348-32160 · 44348-32161 · 44348-32162 · 44348-32170 · 44348-32180 · 44348-32190 · 44348-32200 · 44348-32210 · 44348-32220 |
| 44350 | Power steering idler assembly | 44350-32010 · 44350-32011 · 44350-32020 |
| 44350A | Bolt (for power steering idler pulley) | 90109-08106 · 90109-08245 |
| 44381 | Power steering idler bracket | 44381-32010 · 44381-32011 · 44381-32020 |
| 44402 | No. 1 power steering oil cooler sub-assembly | 44402-32160 · 44402-32170 · 44402-32180 · 44402-32190 · 44402-32200 · 44402-32210 · 44402-32220 · 44402-32230 |
| 44404 | Power steering oil filter sub-assembly | 44404-32010 |
| 44406 | Oil return pipe sub-assembly | 44406-32110 · 44406-32190 · 44406-32200 · 44406-32220 · 44406-32221 · 44406-32230 · 44406-32231 · 44406-32240 · 44406-32241 · 44406-32270 · 44406-32280 |
| 44410 | Pressure supply pipe assembly | 44410-32410 · 44410-32420 · 44410-32421 · 44410-32422 · 44410-32430 · 44410-32431 · 44410-32440 · 44410-32441 · 44410-32450 · 44410-32460 · 44410-32470 · 44410-32480 · 44410-32490 · 44410-32500 · 44410-32502 |
| 44410A | Connector bolt (for pressure supply pipe) | 90401-17002 |
| 44411 | pressure supply hose | 44411-32130 · 44411-32140 · 44411-32150 · 44411-32151 · 44411-32152 · 44411-32160 · 44411-32161 · 44411-32170 · 44411-32180 |
| 44411C | Connector bolt (for pressure supply hose) | 90401-16008 |
| 44412D | No. 1 oil return hose | 44412-32080 |
| 44412E | No. 2 oil return hose | 44412-32090 |
| 44413 | No. 1 pressure supply pipe | 44413-32010 · 44413-32011 |
| 44416 | Oil return pipe (for steering gear outlet) | 44416-32030 · 44416-32050 |
| 44416E | Joint bolt (for oil return pipe) | 90401-16013 |
| 44416F | Gasket (for oil return pipe) | 90430-17005 |
| 44441 | Pump front bracket | 44441-32010 |
| 44443 | pump bracket | 44443-32050 · 44443-32051 · 44443-32060 · 44443-32070 · 44443-33020 |
| 44446 | Adjust the stand | 44446-32020 |
| 55148 | No. 1 power steering tube bracket | 55148-32020 · 55148-32021 · 55148-32031 · 55148-32040 |
| 55148A | No. 2 power steering tube bracket | 55148-32030 · 55148-32031 · 55148-32040 |
