Toyota CAMRY Steering Column & Shaft — Figure 4501

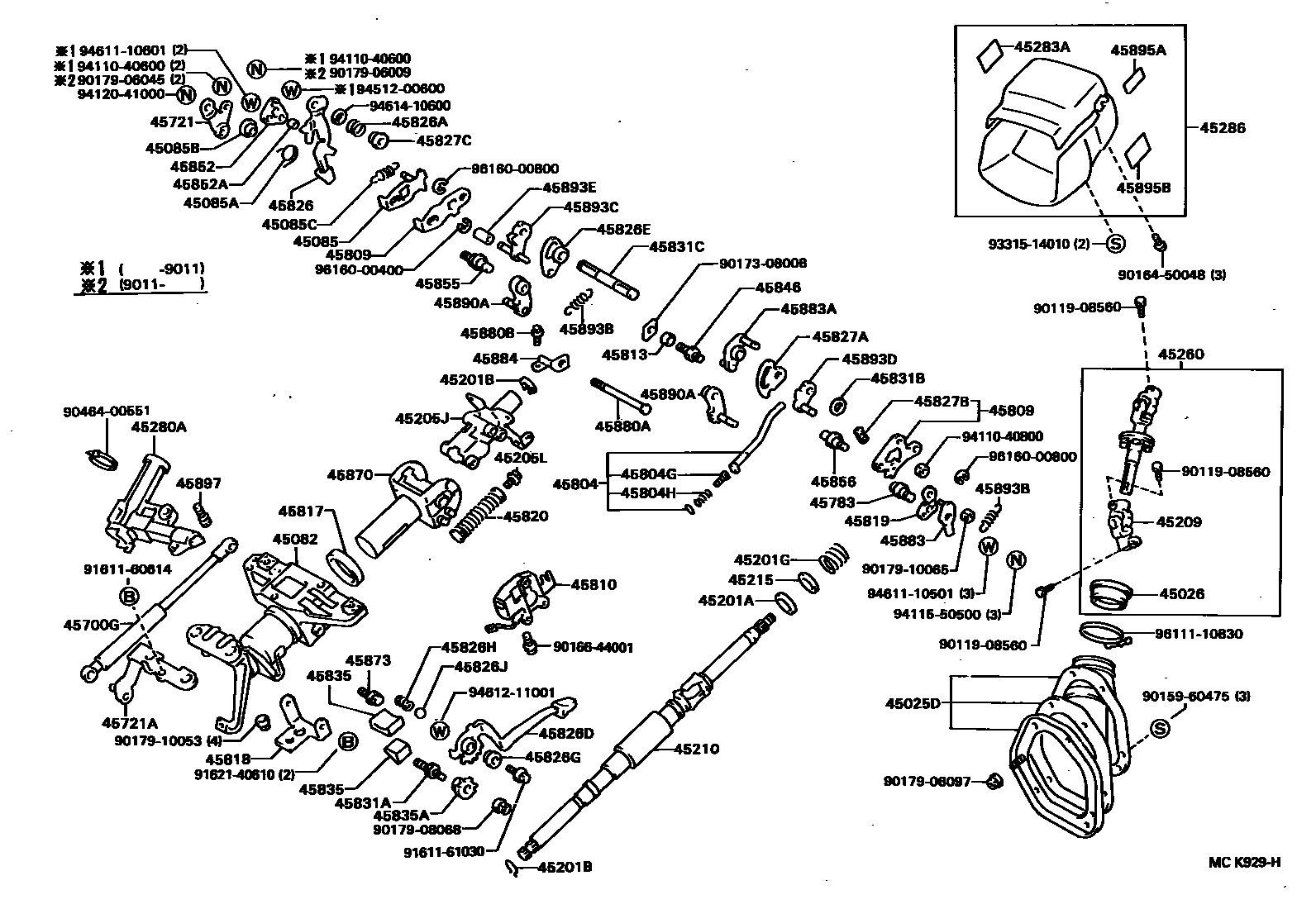

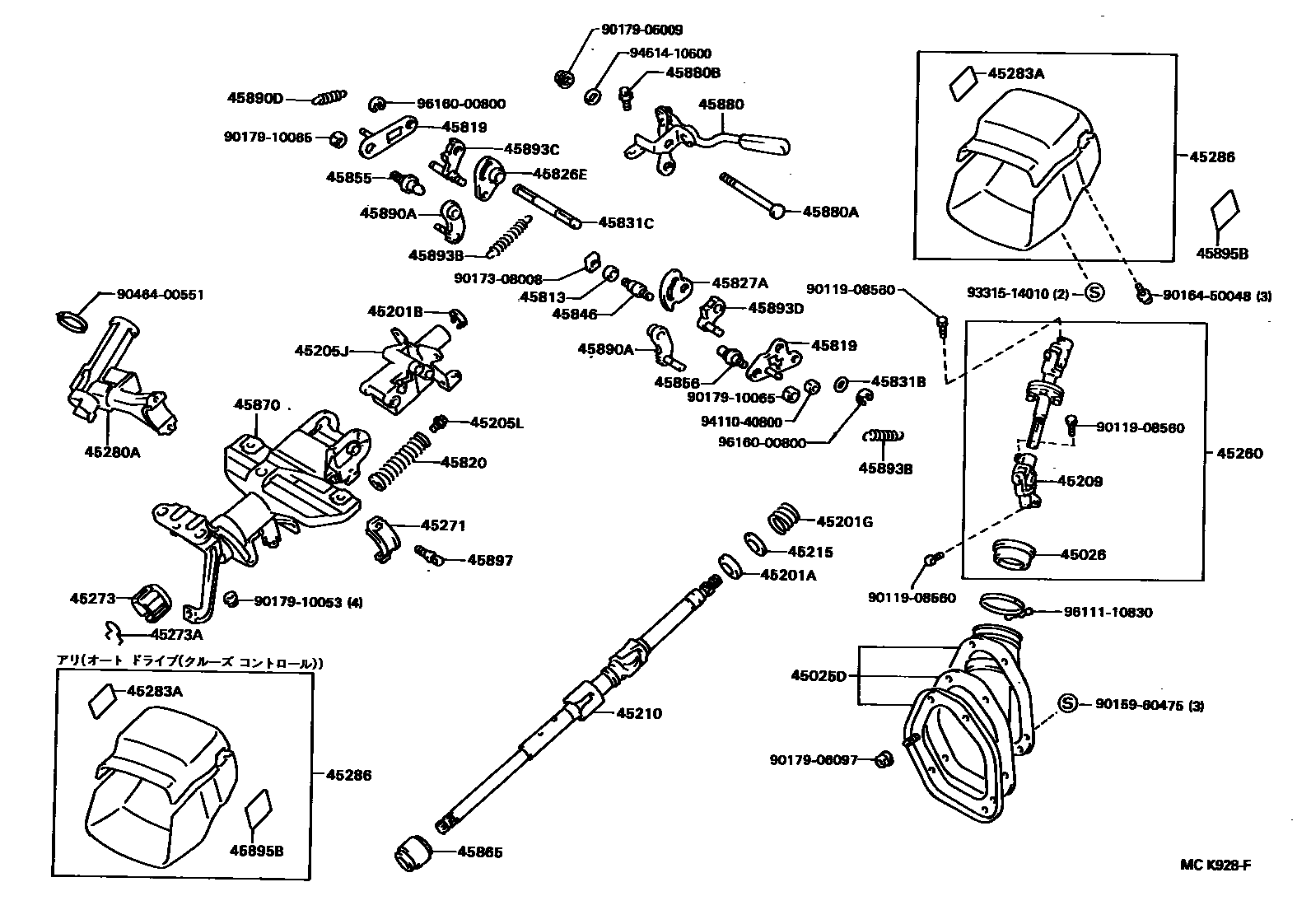

Toyota CAMRY EPC diagram 4501, Steering Column & Shaft, with 2 images and 73 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-32130 · 45025-32131 |
| 45026 | No. 2 steering column hole cover sub-assembly | 45026-32010 |
| 45082 | Separate bracket sub-assembly with enclosure | 45082-32050 |
| 45085 | No. 1 tilt-adjustable memory board sub-assembly | 45085-20010 |
| 45085A | Torsion spring (for tilt-adjustable memory board sub-assembly No. 1) | 90508-12087 |
| 45085B | Spacer (for Tilt Adjustable Memory Board Subassembly No. 1) | 90561-10007 |
| 45085C | Tension spring (for No. 1 tilt-adjustable memory board sub-assembly) | 90506-06012 |
| 45201A | Bearings (for steering spindle) | 90363-18005 |
| 45201B | Shaft snap ring (for steering spindle) | 90520-16002 · 90520-17042 |
| 45201G | Compression spring (for steering spindle) | 90501-40017 |
| 45205J | Steering column upper tube sub-assembly | 45205-32130 · 45205-32131 |
| 45205L | Screw (for steering column tube) | 90168-55002 |
| 45209 | Steering slip fork sub-assembly | 45209-16010 · 45209-32040 |
| 45210 | Steering spindle assembly | 45210-32180 · 45210-32190 |
| 45215 | Spindle bearing thrust collar | 45215-12010 |
| 45260 | No. 2 steering intermediate shaft assembly | 45260-32081 · 45260-32091 · 45260-32101 |
| 45271 | Clamp on steering column | 45271-12060 |
| 45273 | Steering spindle bushing | 45273-20011 |
| 45273A | Hole snap ring (for steering spindle bushing) | 90521-01006 |
| 45280A | Steering column upper bracket assembly | 45280-32280 · 45280-32290 |
| 45283A | Beam change and turn signal warning plate | 45283-22010 |
| 45700G | Steering damper assembly | 45700-20021 |
| 45721 | steering damper bracket | 45721-20021 |
| 45721A | No. 2 steering damper bracket | 45721-32060 |
| 45783 | Tilt-adjustable steering column stop No. 1 | 45783-20030 |
| 45804 | Steering tilt adjustment lever sub-assembly | 45804-20090 |
| 45804G | Pin (for steering tilt adjustment lever) | 90249-03015 |
| 45804H | Compression spring (for steering tilt adjustment lever) | 90501-08124 |
| 45809 | Regulator memory cover sub-assembly | 45809-20070 · 45809-32020 |
| 45810 | Inclination-adjustable steering gear assembly with motor | 45810-32011 · 45810-32012 |
| 45813 | No. 1 tilt-adjustable steering bracket collar | 45813-20090 · 45813-20100 · 45813-20110 · 45813-20120 · 45813-20130 · 45813-20140 · 45813-20150 · 45813-20160 · 45813-20170 |
| 45817 | Steering shaft thrust stop | 45817-20040 |
| 45818 | Connector bracket | 45818-32070 |
| 45819 | Tilt adjustment lever retaining ring | 45819-20070 · 45819-20080 · 45819-22040 · 45819-22060 |
| 45820 | Tilt-adjustable steering bracket spring assembly | 45820-32010 · 45820-32020 · 45820-32030 |
| 45826 | Steering tilt adjustment lever | 45826-32070 |
| 45826A | Tension spring (for steering tilt adjustment lever) | 90508-11008 |
| 45826D | Steering telescopic adjustment lever | 45826-32050 · 45826-32051 |
| 45826E | Steering tilt adjustment lever (for tilt adjustment) | 45826-22050 |
| 45826G | Collar (for steering telescopic adjustment lever) | 90389-10022 |
| 45826H | Compression spring (for steering telescopic adjustment lever) | 90501-12014 |
| 45826J | Steel ball (for steering telescopic adjustment lever) | 90360-06001 |
| 45827A | Steering tilt adjustment lever | 45827-20050 · 45827-22030 |
| 45827B | No. 2 steering tilt auxiliary adjustment lever | 45827-20060 |
| 45827C | No. 3 steering tilt auxiliary adjustment lever | 45827-20070 |
| 45831A | Telescopic adjustment rod locking bolt | 45831-22010 |
| 45831B | Spacer (for tilt adjustment lever locking shaft) | 90560-10062 |
| 45831C | Tilt adjustment lever lock shaft | 45831-20030 |
| 45835 | Locking wedge | 45835-22030 · 45835-22040 |
| 45835A | Tilt adjustment lever serrated connector | 45835-22020 |
| 45846 | Tilt memory bolt | 45846-20030 |
| 45852 | Tilt Memory Board No. 2 | 45852-20010 |
| 45852A | Collar (for tilt memory board #2) | 90386-08042 |
| 45855 | No. 1 tilt-adjustable steering column bolt | 45855-22010 · 45855-22020 · 45856-22010 |
| 45856 | No. 2 tilt-adjustable steering column bolt | 45856-20030 · 45856-20040 · 45856-22010 |
| 45865 | Steering spindle collar | 45865-20010 |
| 45870 | Steering column tube assembly | 45870-20380 · 45870-32140 |
| 45873 | Steering column tube stop | 45873-50020 |
| 45880 | Steering tilt adjustment lever assembly | 45880-32010 |
| 45880A | Bolt (for steering tilt adjustment lever) | 90109-06168 |
| 45880B | Screw (for steering tilt adjustment lever) | 90163-50001 |
| 45883 | Tilt release lever | 45883-20011 |
| 45883A | Tilt release lever No. 2 | 45883-32010 |
| 45884 | Tilt adjustment rod bracket | 45884-20010 |
| 45890A | Tilt-adjustable steering pawl assembly | 45890-20110 · 45890-22090 |
| 45890D | Tension spring (for tilt-adjustable steering pawl assembly) | 90507-07003 |
| 45893B | Tension spring (for tilt-adjustable steering pawl stop) | 90507-08009 · 90507-08010 · 90507-08013 · 90507-10019 |
| 45893C | Right steering pawl block | 45893-20190 · 45893-20200 · 45893-20210 · 45893-20220 · 45893-20230 · 45893-20240 · 45893-20250 · 45893-24010 · 45893-24020 · 45893-24030 · 45893-24040 · 45893-24050 · 45893-24060 · 45893-24070 |
| 45893D | Left steering pawl block | 45893-20260 · 45893-20270 · 45893-20280 · 45893-20290 · 45893-20300 · 45893-20310 · 45893-20320 |
| 45893E | Collar (for tilt-adjustable steering stop) | 90386-05010 |
| 45895A | Tilt-adjustable steering warning nameplate | 45895-20130 |
| 45895B | Tilt adjustment lever indicator plate | 45895-20090 · 45895-20120 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
