Toyota CAMRY Front Drive Shaft — Figure 4302

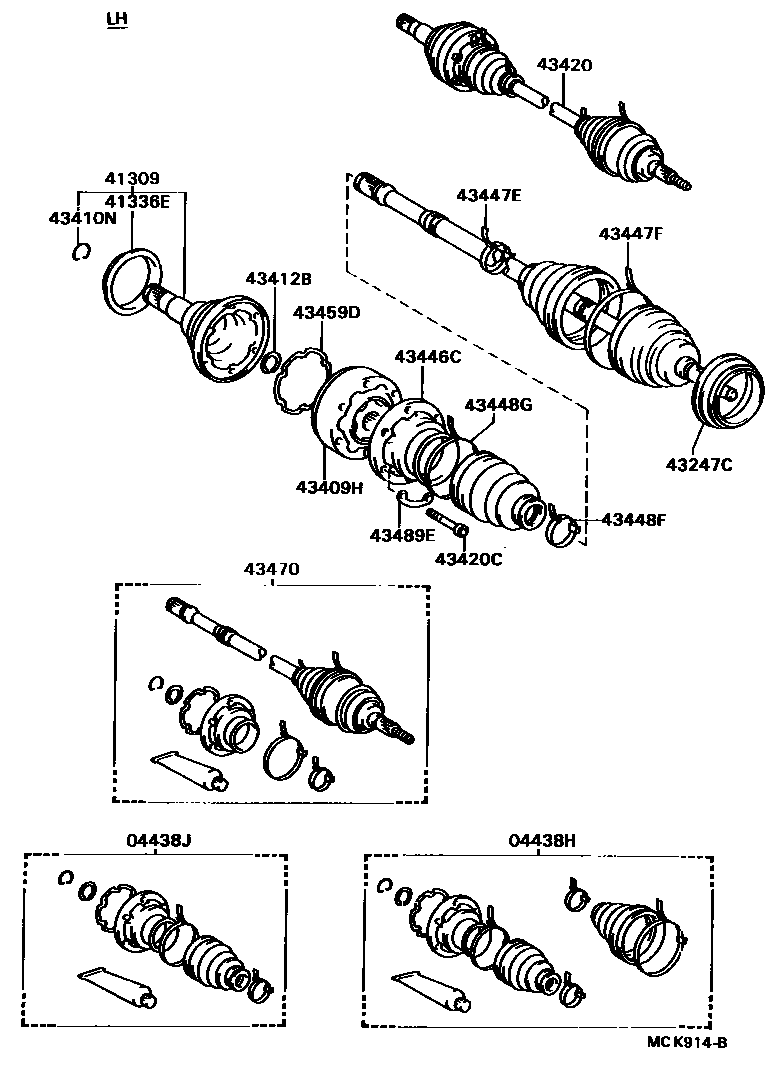

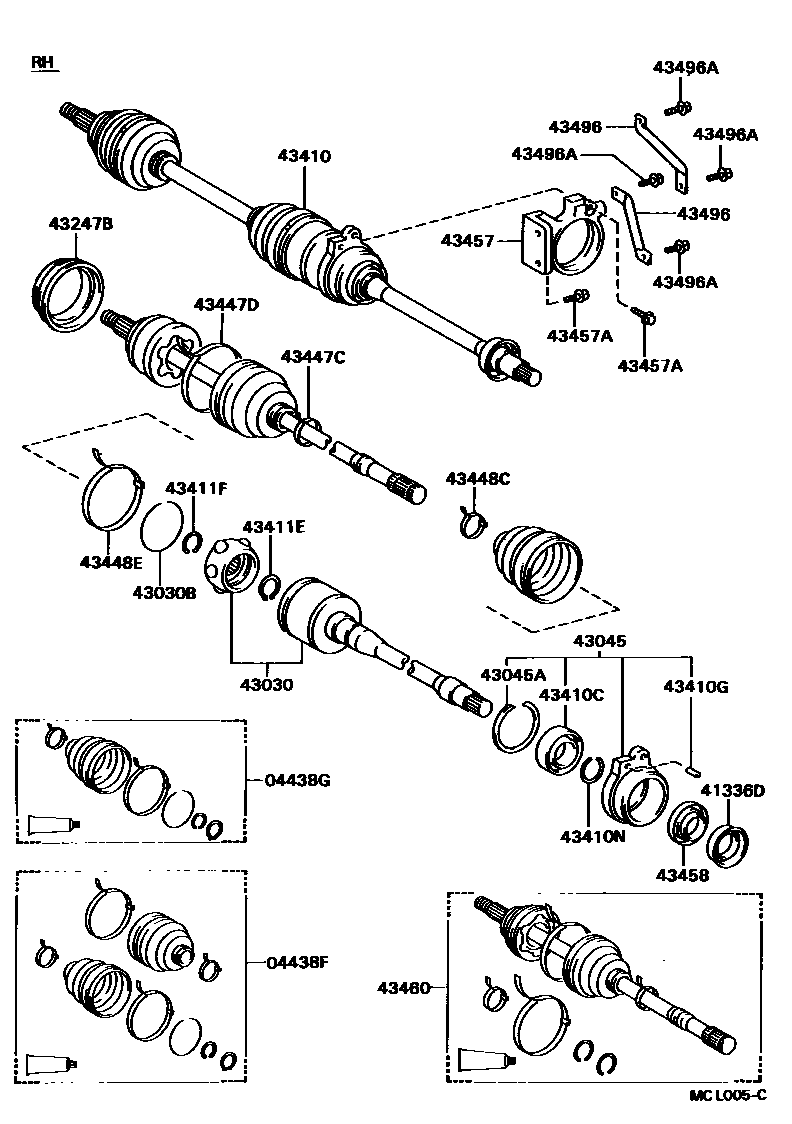

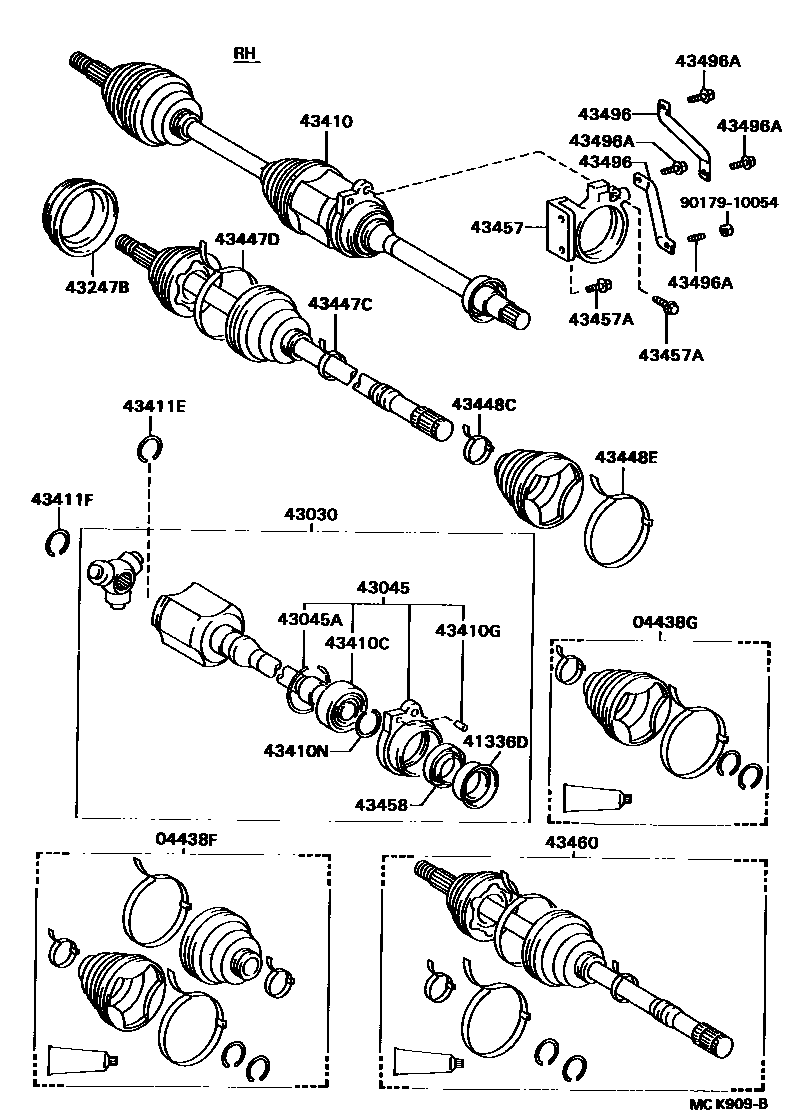

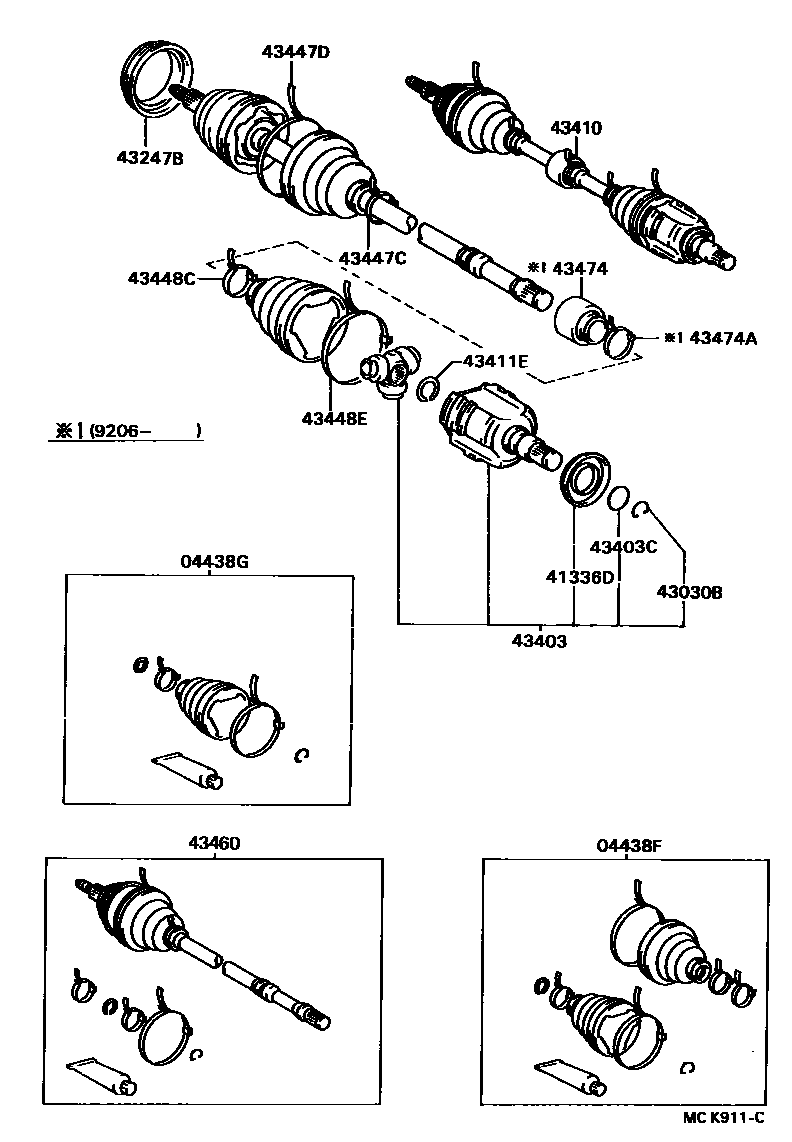

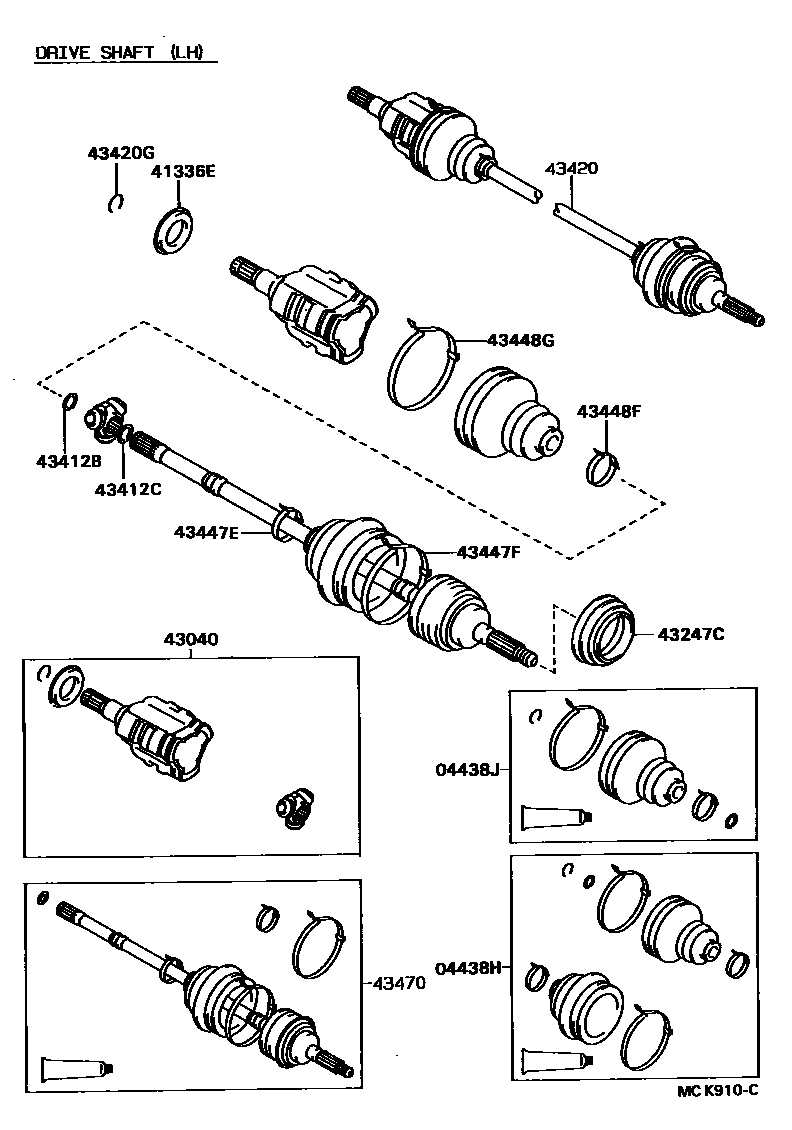

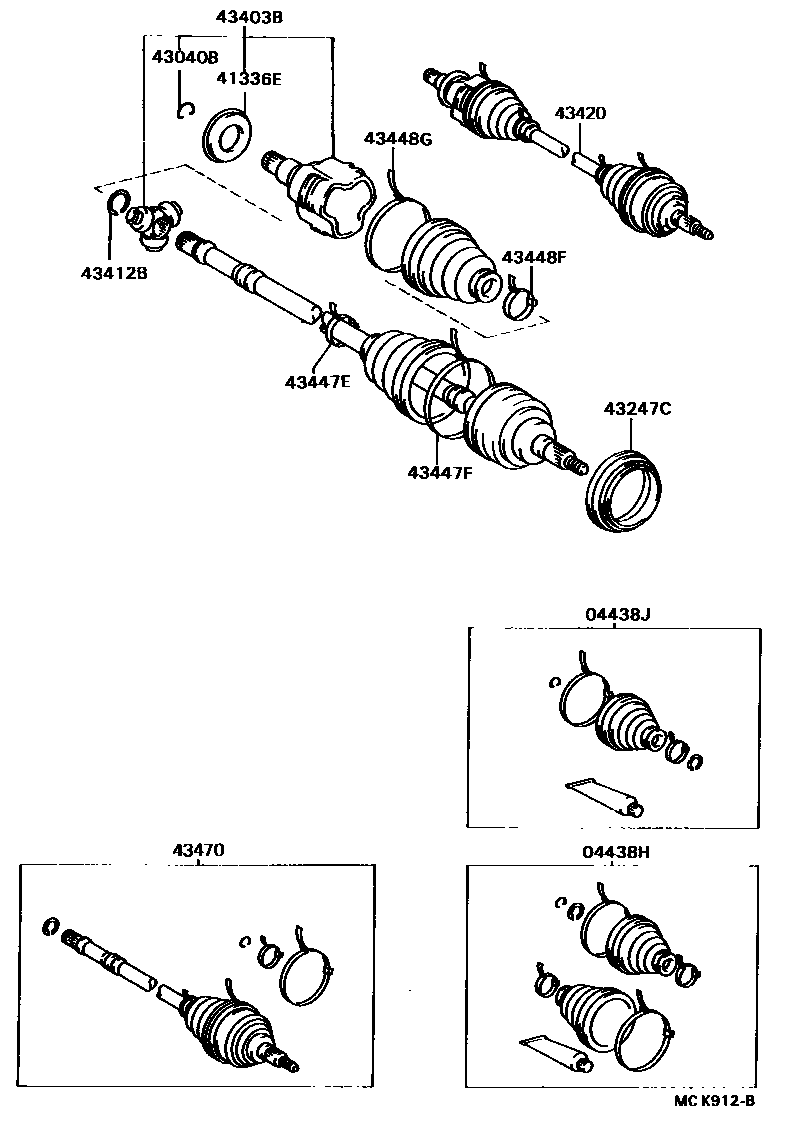

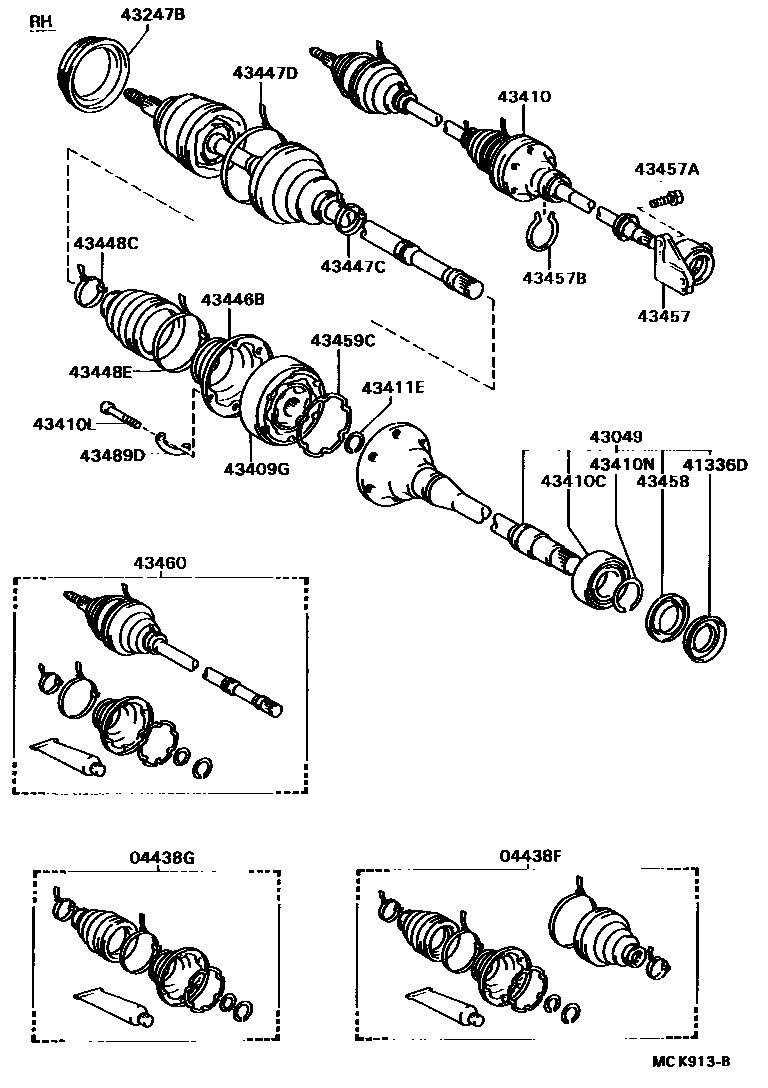

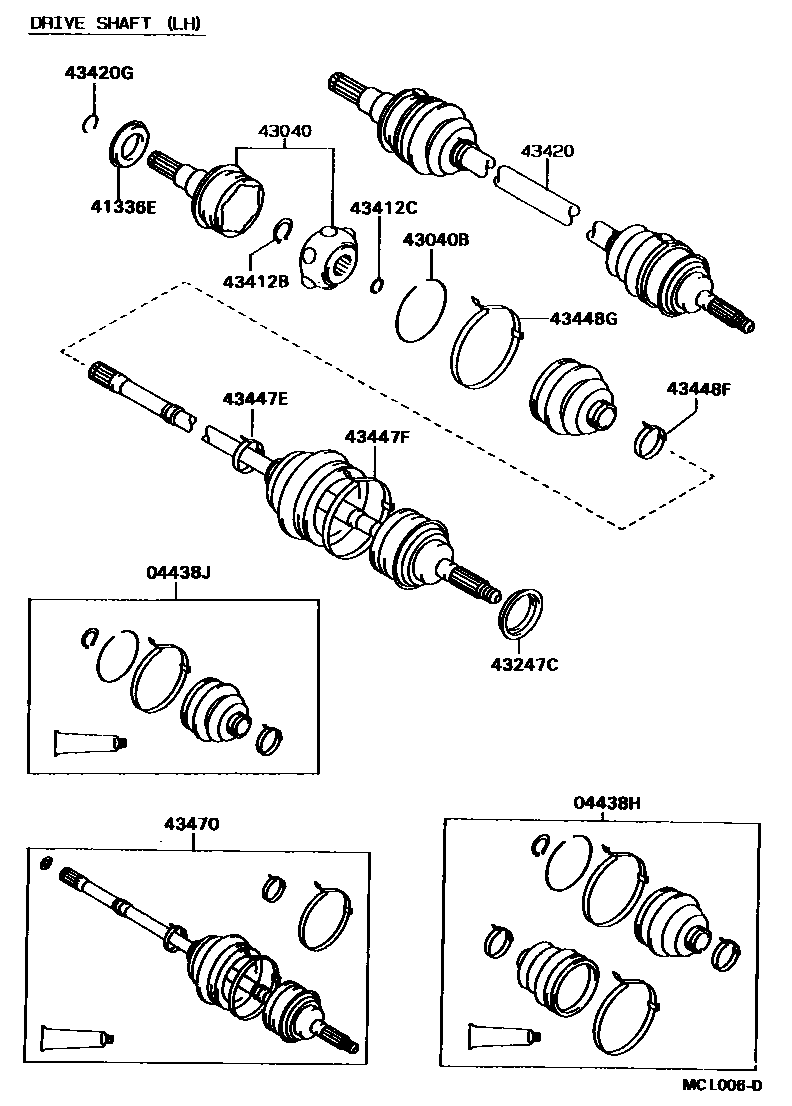

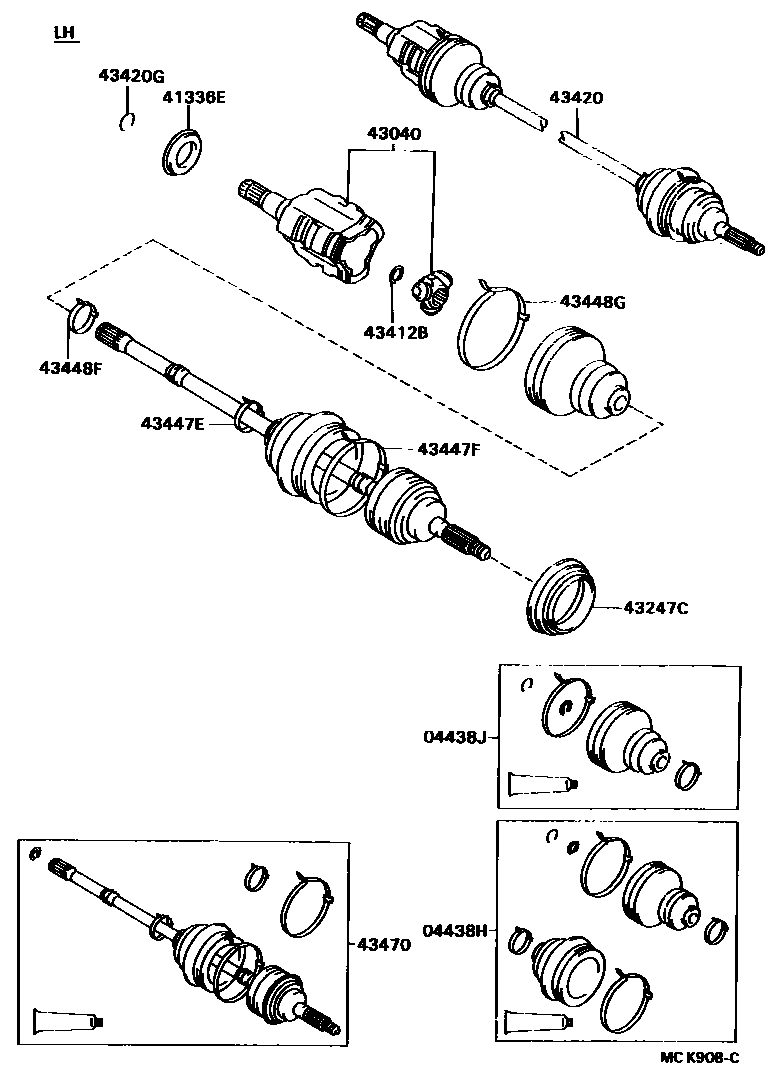

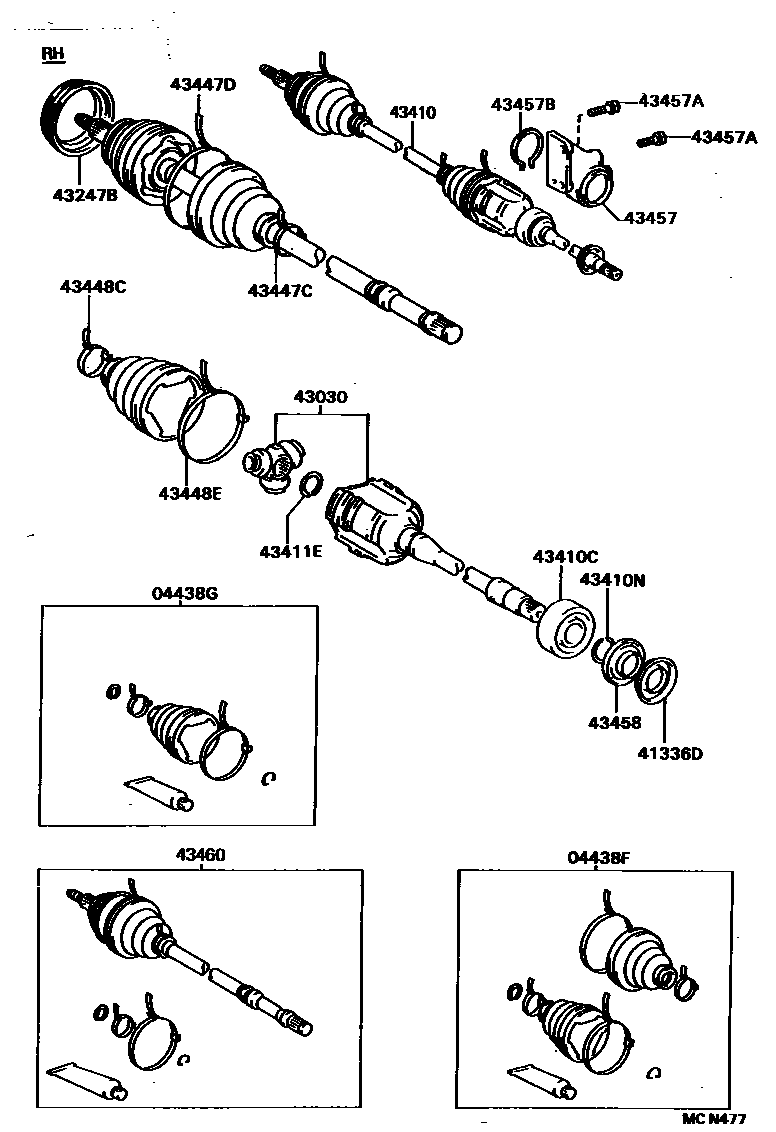

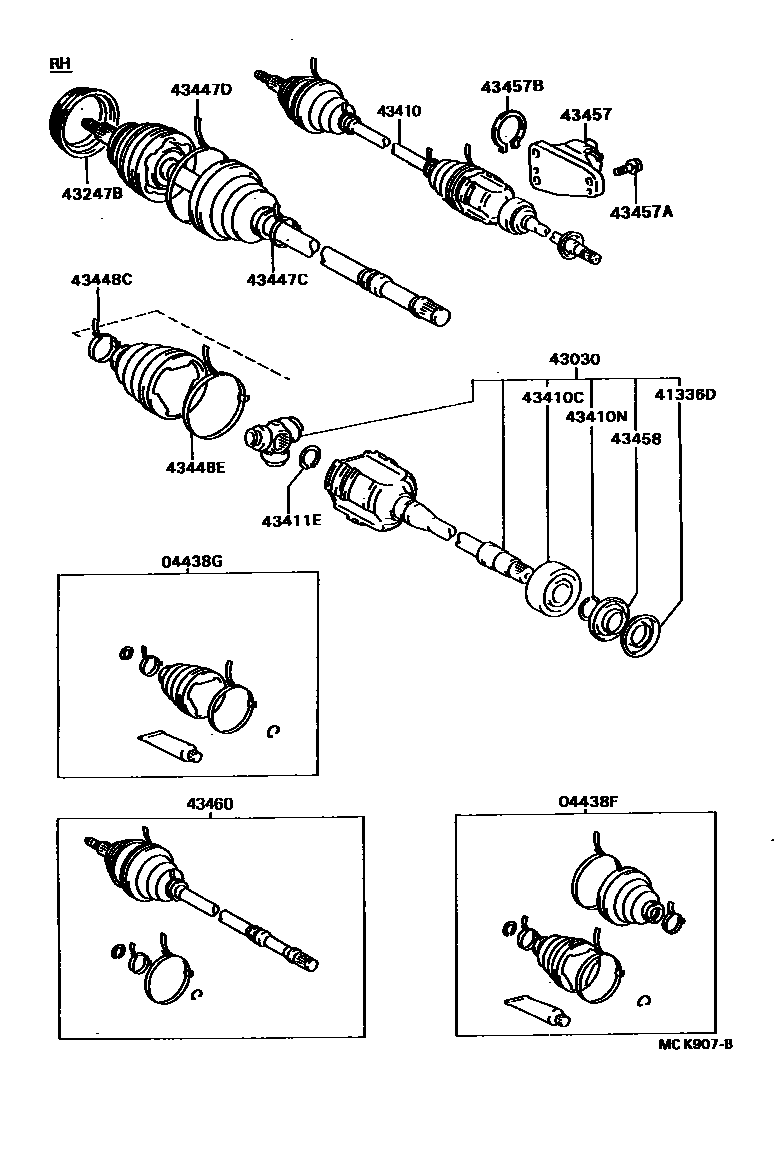

Toyota CAMRY EPC diagram 4302, Front Drive Shaft, with 11 images and 57 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04437-17040 · 04438-12190 · 04438-12191 · 04438-12270 · 04438-20070 · 04438-20110 · 04438-32120 · 04438-32150 · 04438-32170 · 04438-32171 · 04438-32172 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-17030 · 04438-12160 · 04438-12161 · 04438-12260 · 04438-20060 · 04438-32110 · 04438-32140 · 04438-32160 · 04438-32161 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04437-17040 · 04438-12270 · 04438-20070 · 04438-32120 · 04438-32150 · 04438-32170 · 04438-32171 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04437-17030 · 04438-12260 · 04438-20060 · 04438-32110 · 04438-32140 · 04438-32160 · 04438-32161 |
| 41309 | Left differential side gear shaft sub-assembly | 41309-17030 |
| 41336D | Right front driveshaft dust cover | 41336-12020 · 41336-20011 · 41336-20040 |
| 41336E | Left front driveshaft dust cover | 41336-12040 · 41336-17020 · 41336-32020 · 41336-32030 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-20010 · 43030-20030 · 43030-20040 · 43030-32010 · 43030-32040 · 43030-32050 |
| 43030B | Hole snap ring (for right front drive shaft inboard universal joint) | 90521-26004 · 90521-79001 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-20010 · 43040-20020 · 43040-32010 · 43040-32030 |
| 43040B | Hole snap ring (for left front drive shaft inboard universal joint) | 90521-26004 · 90521-79001 |
| 43045 | Drive shaft bearing shell sub-assembly | 43045-20010 |
| 43045A | Snap ring (for drive shaft bearing housing sub-assembly) | 96153-00680 |
| 43049 | Front drive flange shaft sub-assembly | 43049-32030 |
| 43247B | No. 2 right front wheel bearing dust cover | 43247-12010 · 43247-32011 · 43247-33010 |
| 43247C | No. 2 left front wheel bearing dust cover | 43247-12010 · 43247-32011 · 43247-33010 |
| 43403 | Right front axle inner universal joint assembly | 43403-12050 |
| 43403B | Left front axle inner universal joint assembly | 43403-12060 |
| 43403C | O-ring (for front drive shaft inboard universal joint) | 90301-26006 |
| 43409G | Right front drive shaft cross-slot universal joint sub-assembly | 43409-17010 |
| 43409H | Left front drive shaft cross-slot universal joint sub-assembly | 43409-17010 |
| 43410 | Right front driveshaft assembly | 43410-12400 · 43410-12410 · 43410-20220 · 43410-20221 · 43410-20230 · 43410-20231 · 43410-20240 · 43410-20241 · 43410-20250 · 43410-20251 · 43410-32140 · 43410-32141 · 43410-32150 · 43410-32180 · 43410-32181 · 43410-32200 · 43410-32201 · 43410-32210 · 43410-32211 · 43410-32220 · 43410-32221 · 43410-32230 · 43410-32231 · 43410-32240 · 43410-32241 · 43410-32250 · 43410-32251 · 43410-32260 · 43410-32261 · 43410-32270 · 43410-32271 · 43410-32280 · 43410-32281 |
| 43410C | Bearings (for front driveshaft) | 90363-36001 · 90369-36001 · 90369-41001 |
| 43410G | Direct sales (for front driveshaft) | 90250-06003 |
| 43410L | Bolt (for right front driveshaft cross-recessed universal joint) | 90110-10007 |
| 43410N | Hole snap ring (for right front driveshaft) | 90520-33008 · 90520-38015 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 90520-22005 · 90520-24028 · 90520-25034 · 90520-26028 · 90520-26048 |
| 43411F | Outer shaft snap ring (for right front axle inner drive shaft) | 90520-25033 · 90520-25037 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 90520-22005 · 90520-24028 · 90520-25034 · 90520-26028 · 90520-26048 |
| 43412C | Outer shaft snap ring (for left front axle inner drive shaft) | 90520-25033 · 90520-25037 |
| 43420 | Left front drive shaft assembly | 43420-20170 · 43420-20171 · 43420-20180 · 43420-20181 · 43420-20190 · 43420-20191 · 43420-20200 · 43420-20201 · 43420-32120 · 43420-32121 · 43420-32160 · 43420-32161 · 43420-32170 · 43420-32171 · 43420-32180 · 43420-32181 · 43420-32190 · 43420-32191 · 43420-32200 · 43420-32201 · 43420-32210 · 43420-32211 · 43420-32220 · 43420-32221 |
| 43420C | Bolt (for left front driveshaft cross-recessed universal joint) | 90110-10007 |
| 43420G | Hole snap ring (for left front driveshaft) | 90521-27005 · 90521-33002 |
| 43446B | Right front axle inner universal joint cover | 43446-17010 |
| 43446C | Left front axle inner universal joint cover | 43446-17010 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-14010 · 90949-01108 · 90949-01559 · 90949-01654 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-16040 · 42345-16060 · 90949-01076 · 90949-01107 · 90949-01339 · 90949-01473 · 90949-01656 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-14010 · 90949-01108 · 90949-01559 · 90949-01654 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-16040 · 42345-16060 · 90949-01076 · 90949-01107 · 90949-01339 · 90949-01473 · 90949-01656 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-14010 · 90949-01078 · 90949-01108 · 90949-01559 · 90949-01654 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-16040 · 42345-16090 · 42345-30010 · 42346-22010 · 90949-01076 · 90949-01340 · 90949-01655 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-14010 · 90949-01078 · 90949-01108 · 90949-01559 · 90949-01654 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-16040 · 42345-16090 · 42345-30010 · 42346-22010 · 90949-01076 · 90949-01340 · 90949-01655 |
| 43457 | drive shaft bearing bracket | 43457-20030 · 43457-32040 · 43457-32050 · 43457-32060 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90105-10202 · 90105-10285 · 90119-10461 |
| 43457B | Hole snap ring (for drive shaft bearing bracket) | 90521-75002 · 90521-78002 |
| 43458 | Front drive shaft dust cover | 43458-12010 · 43458-20011 |
| 43459C | Right front driveshaft cross-recessed universal joint gasket | 43459-17010 |
| 43459D | Left front driveshaft cross-recessed universal joint gasket | 43459-17010 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-19307 · 43470-19165 · 43470-19166 · 43470-19305 · 43470-19306 · 43470-29135 · 43470-29136 · 43470-29145 · 43470-29146 · 43470-29155 · 43470-29156 · 43470-29165 · 43470-29166 · 43470-39085 · 43470-39086 · 43470-39087 · 43470-39105 · 43470-39106 · 43470-39115 · 43470-39116 · 43470-39125 · 43470-39126 · 43470-39135 · 43470-39136 · 43470-39165 · 43470-39166 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-19165 · 43470-19166 · 43470-19305 · 43470-19306 · 43470-29135 · 43470-29136 · 43470-29145 · 43470-29146 · 43470-29155 · 43470-29156 · 43470-29166 · 43470-39085 · 43470-39086 · 43470-39105 · 43470-39106 · 43470-39115 · 43470-39116 · 43470-39125 · 43470-39126 · 43470-39135 · 43470-39136 · 43470-39165 · 43470-39166 |
| 43474 | drive shaft damper | 43474-12030 |
| 43474A | Clamp (for securing driveshaft damper) | 90949-01696 |
| 43489D | Right front driveshaft cross-recessed universal joint washer | 43489-17010 |
| 43489E | Left front driveshaft cross-recessed universal joint washer | 43489-17010 |
| 43496 | No. 1 front drive shaft bearing bracket stay | 43496-20010 · 43496-20030 · 43496-20060 |
| 43496A | Bolt (for driveshaft bearing bracket stay) | 90105-10263 · 90116-10164 |
