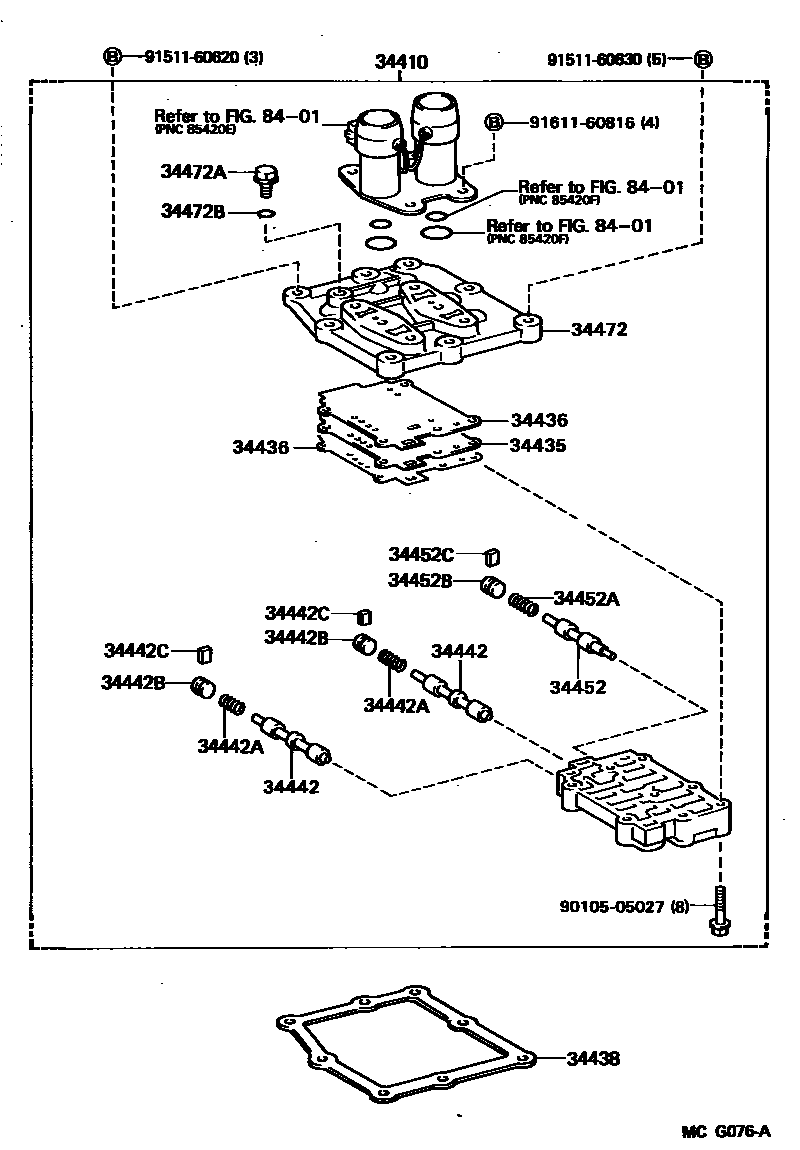

Toyota CAMRY 分动器阀体和阀杆 — Figure 3615
Toyota CAMRY EPC diagram 3615, 分动器阀体和阀杆, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 34410 | Transfer case control valve body assembly | 34410-32010 · 34410-32020 |
| 34435 | Transfer case lower valve body plate | 34435-32010 · 34435-32020 |
| 34436 | No. 1 transfer case lower valve body gasket | 34436-32010 · 34436-32011 |
| 34438 | Transfer case valve body gasket | 34438-32010 · 34438-32011 |
| 34442 | Low gear-high gear shift valve | 34442-32010 |
| 34442A | Compression spring (for low-speed shift valve) | 90501-07070 |
| 34442B | Plunger (for low-high gear shift valve) | 90339-04028 |
| 34442C | Straight key (for low gear-high gear shift valve) | 90282-03011 |
| 34452 | Transfer case direct gear clutch regulator valve | 34452-32010 |
| 34452A | Spring (for transfer case direct clutch regulator valve) | 90501-06048 |
| 34452B | Plunger (for transfer case direct clutch regulator valve) | 90339-04017 |
| 34452C | Straight key (for transfer case direct clutch regulator valve) | 90282-03011 |
| 34472 | Transfer case valve body cover | 34472-32010 · 34472-32011 |
| 34472A | Screw plug (for transfer case valve body cover) | 90341-08001 |
| 34472B | O-ring (for transfer case valve body cover screw plug) | 90301-06196 |
