Toyota CAMRY 变速器油冷却器和配管(ATM) — Figure 3514

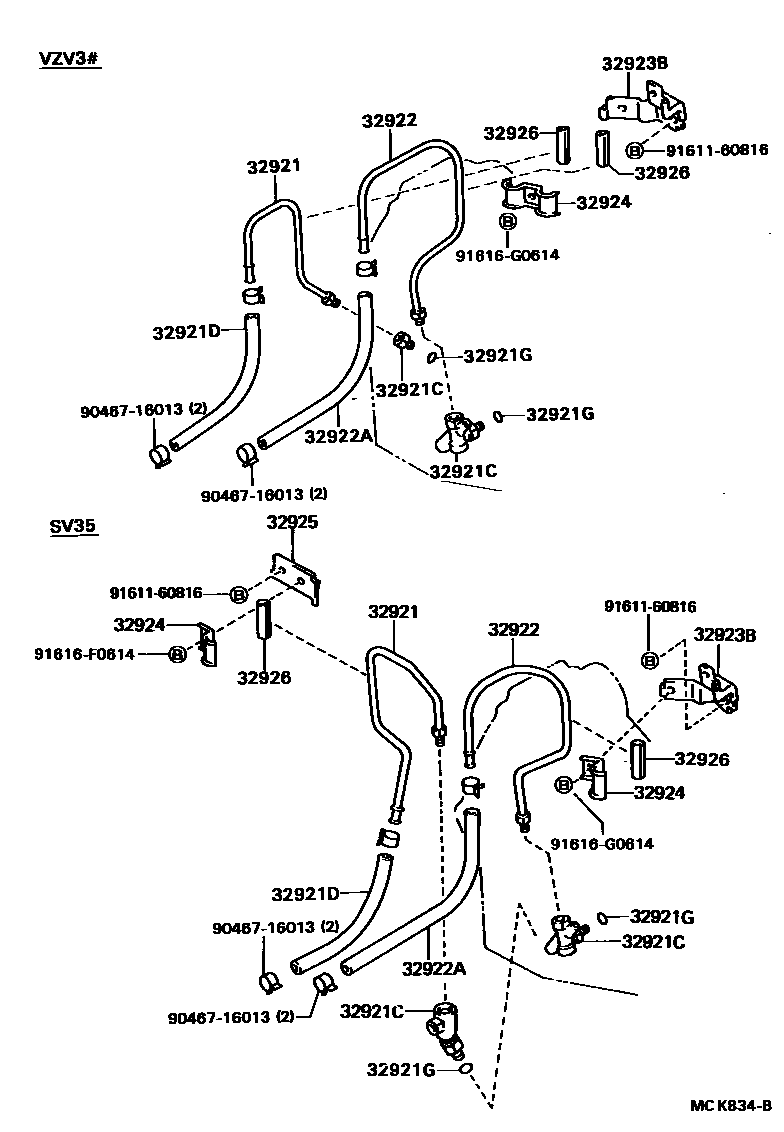

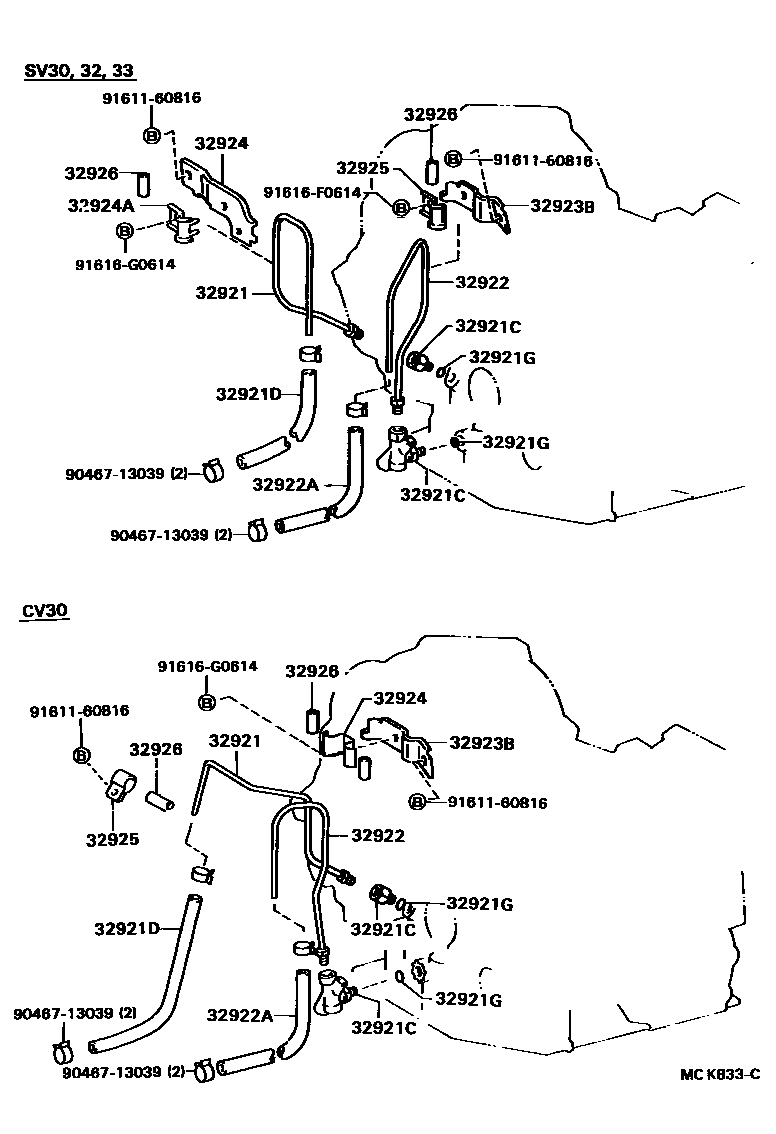

Toyota CAMRY EPC diagram 3514, 变速器油冷却器和配管(ATM), with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32921 | No. 1 transmission oil cooler oil inlet pipe | 32921-32041 · 32921-32052 · 32921-32130 · 32921-32140 |
| 32921C | Fitting (for transmission oil cooler tube) | 32901-32030 · 32901-32040 · 32901-32060 · 32901-32070 · 32918-32010 · 90402-14004 · 90404-14007 · 90404-14018 · 90404-16021 · 90404-16031 |
| 32921D | Hose (for transmission oil cooler oil inlet) | 90445-15042 · 90445-15057 · 90445-17096 · 90445-17117 · 90445-17124 |
| 32921G | O-ring (for transmission oil cooler pipe joint) | 90301-10189 |
| 32922 | No. 1 transmission oil cooler oil outlet pipe | 32922-32070 · 32922-32071 · 32922-32072 · 32922-32080 · 32922-32081 · 32922-32100 · 32922-32101 |
| 32922A | Hoses (for transmission oil cooler oil outlet) | 90445-15048 · 90445-17106 |
| 32923B | No. 1 automatic transmission oil cooler pipe clamp | 32923-20090 · 32923-32030 · 32923-32040 |
| 32924 | No. 2 transmission oil cooler pipe clamp | 32923-20111 · 90462-12044 · 90462-12071 · 90462-12085 |
| 32924A | Clamp (for No. 2 transmission oil cooler tube) | 90462-10082 |
| 32925 | No. 3 transmission oil cooler pipe clamp | 32923-32060 · 90461-06207 · 90462-10082 |
| 32926 | Automatic transmission oil cooler pipe cushion | 32926-10010 · 32926-30020 · 32926-32010 |
