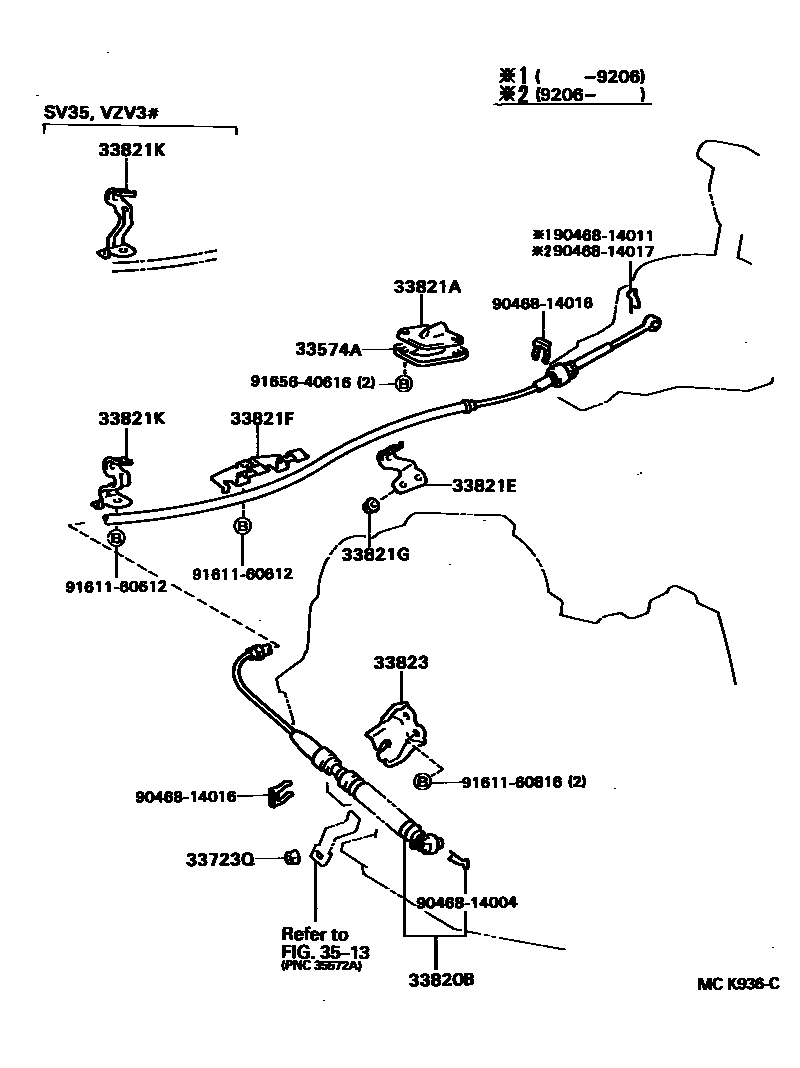

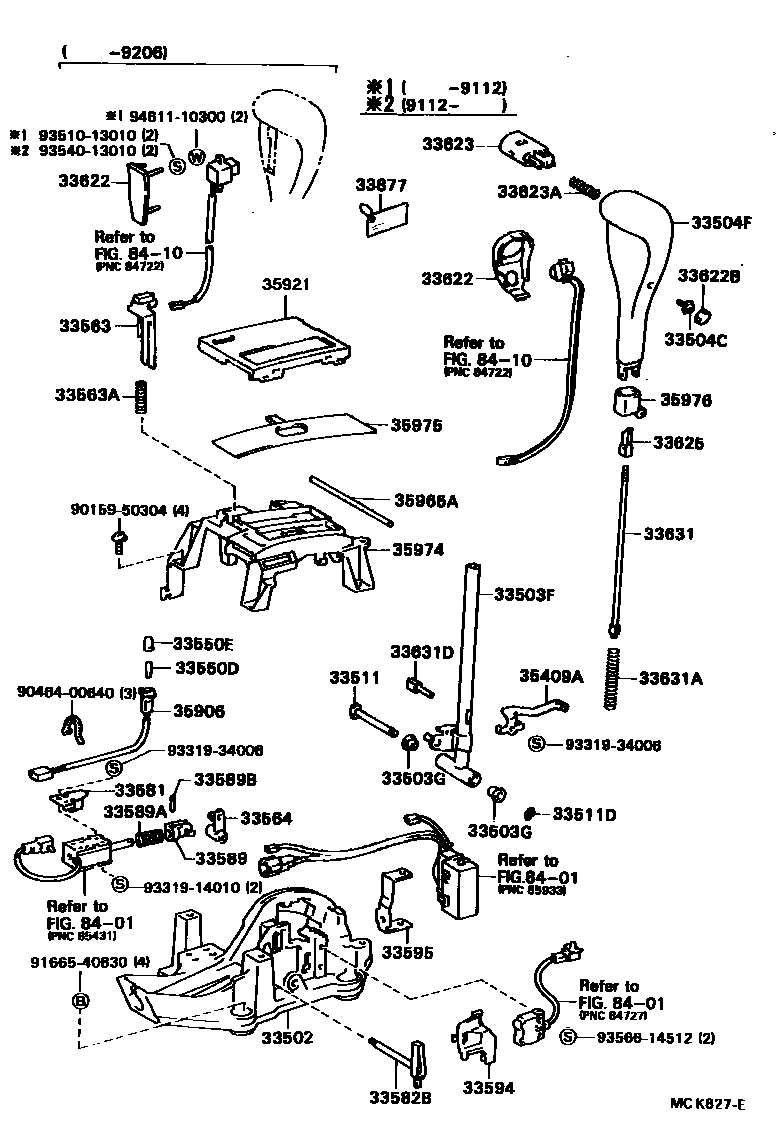

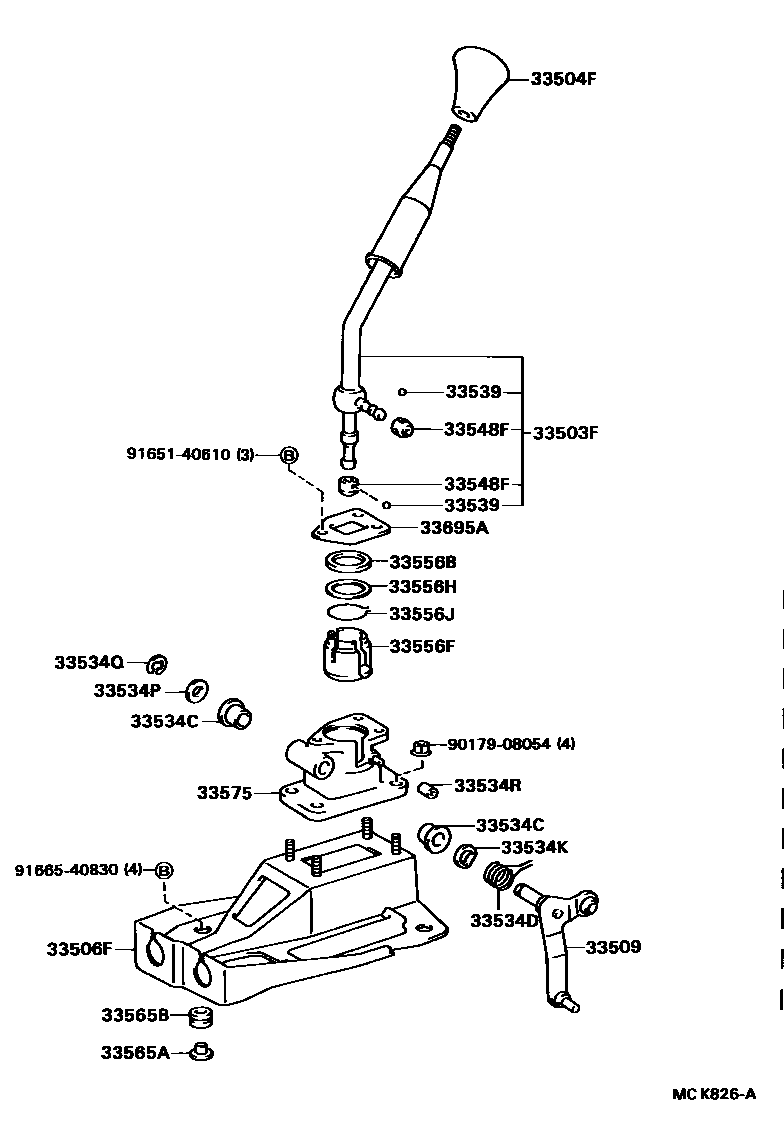

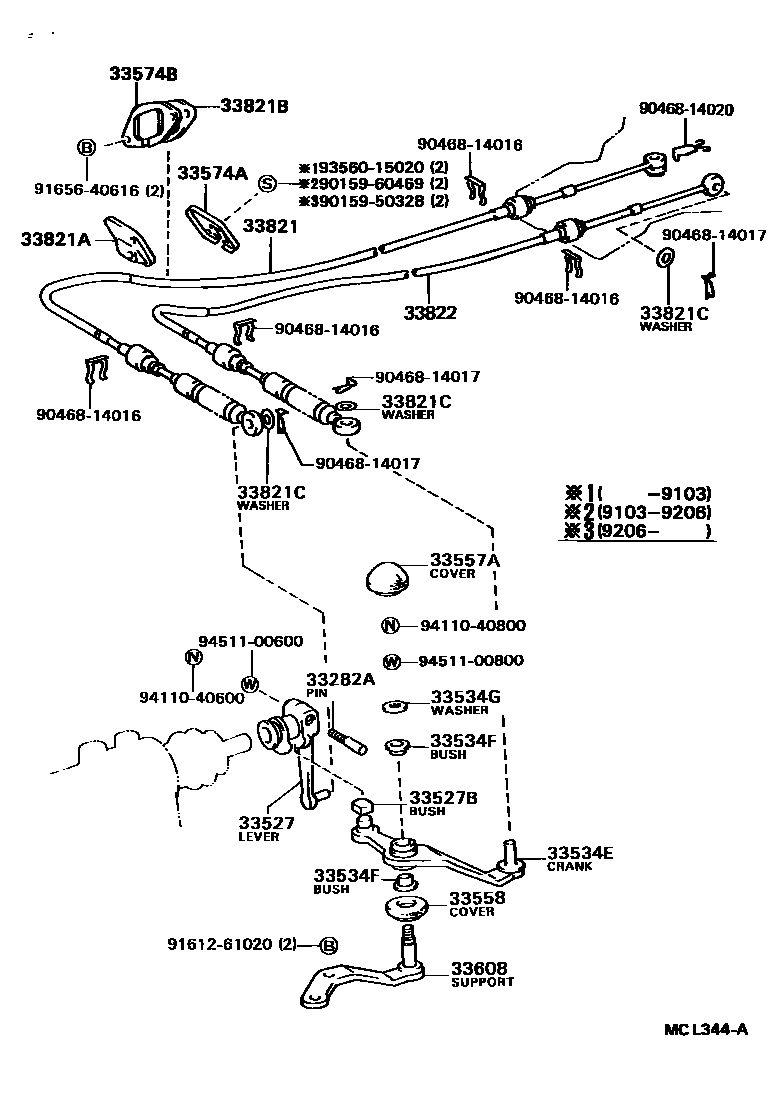

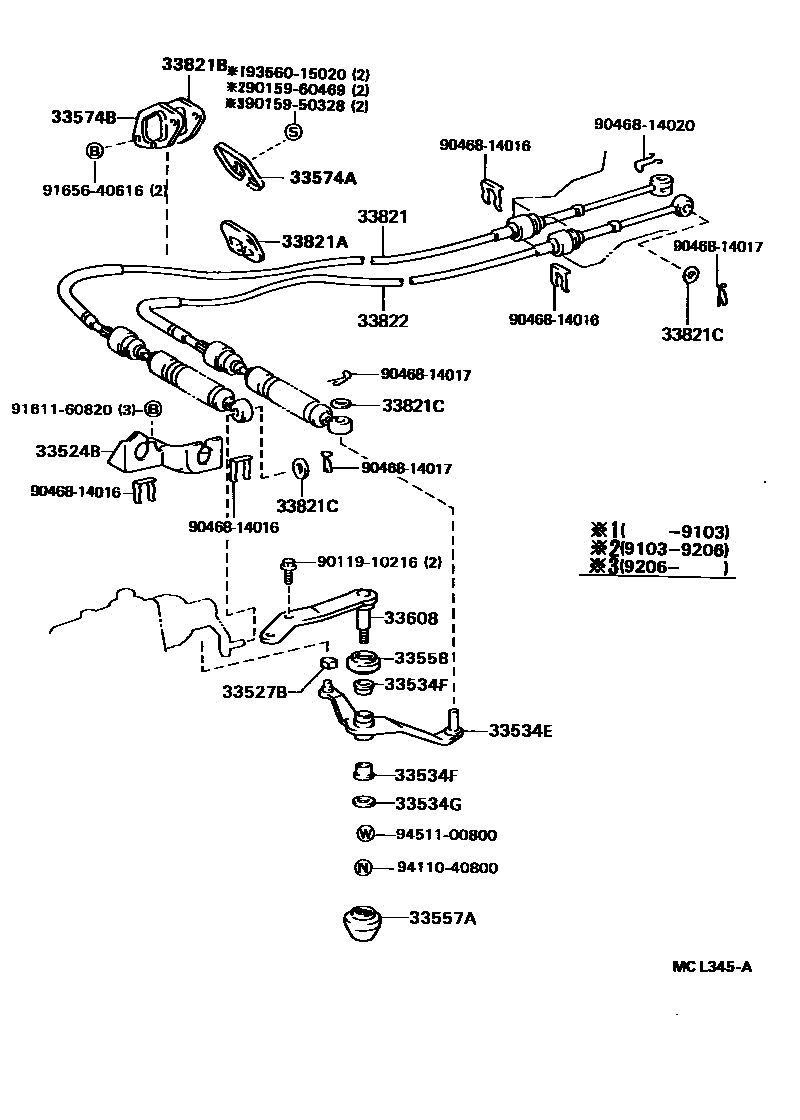

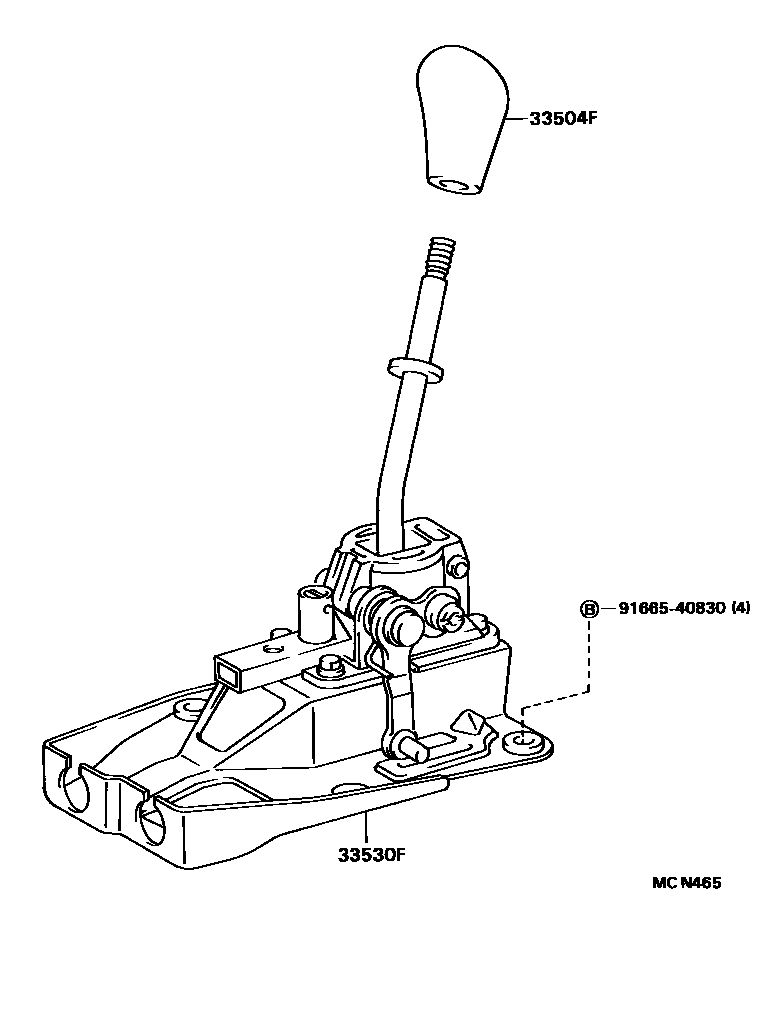

Toyota CAMRY Shift Lever & Retainer — Figure 3312
Toyota CAMRY EPC diagram 3312, Shift Lever & Retainer, with 6 images and 74 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33282A | Shift lever lock pin (for shift lever) | 33282-35010 |
| 33502 | Shift lever base plate sub-assembly | 33502-32130 · 33521-32070 |
| 33503F | Shift lever sub-assembly (for floor shift) | 33055-32070 · 33055-32080 · 33055-32091 · 33055-32100 · 33055-32101 · 33055-32110 · 33055-32120 |
| 33503G | Bushing (for shift lever) | 90386-08048 |
| 33504C | Screw (for securing shift lever knob) | 90159-40221 |
| 33506F | Shift control lever stopper sub-assembly (for floor shift) | 33506-32060 · 33506-32070 |
| 33509 | No. 1 gear selection right-angle lever sub-assembly | 33509-12080 · 33509-32011 |
| 33511 | Control shaft (for floor shifting) | 33511-32050 |
| 33511D | E-ring (for floor-mounted shift control shaft) | 96160-00600 |
| 33524B | Control cable bracket | 33524-20010 · 33524-32020 |
| 33527 | Gear shift lever (for floor shift) | 33527-32010 |
| 33527B | Bushing (for shift control lever) | 33557-33010 · 90389-10009 |
| 33530F | Shift lever assembly (for floor shift) | 33530-33050 |
| 33534C | Bushing (for No. 1 gear selector right-angle lever) | 90386-12034 |
| 33534D | Torsion spring (for No. 1 gear selector right-angle lever) | 90508-20084 |
| 33534E | No. 2 gear selection right-angle lever | 33534-12090 · 33534-12091 · 33534-20020 · 33534-32030 · 33534-33010 |
| 33534F | Bushing (for No. 2 gear selector right-angle lever) | 90386-12022 |
| 33534G | Flat washer (for No. 2 gear selector right-angle lever) | 90201-08028 |
| 33534K | Wave washer (for No. 1 gear selection right-angle lever) | 90206-12003 |
| 33534P | Flat washer (for No. 1 gear selector right-angle lever) | 90201-12052 |
| 33534Q | E-ring (for No. 1 gear selection right-angle lever) | 96160-00900 |
| 33534R | Cushion pad (for No. 1 gear selector right-angle lever) | 90540-06029 |
| 33539 | Gear shifter anti-vibration cushion | 33539-12010 |
| 33548F | Shift lever bushing No. 1 (for floor shift) | 33548-12040 |
| 33550D | position indicator light bulb | 90981-11014 |
| 33550E | position indicator cover | 90339-04041 |
| 33556B | Bushing (for transmission shift lever ball seat) | 90389-37001 |
| 33556F | Transmission shift lever ball seat | 33556-20040 |
| 33556H | Spacer (for transmission shift lever ball seat) | 90564-37009 · 90564-37010 · 90564-37011 · 90564-37012 · 90564-37013 · 90564-37014 · 90564-37015 · 90564-37016 · 90564-37017 · 90564-37018 · 90564-37019 · 90564-37020 · 90564-37021 |
| 33556J | Shaft snap ring (for transmission shift lever ball seat) | 90520-36018 |
| 33557A | No. 1 gear selection right-angle lever dust cover | 33557-32010 |
| 33558 | No. 2 gear selection right-angle lever dust cover | 33558-10030 · 33558-12010 · 33558-32010 |
| 33563 | Shift lock release button | 33563-32030 |
| 33563A | Compression spring (for shift lock release button) | 90501-08126 |
| 33564 | No. 1 shift lock release link | 33564-32040 |
| 33565A | Bushing No. 1 (for shift lever cover) | 90389-08092 |
| 33565B | Bushing No. 2 (for shift lever cover) | 90385-09008 |
| 33574A | No. 1 shift cable retaining ring retaining ring | 33574-32150 · 33574-32180 · 33574-32181 · 33574-32190 · 33574-32191 |
| 33574B | No. 2 shift cable seal | 33574-32160 |
| 33575 | Shift lever stop (for floor shift) | 33575-20362 · 33575-32060 |
| 33581 | Shift lock solenoid valve bracket | 33581-32030 |
| 33582B | Shift lock plate stop (for floor shift) | 33582-32020 |
| 33589 | Shift lock solenoid valve connecting rod | 33589-32030 |
| 33589A | Compression spring (for shift lock solenoid valve linkage) | 90501-06071 |
| 33589B | Slotted spring pin (for shift lock solenoid linkage) | 90254-02010 |
| 33594 | Shift lock plate (for floor shift) | 33594-32030 |
| 33595 | Shift lock ECU bracket | 33595-32070 |
| 33608 | Gear selection right-angle lever bracket sub-assembly | 33608-12030 · 33608-12031 · 33608-20010 · 33608-32021 · 33608-33010 |
| 33622B | Shift lever knob screw plug | 33622-32080 |
| 33623A | Compression spring (for shift lever knob button) | 90501-06078 · 90504-07001 |
| 33625 | Shift lever handle sleeve | 33625-32020 · 33625-32030 |
| 33631 | Locking lever | 33631-32040 · 33631-32050 |
| 33631A | Compression spring (for locking lever) | 90501-09105 |
| 33631D | Grooved pin (for locking lever) | 90249-04051 |
| 33695A | shift lever ball cover | 33695-32010 |
| 33723Q | Nut (for connecting rod swivel joint) | 90179-08054 |
| 33820B | Transmission control cable assembly | 33820-32290 |
| 33821 | Transmission shift control cable (for floor-mounted shifting) | 33821-32280 · 33821-32310 · 33821-32350 |
| 33821A | No. 1 retaining ring (for transmission control cable) | 90480-01572 · 90480-01579 · 90480-01581 |
| 33821B | No. 2 retaining ring (for transmission control cable) | 90480-01583 · 90480-01584 |
| 33821C | Flat Washer (for transmission control cable) | 90201-08077 · 90201-10042 |
| 33821E | Clamp No. 1 (for transmission control cable) | 90949-01682 |
| 33821F | Clamp No. 2 (for transmission control cable) | 90949-01680 |
| 33821G | Nut (for transmission control cable) | 90179-06009 |
| 33821K | Clamp No. 3 (for transmission control cable) | 90949-01681 · 90949-01701 · 90949-01737 |
| 33822 | Transmission selector control cable (for floor-mounted shifting) | 33822-32180 · 33822-32210 · 33822-32230 |
| 33823 | No. 1 transmission control cable bracket | 33823-32030 · 33823-32031 |
| 33877 | Shift lock information label No. 1 | 33877-30030 · 33877-32010 |
| 35409A | Manual locking spring sub-assembly (for floor shift) | 35409-32040 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-32020 |
| 35921 | control position indicator board | 35921-32110 |
| 35965A | Shift lever slide guide | 35965-32010 |
| 35974 | Position indicator light lower shell | 35974-32070 |
| 35975 | Slide cover (for position indicator light) | 35975-32130 |
