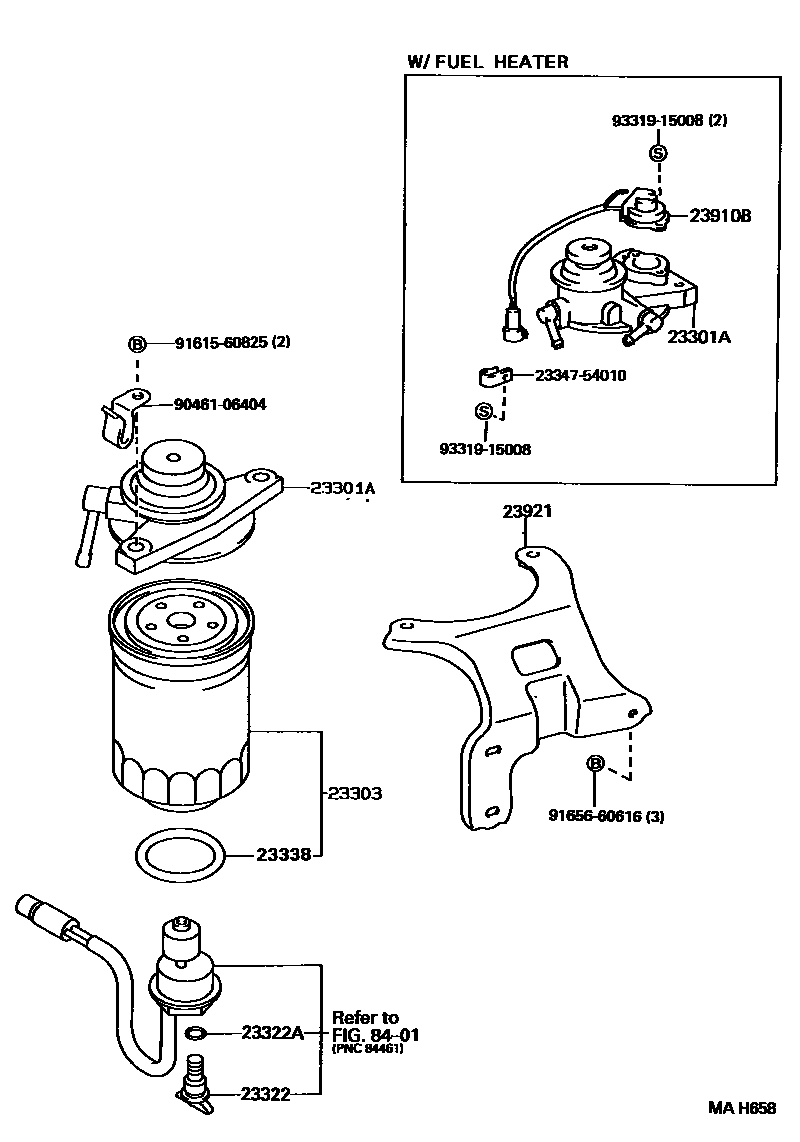

Toyota CAMRY fuel filter — Figure 2302
Toyota CAMRY EPC diagram 2302, fuel filter, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23301A | Fuel filter cover assembly | 23301-64140 · 23301-64260 |
| 23303 | Fuel filter element sub-assembly | 23303-64010 |
| 23322 | Drain plug (for fuel filter) | 23322-64020 |
| 23322A | O-ring (for drain plug) | 23344-54010 |
| 23338 | Gasket (for warning switch) | 23344-64010 |
| 23910B | Fuel heater assembly | 23910-64010 |
| 23921 | Fuel filter support | 23921-64160 |
