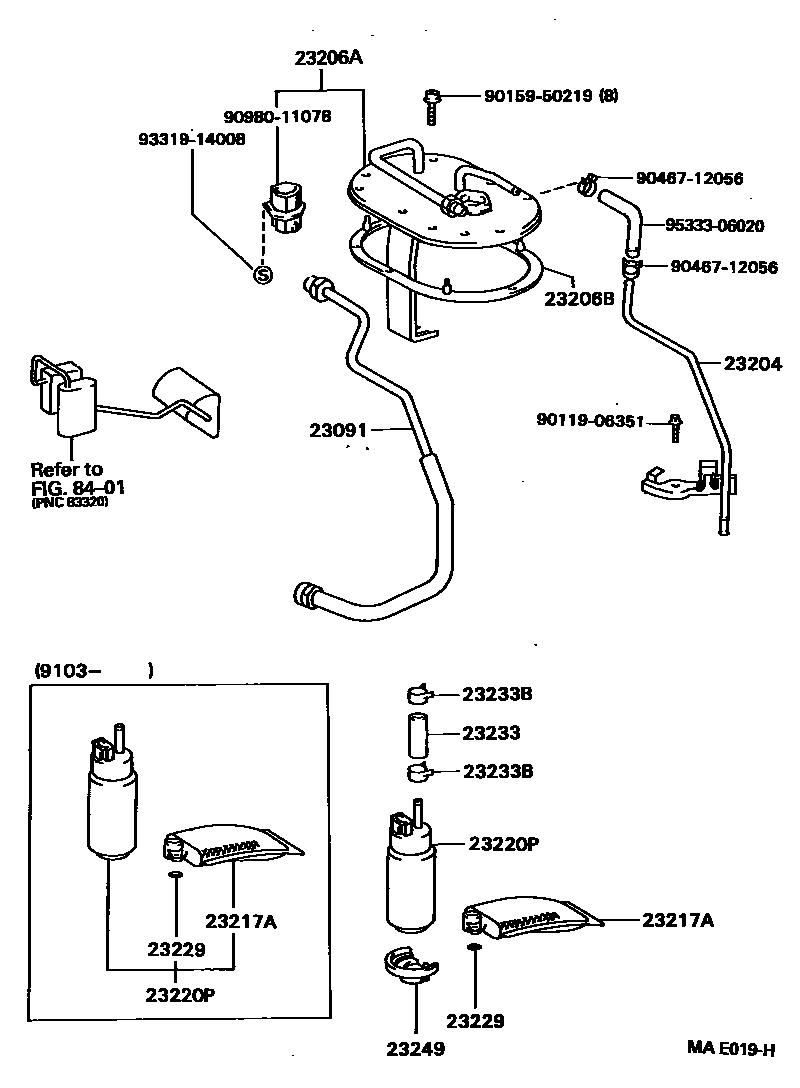

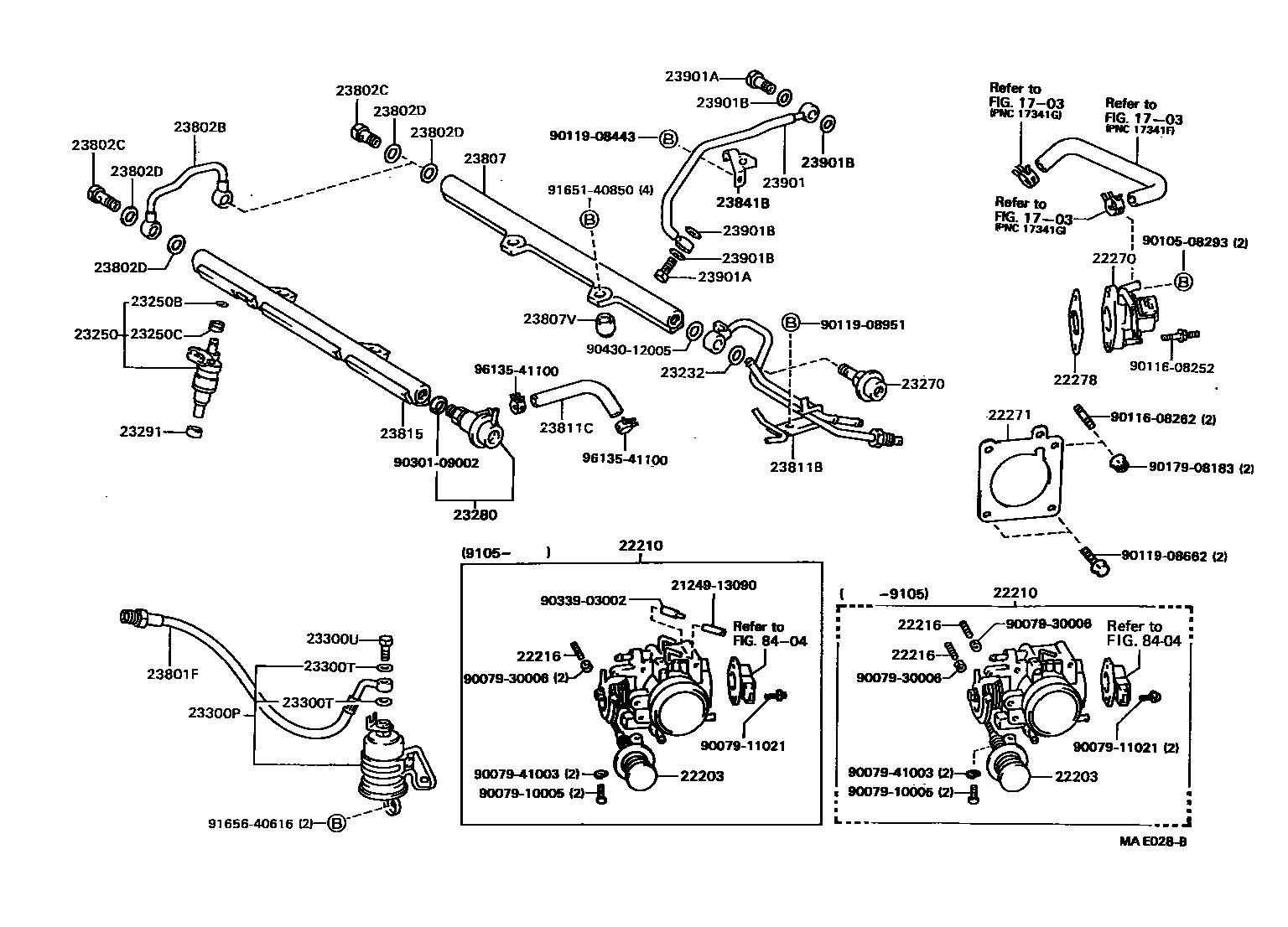

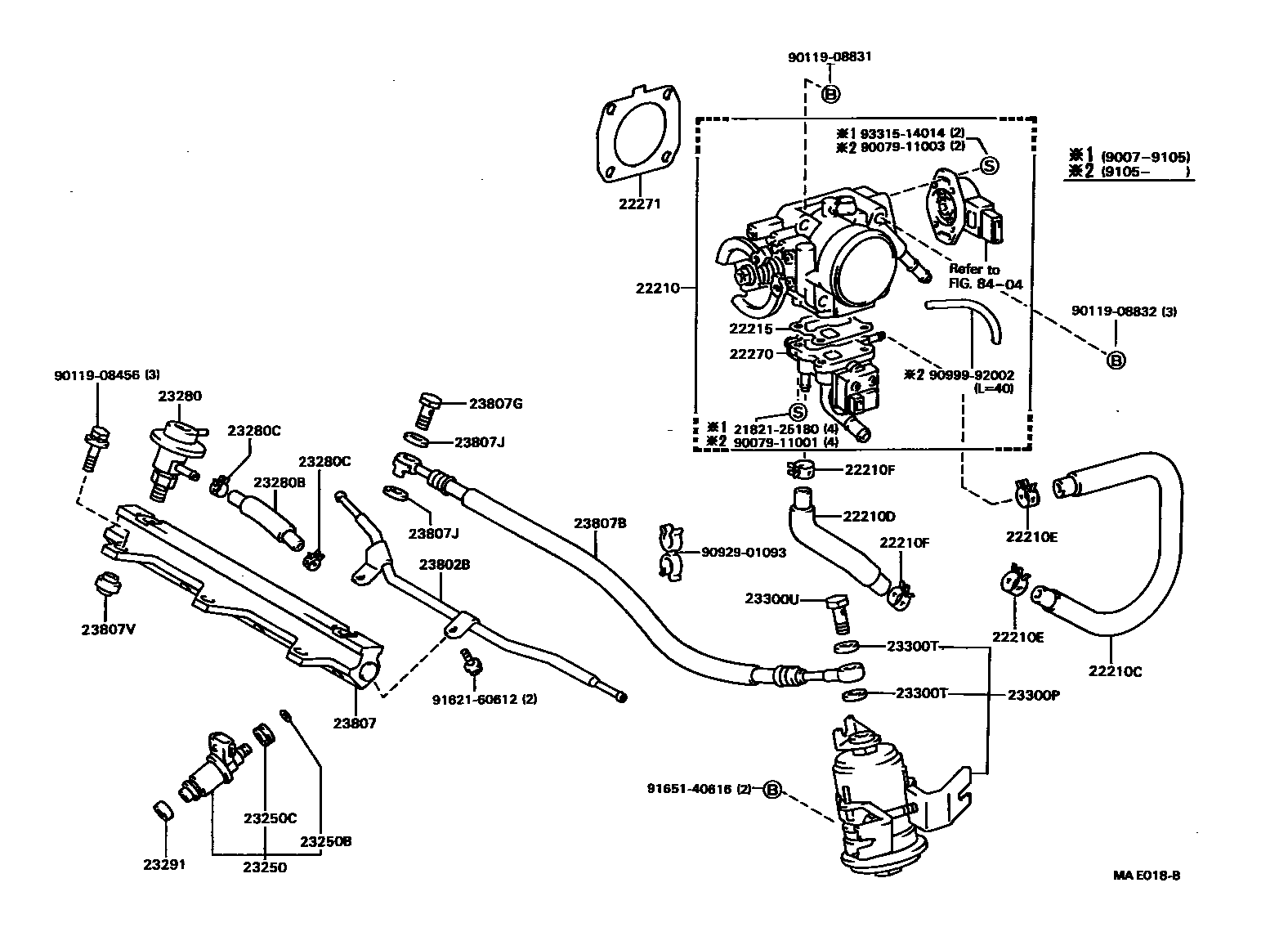

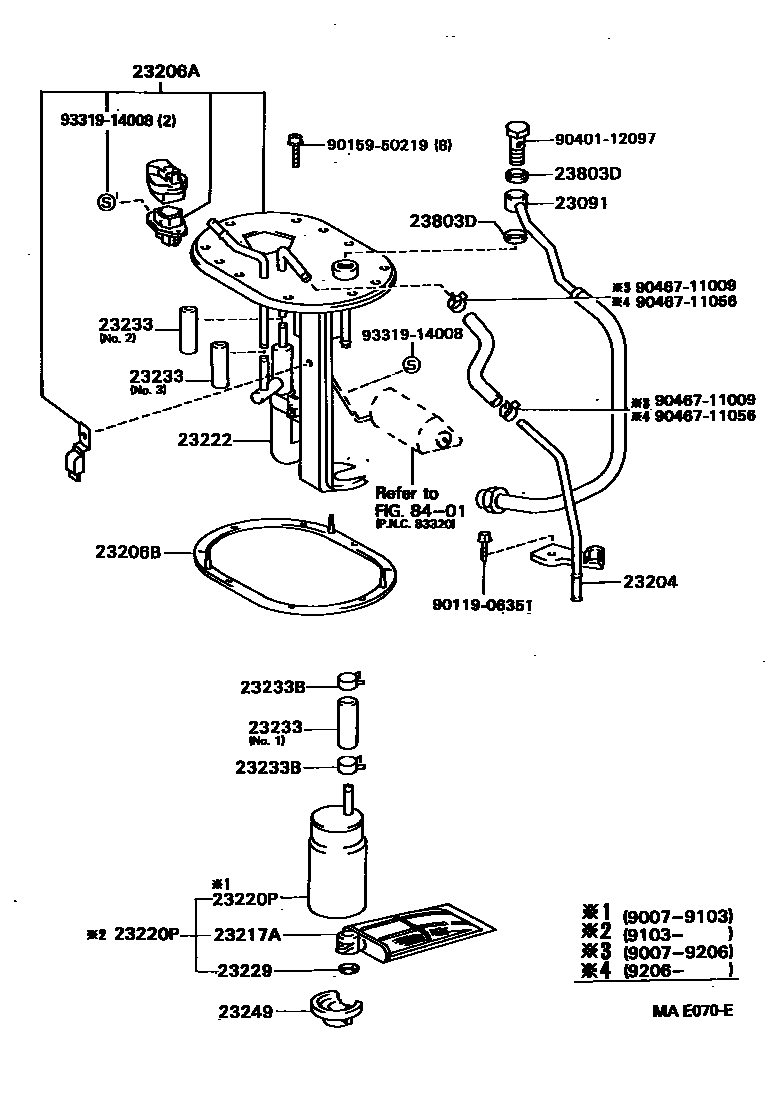

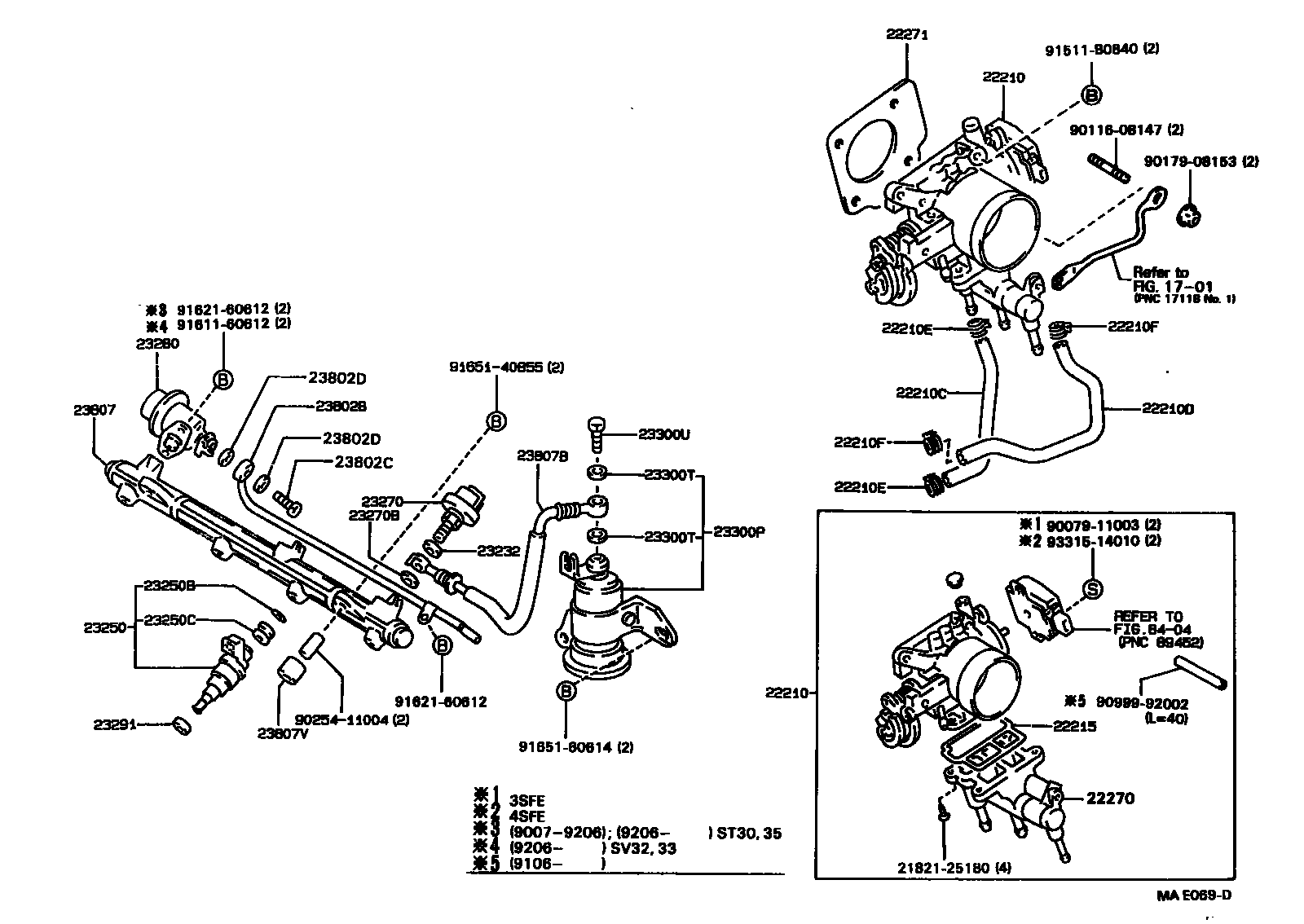

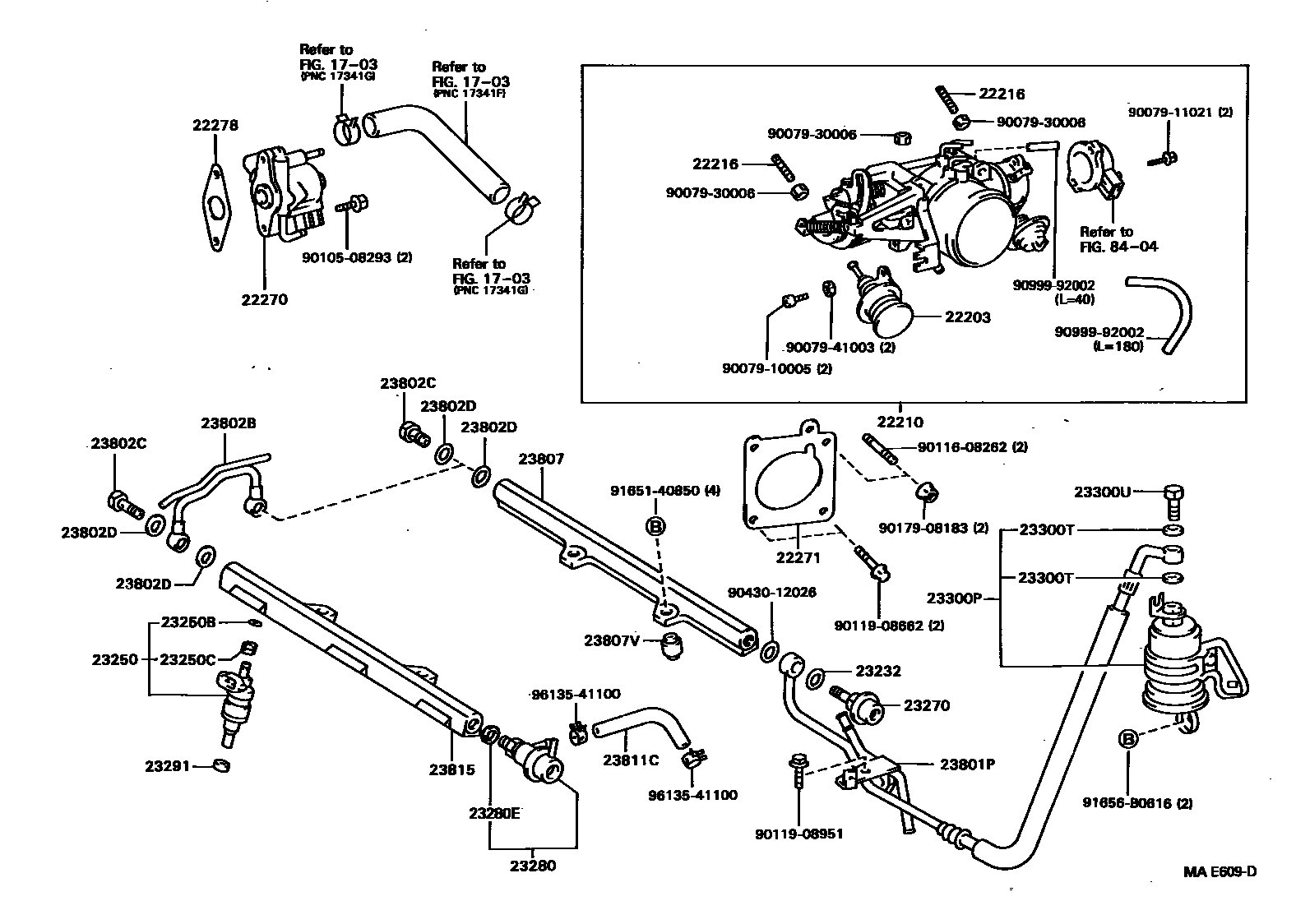

Toyota CAMRY 燃油喷射系统 — Figure 2211
Toyota CAMRY EPC diagram 2211, 燃油喷射系统, with 6 images and 54 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22203 | Deceleration buffer sub-assembly (for throttle body) | 22202-62050 · 22202-62080 |
| 22210 | Throttle body assembly | 22210-62070 · 22210-62071 · 22210-62110 · 22210-74341 · 22210-74380 · 22210-74390 · 22210-74501 · 22210-74540 · 22210-74550 · 22210-74680 · 22210-74690 · 22210-74700 · 22210-74710 · 22210-74720 · 22210-74730 · 22210-74800 · 22210-74820 · 22210-74830 · 22210-74890 · 22210-7A100 · 22210-7A110 |
| 22210C | HOSE, WATER BY-PASS, NO.1 | 16264-88361 · 16283-74010 |
| 22210D | HOSE, WATER BY-PASS, NO.2 | 16267-88361 · 16282-74050 · 16282-74080 |
| 22210E | Hose clamp or clip (for water bypass hose No. 1) | 90467-13050 |
| 22210F | Hose clamp or clip (for No. 2 water bypass hose) | 90467-13050 |
| 22215 | Throttle body cover gasket | 22215-74380 · 22215-74400 |
| 22216 | Deceleration buffer adjustment screw | 22216-62050 · 22216-62100 · 90079-13009 |
| 22270 | Idle speed control valve assembly (for throttle body) | 22270-62010 · 22270-62030 · 22270-74040 · 22270-74050 · 22270-74060 · 22270-74070 · 22270-74110 · 22270-74120 · 22270-74140 · 22270-74150 · 22270-74240 · 22270-74250 |
| 22271 | Throttle body gasket | 22271-62020 · 22271-62030 · 22271-74021 · 22271-74022 · 22271-74050 |
| 22278 | Idle speed control valve gasket | 22278-62020 · 22278-62030 |
| 23091 | Fuel pump pipe sub-assembly | 23091-74180 · 23091-74190 |
| 23204 | Fuel pump return pipe sub-assembly | 23204-74620 · 23204-74630 |
| 23206A | fuel pump bracket | 23206-74620 · 23206-74621 · 23206-74630 · 23206-74631 · 23206-74690 |
| 23206B | fuel pump bracket gasket | 77169-60010 |
| 23217A | fuel pump filter | 23217-74020 · 23217-74021 |
| 23220P | fuel pump assembly | 23220-74020 · 23220-74021 |
| 23222 | fuel return nozzle | 23222-74010 |
| 23229 | Clip (for fuel pump filter) | 23229-16010 |
| 23232 | Gasket (for fuel pump hose) | 23232-28010 · 23232-41081 |
| 23233 | fuel pump hose | 23239-11010 · 23239-63010 · 23239-74630 · 23239-74640 · 95333-06020 |
| 23233B | Clamp (for fuel pump hose) | 90467-12067 · 90467-13054 |
| 23249 | Rubber gasket (for fuel pump) | 23249-74610 |
| 23250 | Fuel injector assembly | 23209-11070 · 23209-62020 · 23209-74040 · 23209-74080 · 23209-74110 · 23209-74130 |
| 23250B | O-ring (for fuel injector) | 90301-07001 |
| 23250C | Gasket (for injector) | 90480-13005 |
| 23270 | Fuel pressure pulsation damper assembly | 23207-46010 · 23207-74010 · 23270-62010 |
| 23270B | Gasket (for pulsation damper hose) | 23232-28010 · 23232-41081 |
| 23280 | Fuel pressure regulator assembly | 23280-62020 · 23280-74050 · 23280-74100 · 23280-74150 · 23280-74151 |
| 23280B | Fuel pressure regulator return hose | 90447-12051 |
| 23280C | Clip or clip (for fuel pressure regulator return hose) | 90467-11009 |
| 23280E | O-ring (for fuel pressure regulator) | 90301-09002 |
| 23291 | Injector vibration isolation pad | 23291-41010 |
| 23300P | Fuel filter (for EFI) | 23300-79295 |
| 23300T | Gasket (for fuel filter) | 90430-12005 · 90430-12026 |
| 23300U | Connector bolt (for fuel filter) | 90401-12097 |
| 23801F | No. 1 fuel hose | 90923-01383 |
| 23801P | No. 1 fuel pipe sub-assembly | 23801-62050 · 23801-62051 |
| 23802B | No. 2 fuel pipe sub-assembly | 23802-74021 · 23802-74022 · 23802-74023 · 23802-88362 · 23812-62010 · 23812-62020 |
| 23802C | Connector bolt (for No. 2 fuel pipe) | 90401-08004 · 90401-12015 |
| 23802D | Gasket (for No. 2 fuel line) | 90430-08009 · 90430-08014 · 90430-12005 · 90430-12026 |
| 23803D | Joint bolt (for No. 3 injector overflow pipe) | 90430-12026 |
| 23807 | Oil pipe sub-assembly | 23807-74040 · 23807-74050 · 23814-62021 · 23814-62030 |
| 23807B | Fuel line hose | 23271-74291 · 90923-01382 |
| 23807G | Oil pipe inlet joint bolts | 90401-12097 |
| 23807J | Oil pipe inlet gasket | 90430-12005 · 90430-12026 |
| 23807V | No. 1 spacer (for oil pipe) | 90560-11020 · 90561-08020 · 90561-08024 |
| 23811B | No. 1 fuel pipe | 23811-62030 |
| 23811C | Fuel hose (for fuel line to pressure regulator) | 95333-06020 |
| 23815 | No. 2 oil pipeline | 23815-62021 · 23815-62030 |
| 23841B | No. 1 fuel pipe clamp (for EFI) | 23841-62010 |
| 23901 | Fuel pipe sub-assembly | 23901-62020 |
| 23901A | Connector bolt (for fuel pipe) | 90401-08010 · 90401-08011 |
| 23901B | Gasket (for fuel lines) | 90430-08005 · 90430-08012 |
