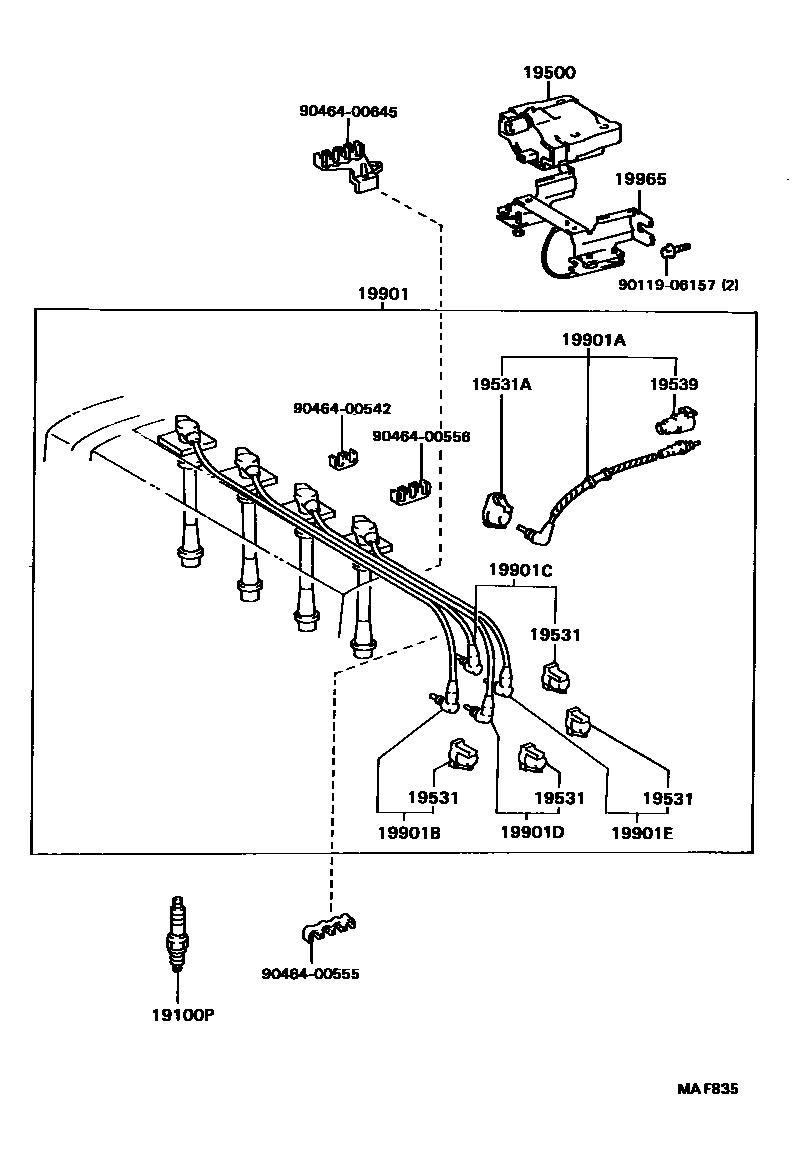

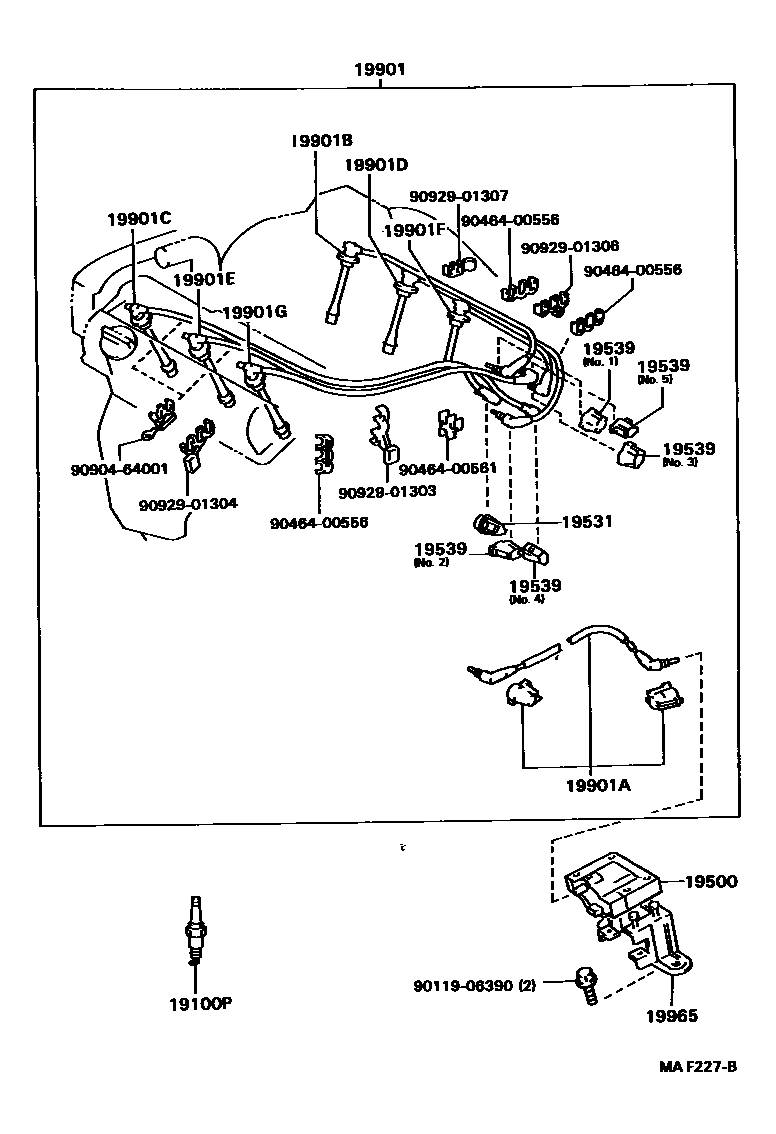

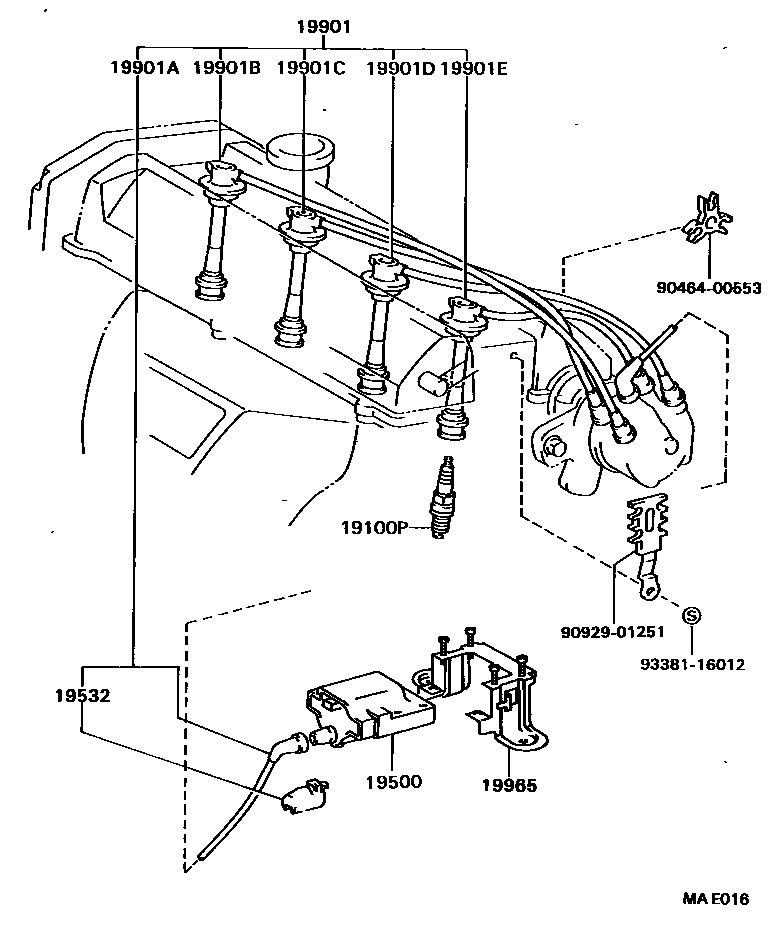

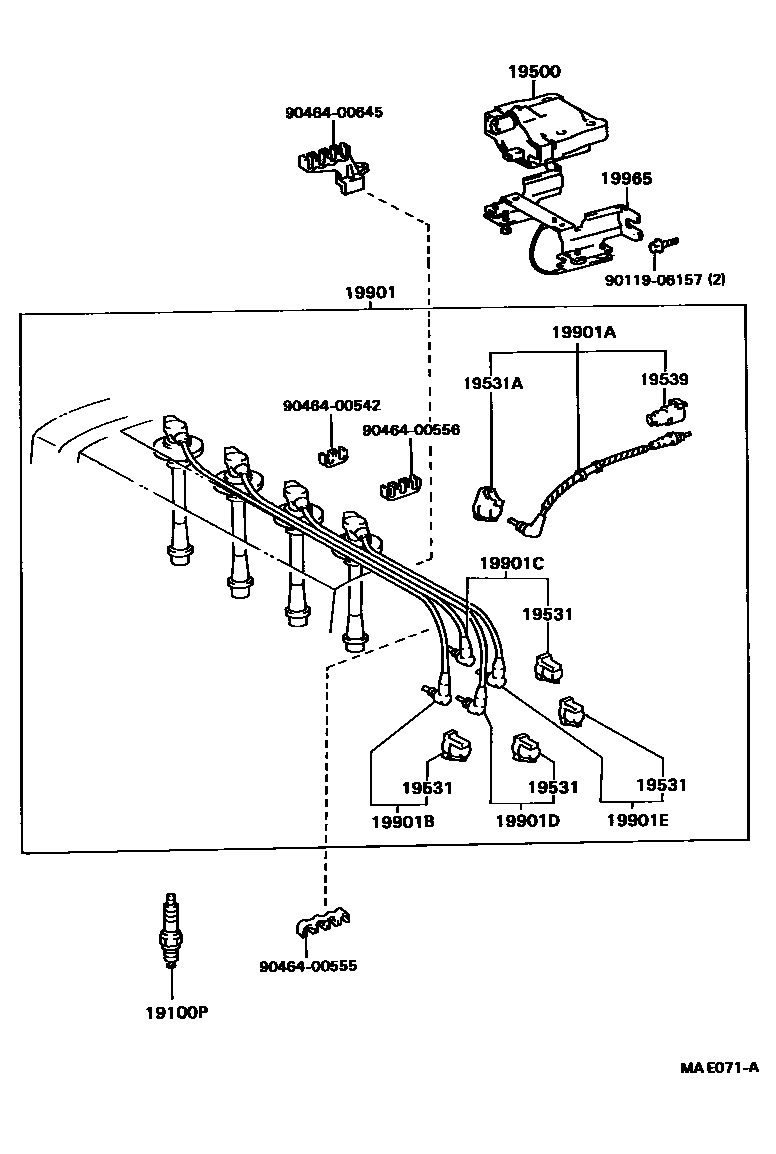

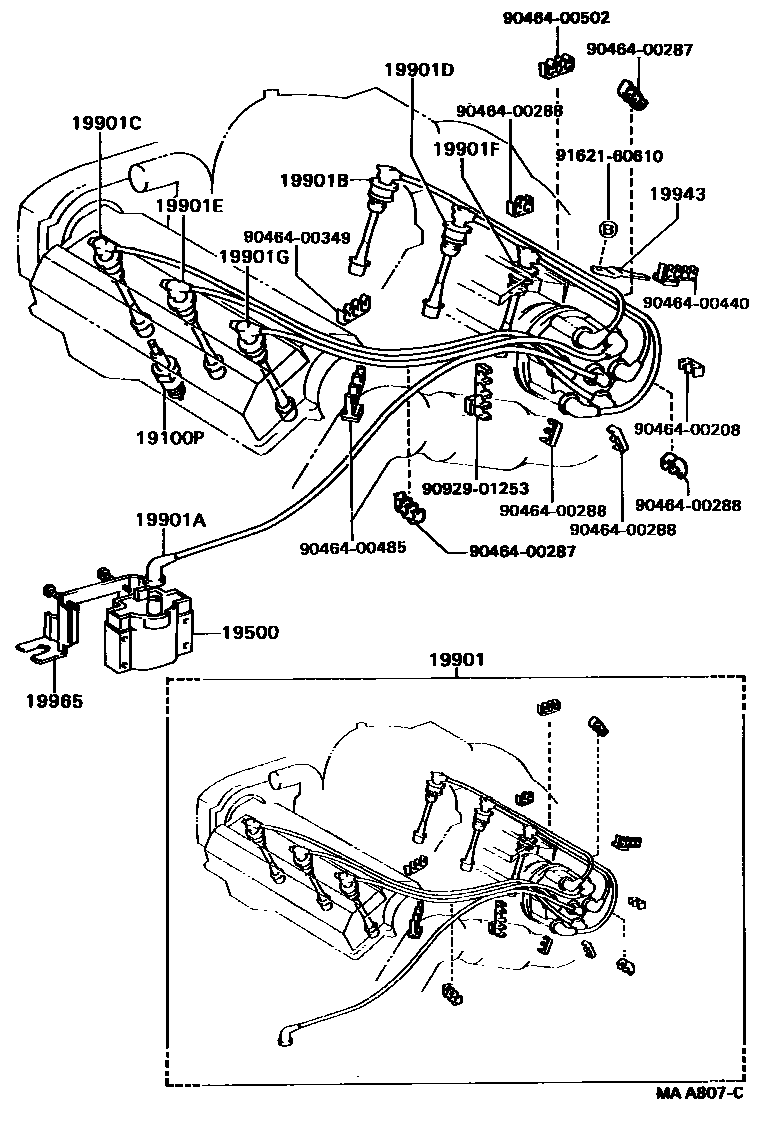

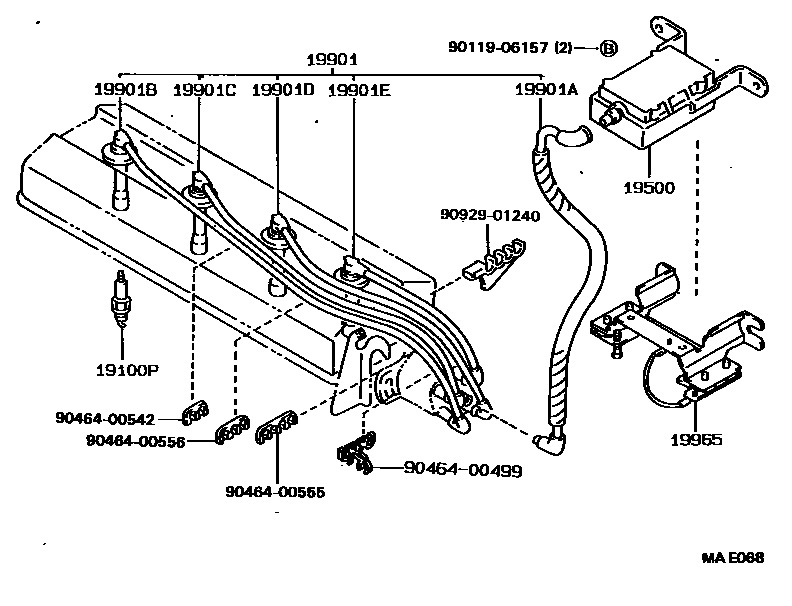

Toyota CAMRY 点火线圈和火花塞 — Figure 1901
Toyota CAMRY EPC diagram 1901, 点火线圈和火花塞, with 7 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100P | spark plug | 90919-01127 · 90919-01128 · 90919-01164 · 90919-01180 · 90919-01181 · 90919-01184 |
| 19500 | Ignition coil assembly | 90919-02175 · 90919-02197 · 90919-02201 |
| 19531 | No. 1 damping wire fixing piece | 19531-46010 · 19531-74010 |
| 19531A | No. 3 damping wire fixing piece | 19531-74010 |
| 19532 | No. 2 damping wire fixing piece | 19532-74010 |
| 19539 | No. 4 damping wire fixing piece | 19539-50010 · 19539-62010 · 19539-62020 · 19539-70010 · 19539-74010 |
| 19850 | Glow plug assembly | 19850-64020 |
| 19850B | Screw seal (for glow plug) | 90189-04024 |
| 19871 | Glow plug connector No. 1 | 19871-64022 · 19871-64023 |
| 19901 | Coil and spark plug assembly with damper wire | 90919-21496 · 90919-21497 · 90919-21498 · 90919-21499 · 90919-21527 · 90919-21530 · 90919-21549 |
| 19901A | coil damping line | 19590-62050 · 19590-74100 · 19590-74110 · 90919-13376 · 90919-13377 |
| 19901B | No. 1 spark plug damper wire | 90919-15046 · 90919-15115 · 90919-15130 · 90919-15134 · 90919-15159 · 90919-15173 · 90919-15348 · 90919-15350 |
| 19901C | No. 2 spark plug damper wire | 90919-15047 · 90919-15114 · 90919-15131 · 90919-15135 · 90919-15160 · 90919-15176 |
| 19901D | No. 3 spark plug damper wire | 90919-15048 · 90919-15113 · 90919-15132 · 90919-15136 · 90919-15161 · 90919-15174 |
| 19901E | No. 4 spark plug damper wire | 90919-15049 · 90919-15112 · 90919-15133 · 90919-15137 · 90919-15162 · 90919-15177 · 90919-15349 · 90919-15351 |
| 19901F | No. 5 spark plug damper wire | 90919-15163 · 90919-15175 |
| 19901G | No. 6 spark plug damper wire | 90919-15164 · 90919-15178 |
| 19943 | No. 1 damping wire clip support plate | 19943-62010 |
| 19965 | No. 1 ignition coil band | 90919-03120 |
