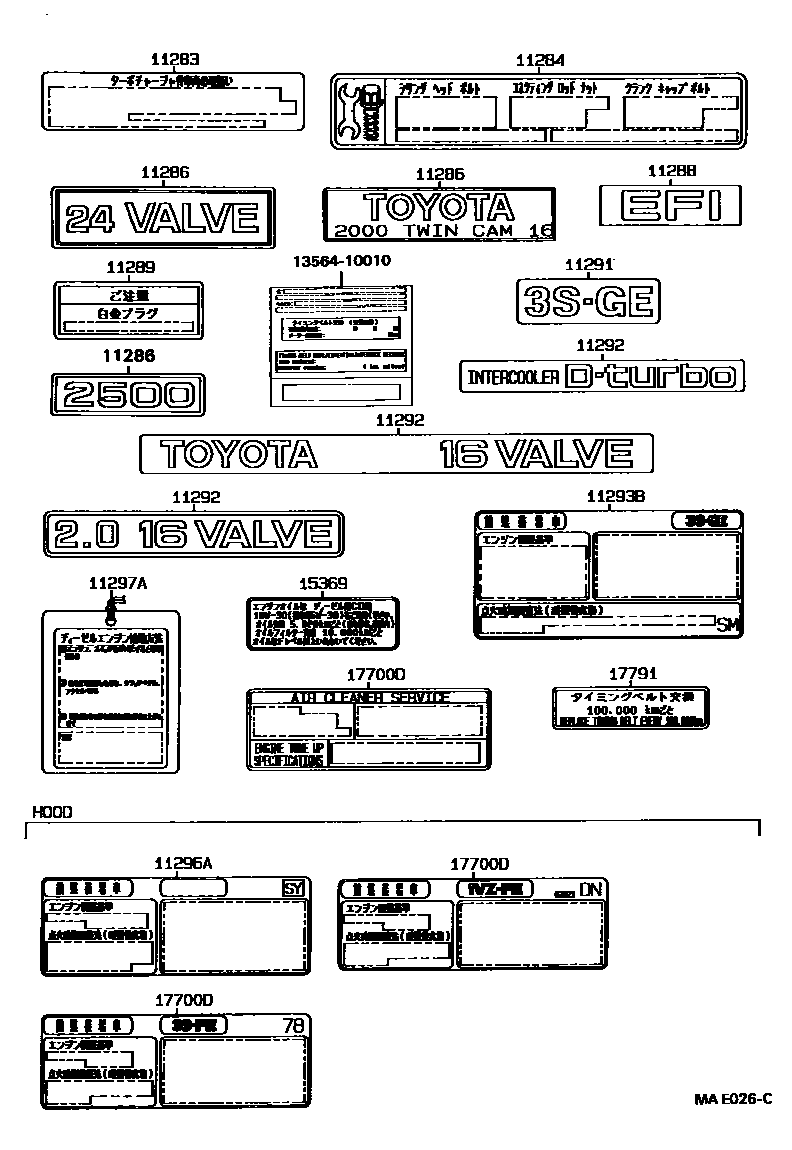

Toyota CAMRY 警示铭牌和名称铭牌(发动机) — Figure 1709
Toyota CAMRY EPC diagram 1709, 警示铭牌和名称铭牌(发动机), with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11283 | Turbocharger warning plate | 11294-64040 |
| 11284 | Engine bolt information plate | 11284-62010 · 11284-74030 · 11284-74040 · 11284-74050 |
| 11286 | Engine specification plate | 11286-62010 · 11286-62030 · 11286-74010 |
| 11288 | Engine system nameplate | 11288-74020 · 11288-74090 |
| 11289 | Spark plug warning nameplate | 11289-16010 |
| 11291 | Engine name plate | 11291-74050 · 11291-88360 |
| 11292 | Engine No. 2 name plate | 11292-64040 · 11292-64060 · 11292-74070 · 11292-74100 · 11292-74101 · 11292-74130 |
| 11293B | Adjust specification information label | 11293-74210 · 11293-74211 |
| 11296A | Engine maintenance information label | 11296-62030 · 11296-64010 · 11296-74040 · 11296-74041 · 11296-74042 |
| 11297A | Engine start warning plate | 11297-64010 |
| 15369 | Engine oil warning plate | 15369-54010 |
| 17700D | Engine warning plate | 11293-74110 · 11293-74111 · 11293-74112 · 11296-55020 · 11296-62021 · 11296-62022 |
| 17791 | Maintenance information label | 17791-55010 · 17791-74040 |
