Toyota CAMRY vacuum tube — Figure 1708

Toyota CAMRY EPC diagram 1708, vacuum tube, with 11 images and 27 PNC and OE references.

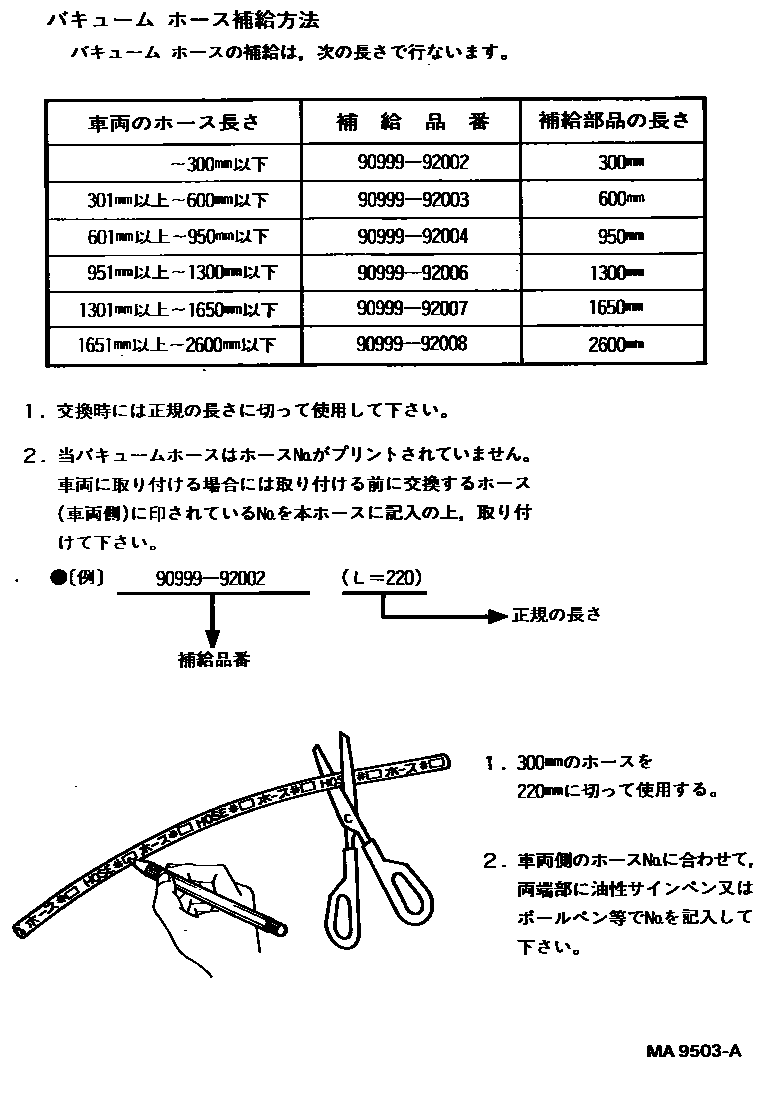

Toyota CAMRY vacuum tube EPC diagram — MA9503A — vacuum tube — MA9503A (199007 – 999999)

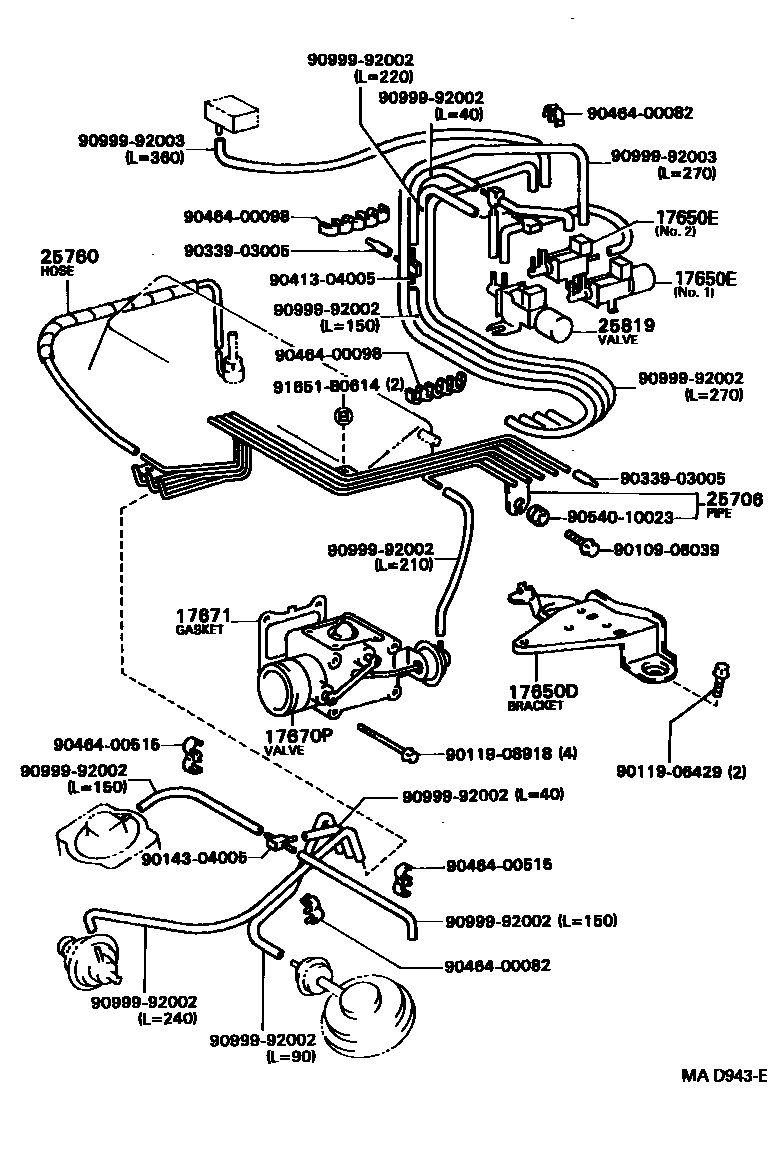

Toyota CAMRY vacuum tube EPC diagram — MAD943E — vacuum tube — MAD943E (199007 – 199206)

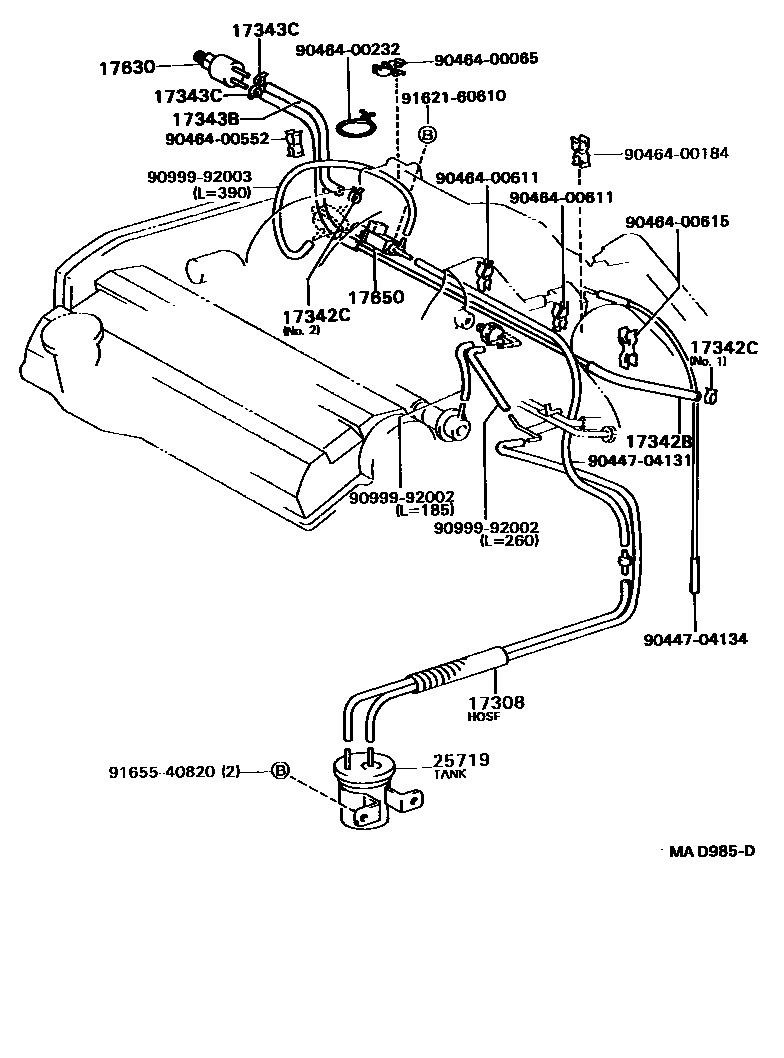

Toyota CAMRY vacuum tube EPC diagram — MAD985D — vacuum tube — MAD985D (199007 – 199105)

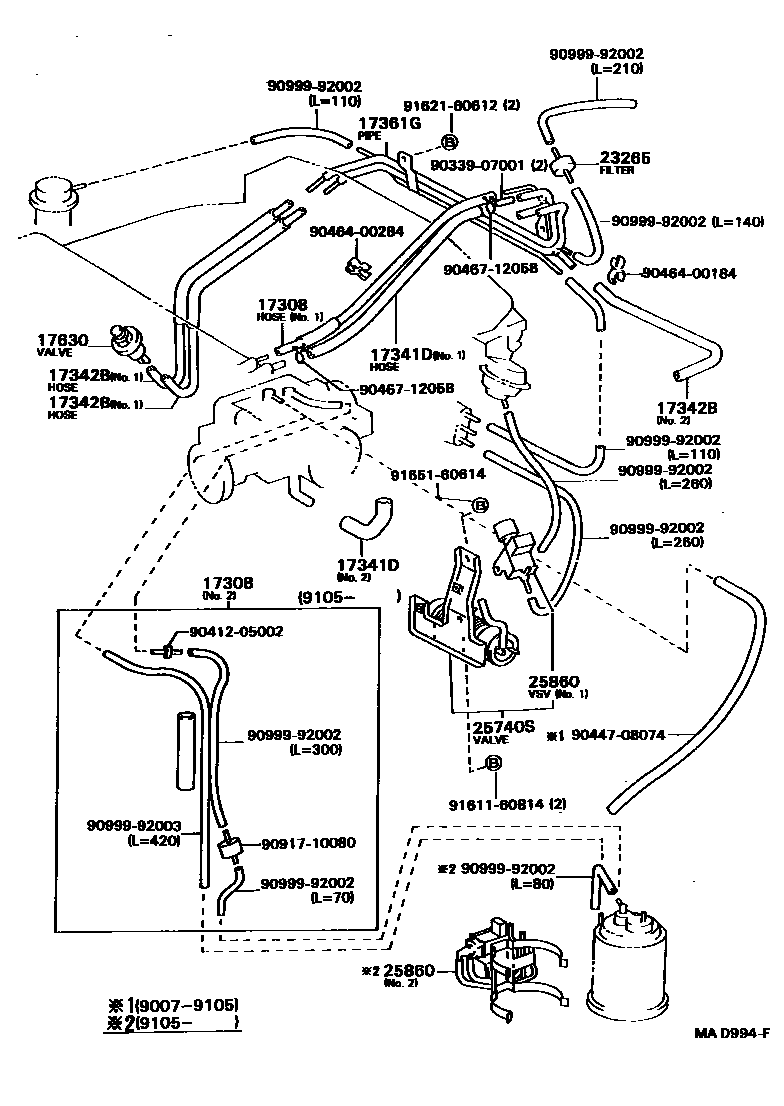

Toyota CAMRY vacuum tube EPC diagram — MAD994F — vacuum tube — MAD994F (199007 – 199206)

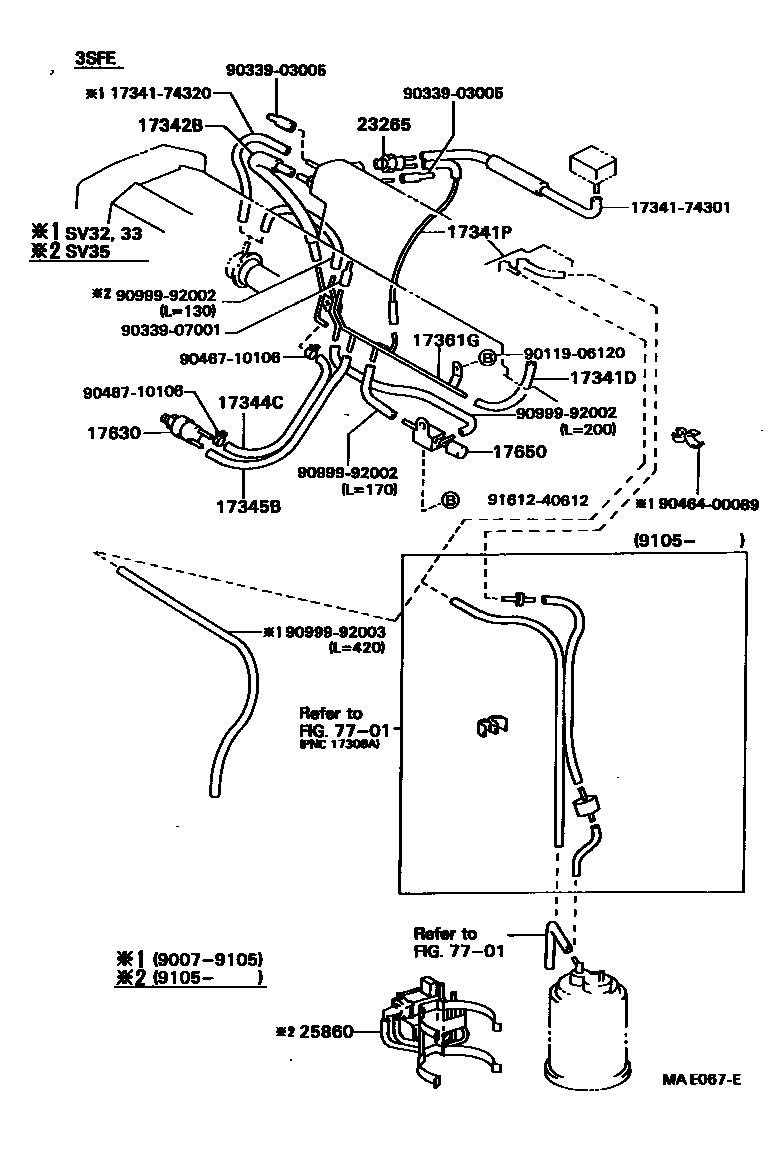

Toyota CAMRY vacuum tube EPC diagram — MAE067E — vacuum tube — MAE067E (199007 – 199206)

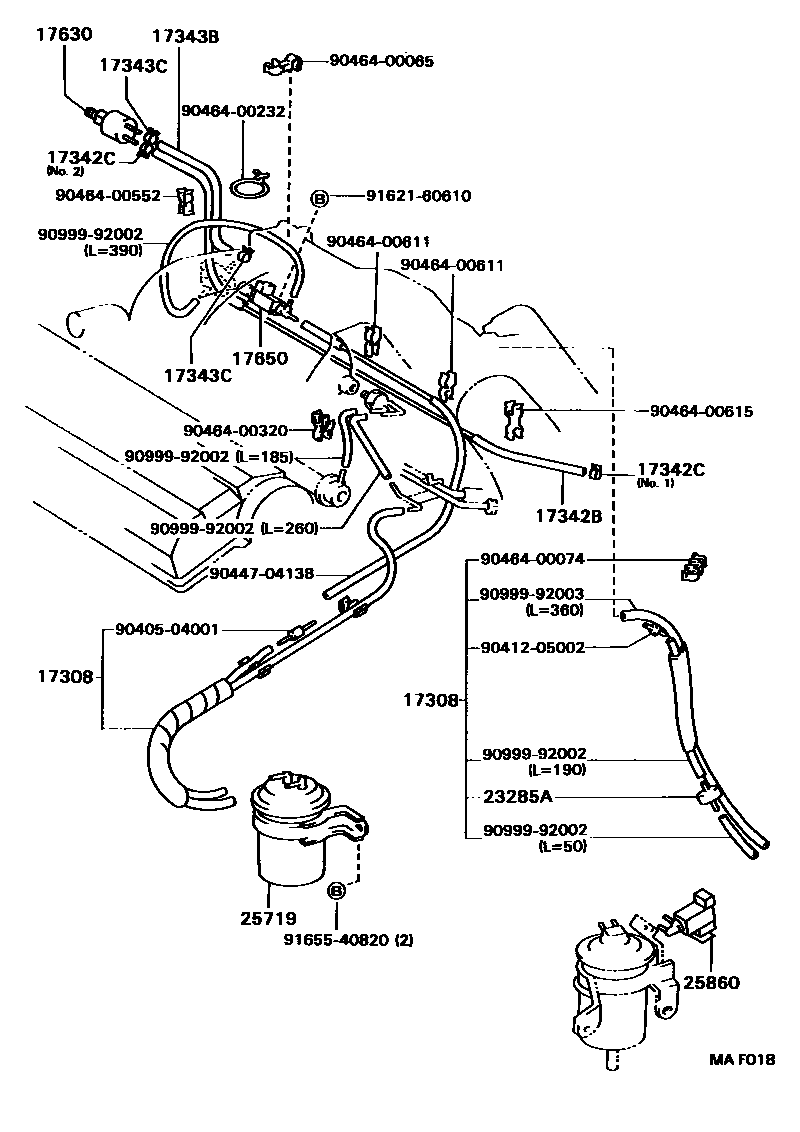

Toyota CAMRY vacuum tube EPC diagram — MAF018 — vacuum tube — MAF018 (199105 – 199206)

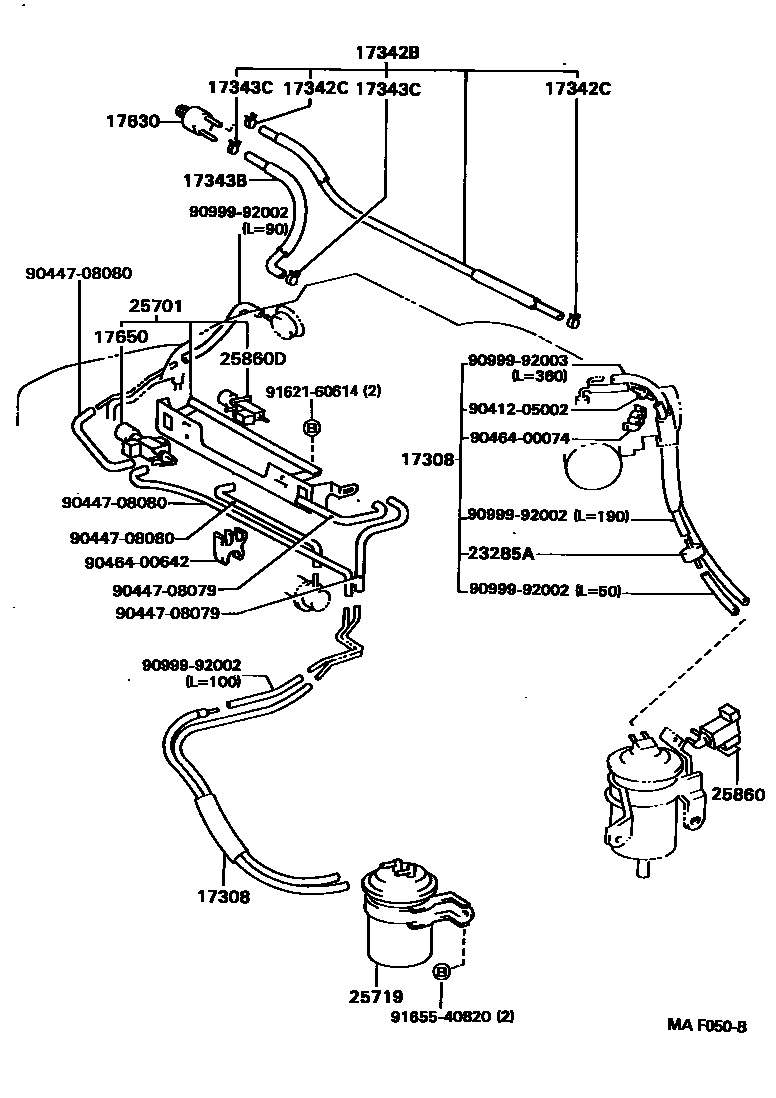

Toyota CAMRY vacuum tube EPC diagram — MAF050B — vacuum tube — MAF050B (199105 – 999999)

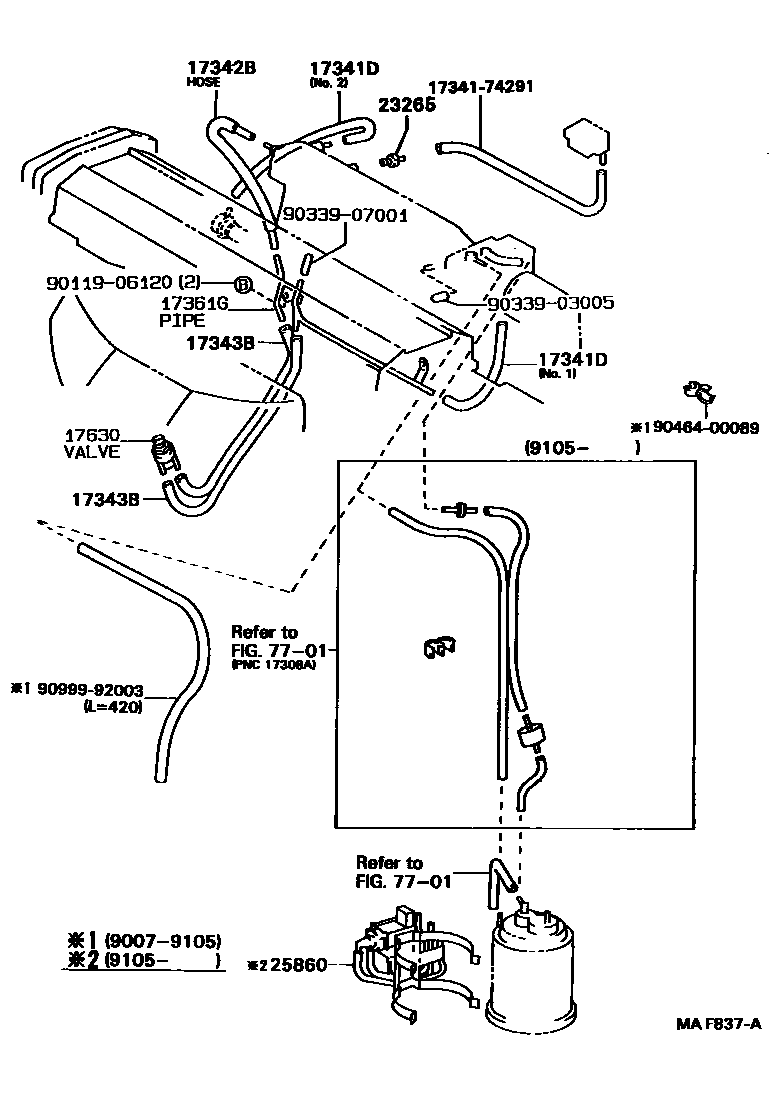

Toyota CAMRY vacuum tube EPC diagram — MAF837A — vacuum tube — MAF837A (199007 – 199206)

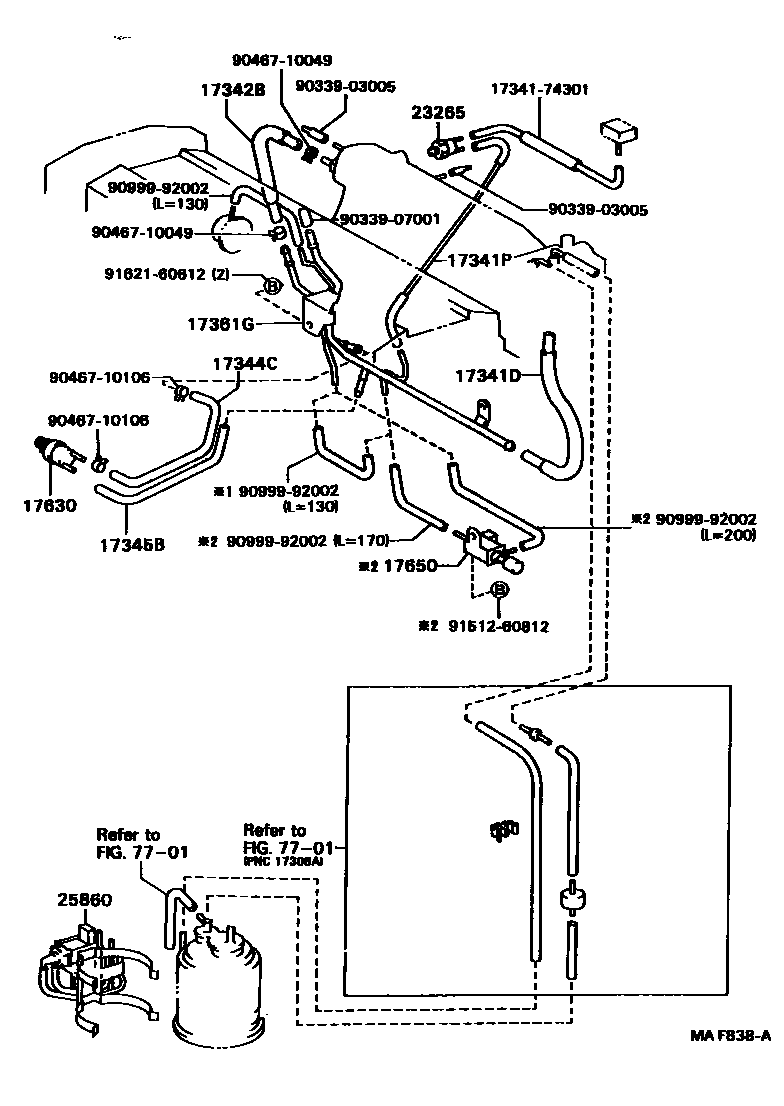

Toyota CAMRY vacuum tube EPC diagram — MAF838A — vacuum tube — MAF838A (199206 – 999999)

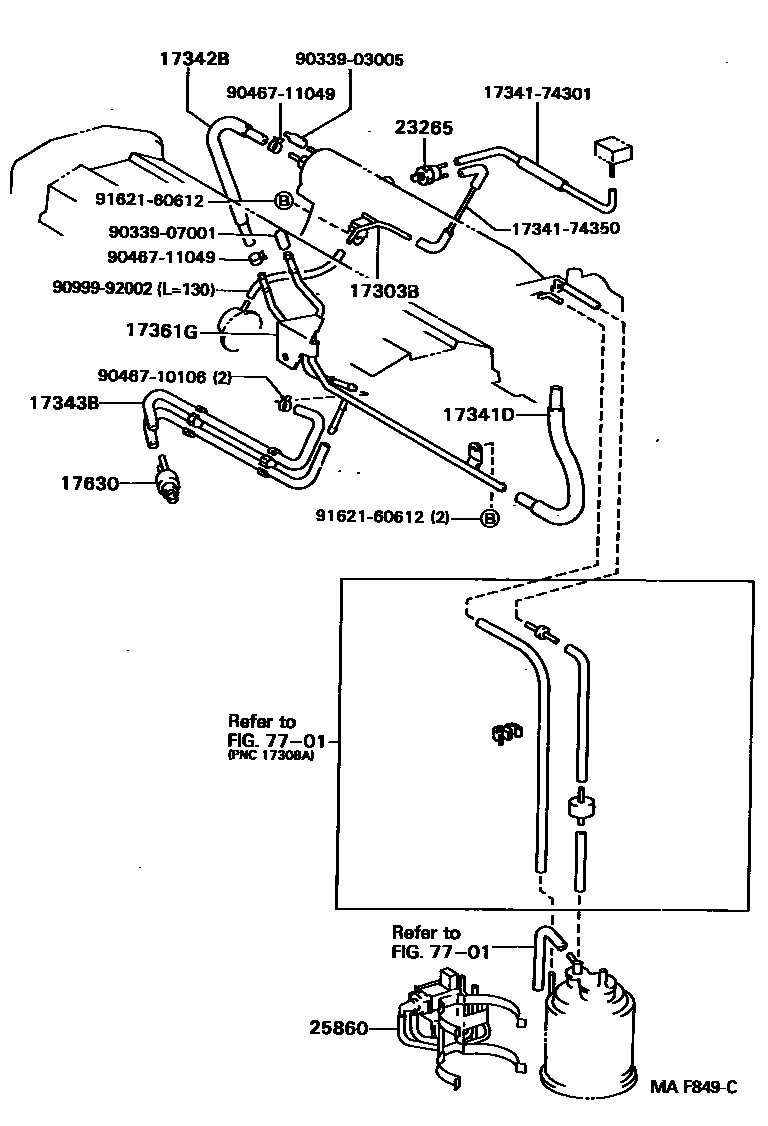

Toyota CAMRY vacuum tube EPC diagram — MAF849C — vacuum tube — MAF849C (199206 – 999999)

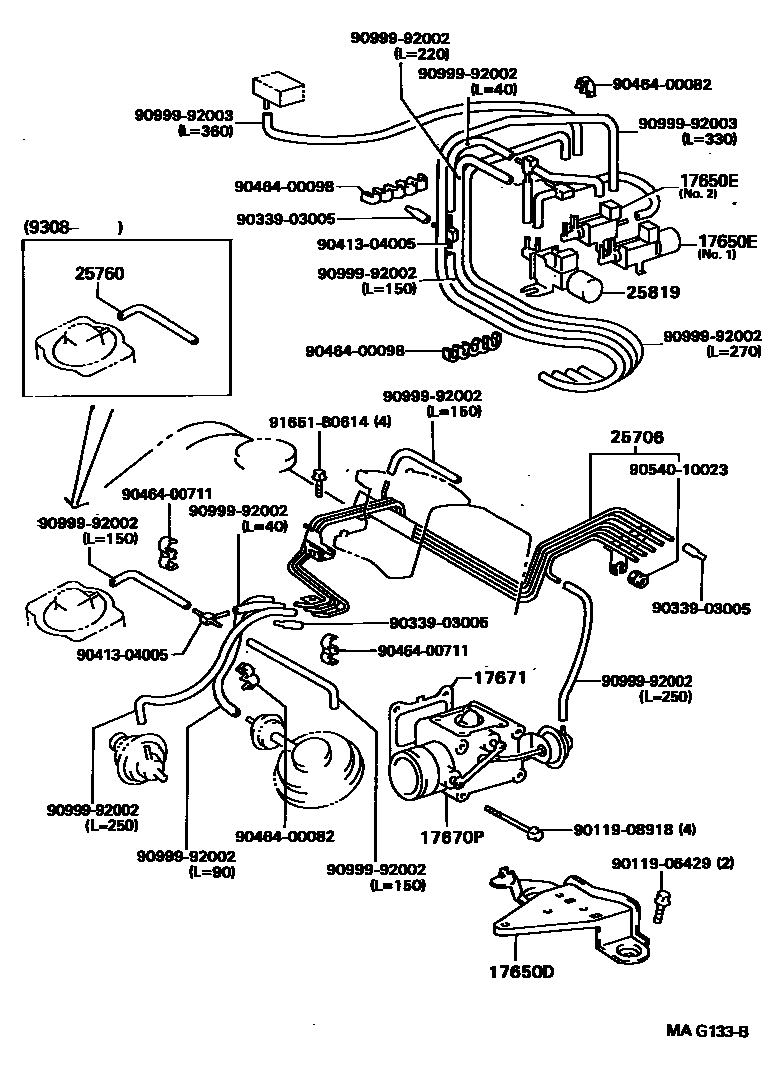

Toyota CAMRY vacuum tube EPC diagram — MAG133B — vacuum tube — MAG133B (199206 – 999999)

PNC and OE references

PNC	Part name	OE numbers
17303B	No. 1 air pipe sub-assembly	17303-74040
17308	Vacuum hose sub-assembly (for idle boost)	17308-62020 · 17308-62050 · 17308-62060 · 17308-74070 · 17308-74200
17341D	No. 1 hose (for idle boost)	17341-74040 · 17341-74140 · 17341-74150 · 17341-74230 · 17341-74340
17341P	air hose	17341-74310
17342B	No. 2 hose (for idle boost)	17342-62030 · 17342-62050 · 17342-62051 · 17342-74050 · 17342-74100 · 17342-74110 · 17343-74040
17342C	Clamp No. 2 (for idle lift hose)	90467-10149 · 90467-13042 · 90467-13058
17343B	No. 3 hose (for idle speed boost)	17343-62040 · 17343-62050 · 17343-74011 · 17343-74100
17343C	Clamp No. 3 (for idle lifting hose)	90467-10149 · 96132-41100
17344C	No. 4 hose (for idle speed boost)	17344-74041
17345B	No. 5 hose (for idle speed boost)	17345-74031
17361G	Air pipe (for idle boost)	17361-74030 · 17361-74040 · 17361-74060 · 17361-74081 · 17361-74100
17630	Air control valve assembly	17630-70020 · 17630-74010 · 17630-74020 · 17630-74030
17650	Vacuum switch valve assembly	25860-62010 · 25860-62030 · 90910-12018 · 90910-12100
17650D	Vacuum switch valve bracket	25861-64010
17650E	Vacuum switch valve	90910-12059 · 90910-12089
17670P	Air bypass valve assembly	17670-64010
17671	air bypass valve gasket	17671-64010
23265	No. 1 gas filter	90917-11021 · 90917-11022 · 90917-11023 · 90917-11032
23285A	No. 1 one-way valve	90917-10080
25701	Emission control valve assembly	25701-62010
25706	No. 1 vacuum transfer tube sub-assembly	25706-64030 · 25706-64032
25719	Vacuum pressure tank	25719-62011 · 25719-62012 · 25719-62030
25740S	Air control valve assembly (for idle speed control)	25740-74010
25760	Vacuum transfer hose assembly	25760-64030 · 25760-64130
25819	Vacuum regulating valve assembly	25819-64050
25860	No. 1 vacuum switch valve assembly	25860-62040 · 25860-74020 · 25860-74060
25860D	No. 2 vacuum switch valve assembly	90910-12080
