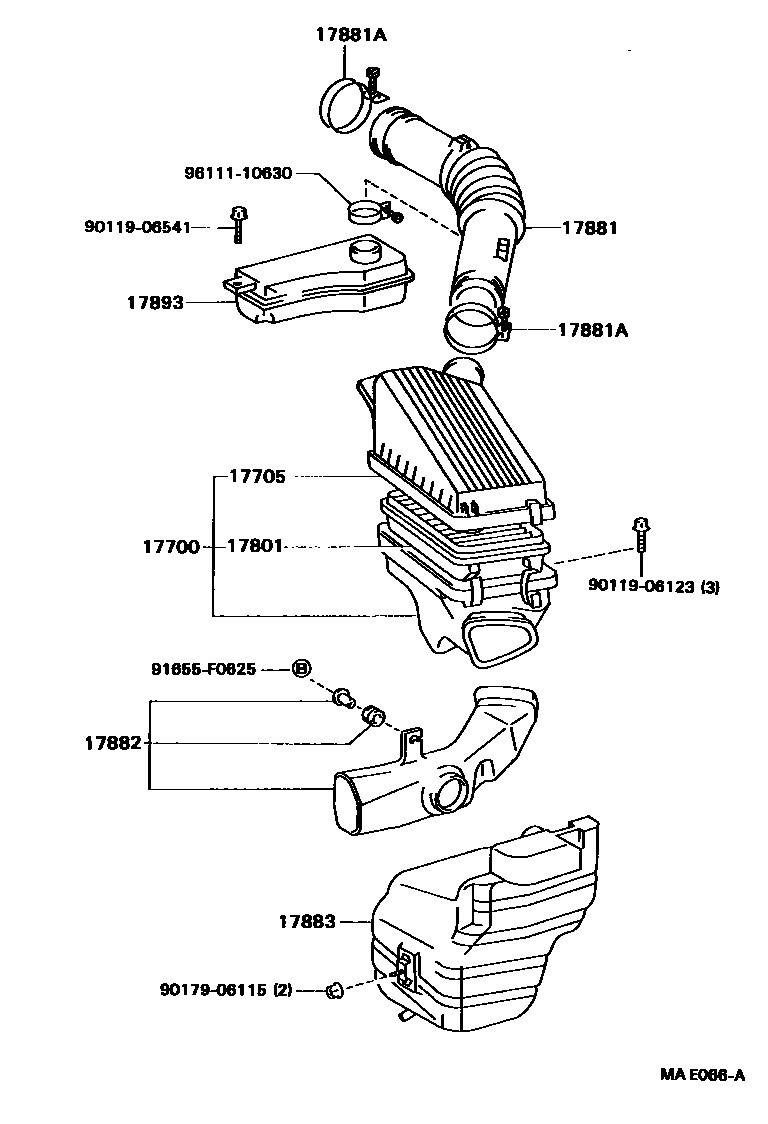

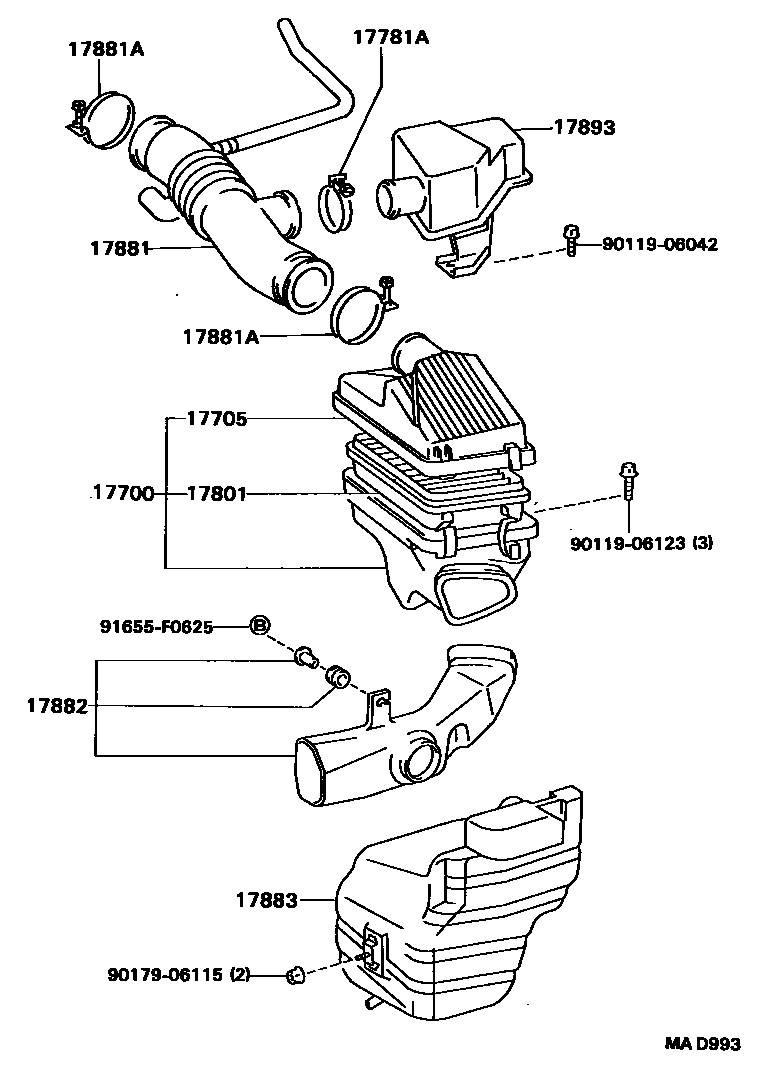

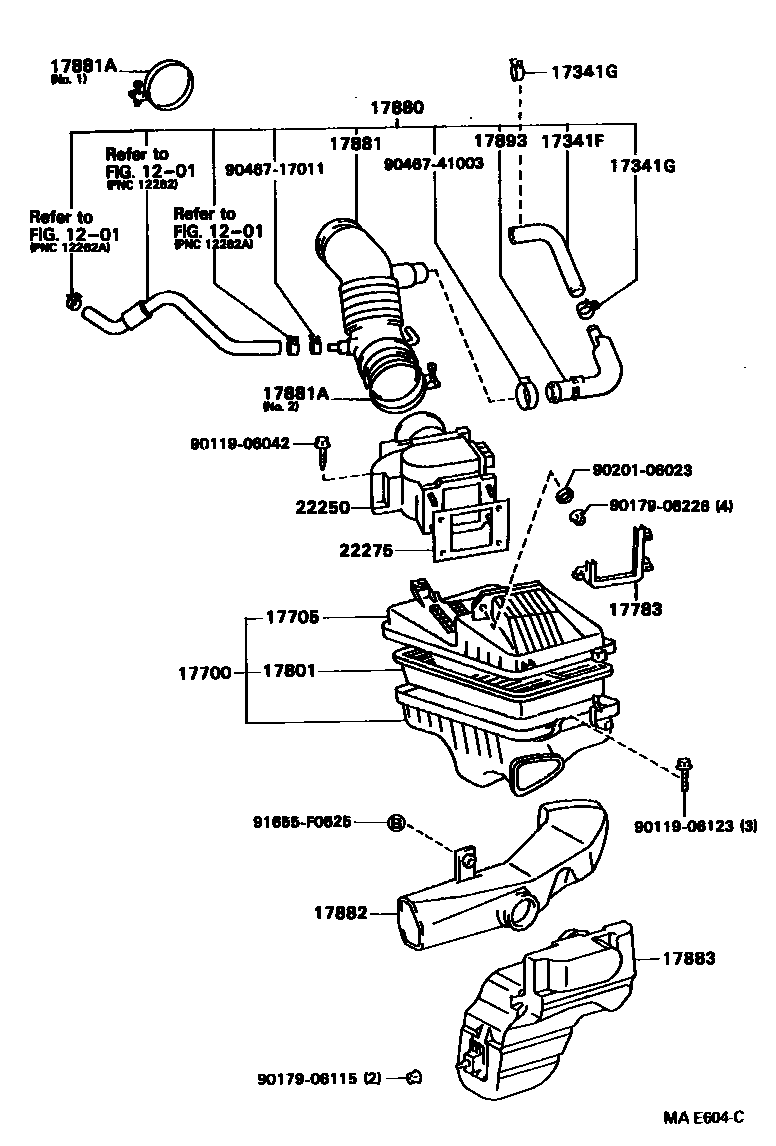

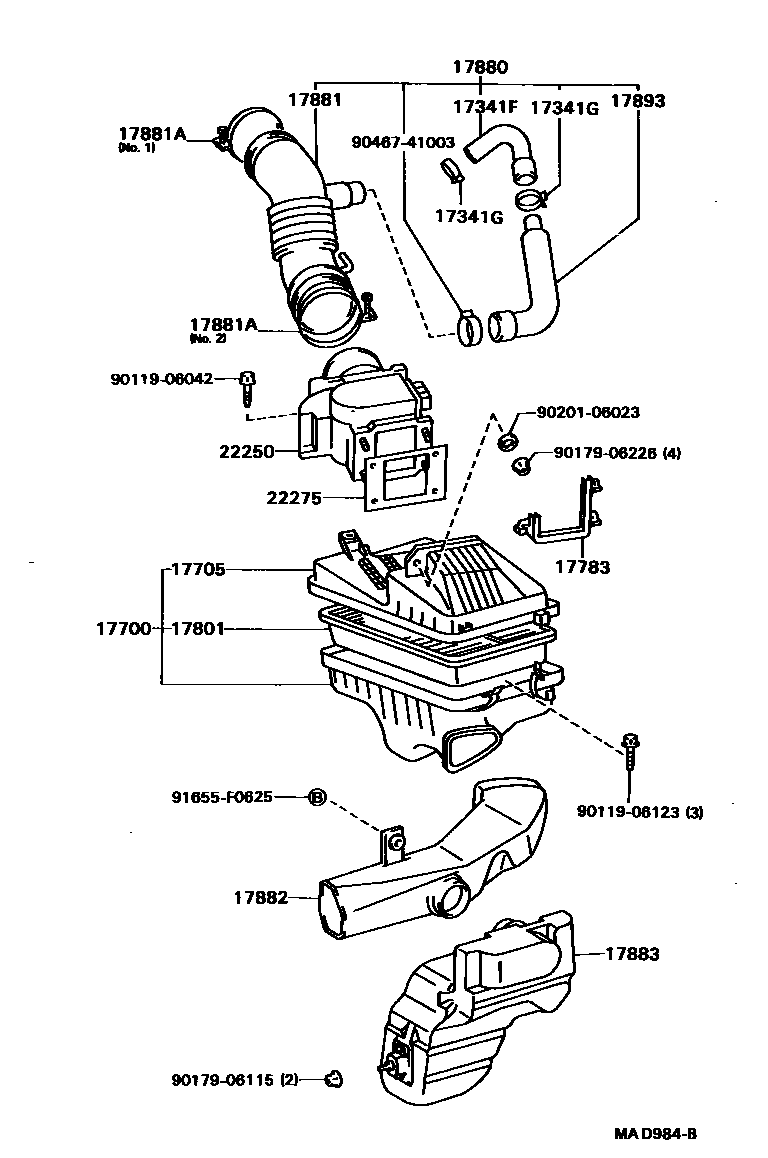

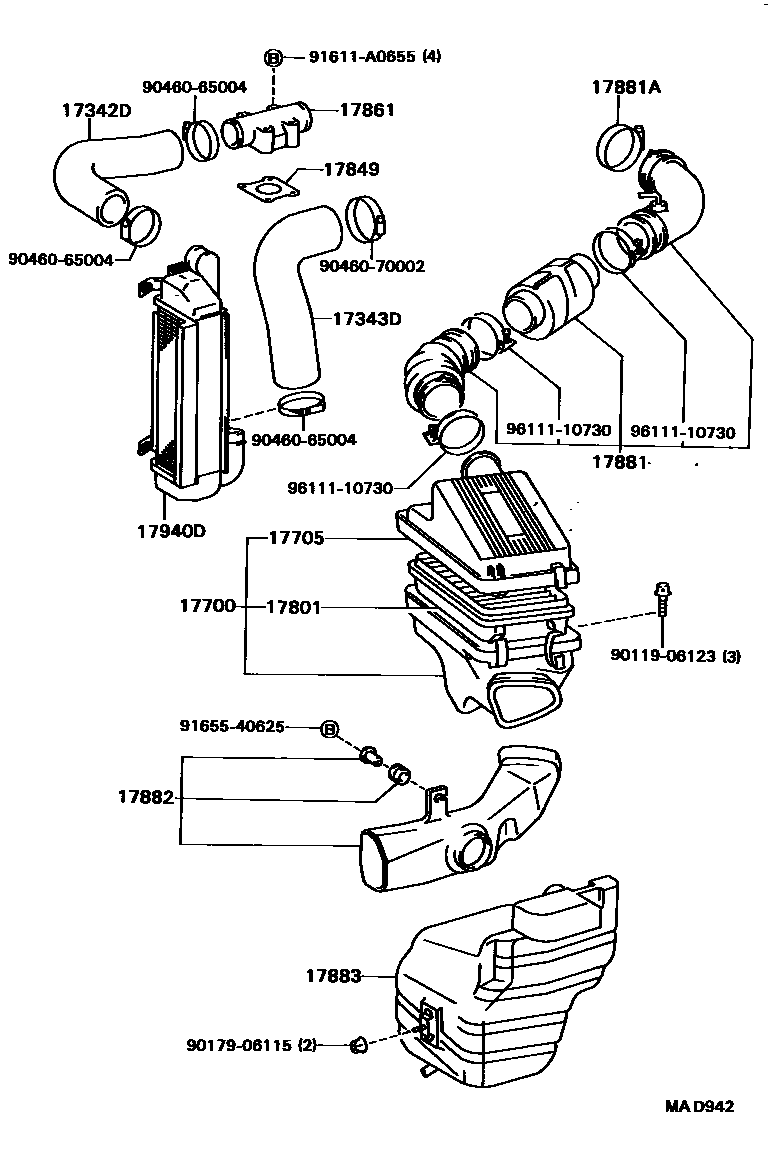

Toyota CAMRY Air Cleaner — Figure 1703
Toyota CAMRY EPC diagram 1703, Air Cleaner, with 5 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17341F | Air hose No. 1 | 17341-62020 · 17341-62040 |
| 17341G | Clip or clip (for No. 1 air hose) | 90467-23007 · 90467-26003 |
| 17342D | Air hose No. 2 | 17342-64020 |
| 17343D | No. 3 air hose | 17343-64010 |
| 17700 | air filter assembly | 17700-62030 · 17700-64260 · 17700-74330 · 17700-74340 |
| 17705 | Air filter cover sub-assembly | 17705-62030 · 17705-64150 · 17705-74220 · 17705-74230 |
| 17781A | hose clamp | 96111-10600 |
| 17783 | air filter baffle | 17783-62010 |
| 17801 | Air filter element sub-assembly | 17801-64060 · 17801-74020 |
| 17849 | Intake connecting pipe gasket | 17849-64010 |
| 17861 | Intake connecting pipe | 17861-64030 |
| 17880 | Air cleaner hose assembly | 17880-62030 · 17880-62050 |
| 17881 | No. 1 air cleaner hose | 17880-64180 · 17880-64250 · 17881-62030 · 17881-62050 · 17881-74360 · 17881-74370 · 17881-74371 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90460-57002 · 96111-10710 · 96111-10750 · 96111-10800 · 96111-10900 |
| 17882 | No. 2 air cleaner hose | 17882-74220 |
| 17883 | No. 3 air cleaner hose | 17883-62020 · 17883-74070 |
| 17893 | Intake resonator | 17893-62020 · 17893-62030 · 17893-74140 · 17893-74150 |
| 17940D | Intercooler assembly | 17940-64010 |
| 22250 | Intake air flow meter assembly | 22250-62030 · 22250-62050 |
| 22275 | air flow meter gasket | 22275-43010 |
