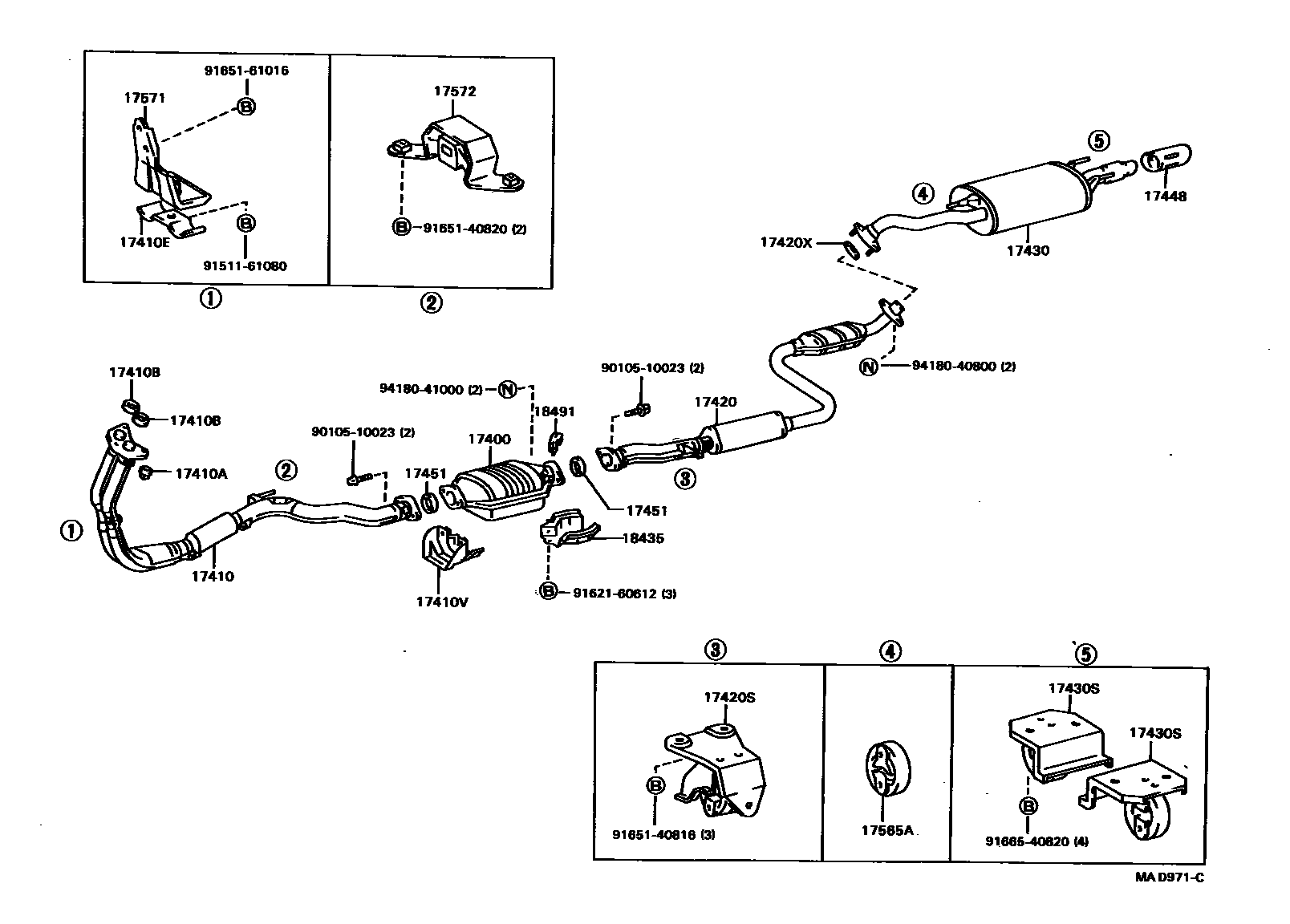

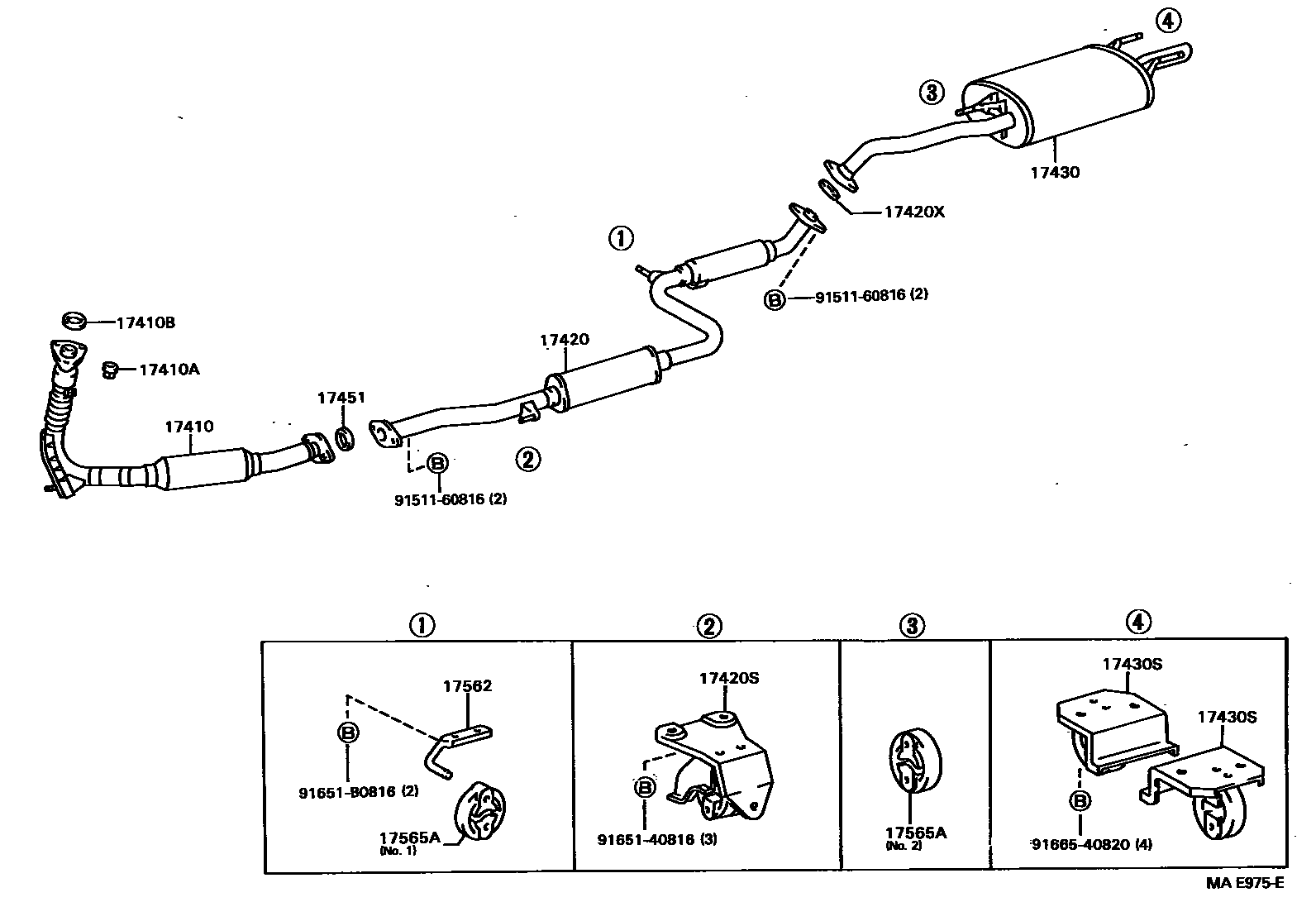

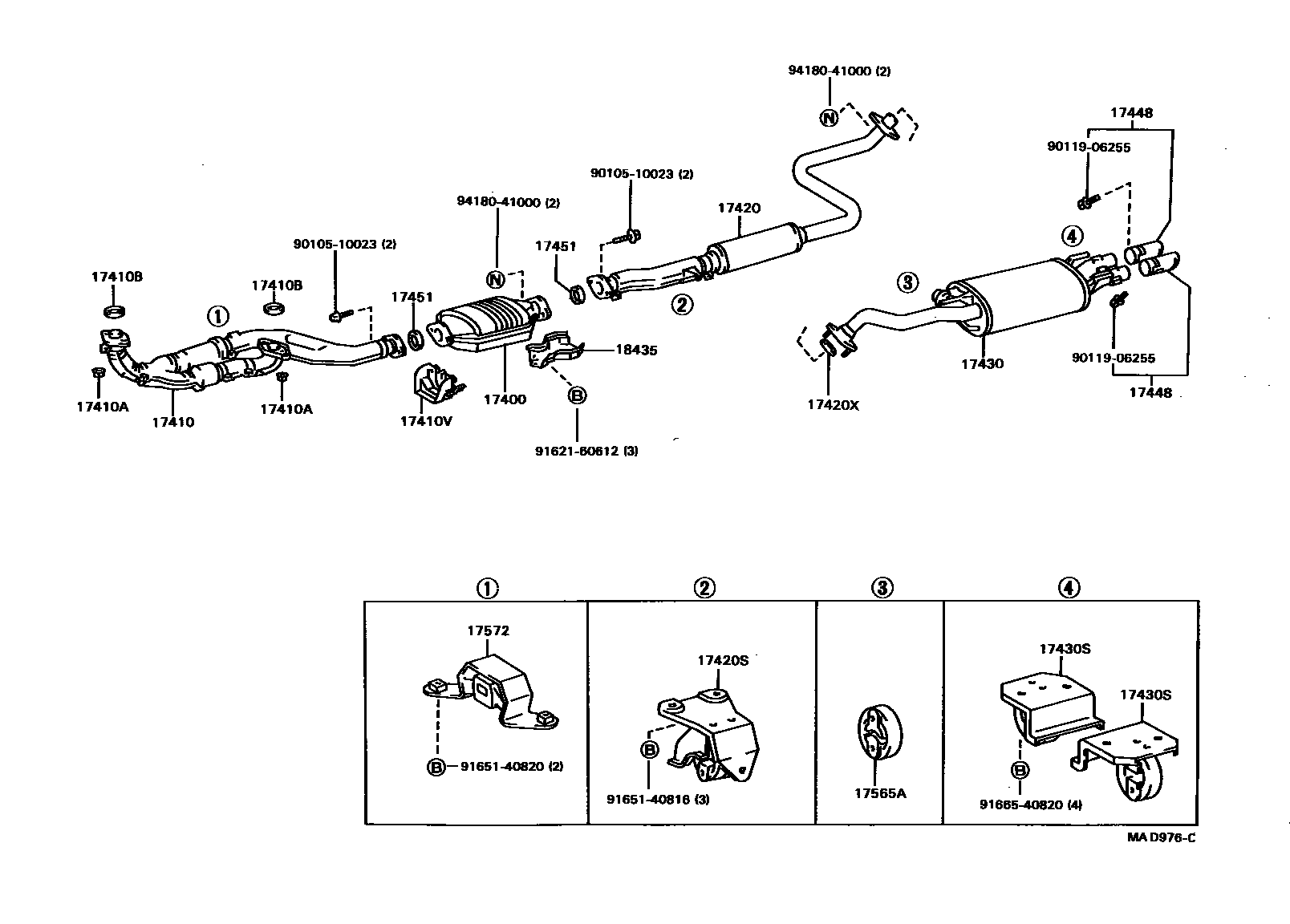

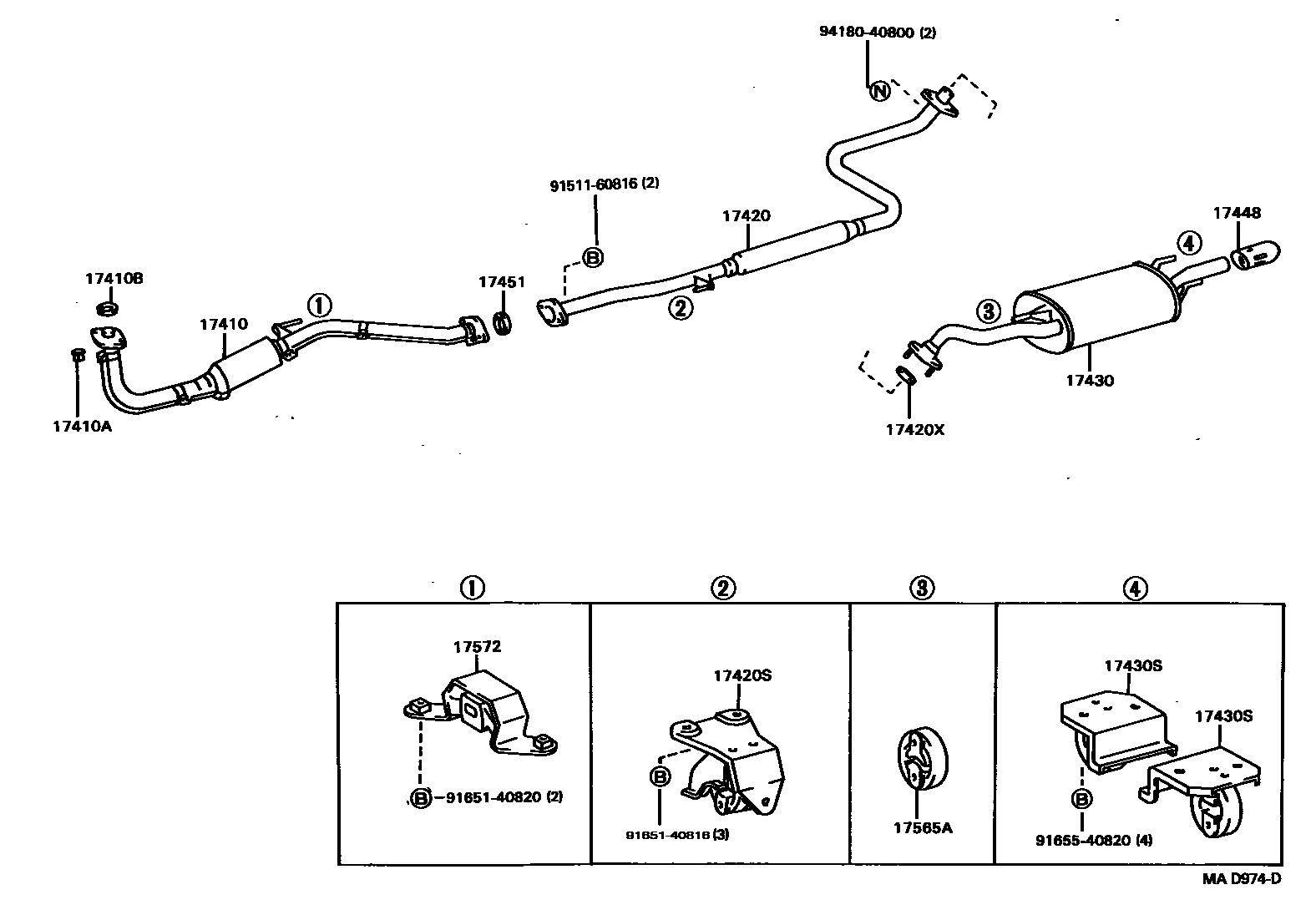

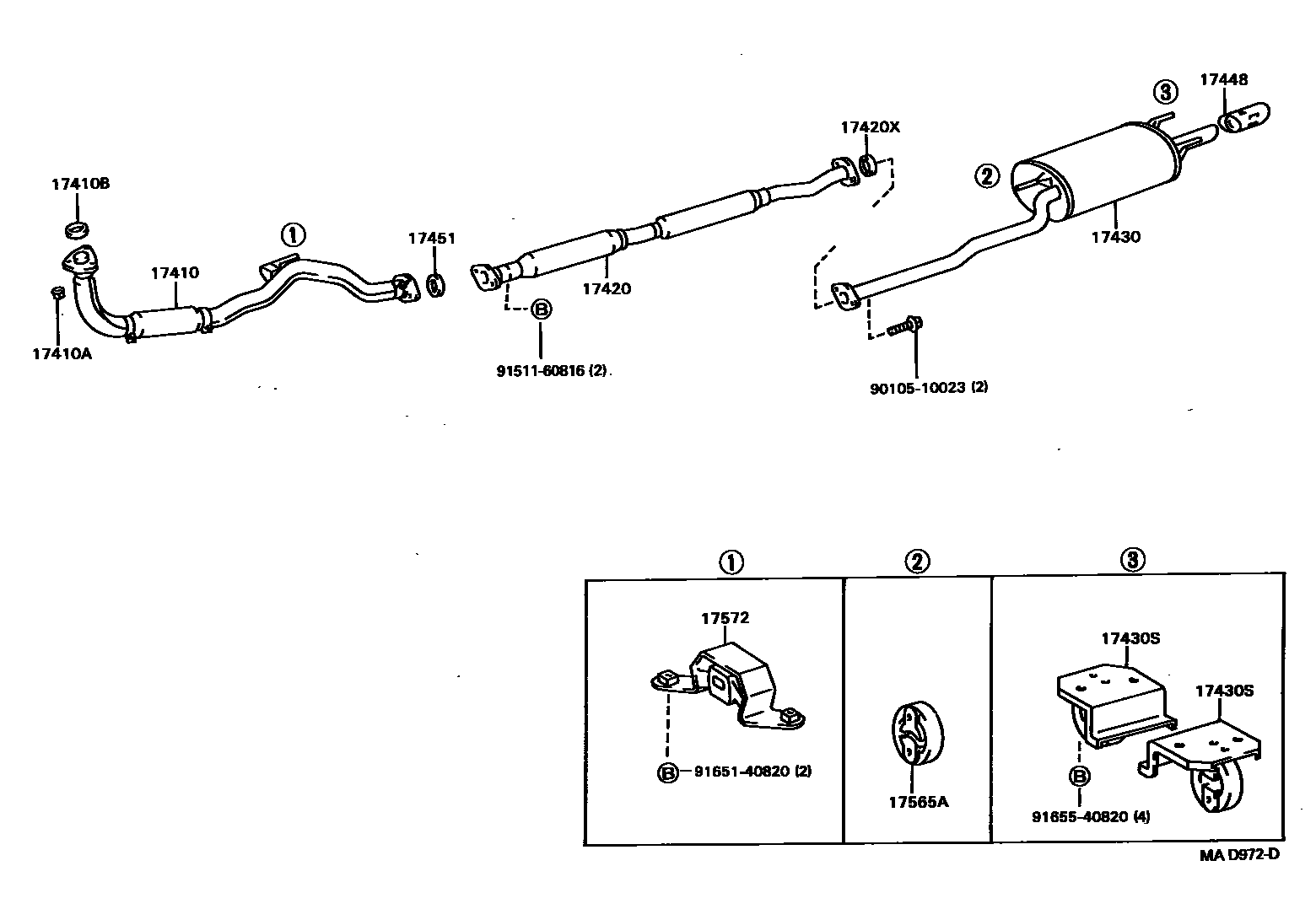

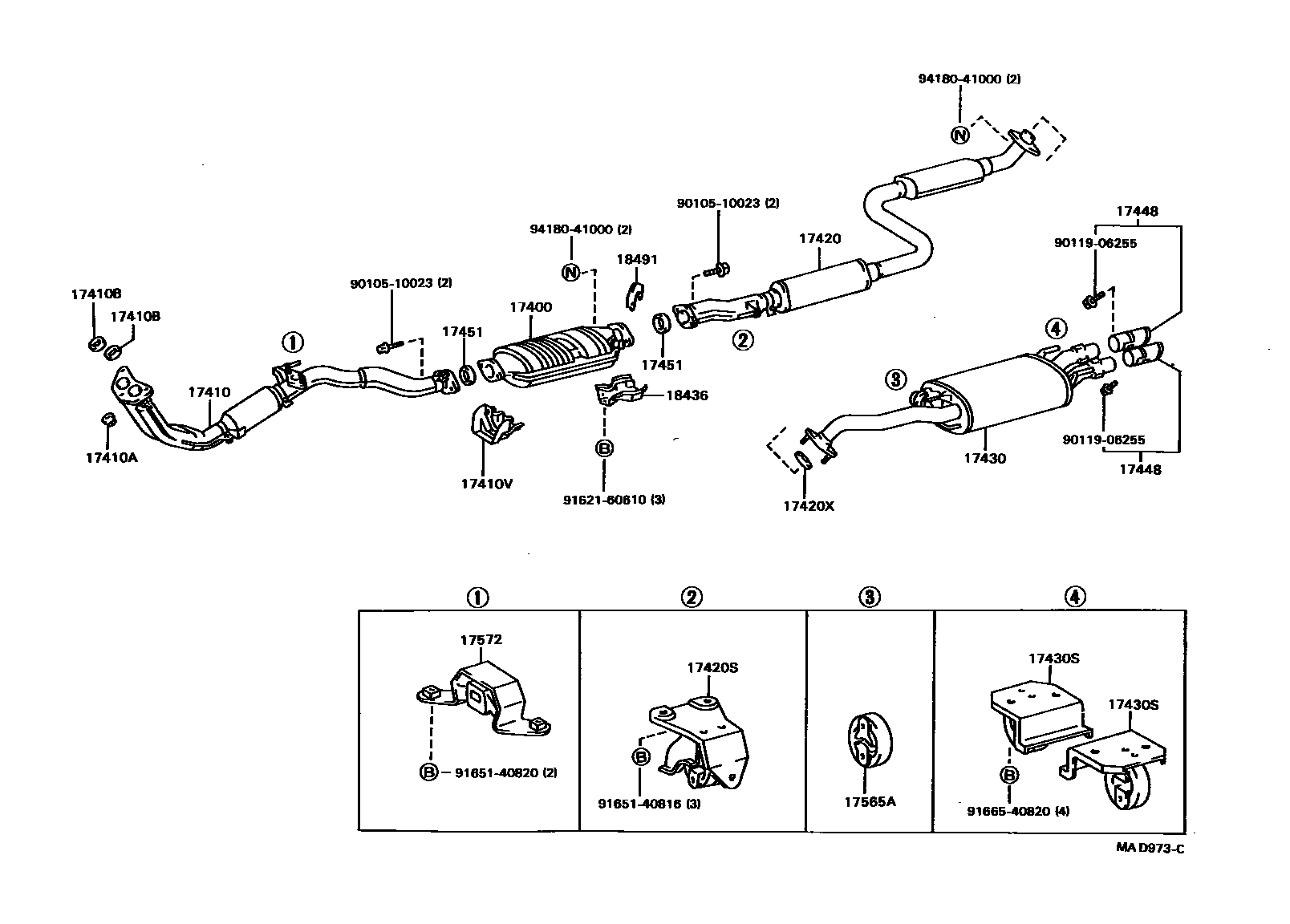

Toyota CAMRY Exhaust Pipe — Figure 1702
Toyota CAMRY EPC diagram 1702, Exhaust Pipe, with 6 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17400 | Three-way catalytic converter assembly with catalyst | 18450-62070 · 18450-74230 · 18450-74310 |
| 17410 | Front exhaust pipe assembly | 17410-62050 · 17410-64431 · 17410-64432 · 17410-74770 · 17410-74780 · 17410-74810 · 17410-74820 · 17410-7A140 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10070 |
| 17410B | Exhaust pipe gasket | 90917-06039 · 90917-06042 · 90917-06045 · 90917-06055 |
| 17410E | No. 1 front exhaust pipe clamp (for front) | 90917-04041 |
| 17410V | Front exhaust pipe bracket (for rear) | 17503-62010 |
| 17420 | Central exhaust pipe assembly | 17420-62070 · 17420-64120 · 17420-74530 · 17420-74540 · 17420-74550 · 17420-74561 · 17420-74562 |
| 17420S | Center exhaust pipe rear bracket | 17507-74050 · 17507-74070 |
| 17420X | Center exhaust pipe liner | 90917-06039 · 90917-06042 · 90917-06045 |
| 17430 | Exhaust tailpipe assembly | 17430-64600 · 17430-64780 · 17430-74880 · 17430-74890 · 17430-7A011 · 17430-7A080 · 17430-7A240 · 17430-7A250 · 17440-62012 · 17440-62013 |
| 17430S | Exhaust tailpipe bracket (for rear) | 17509-74100 |
| 17448 | Exhaust pipe tail throat | 17408-50010 · 17408-74040 · 17448-79025 · 17448-79026 |
| 17451 | Exhaust pipe gasket | 90917-06039 · 90917-06043 · 90917-06045 · 90917-06054 |
| 17562 | No. 2 exhaust pipe lifting lug | 17562-64210 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-11100 · 17565-74280 |
| 17571 | No. 1 exhaust pipe bracket | 17571-74280 |
| 17572 | No. 1 exhaust pipe bracket | 17572-74080 |
| 18435 | Three-way catalytic converter protection device | 18436-74020 |
| 18436 | No. 1 integrated three-way catalytic converter protection device | 18436-74030 |
| 18491 | Thermal sensor air inlet flange | 18491-28010 · 18491-74020 |
