Toyota CAMRY Manifold — Figure 1701

Toyota CAMRY EPC diagram 1701, Manifold, with 9 images and 70 PNC and OE references.

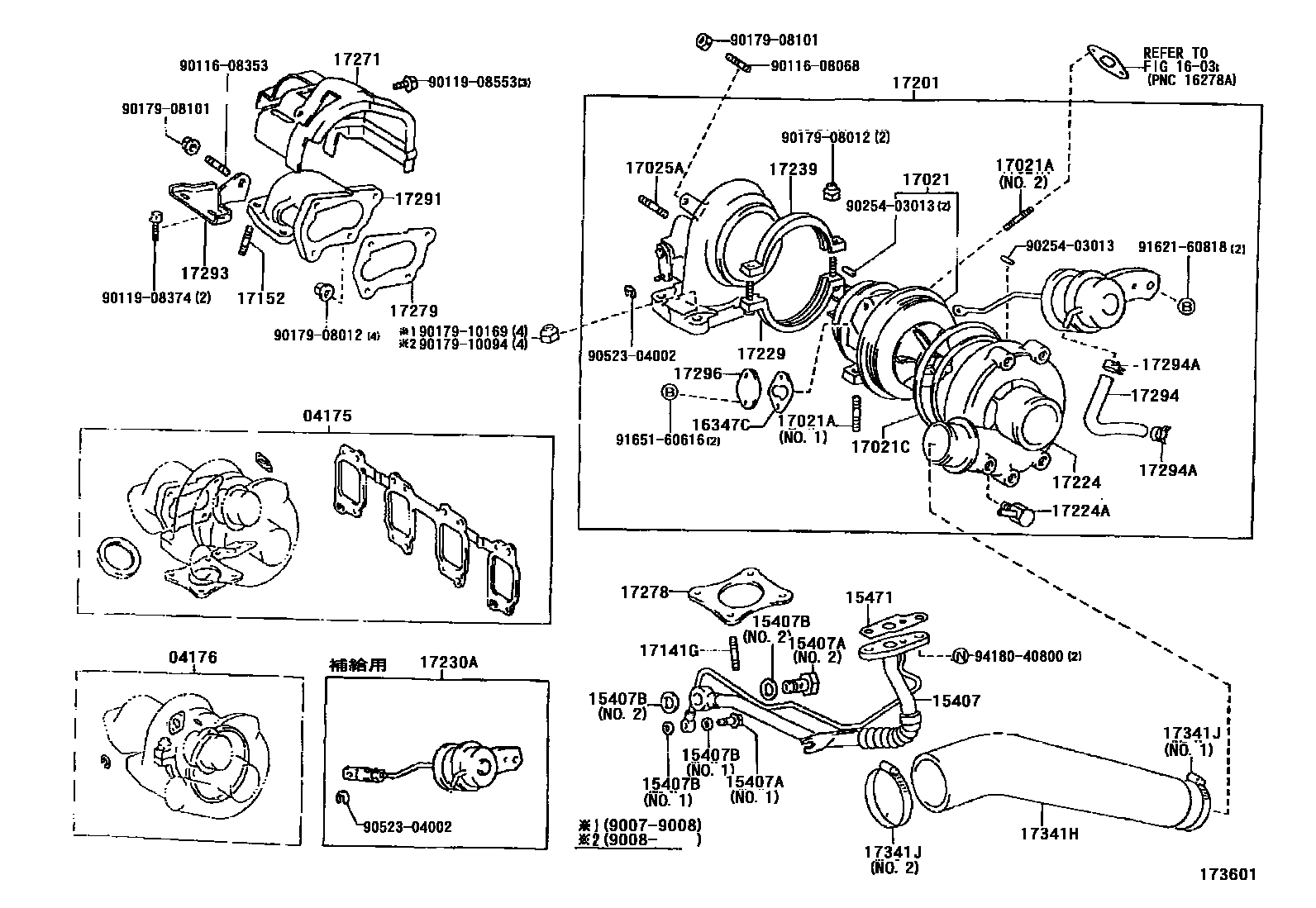

Toyota CAMRY Manifold EPC diagram — 173601
Manifold — 173601 (199007 – 199206)

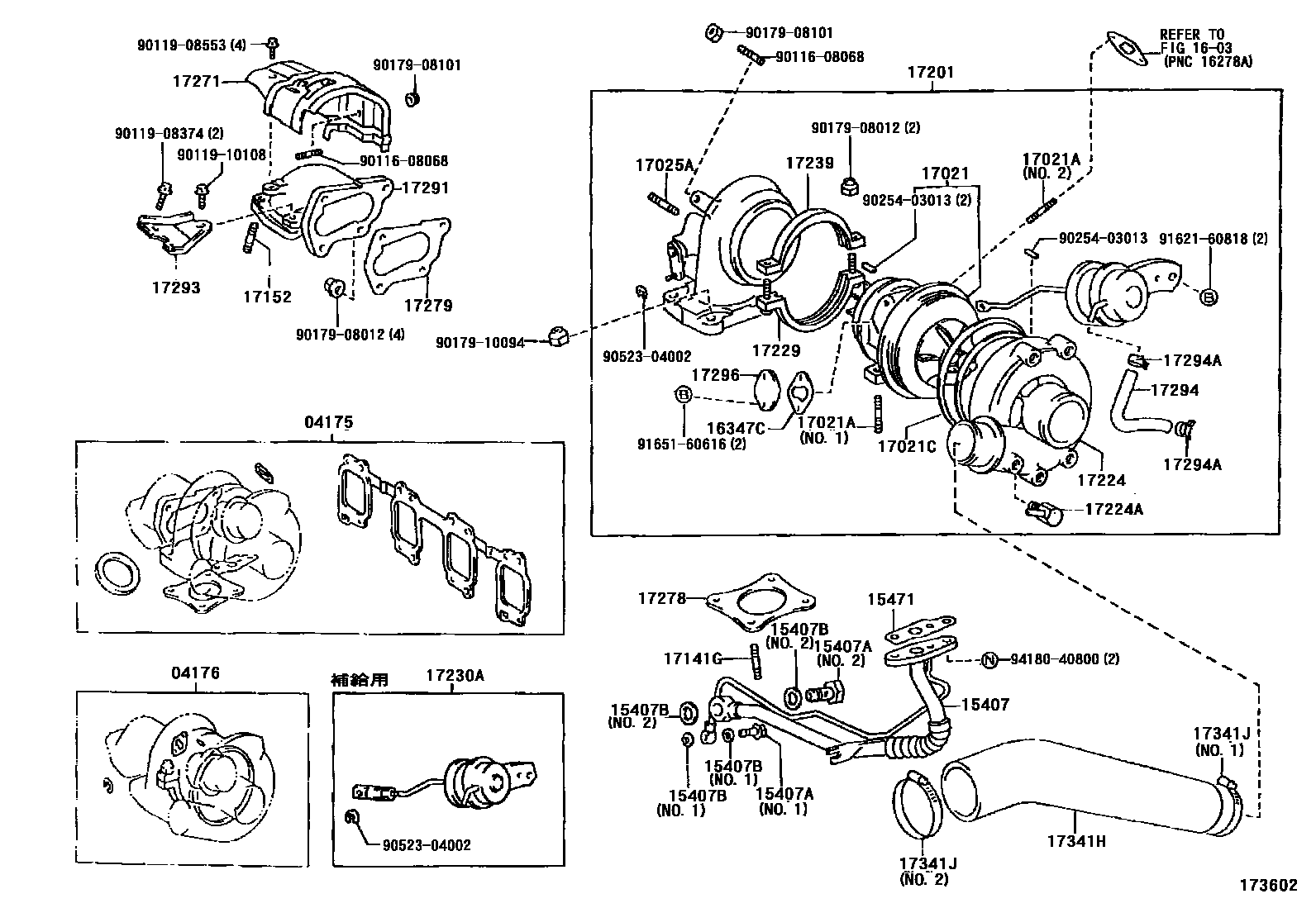

Toyota CAMRY Manifold EPC diagram — 173602
Manifold — 173602 (199206 – 999999)

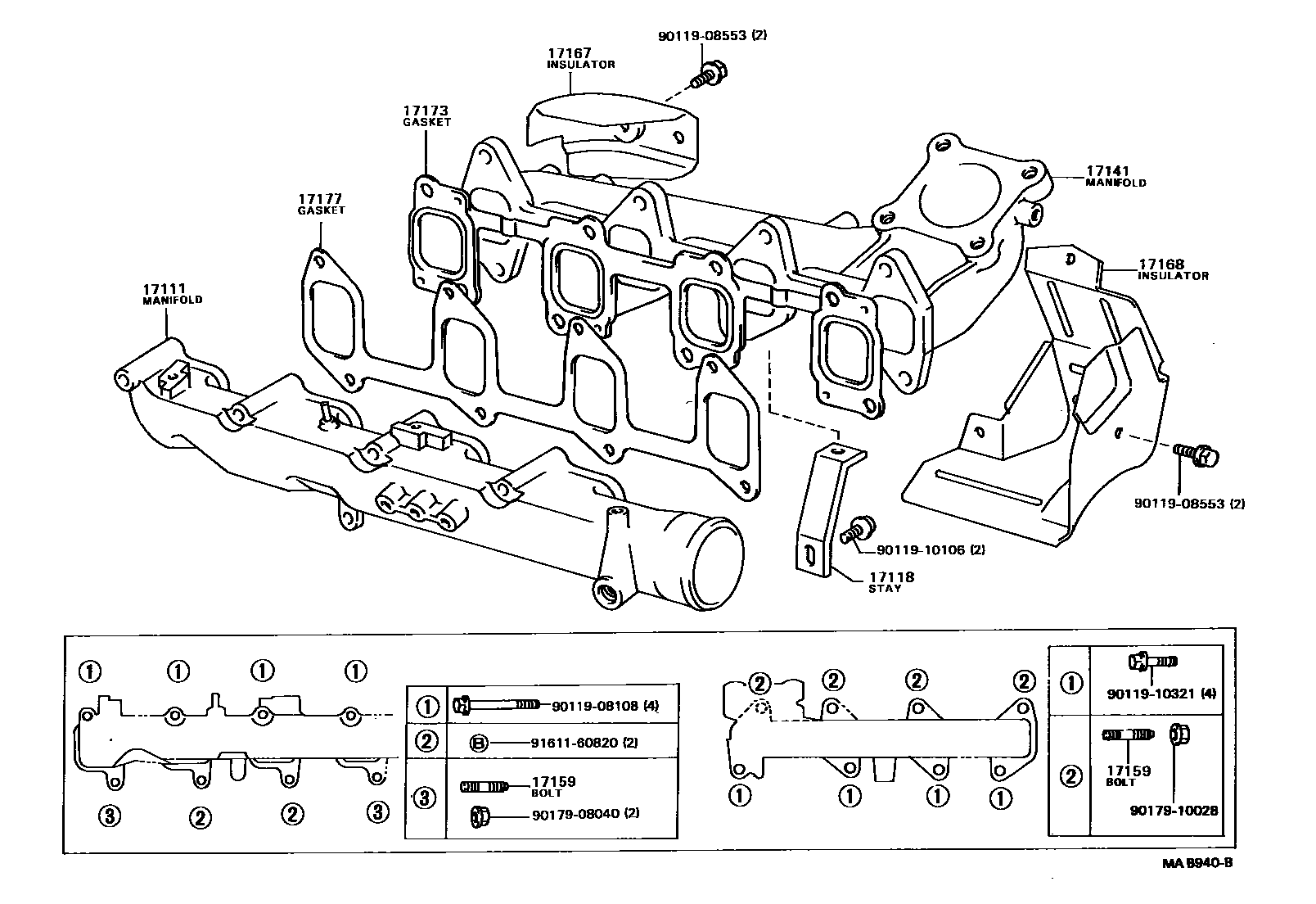

Toyota CAMRY Manifold EPC diagram — MAD940B
Manifold — MAD940B (199007 – 999999)

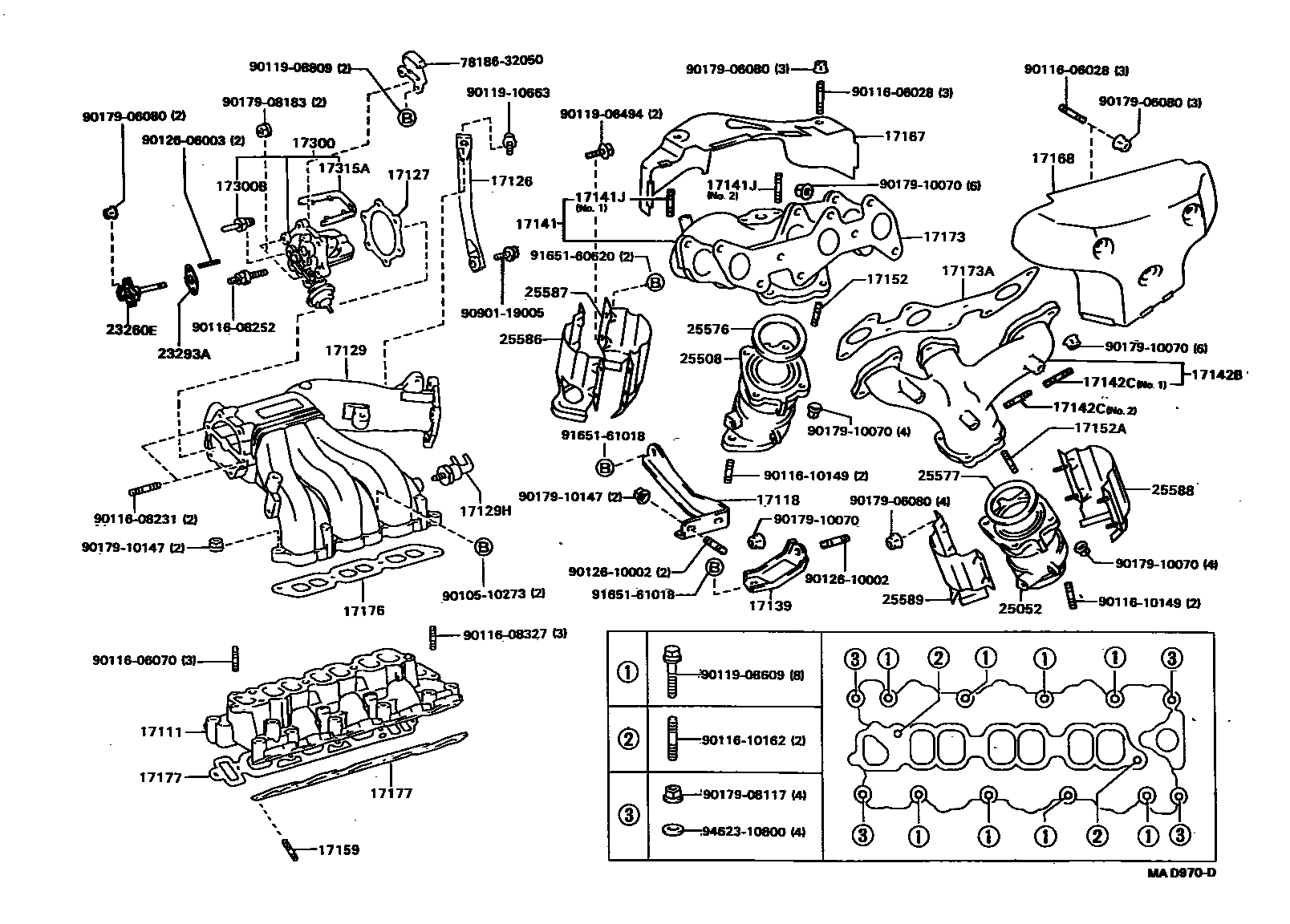

Toyota CAMRY Manifold EPC diagram — MAD970D
Manifold — MAD970D (199007 – 199206)

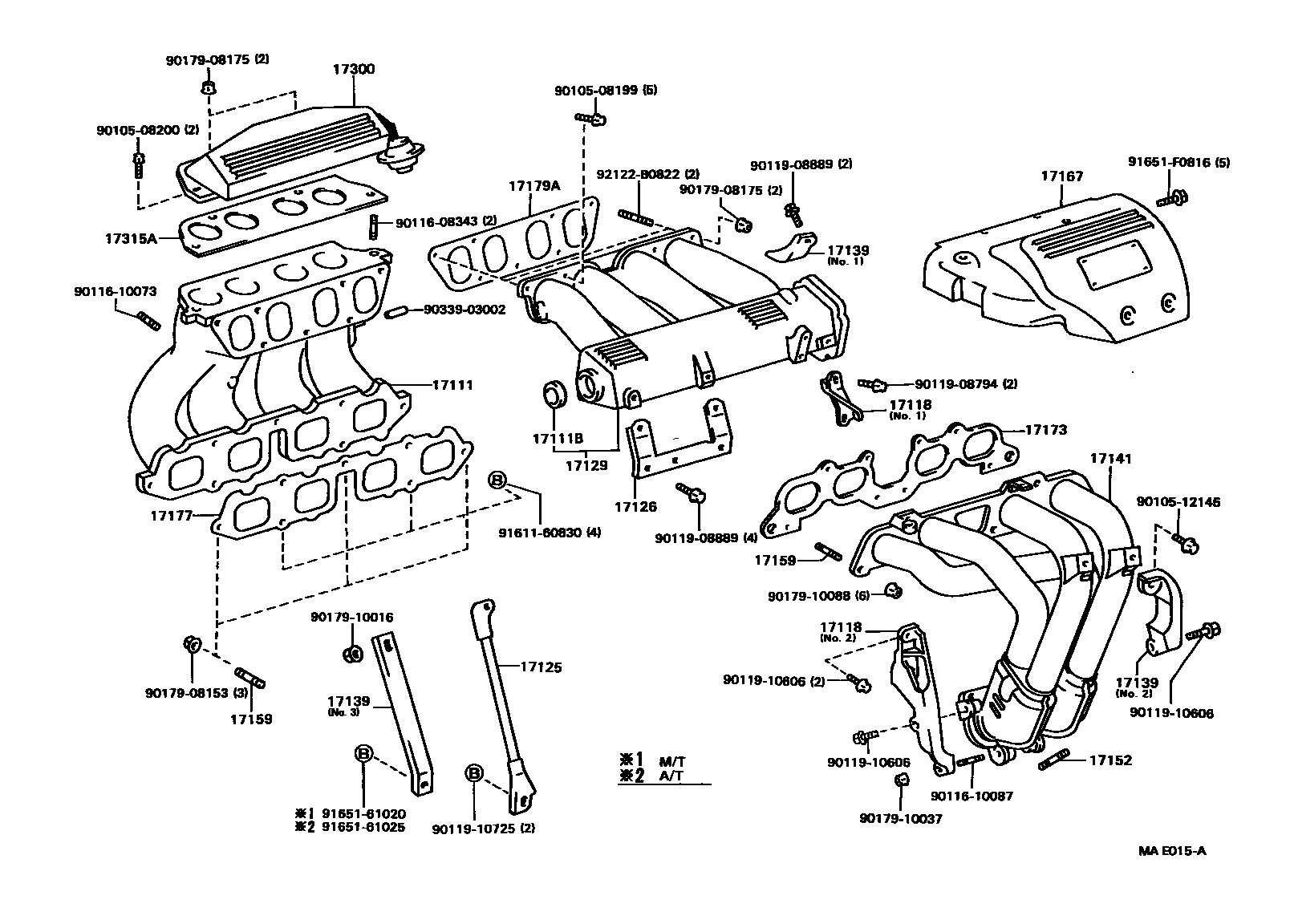

Toyota CAMRY Manifold EPC diagram — MAE015A
Manifold — MAE015A (199007 – 999999)

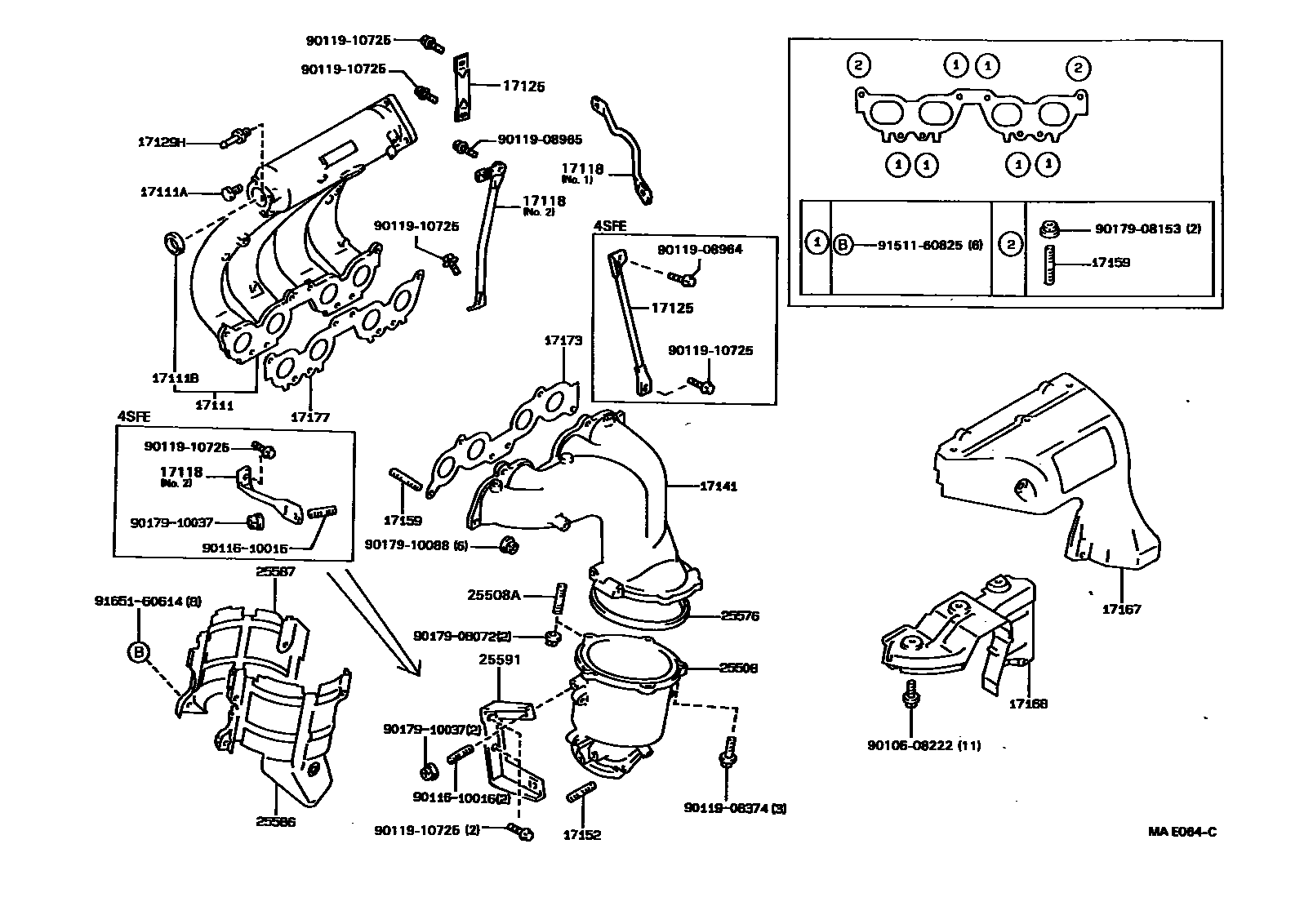

Toyota CAMRY Manifold EPC diagram — MAE064C
Manifold — MAE064C (199007 – 199206)

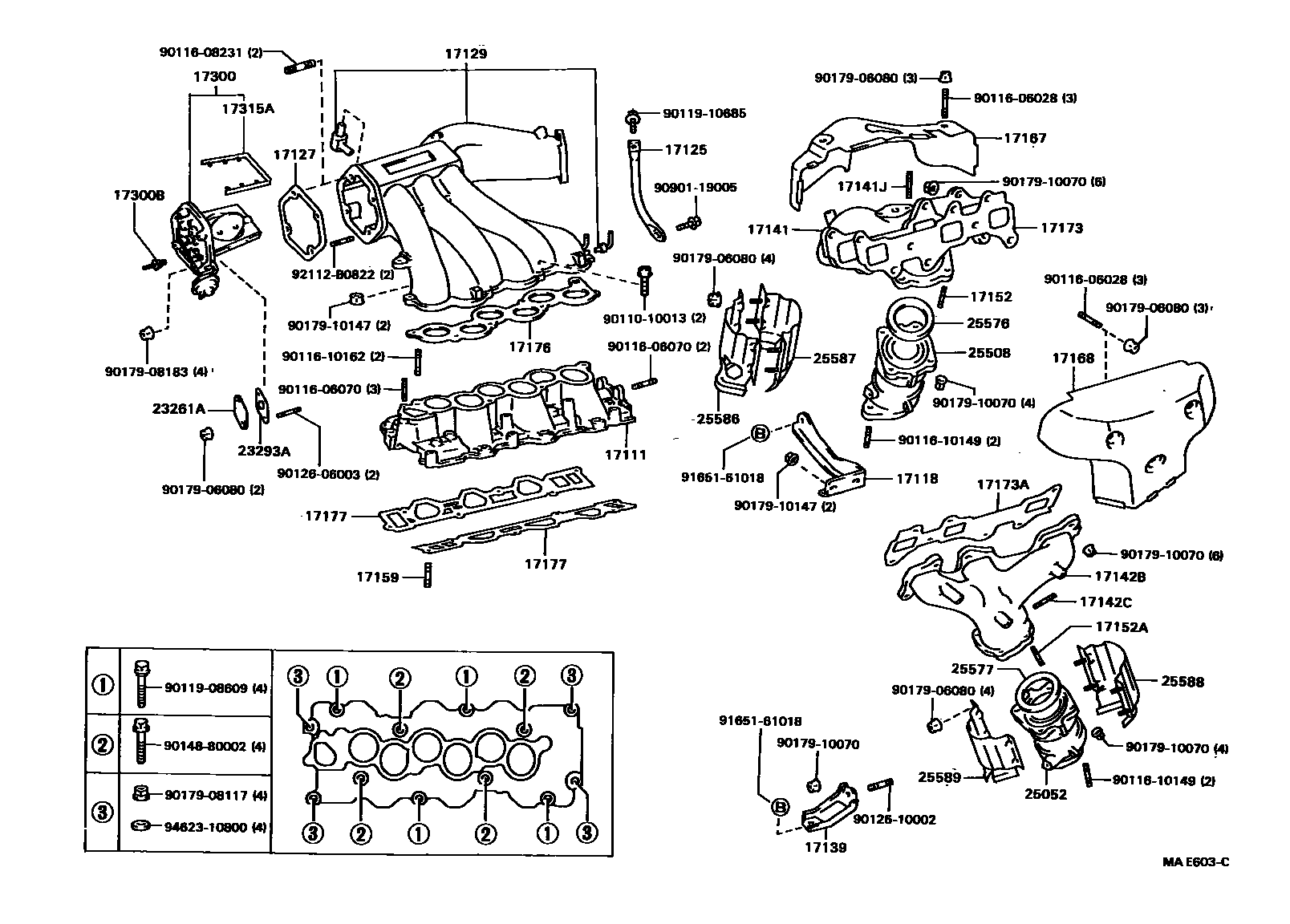

Toyota CAMRY Manifold EPC diagram — MAE603C
Manifold — MAE603C (199105 – 999999)

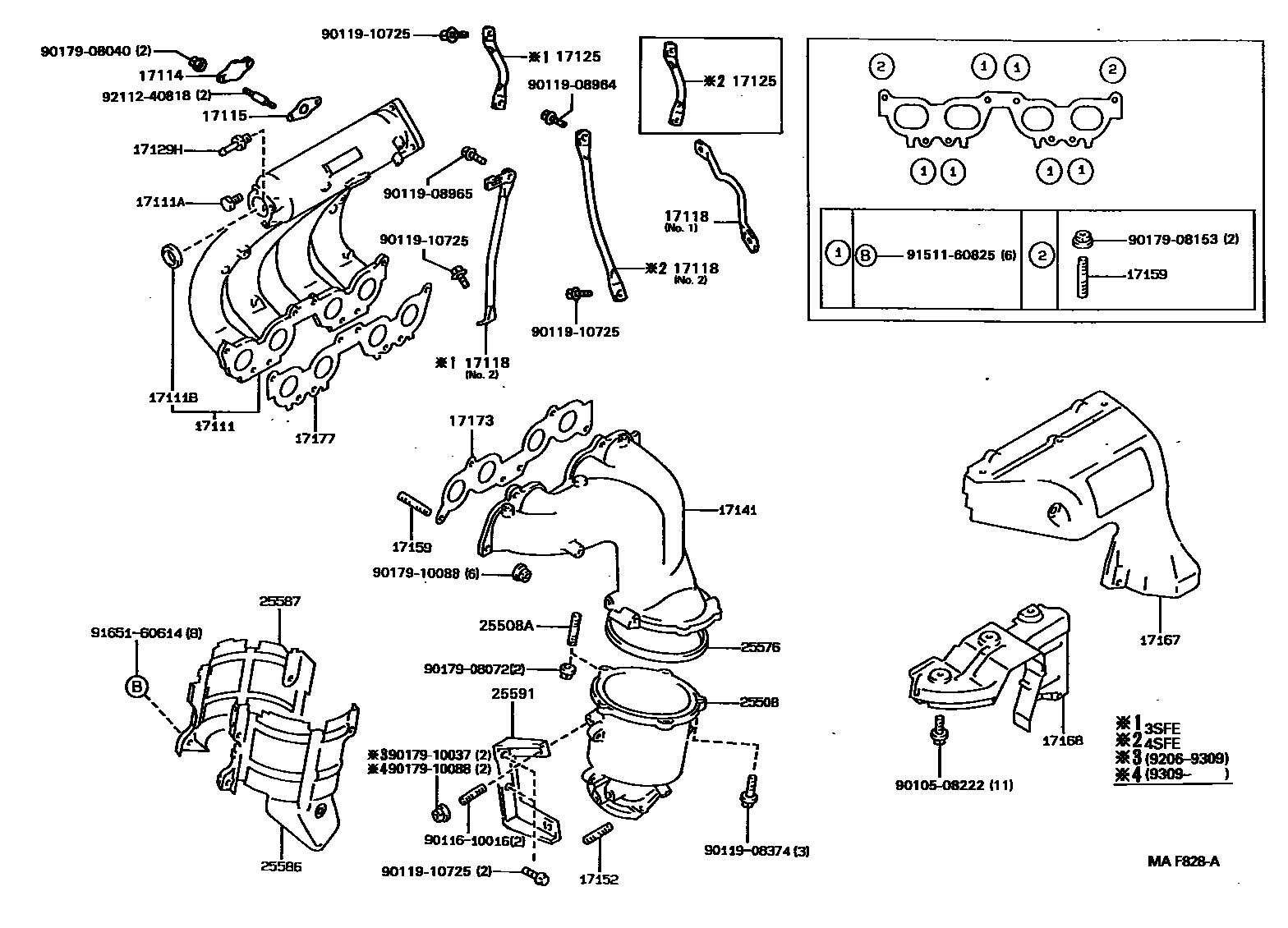

Toyota CAMRY Manifold EPC diagram — MAF828A
Manifold — MAF828A (199206 – 999999)

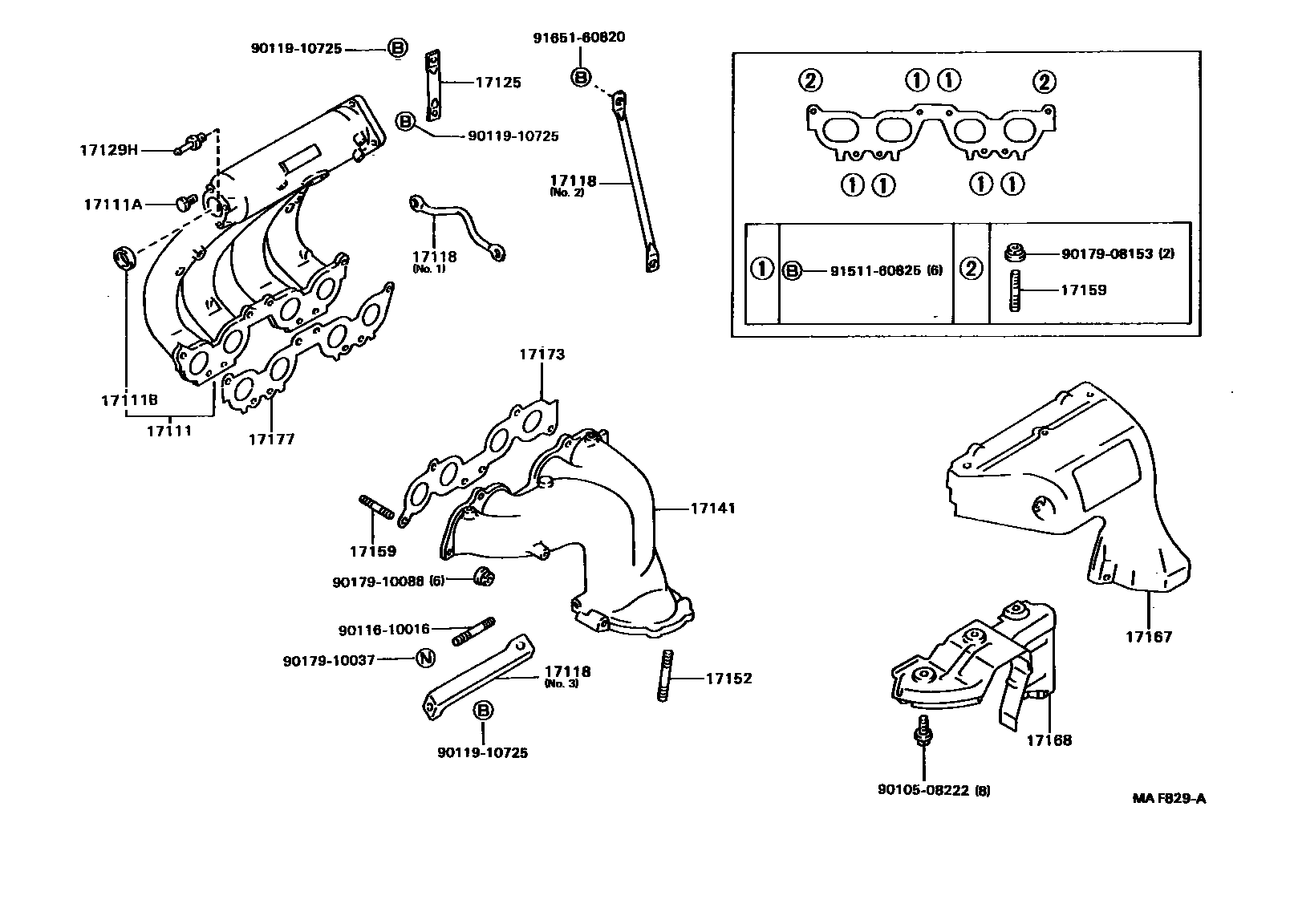

Toyota CAMRY Manifold EPC diagram — MAF829A
Manifold — MAF829A (199007 – 999999)

PNC and OE references

PNCPart nameOE numbers
04175Turbocharger gasket assembly04175-64030
04176Turbocharger seal assembly04176-70011
15407Turbine oil inlet pipe sub-assembly15407-64030
15407AConnector bolt (for turbine oil inlet pipe)90401-10006 · 90401-27002
15407BGasket (for turbine oil inlet pipe)90210-27001 · 90430-10027 · 90430-10035
15471Turbine oil inlet pipe gasket15471-54010 · 15471-58010
16347CLiners (for turbine water pipes)16347-42020
17021Bearing shell sub-assembly17021-11010
17021AStud bolts (for bearing housing)90116-06048 · 90116-08158
17021CHole snap ring (for bearing housing)90521-99035
17025AStud bolts (for turbine housing)90116-08200
17111Intake Manifold17101-64120 · 17101-74140 · 17101-74150 · 17101-74170 · 17101-74180 · 17111-62010 · 17111-62040
17111ANo. 1 screw plug90345-51006
17111BNo. 2 screw plug96411-44000
17114Intake manifold hole cover25617-74020
17115Intake manifold hole cover gasket25627-74011
17118Manifold stays17118-62010 · 17118-64020 · 17118-74040 · 17118-74100 · 17118-74130 · 17118-74140 · 17118-74150 · 17118-74180 · 17118-74190 · 17118-74200
17125No. 1 pressure tank stay17125-62030 · 17125-74040 · 17125-74060 · 17125-74090 · 17125-88361
17126No. 2 pressure tank stay17126-62010 · 17126-74010
17127Pressure tank cover gasket17127-62020 · 17127-62030
17129Intake pressure tank17109-62020 · 17109-62021 · 17109-62040 · 17109-62041 · 17109-74040
17129HConnector No. 490404-51026 · 90404-51064
17139No. 2 manifold stay17139-62010 · 17139-74050 · 17139-74071 · 17139-74080 · 17139-74090
17141exhaust manifold17141-62030 · 17141-62060 · 17141-64160 · 17141-74031 · 17141-74081 · 17141-74110 · 17141-74120
17141GStud bolts (for turbocharger)90116-10148
17141JStuds (for right exhaust manifold)90116-08128 · 90116-08359 · 90126-08006 · 90126-08007
17142BLeft exhaust manifold17142-62020 · 17142-62050
17142CStuds (for left exhaust manifold)90116-08128 · 90116-08359 · 90126-08006 · 90126-08007
17152Studs (for manifold to exhaust)90116-10058 · 90116-10146 · 90126-10003
17152AStuds (for manifold to exhaust)90126-10003
17159Studs (for manifold to cylinder head)90116-08242 · 90116-08251 · 90116-10063 · 90116-10095 · 90116-10150 · 92122-60820 · 92122-60822
17167Exhaust manifold No. 1 heat shield17167-62020 · 17167-64031 · 17167-74140 · 17167-74141 · 17167-74150 · 17167-74170 · 17167-74171
17168Exhaust manifold No.2 insulation pad17168-62020 · 17168-64060 · 17168-74020 · 17168-74060
17173Gasket (exhaust manifold to cylinder head)17173-62030 · 17173-62040 · 17173-64050 · 17173-74040
17173ALeft side gasket (exhaust manifold to cylinder head)17173-62030 · 17173-62040
17176Gasket (intake surge tank to intake manifold)17176-62020 · 17176-62030
17177No. 1 gasket (intake manifold to cylinder head)17177-62010 · 17177-62050 · 17177-64020 · 17177-74060 · 17177-74070
17179ANo. 2 intake manifold gasket17171-74020
17201Turbocharger sub-assembly17201-64060
17224compressor casing17224-64030 · 17224-64031
17224AConnector (for compressor housing)90404-51040
17229V-Belt17229-70010
17230ACompensation actuator assembly with bracket17230-69055
17239No. 2 V-shaped clamp17239-70010
17271No. 1 turbine vibration isolation pad17271-64041 · 17271-64042
17278Gasket (turbo to exhaust manifold)17278-64030
17279Turbine outlet elbow gasket17279-11010 · 17279-55011
17291Turbine oil outlet elbow17291-64041 · 17291-64042
17293Turbocharger stay17293-64030 · 17293-64031
17294Actuator hose17294-28010
17294AClamp (for actuator hose)96132-41100
17296Bearing shell side plate17296-28010
17300Intake control valve assembly17300-62012 · 17300-62020 · 17300-74010
17300BConnector (for intake control valve)90404-51072 · 90404-51096
17315AIntake control valve gasket17315-62010 · 17315-62020 · 17315-74010
17341Hair hose17341-64050
17341Jhose clamp90460-50001 · 90460-50002 · 90460-65004
23260ECold start injector assembly23260-69015
23261AInjector cover23261-62010
23293ACold start injector gasket23293-62020 · 23293-62030
25052No. 2 exhaust manifold three-way catalytic converter sub-assembly25052-62010 · 25052-62011
25508Manifold three-way catalytic converter sub-assembly25051-62010 · 25051-62011 · 25508-74010 · 25508-74050 · 25508-74180
25508AStud bolts (for manifold three-way catalytic converter)90116-08171
25576Manifold three-way catalytic converter gasket25576-15010 · 25576-15020 · 25576-62010 · 25576-62021 · 25576-74030
25577Left manifold cover gasket25576-62010 · 25576-62021
25586No. 1 manifold three-way catalytic converter vibration isolation pad25586-62010 · 25586-74011 · 25586-74030
25587No. 2 manifold three-way catalytic converter vibration isolation pad25587-62010 · 25587-74011 · 25587-74030
25588No. 3 manifold three-way catalytic converter vibration isolation pad25588-62010
25589No. 4 manifold three-way catalytic converter vibration isolation pad25589-62010
25591Manifold bracket25591-74011
