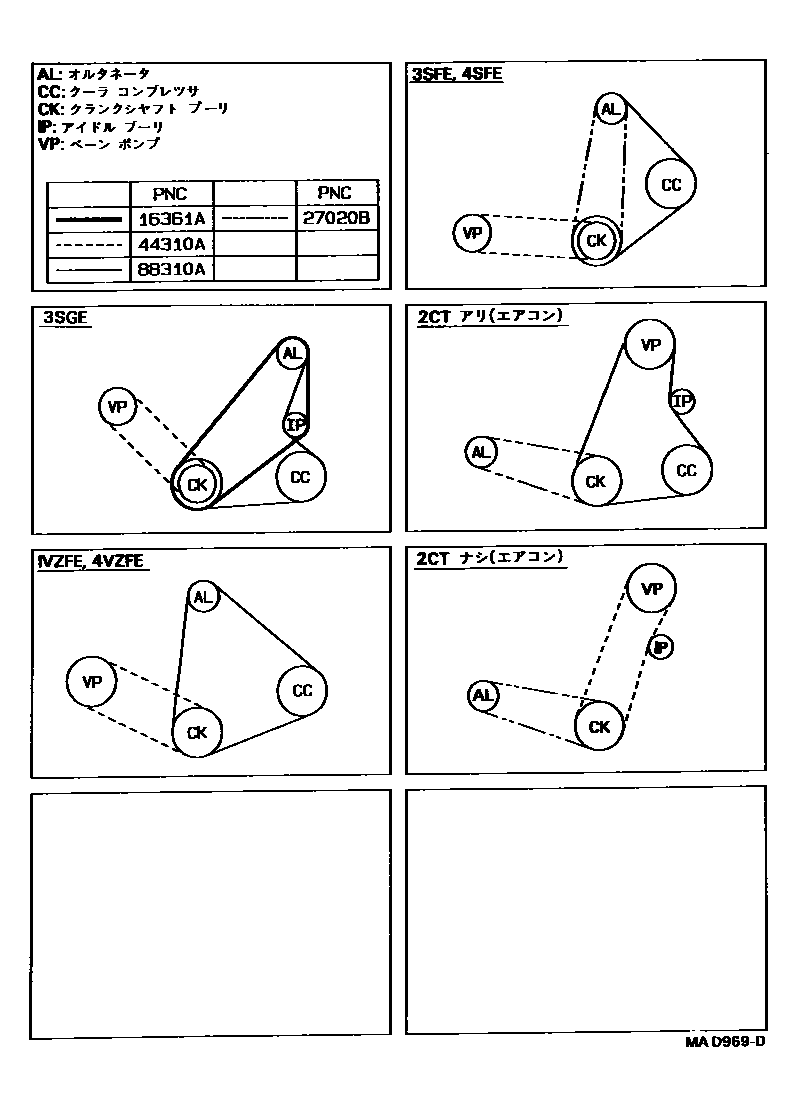

Toyota CAMRY V-Belt — Figure 1605
Toyota CAMRY EPC diagram 1605, V-Belt, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16361A | V-belts (for fans and generators) | 90916-02293 |
| 27020B | V-belt (for generator) | 90916-02237 · 90916-02293 · 90916-02295 · 90916-02355 · 90916-02356 · 90916-02357 · 90916-02358 · 90916-02372 |
| 44310A | V-belt (for vane pump) | 90916-02205 · 90916-02298 · 90916-02299 · 90916-02314 · 90916-02318 · 90916-02346 · 99366-11140 |
| 88310A | No. 1 V-belt (cooler compressor to crankshaft pulley) | 90916-02116 · 90916-02312 · 90916-02346 · 99365-21110 · 99365-51110 · 99365-71110 · 99365-81110 · 99366-01050 · 99366-21050 · 99366-71050 · 99366-81050 |
