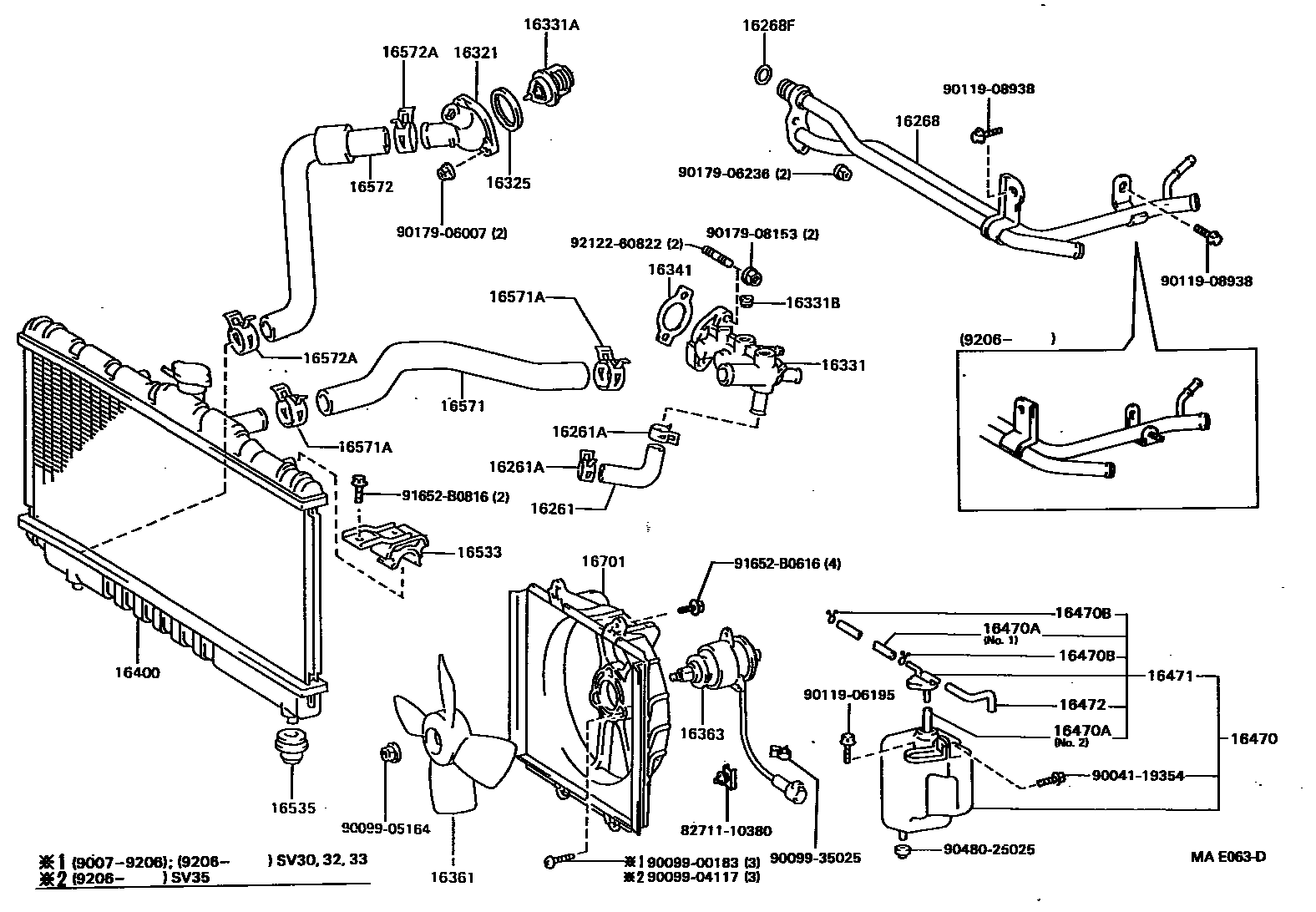

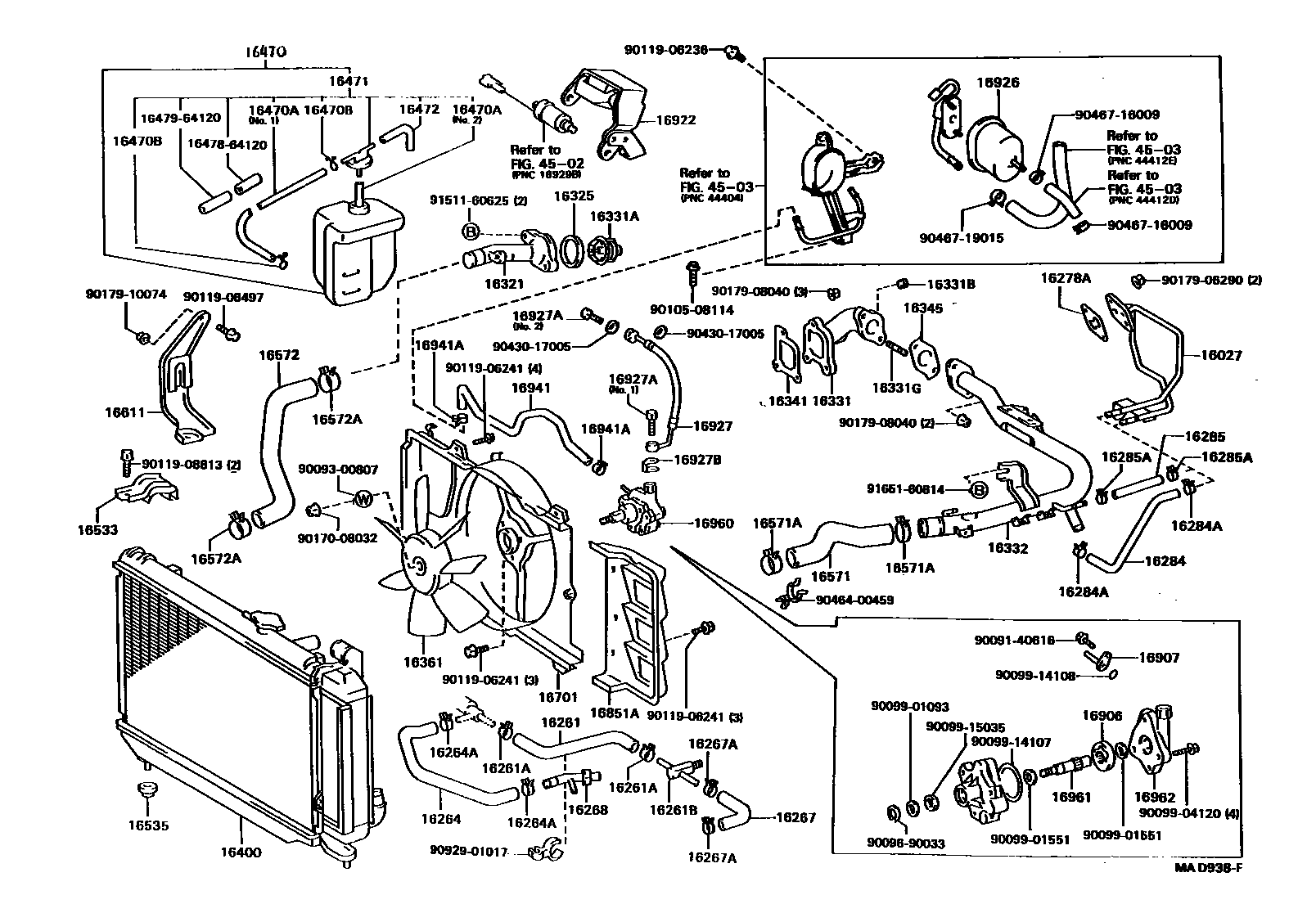

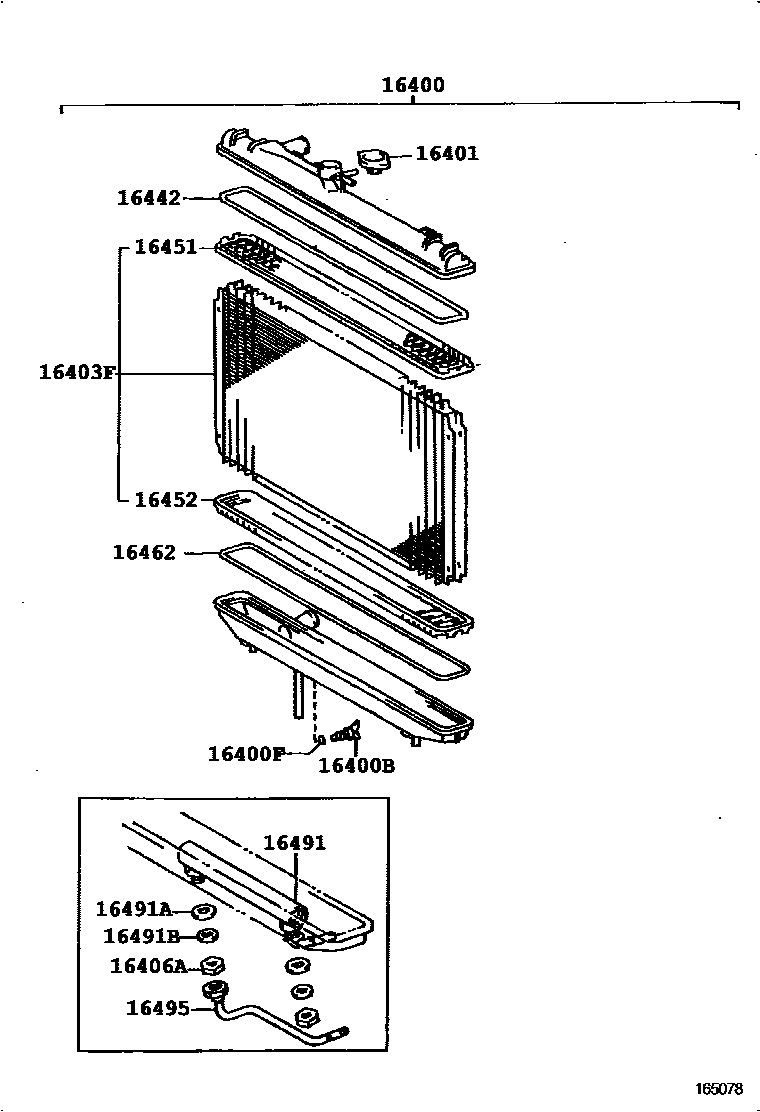

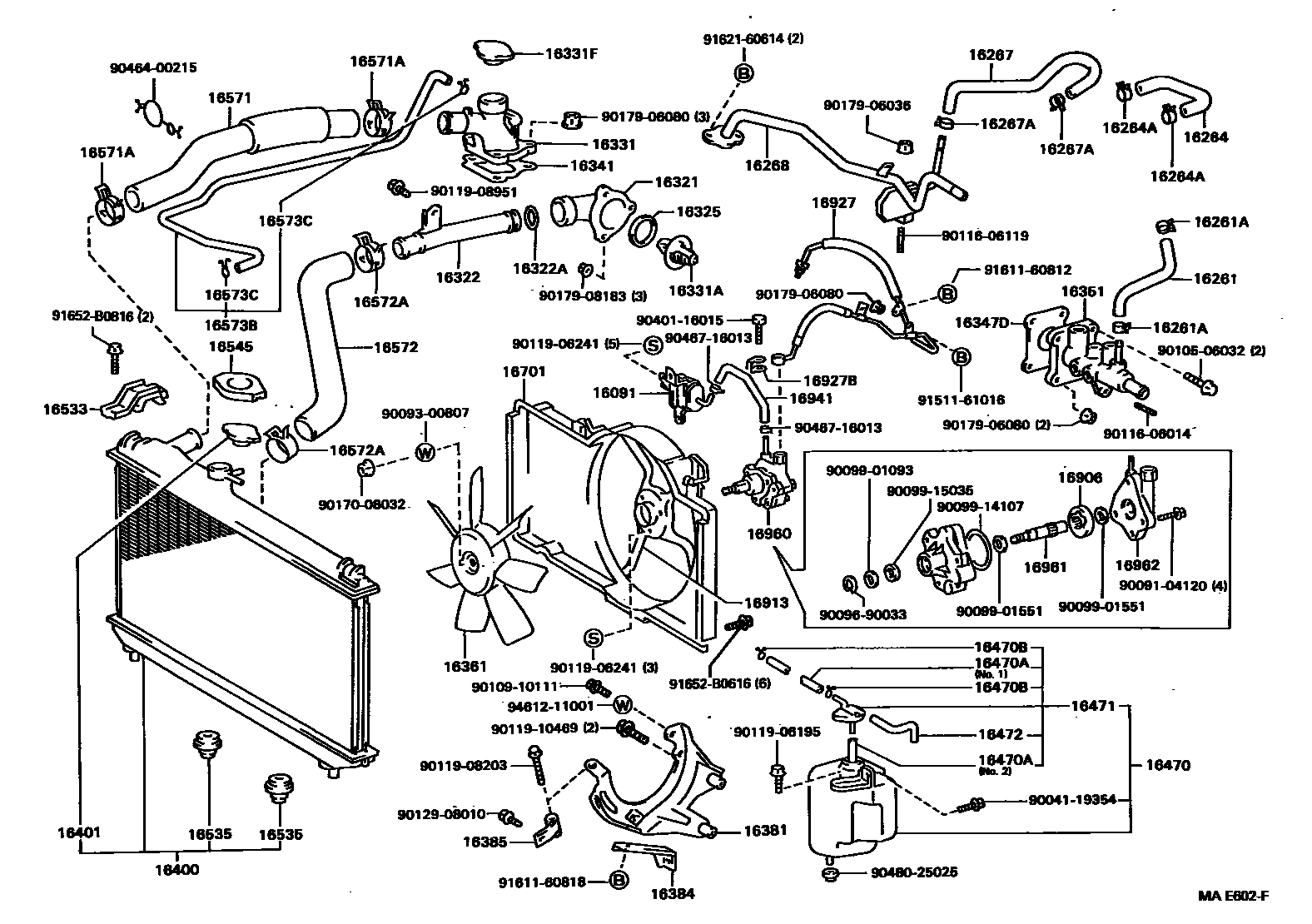

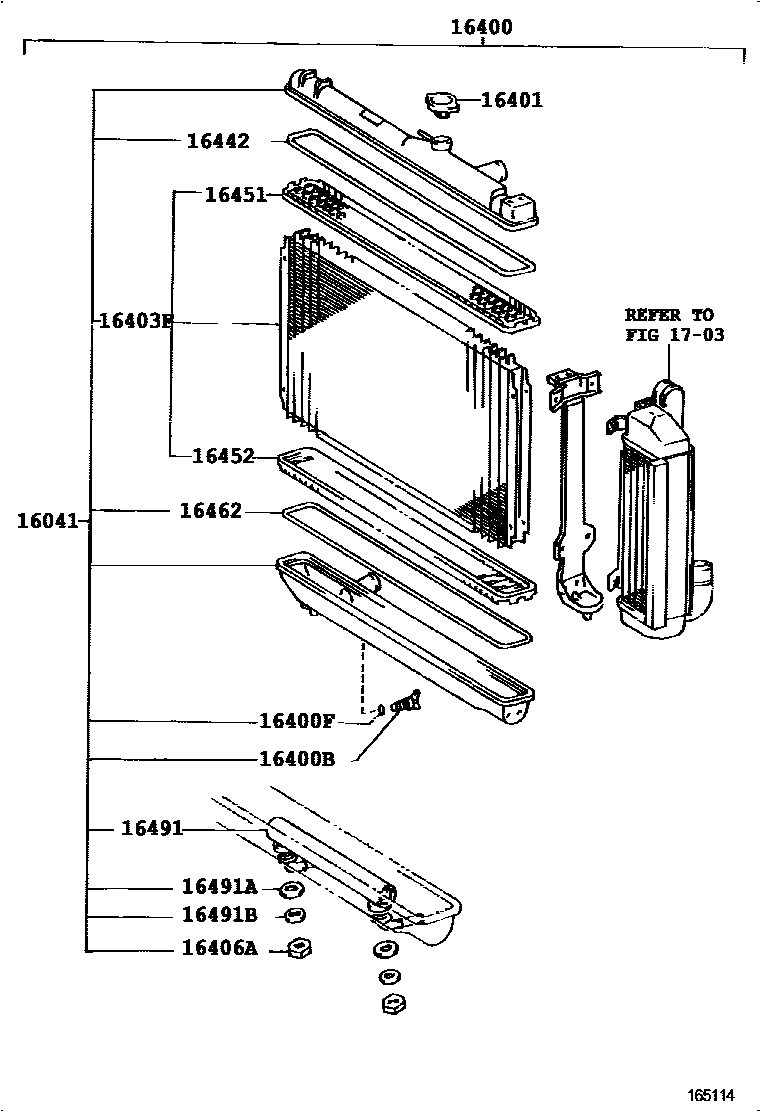

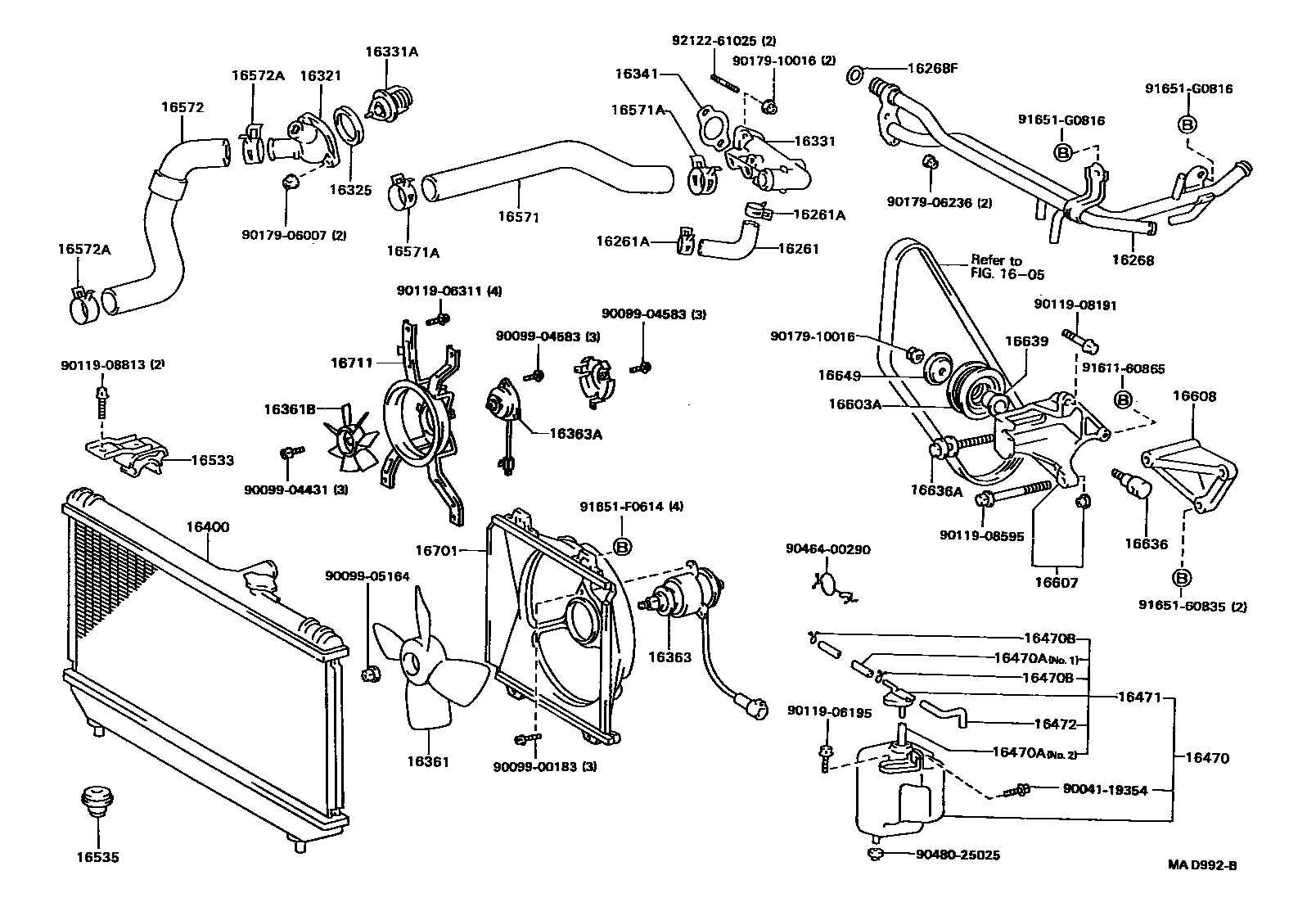

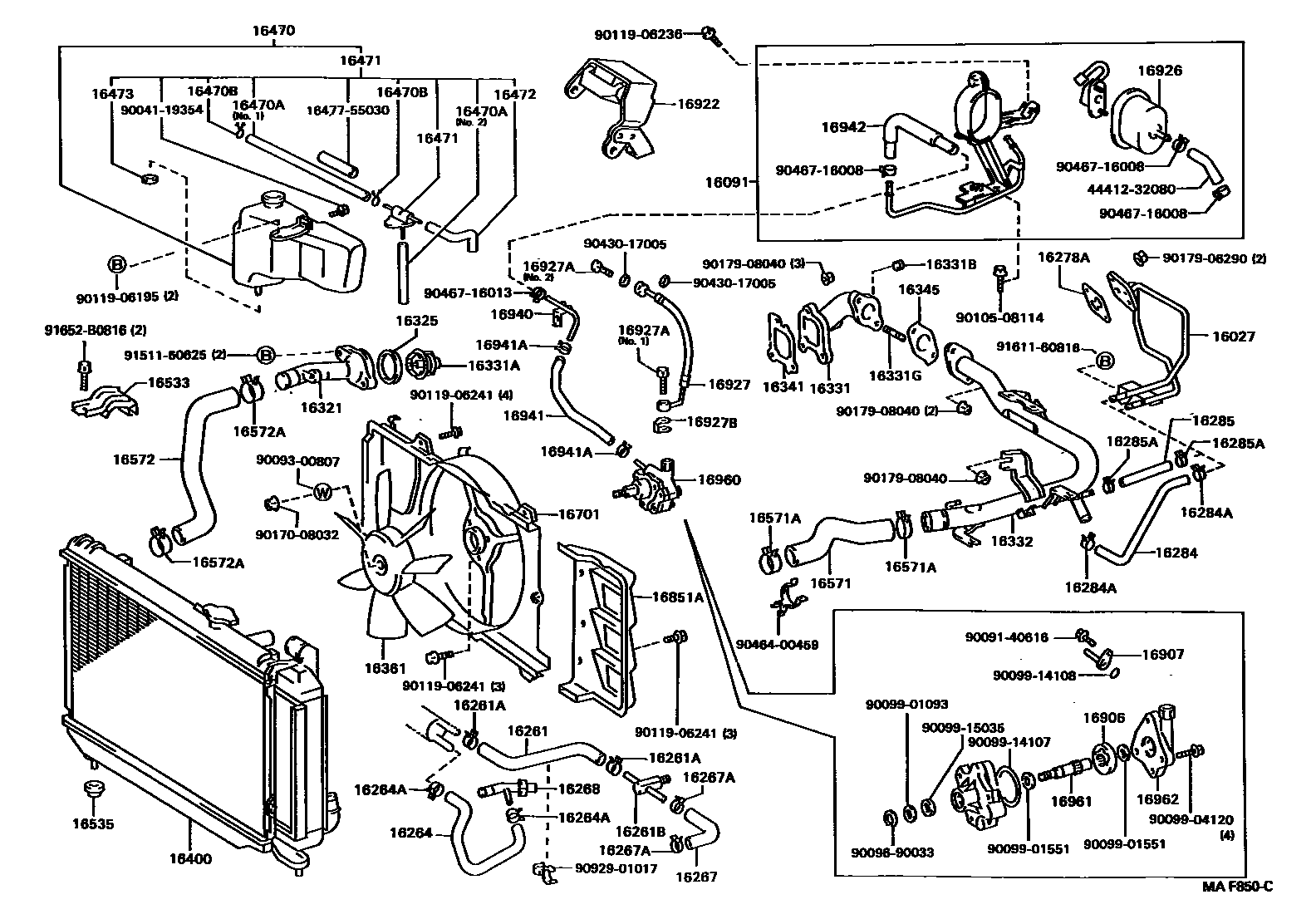

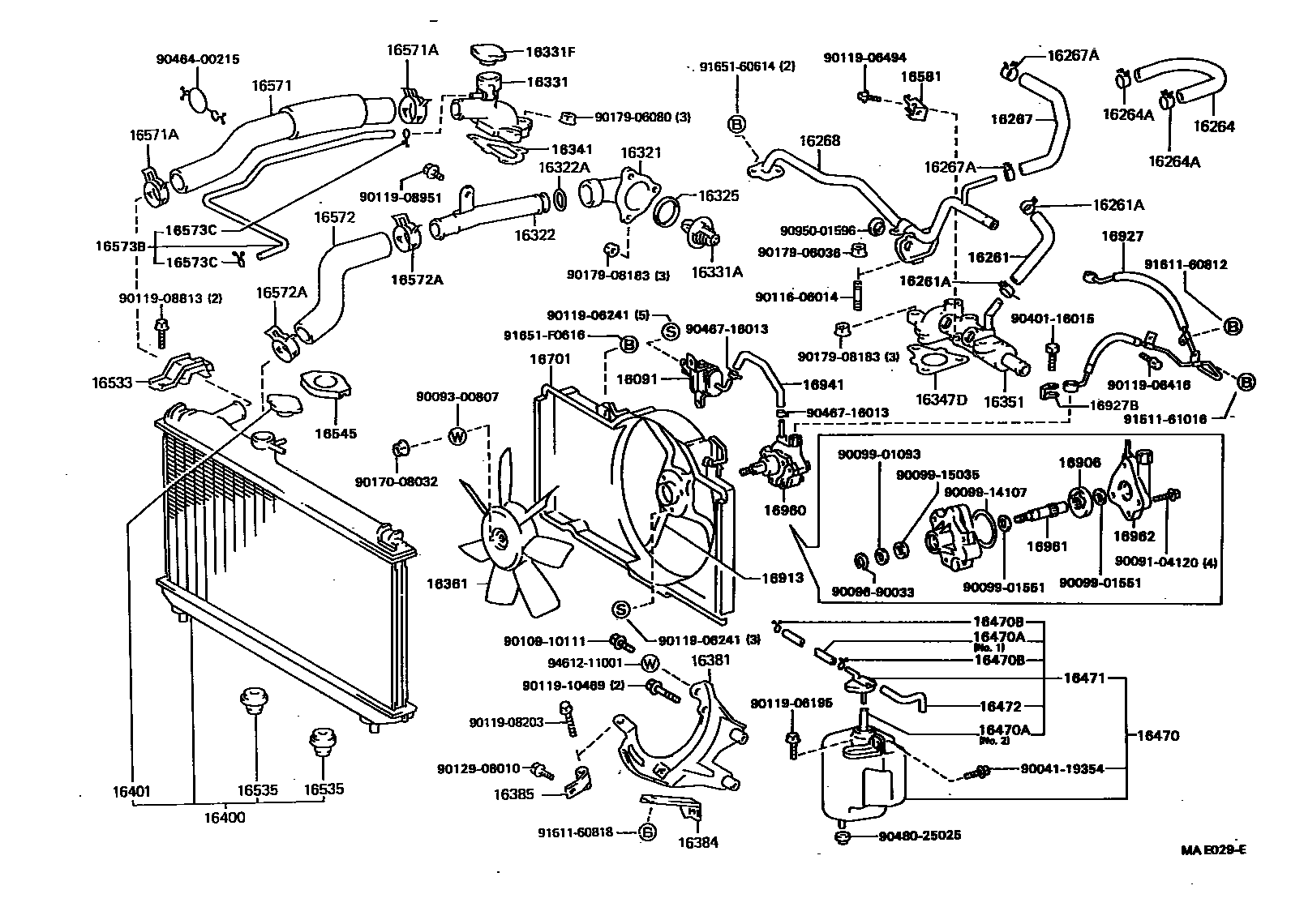

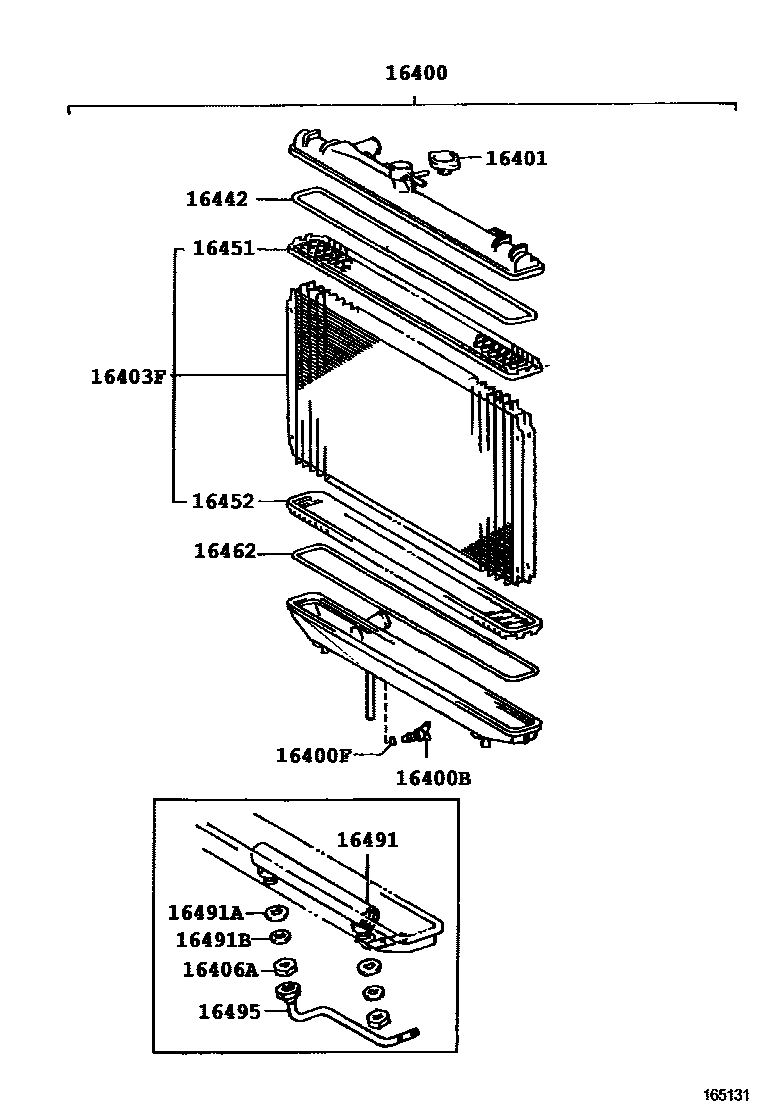

Toyota CAMRY RADIATOR & WATER OUTLET — Figure 1603
Toyota CAMRY EPC diagram 1603, RADIATOR & WATER OUTLET, with 9 images and 94 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16027 | No. 1 turbine water pipe sub-assembly | 16027-64030 · 16027-64031 |
| 16041 | No. 2 radiator assembly | 16041-64280 · 16041-64290 |
| 16091 | Hydraulic motor oil filter sub-assembly | 16091-62010 · 16091-64010 |
| 16261 | HOSE, WATER BY-PASS | 16261-62010 · 16261-62020 · 16261-64060 · 16261-74010 · 16261-88361 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90467-15022 · 90467-22003 · 96135-41300 |
| 16261B | Connector (for water bypass hose) | 90404-53050 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-62010 · 16264-62030 · 16264-64090 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90467-15022 · 96135-41300 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-62010 · 16267-62030 · 16267-62031 · 16267-64010 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90467-11009 · 96135-41300 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-62010 · 16268-62011 · 16268-62050 · 16268-64060 · 16268-64061 · 16268-74010 · 16268-74100 · 16268-74101 · 16268-74151 · 16268-74152 |
| 16268F | O-ring (for water bypass pipe) | 96761-24017 |
| 16278A | water bypass liner | 16347-28010 · 16347-42020 |
| 16284 | Turbine Water Hose No. 1 | 16284-64040 |
| 16284A | Clamp (for No. 1 turbine water hose) | 90467-13128 |
| 16285 | Turbine Water Hose No. 2 | 99556-10150 |
| 16285A | Clamp (for No. 2 turbine water hose) | 90467-13128 |
| 16321 | water inlet | 16321-62010 · 16321-64050 · 16321-74030 · 16321-88381 |
| 16322 | PIPE, WATER INLET | 16322-62010 · 16322-62020 |
| 16322A | O-RING, WATER INLET | 96711-35031 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-62010 · 16325-63010 · 16325-63011 |
| 16331 | Water outlet | 16304-74110 · 16304-74120 · 16304-74121 · 16331-62020 · 16331-62030 · 16331-64030 · 16331-74170 |
| 16331A | thermostat | 90916-03046 · 90916-03060 · 90916-03075 |
| 16331B | Screw plug (for water outlet) | 90345-53009 · 90345-53030 |
| 16331F | Cover assembly (for water outlet) | 16401-62070 · 16401-62090 |
| 16331G | Stud bolts (for water inlet) | 92122-60816 |
| 16332 | No. 1 outlet pipe | 16306-64010 · 16306-64011 · 16306-64012 |
| 16341 | GASKET, WATER OUTLET | 16341-62020 · 16341-62030 · 16341-63011 · 16341-64020 · 16341-64021 · 16341-74020 · 16341-74030 |
| 16345 | Outlet pipe gasket | 16345-64040 · 16345-64041 |
| 16347D | water bypass liner | 16347-62020 · 16347-62030 |
| 16351 | water bypass outlet | 16351-62011 · 16351-62050 |
| 16361 | Fan | 16361-64020 · 16361-74050 · 16361-74060 · 16911-64010 |
| 16361B | Fan No. 2 | 16361-74040 |
| 16363 | cooling fan motor | 16363-11010 · 16363-11020 · 16363-11030 |
| 16363A | Cooling fan motor No. 2 | 16363-74050 |
| 16381 | Fan belt adjustment lever | 16381-62012 · 16381-62030 |
| 16384 | Fan belt adjustment lever bracket | 16384-62030 · 16384-62050 |
| 16385 | Fan belt adjustment slider | 16385-62010 |
| 16400 | Radiator assembly | 16400-62070 · 16400-62080 · 16400-64610 · 16400-64620 · 16400-74650 · 16400-74660 · 16400-74670 · 16400-74680 · 16400-74690 · 16400-74700 |
| 16400B | Radiator drain switch screw plug | 23322-54010 |
| 16400F | Seal (for radiator drain switch) | 96711-19007 |
| 16401 | Radiator cover sub-assembly | 16401-72090 |
| 16403F | Radiator core sub-assembly | 16403-62080 · 16403-64620 · 16403-74670 · 16403-74680 · 16403-74690 · 16403-74700 |
| 16406A | Bracket (for transmission oil cooler) | 16406-62060 · 16406-74520 |
| 16442 | O-ring (for radiator tank) | 16442-74670 · 16462-64620 · 16462-74670 |
| 16451 | Radiator core upper plate | 16451-74670 · 16452-64620 · 16452-74680 |
| 16452 | Radiator core lower plate | 16452-64620 · 16452-74670 · 16452-74680 |
| 16462 | O-ring (for radiator lower tank) | 16462-64620 · 16462-74670 |
| 16470 | Radiator reservoir assembly | 16470-62030 · 16470-64120 · 16470-64121 · 16470-64160 · 16470-74140 |
| 16470A | Hoses or tubes (for radiator reservoir) | 16472-64160 · 85338-62030 · 90099-33534 · 90445-12078 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-11085 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-62020 · 16405-64060 · 16405-64061 · 16405-64070 · 16405-74160 |
| 16472 | Breather hose | 85338-70100 · 85338-74140 |
| 16473 | Bracket (for radiator reservoir) | 16473-64160 |
| 16491 | Oil cooler (for ATM) | 16491-16380 · 16491-62060 · 16491-74680 |
| 16491A | O-ring (for automatic transmission oil cooler) | 16492-62060 |
| 16491B | Flat Washer (for automatic transmission oil cooler) | 16493-62060 · 16493-74520 |
| 16495 | Oil line nut (for automatic transmission oil cooler) | 16495-74680 · 16495-74690 |
| 16533 | Radiator upper bracket | 16533-62010 · 16533-64110 · 16533-74170 |
| 16535 | Radiator lower support | 16535-64070 · 16535-74110 |
| 16545 | radiator cover | 16545-62011 |
| 16571 | Radiator water inlet hose | 16571-62030 · 16571-64150 · 16571-74160 · 16571-74180 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90467-33002 · 90467-33003 · 90467-34003 · 90467-37002 |
| 16572 | Radiator outlet hose | 16572-62020 · 16572-62040 · 16572-64190 · 16572-74150 · 16572-74220 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90467-33002 · 90467-33003 · 90467-34003 · 90467-37002 · 90467-37005 |
| 16573B | Radiator hose No. 3 | 16573-62010 · 16573-62020 |
| 16573C | No. 3 radiator hose clamp or clip | 90467-11085 |
| 16581 | Hose clamp (for water hose) | 16581-62010 |
| 16603A | No. 1 idler pulley sub-assembly | 16603-88360 |
| 16607 | No. 1 idler gear bracket sub-assembly | 16631-74030 |
| 16608 | No. 2 idler gear bracket sub-assembly | 16632-74010 |
| 16611 | Radiator reservoir bracket | 16611-64031 |
| 16636 | No. 1 idler shaft | 16636-74020 |
| 16636A | Tension bolt (for idler pulley) | 90109-08191 |
| 16639 | Idler spacer | 16639-88361 |
| 16649 | Idler cover | 16649-88360 |
| 16701 | Fan cover sub-assembly | 16711-74340 · 16711-74350 · 16711-74360 · 16711-74370 · 16711-74390 · 16912-62010 · 16912-64010 · 16912-64020 |
| 16711 | fan cover | 16711-74380 |
| 16851A | Fan cover side cover | 16851-64010 |
| 16906 | Hydraulic gear set | 16906-50010 · 16906-50020 · 16906-50030 |
| 16907 | Hydraulic gear motor tube subassembly | 16907-64010 |
| 16913 | Hydraulic motor fan cover stay | 16913-62010 |
| 16922 | Pump Dynamic Damper | 16922-64010 · 16922-64011 |
| 16926 | Hydraulic motor oil filter | 16926-64010 |
| 16927 | hydraulic motor pressure hose | 16927-62010 · 16927-62030 · 16927-64010 |
| 16927A | Connector bolt (for pressure hose) | 90401-16015 · 90401-17003 |
| 16927B | Gasket (for pressure hose) | 44327-12010 · 44327-30030 |
| 16940 | Hydraulic motor oil return pipe assembly | 16940-64010 |
| 16941 | No. 1 hydraulic motor oil return hose | 16941-62010 · 16941-64010 · 16941-64020 |
| 16941A | Clamp (for No. 1 oil return hose) | 90467-16008 · 90467-16013 |
| 16942 | No. 2 hydraulic motor oil return hose | 16942-64010 |
| 16960 | Hydraulic gear motor assembly | 16960-62010 · 16960-64010 |
| 16961 | Hydraulic gear motor shaft | 16961-50010 |
| 16962 | Hydraulic gear motor cover | 16962-62010 · 16962-64010 |
