Toyota CAMRY Oil Filter — Figure 1502

Toyota CAMRY EPC diagram 1502, Oil Filter, with 3 images and 8 PNC and OE references.

Toyota CAMRY Oil Filter EPC diagram — MA6613A
Oil Filter — MA6613A (199007 – 999999)

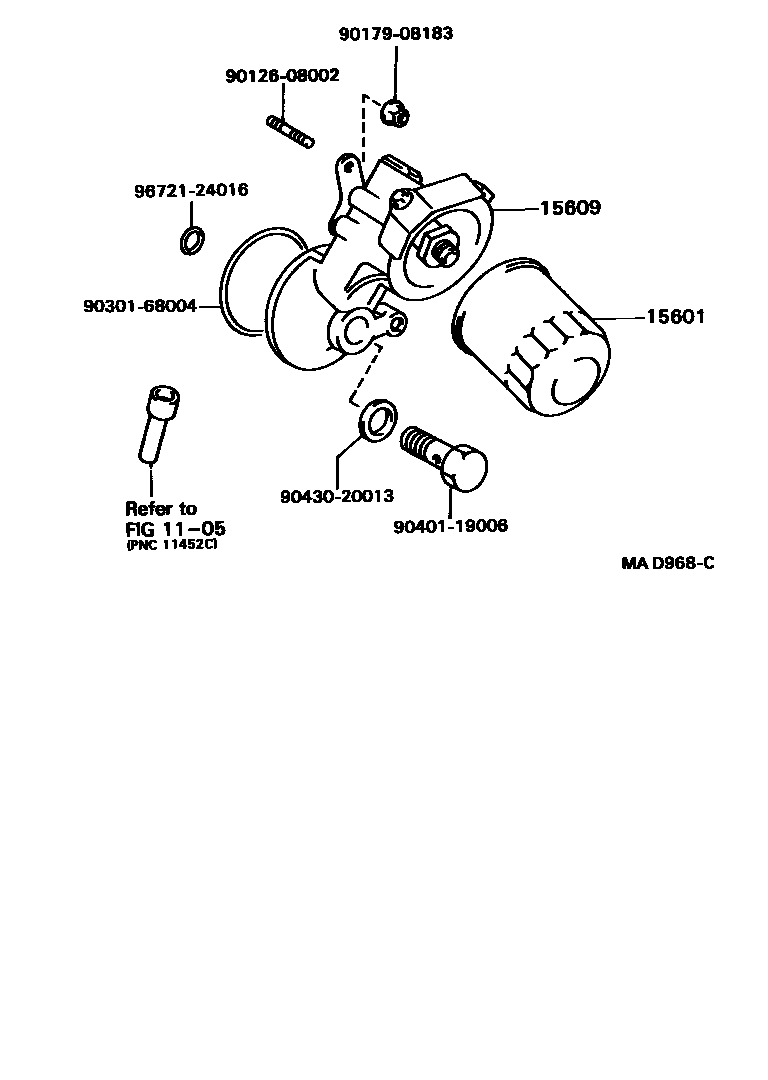

Toyota CAMRY Oil Filter EPC diagram — MAD968C
Oil Filter — MAD968C (199007 – 999999)

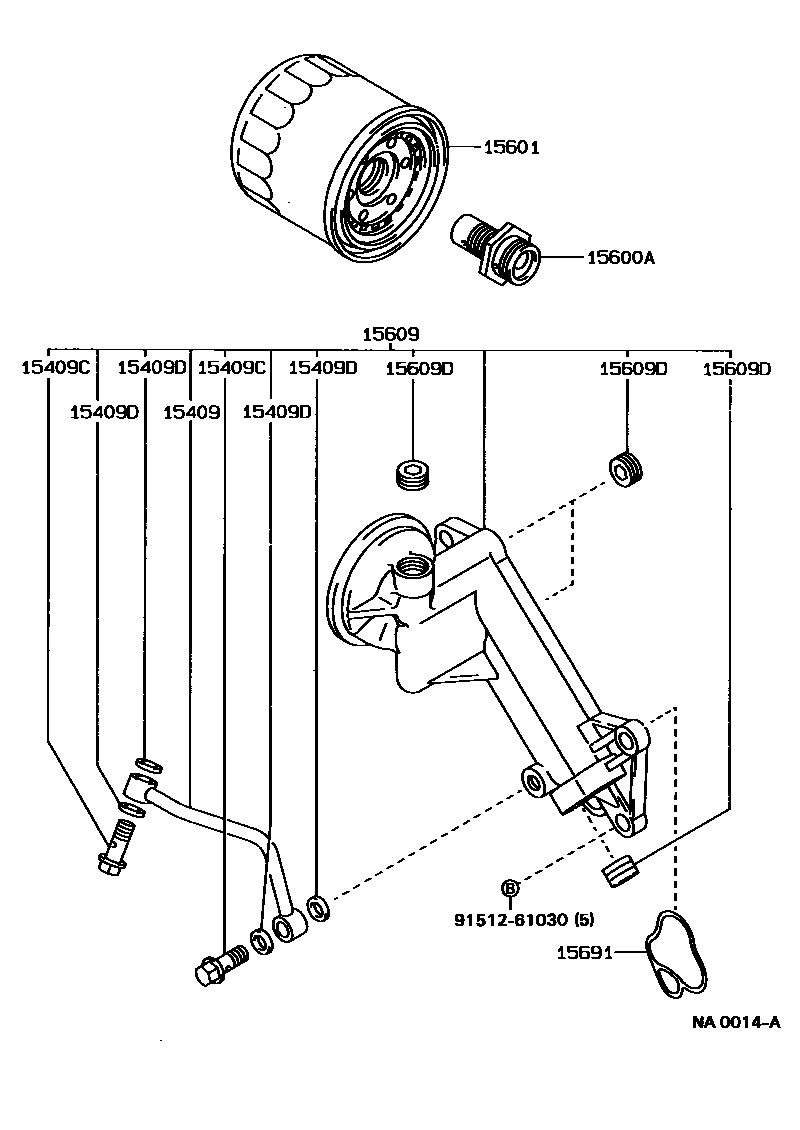

Toyota CAMRY Oil Filter EPC diagram — NA0014A
Oil Filter — NA0014A (199007 – 999999)

PNC and OE references

PNCPart nameOE numbers
15409Oil filter outlet pipe or oil outlet hose15431-64030
15409CJoint bolt (for oil filter outlet pipe)90401-10031
15409DGasket (for oil filter outlet pipe)90430-10027 · 90430-10035
15600AConnector (for oil filter)15116-54021 · 90404-19002 · 90404-27001
15601Oil filter sub-assembly90915-03001 · 90915-03002 · 90915-03003 · 90915-10001 · 90915-20001 · 90915-30001
15609Oil filter bracket sub-assembly15608-64040 · 15671-62010
15609DStraight threaded plug with head (for oil filter bracket)90344-53002
15691oil filter gasket15691-64040
