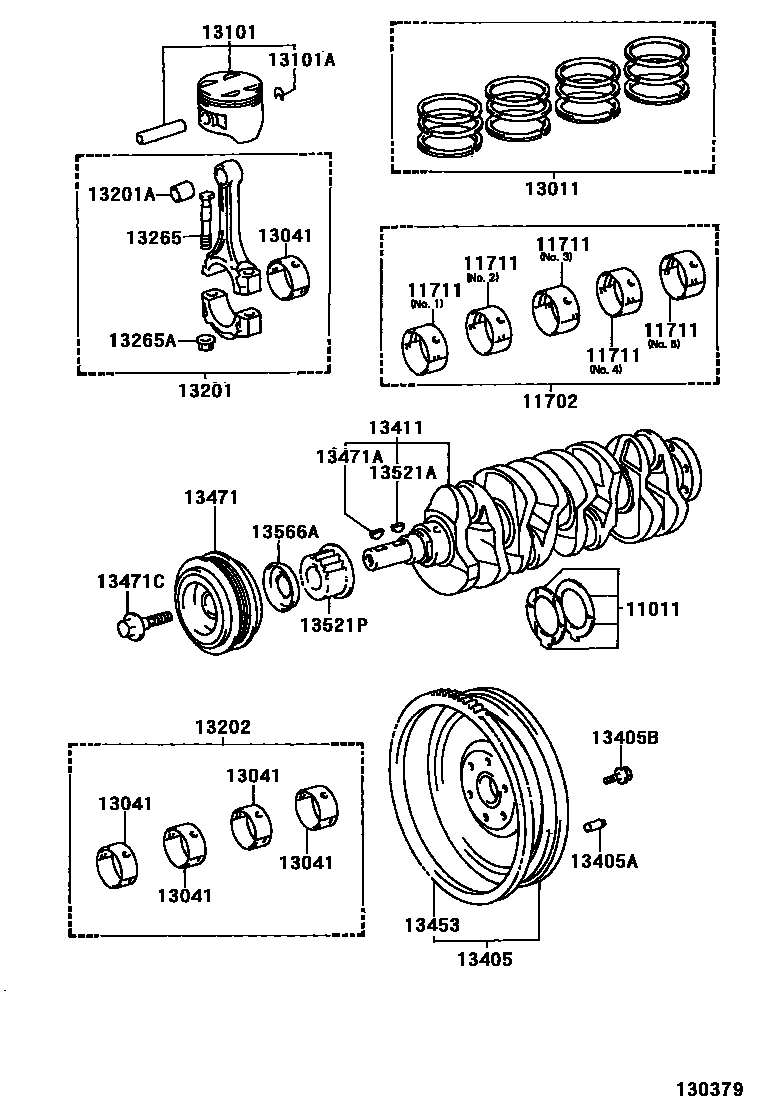

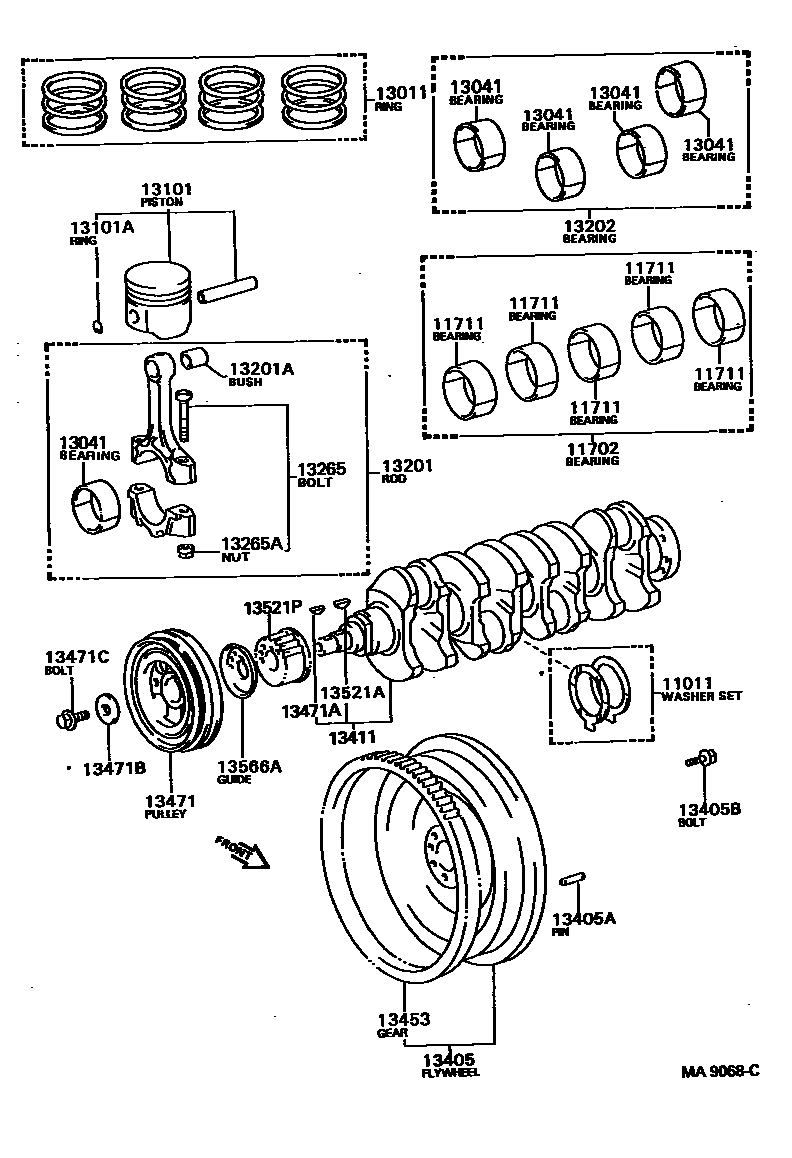

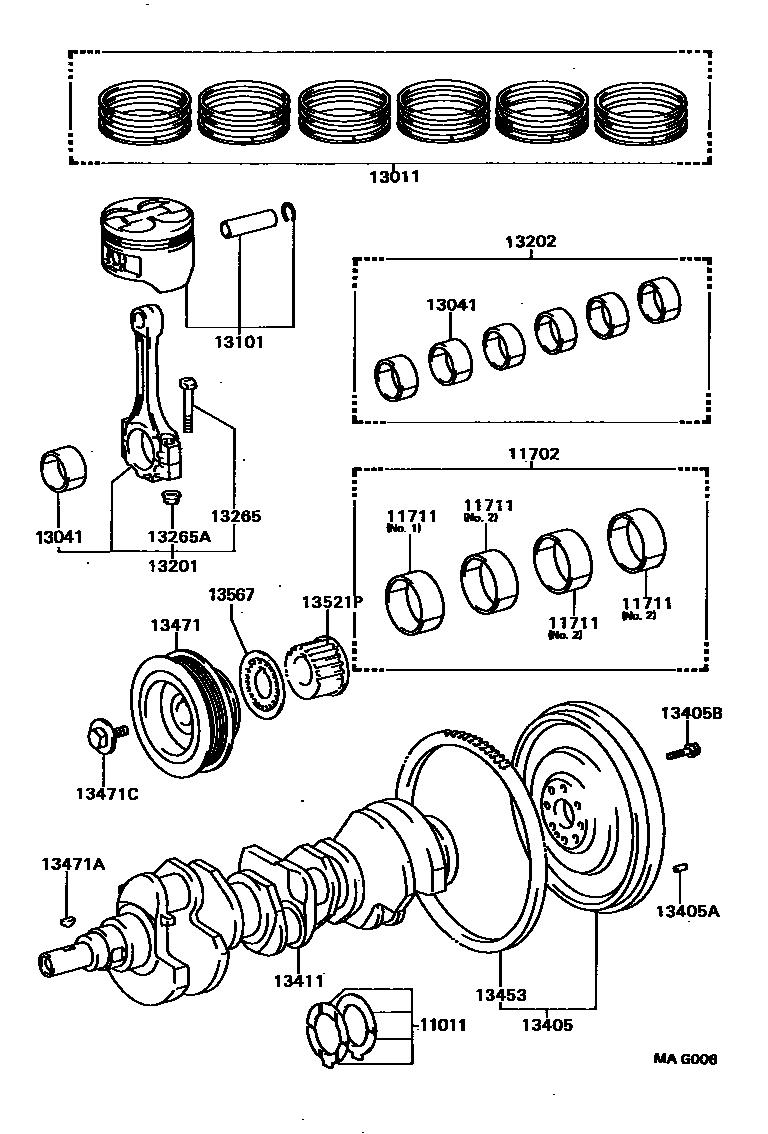

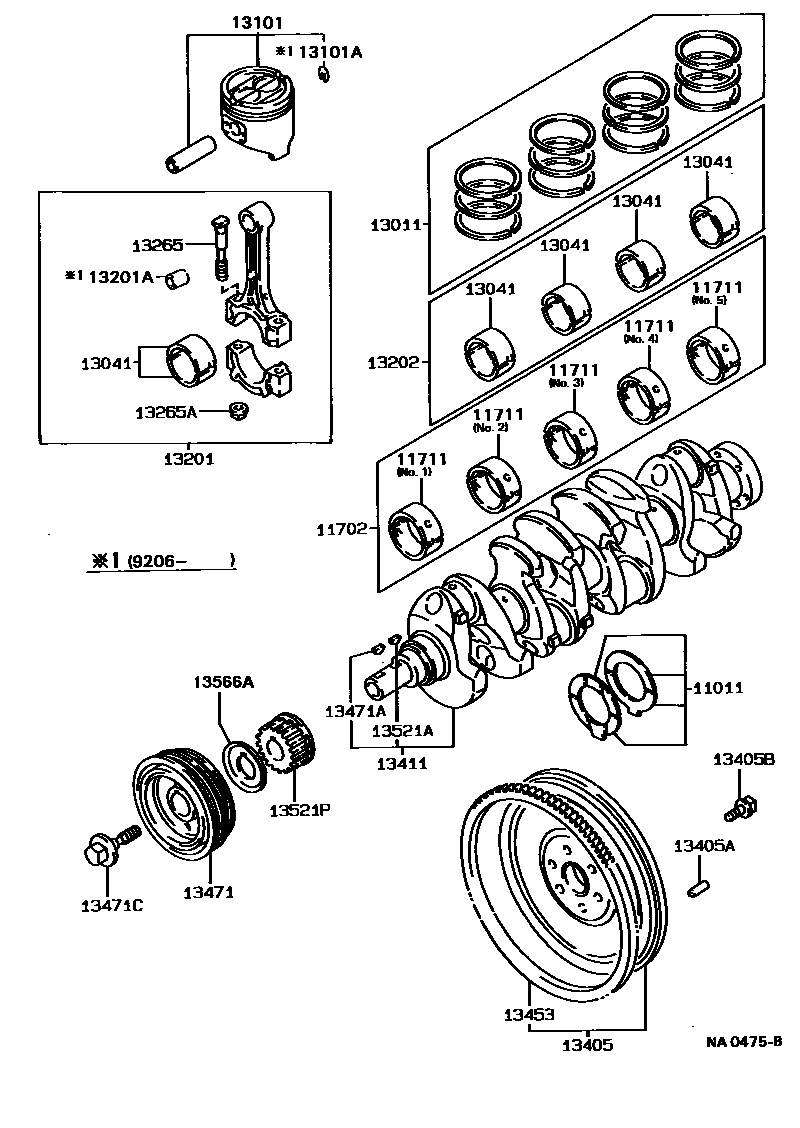

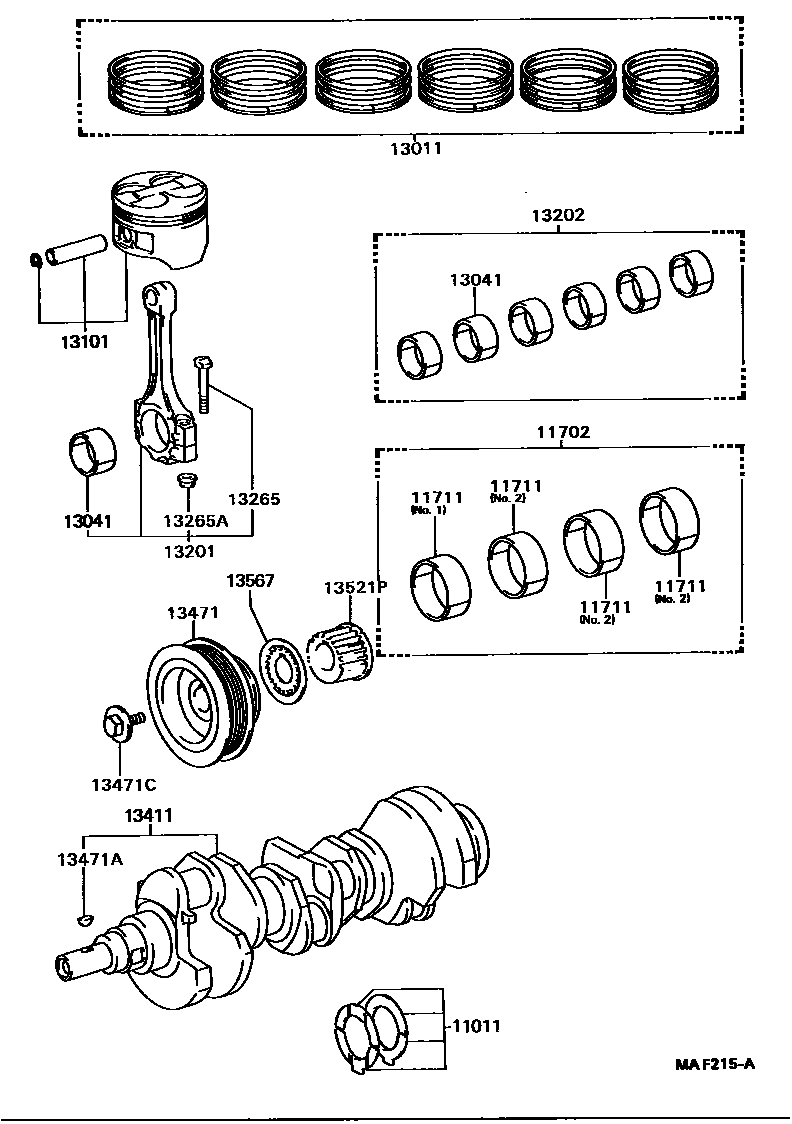

Toyota CAMRY Crankshaft & Piston — Figure 1301
Toyota CAMRY EPC diagram 1301, Crankshaft & Piston, with 5 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11011 | Crankshaft thrust washer assembly | 11011-25010 · 11011-62010 · 11011-64010 · 11011-74020 · 11012-64010 · 11013-64010 |
| 11702 | crankshaft bearing assembly | 11704-62010 · 11704-62020 · 11704-62021 · 11704-62022 · 11704-63021 · 11704-64040 |
| 11711 | crankshaft bearings | 11701-62022 |
| 13011 | Piston ring assembly | 13011-62050 · 13011-62080 · 13011-64210 · 13011-64211 · 13011-64212 · 13011-74072 · 13011-74110 · 13011-74120 · 13011-74121 · 13011-88363 · 13013-62050 · 13013-62080 · 13013-64210 · 13013-64211 · 13013-64212 · 13013-74072 · 13013-74110 · 13013-74120 · 13014-74110 · 13014-74120 |
| 13101 | Piston sub-assembly with pin | 13103-62030 · 13103-62050 · 13103-64121 · 13103-64122 · 13103-74071 · 13103-74100 · 13103-74160 · 13104-74071 · 13104-74160 |
| 13101A | Bore snap ring (for piston pin) | 90521-25004 · 90521-29003 |
| 13201 | Connecting rod sub-assembly | 13201-69055 · 13201-69075 · 13201-69076 · 13201-69085 · 13201-79096 · 13201-79145 · 13201-79146 |
| 13201A | Bushing (for connecting rod small end) | 90999-73102 · 90999-73112 |
| 13202 | Connecting rod bearing assembly | 13204-62010 · 13204-63020 · 13204-64041 · 13204-74030 |
| 13265 | Connecting rod bolts | 13265-49015 · 13265-62010 · 13265-62030 · 13265-63010 · 13265-65010 · 13265-74010 |
| 13265A | Hexagonal nut (for connecting rod bolts) | 90179-08118 · 90179-09001 · 90179-10042 · 90179-10107 |
| 13405 | Flywheel sub-assembly | 13405-62010 · 13405-64060 · 13405-74051 · 13405-74070 · 13405-74120 |
| 13405A | Direct sales (for flywheel) | 90250-08054 · 90250-08120 |
| 13405B | Flywheel fixing bolt | 90105-10071 · 90105-10138 · 90105-12187 |
| 13411 | crankshaft | 13401-62020 · 13411-62900 · 13411-64900 · 13411-64901 · 13411-74903 · 13411-74904 · 13411-74908 |
| 13453 | flywheel ring gear | 13453-64011 · 13453-74011 |
| 13471 | crankshaft pulley | 13407-74020 · 13408-62020 · 13408-62030 · 13408-64070 · 13408-74020 · 13408-74040 · 13408-74041 |
| 13471A | Crankshaft key (for crankshaft pulley assembly) | 90280-05005 · 95161-20516 · 95161-20519 · 95161-30516 |
| 13471B | Flat Washer (for crankshaft pulley assembly) | 90201-14030 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90105-14011 · 90105-14077 · 90105-14089 · 90105-16031 · 90119-14015 · 90119-14027 |
| 13521A | Key (for crankshaft timing gear) | 90280-05005 · 95161-20519 · 95161-20622 · 95161-30622 |
| 13521P | crankshaft timing pulley | 13521-62020 · 13521-64010 · 13521-64011 · 13521-74020 · 13521-88360 |
| 13566A | timing belt guide | 13566-64010 · 13566-64011 · 13566-88360 · 13567-74010 |
| 13567 | No. 2 timing belt guide | 13567-62010 |
