Toyota CAMRY Ventilation Hose — Figure 1201

Toyota CAMRY EPC diagram 1201, Ventilation Hose, with 5 images and 8 PNC and OE references.

Toyota CAMRY Ventilation Hose EPC diagram — MAA680
Ventilation Hose — MAA680 (199007 – 199206)
Toyota CAMRY Ventilation Hose EPC diagram — MAD936
Ventilation Hose — MAD936 (199007 – 999999)

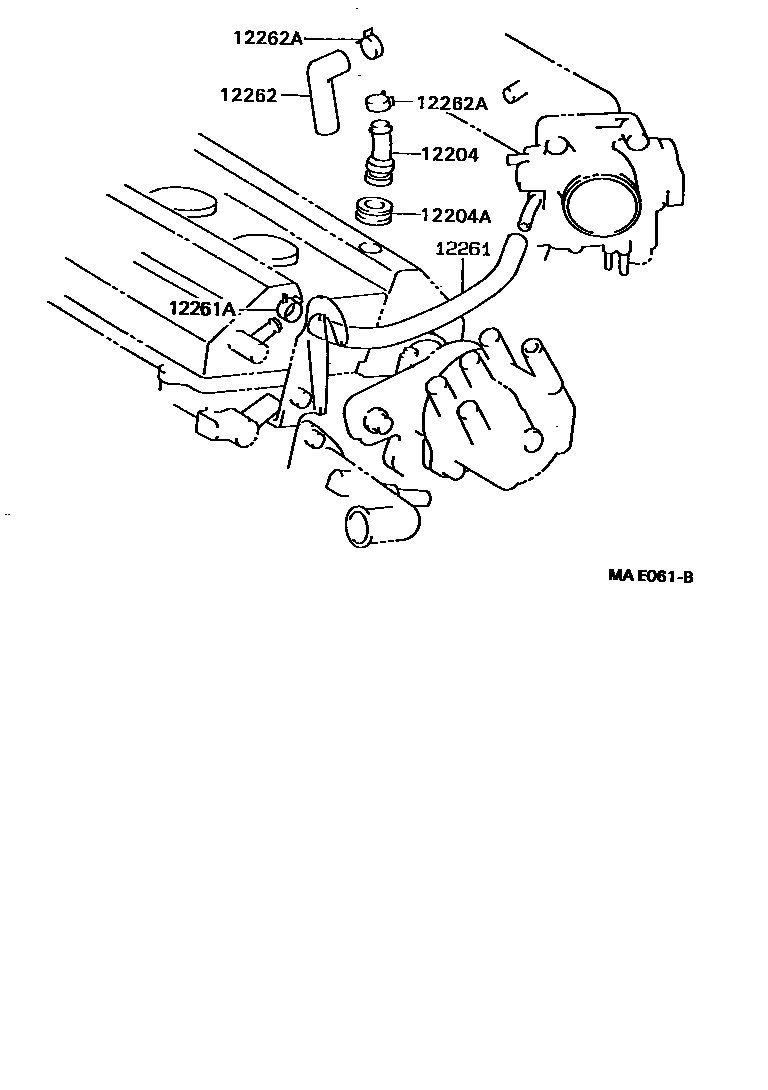

Toyota CAMRY Ventilation Hose EPC diagram — MAE061B
Ventilation Hose — MAE061B (199007 – 999999)
Toyota CAMRY Ventilation Hose EPC diagram — MAE664B
Ventilation Hose — MAE664B (199105 – 999999)

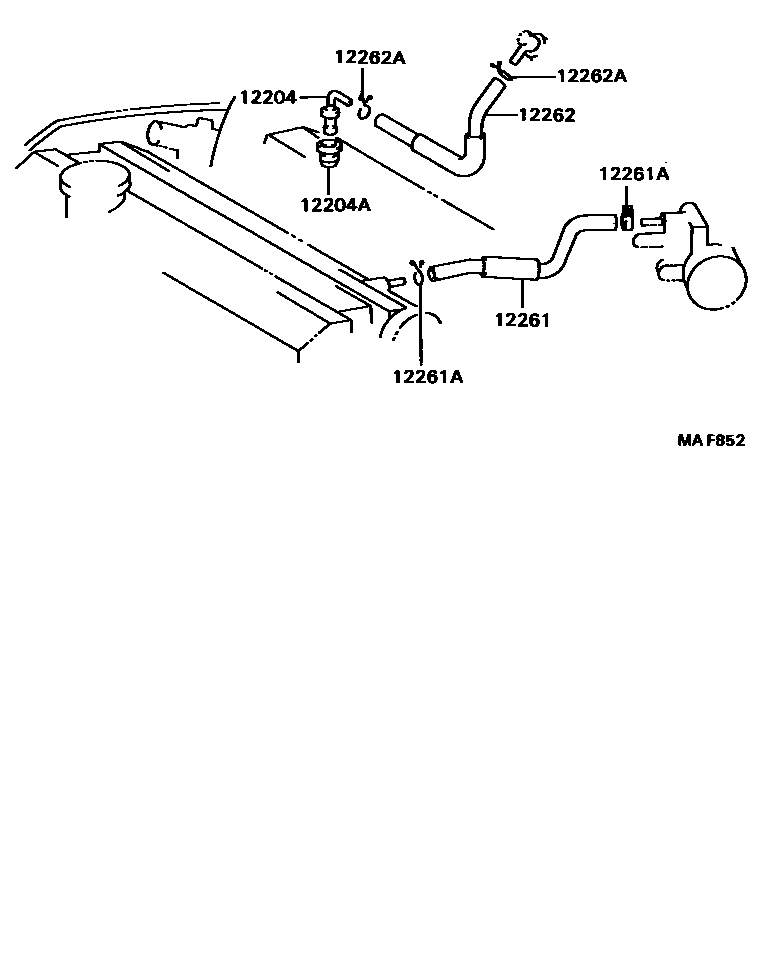

Toyota CAMRY Ventilation Hose EPC diagram — MAF852
Ventilation Hose — MAF852 (199007 – 199206)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-11050 · 12204-62010 · 12204-74020
12204AGasket (for ventilation system)90480-18001
12221Ventilation duct No. 190407-10011 · 90407-14026
12222BClip (for ventilation duct)96132-31000 · 96132-41500
12261Ventilation Hose12261-62020 · 12261-62030 · 12261-64070 · 12261-64140 · 12261-74020 · 12261-88362
12261AClip or clip (for vent hose)90467-14017 · 90467-15016 · 90467-15120 · 90467-17011 · 90467-17012 · 90467-18003
12262Ventilation hose No. 212262-62020 · 12262-62040 · 12262-74050
12262AClamp (for vent hose No. 2)90467-13103 · 90467-14017 · 90467-15016 · 90467-17011
