Toyota CAMRY Engine Mounting — Figure 1107

Toyota CAMRY EPC diagram 1107, Engine Mounting, with 10 images and 20 PNC and OE references.

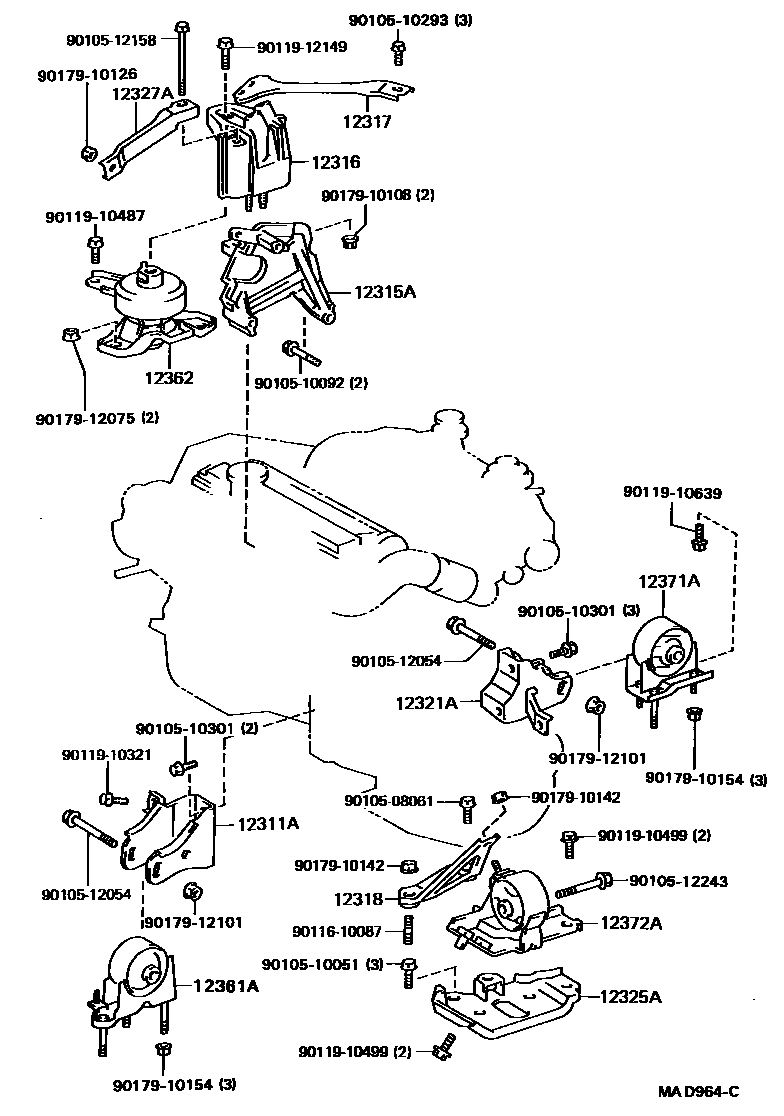

Toyota CAMRY Engine Mounting EPC diagram — MAD964C — Engine Mounting — MAD964C (199007 – 199206)

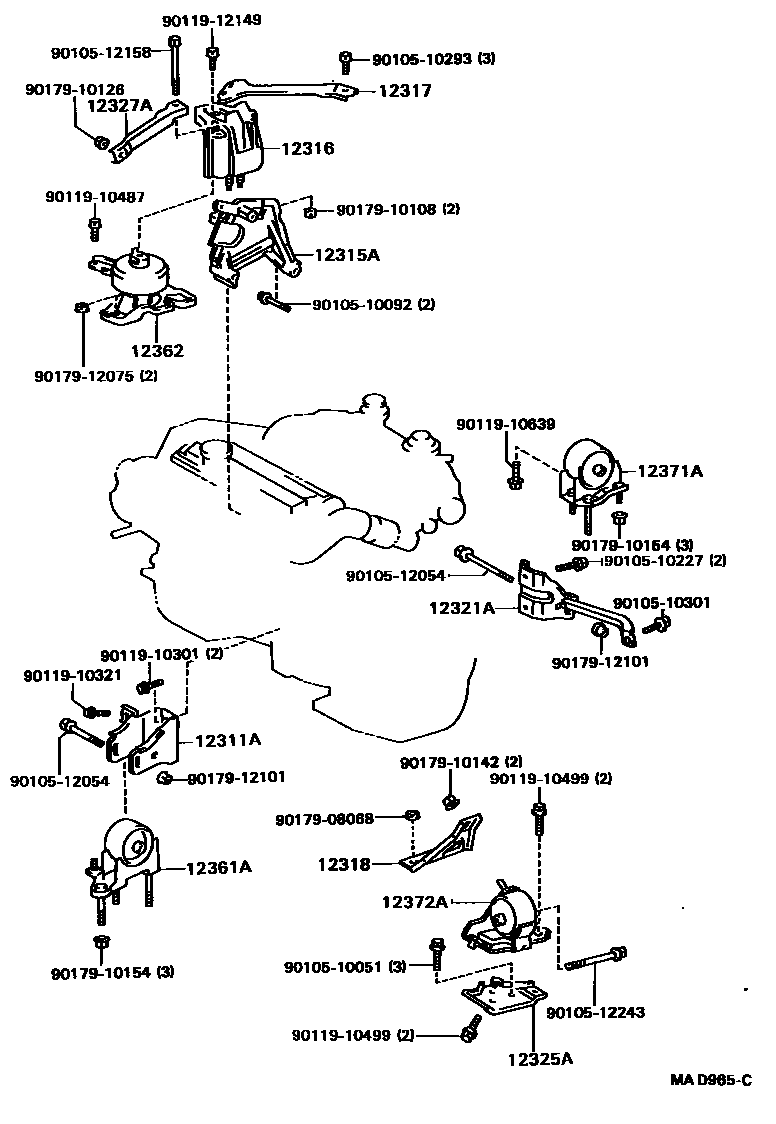

Toyota CAMRY Engine Mounting EPC diagram — MAD965C — Engine Mounting — MAD965C (199007 – 199206)

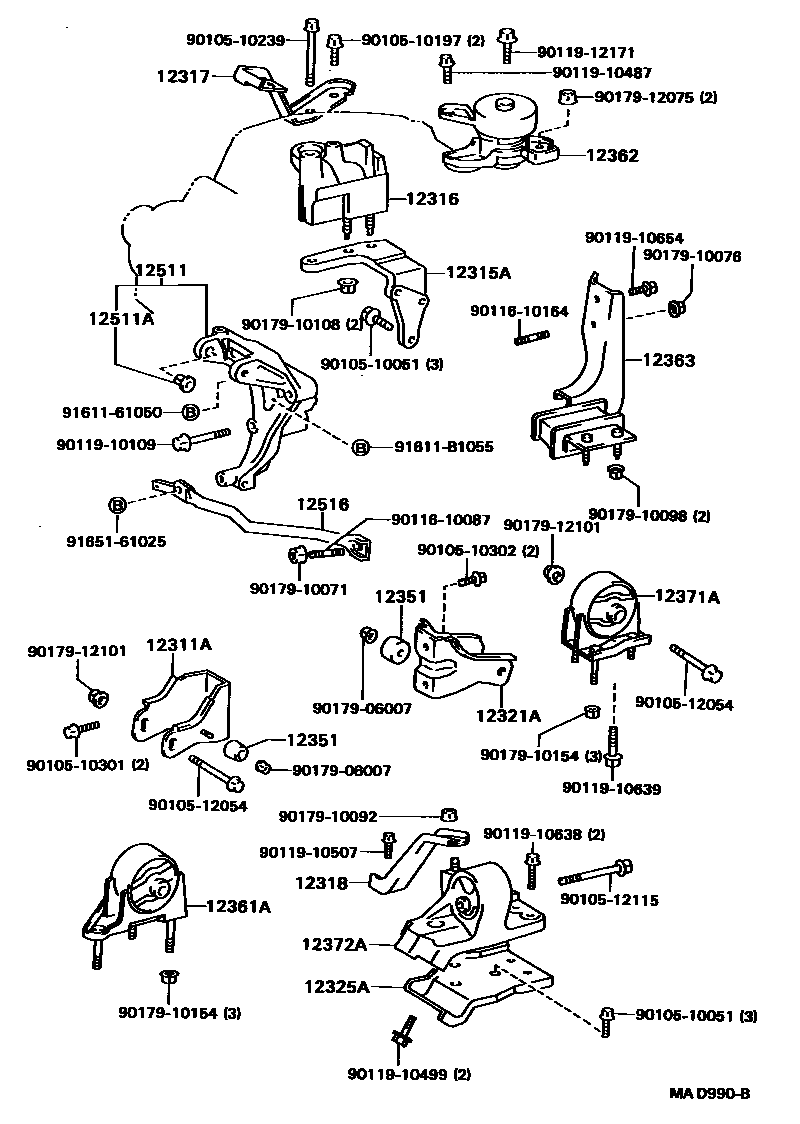

Toyota CAMRY Engine Mounting EPC diagram — MAD990B — Engine Mounting — MAD990B (199007 – 199206)

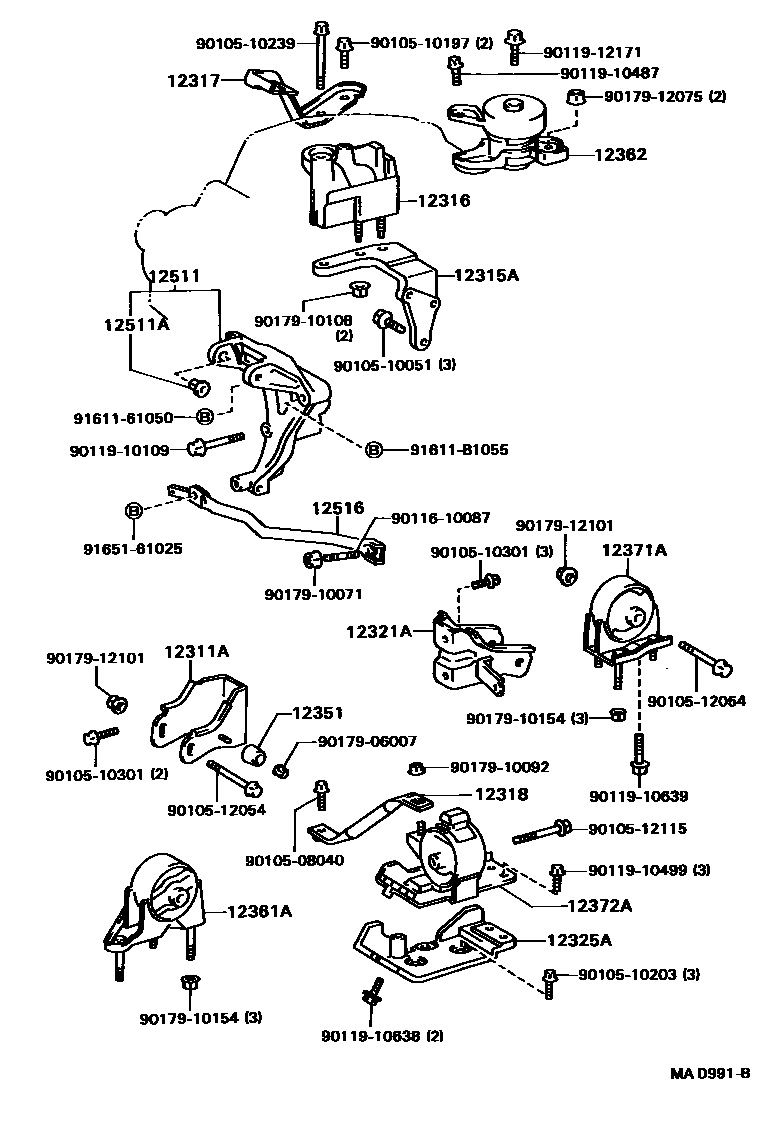

Toyota CAMRY Engine Mounting EPC diagram — MAD991B — Engine Mounting — MAD991B (199007 – 199206)

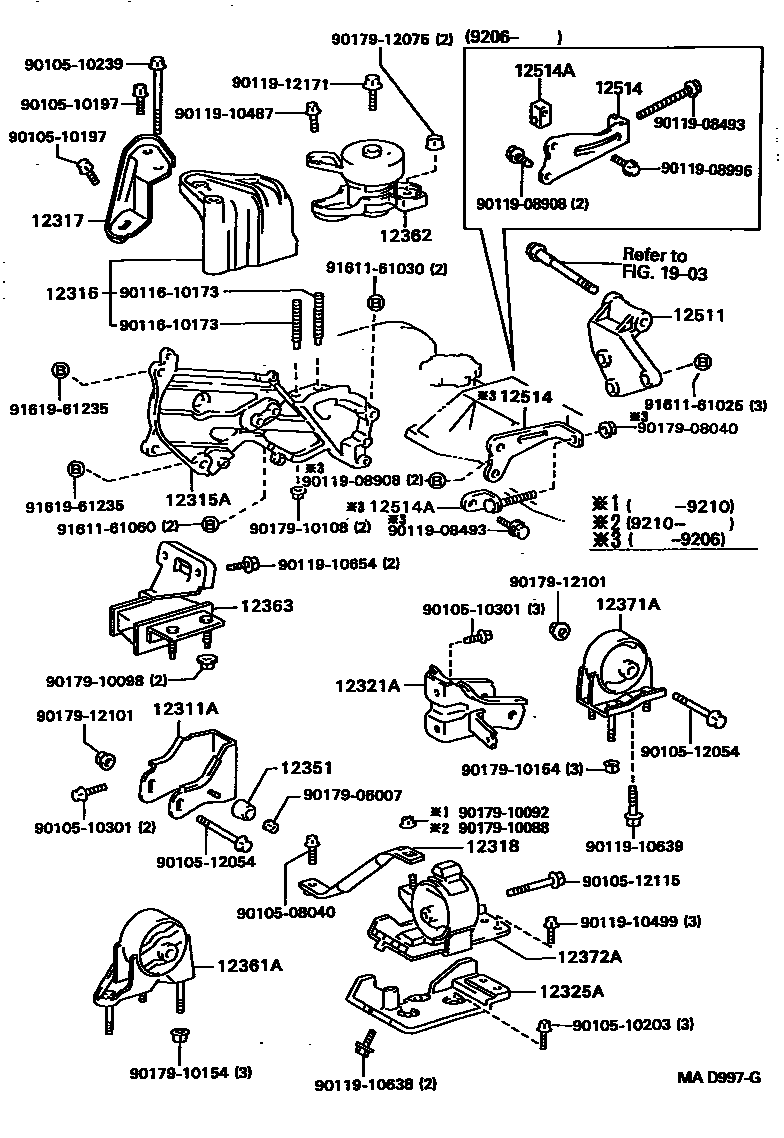

Toyota CAMRY Engine Mounting EPC diagram — MAD997G — Engine Mounting — MAD997G (199007 – 999999)

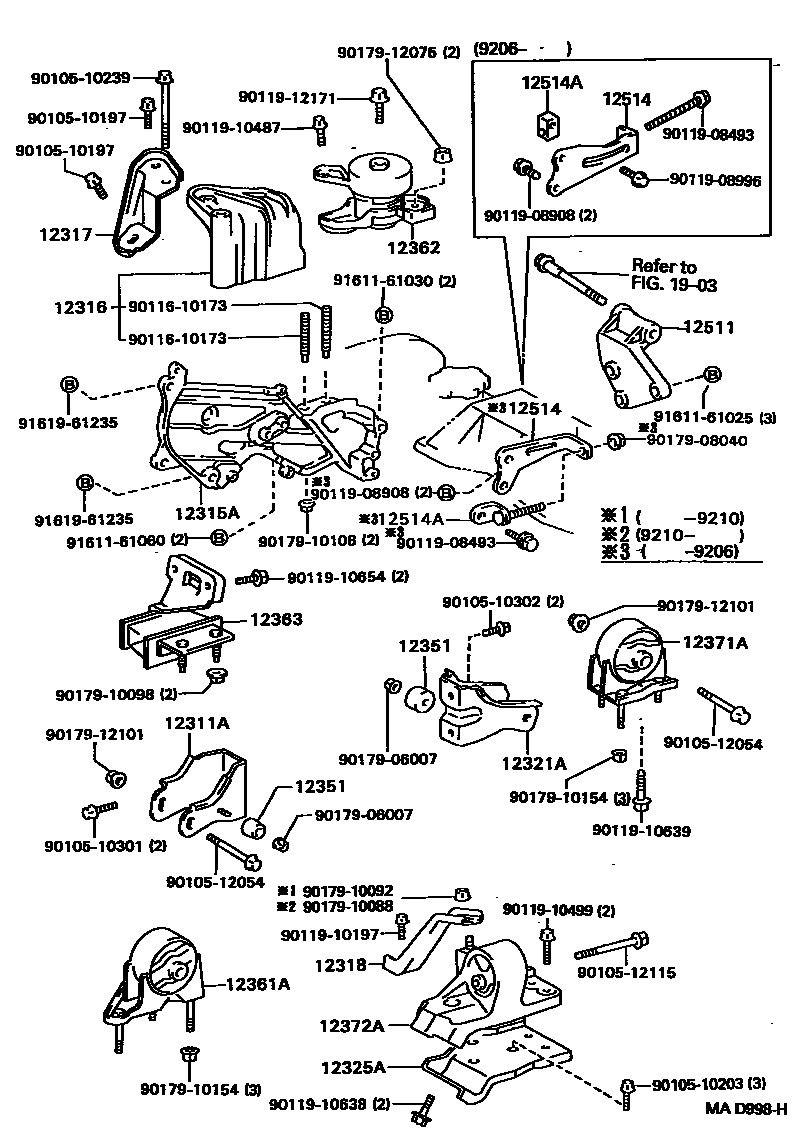

Toyota CAMRY Engine Mounting EPC diagram — MAD998H — Engine Mounting — MAD998H (199007 – 999999)

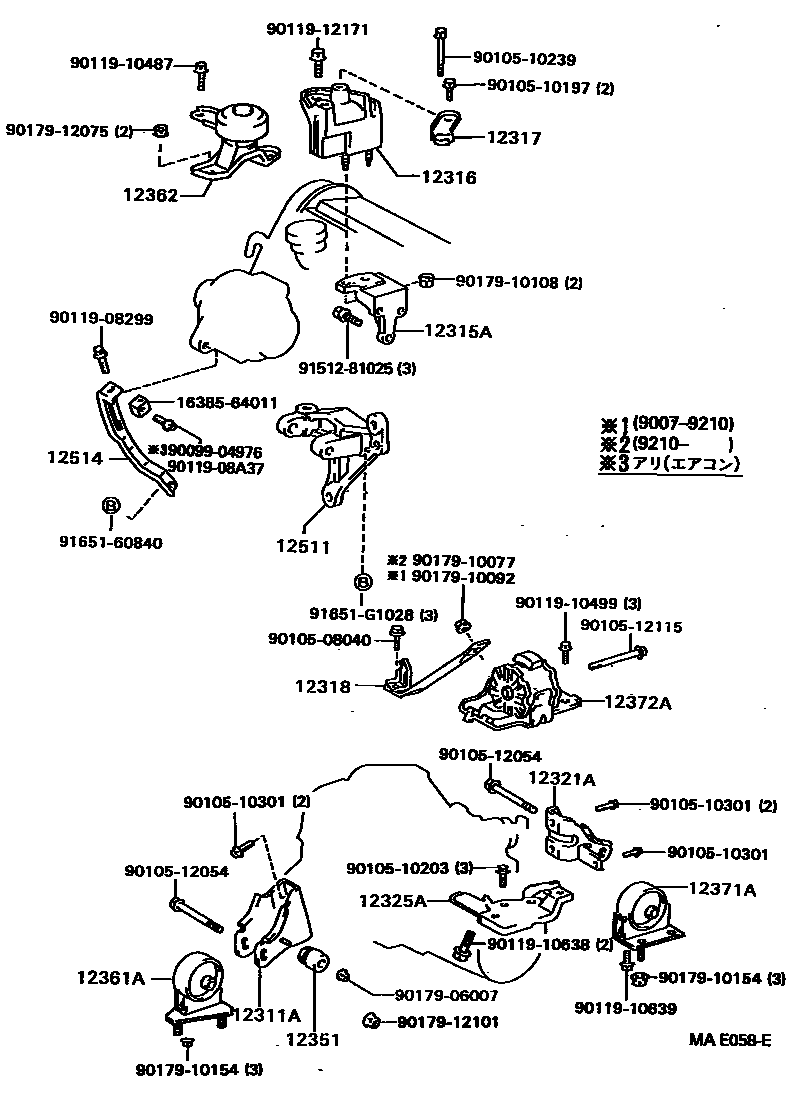

Toyota CAMRY Engine Mounting EPC diagram — MAE058E — Engine Mounting — MAE058E (199007 – 999999)

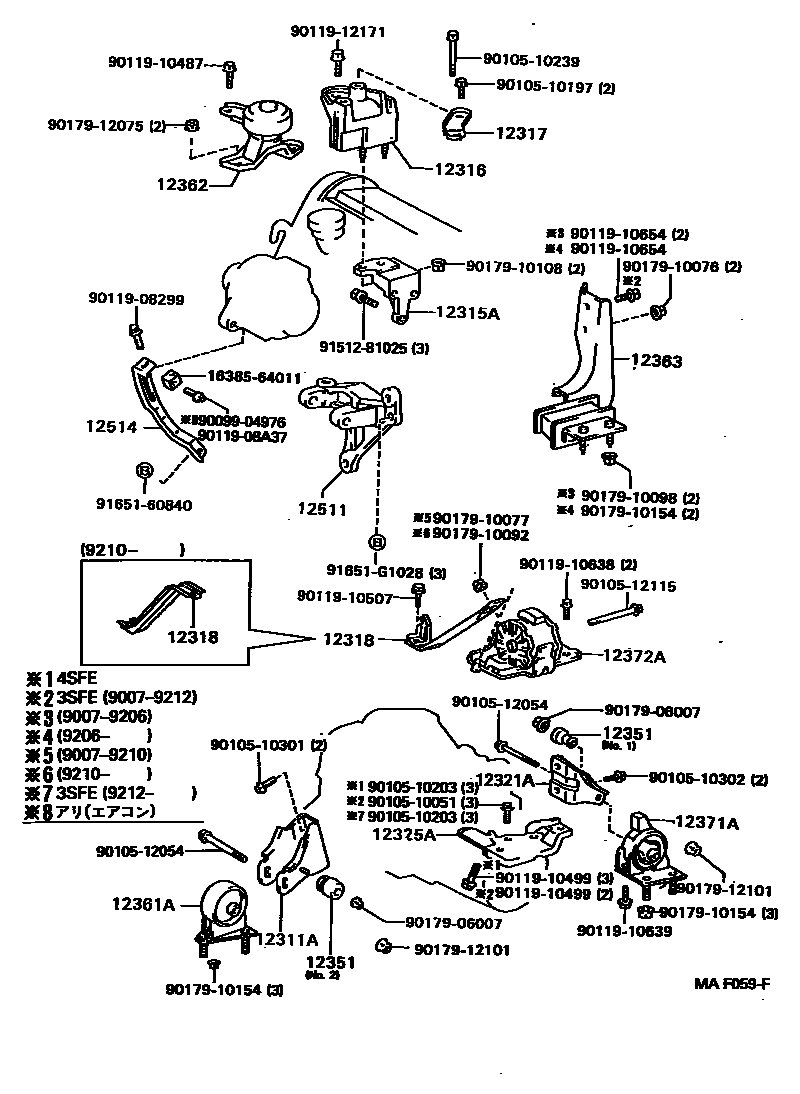

Toyota CAMRY Engine Mounting EPC diagram — MAE059F — Engine Mounting — MAE059F (199007 – 999999)

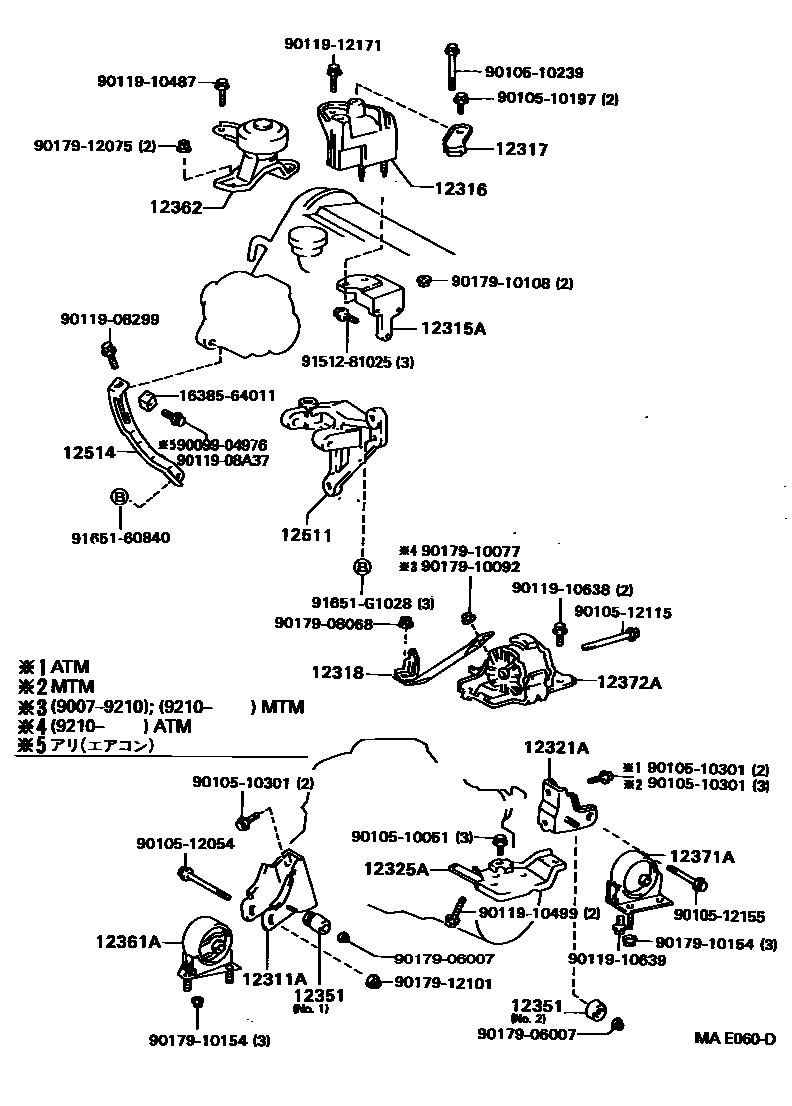

Toyota CAMRY Engine Mounting EPC diagram — MAE060D — Engine Mounting — MAE060D (199007 – 999999)

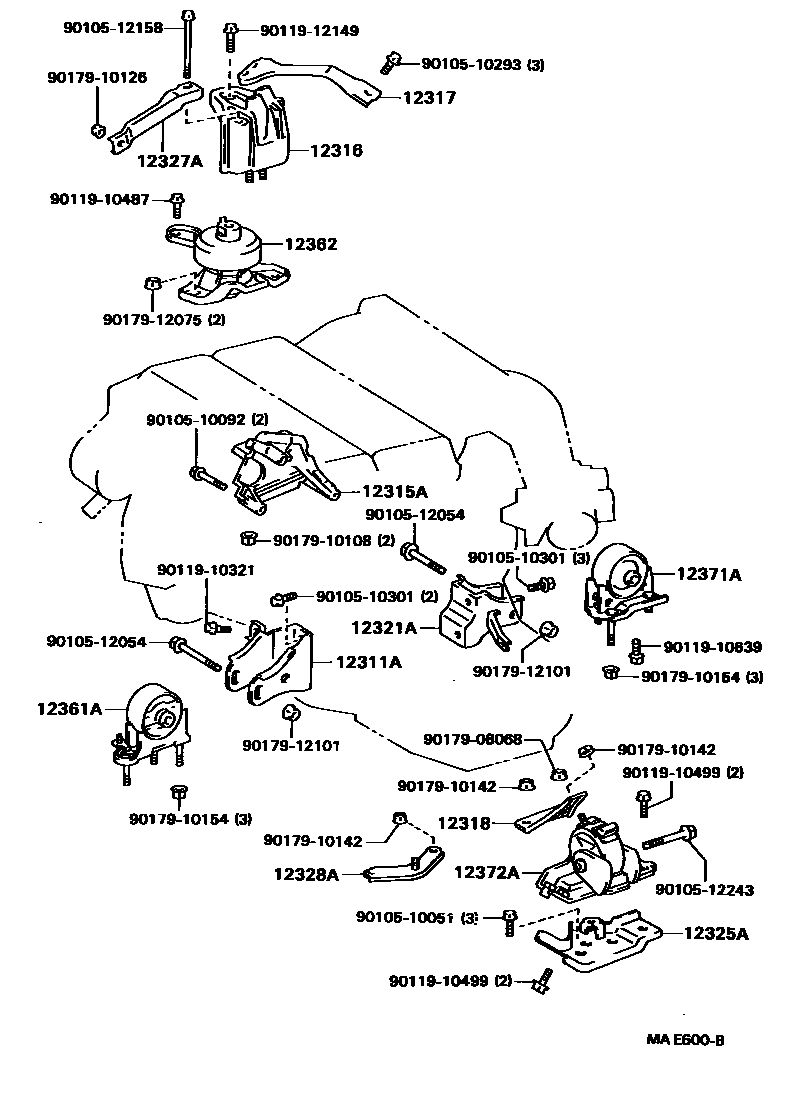

Toyota CAMRY Engine Mounting EPC diagram — MAE600B — Engine Mounting — MAE600B (199105 – 999999)

PNC and OE references

PNC	Part name	OE numbers
12311A	Engine front mounting bracket (for transverse engine)	12311-62010 · 12311-64170 · 12311-74030 · 12311-74110
12315A	Engine right side mounting bracket (for transversely mounted engine)	12315-62020 · 12315-64050 · 12315-74060 · 12315-74090
12316	Engine No. 2 right side suspension bracket	12316-62010 · 12316-62011 · 12316-64010 · 12316-74020
12317	Engine right mounting bracket	12317-62020 · 12317-62040 · 12317-64060 · 12317-74060 · 12317-74110 · 12317-74120
12318	Engine left mounting bracket	12318-62011 · 12318-62030 · 12318-62040 · 12318-64050 · 12318-64090 · 12318-74060 · 12318-74070
12321A	Rear engine mounting bracket (for transverse engine)	12321-62040 · 12321-62050 · 12321-62081 · 12321-64180 · 12321-74210 · 12321-74220 · 12321-74230 · 12321-74240
12325A	Engine left side mounting bracket (for transversely mounted engine)	12325-62010 · 12325-62020 · 12325-64050 · 12325-74140 · 12325-74160 · 12325-74170 · 12325-74220
12327A	Engine No. 2 right side mounting bracket	12327-62020
12328A	Engine No. 2 left side mounting bracket	12328-62030
12351	engine mount shock absorber	12351-63010 · 12351-64020 · 12351-74020
12361A	Engine front mounting vibration isolation pad (for transversely mounted engine)	12361-62050 · 12361-62060 · 12361-74200 · 12361-74210 · 12361-74220
12362	Engine right side mounting vibration isolation pad (for transversely mounted engine)	12362-62040 · 12362-74260 · 12362-74270
12363	Engine center mount vibration isolation pad	12363-64040 · 12363-74090 · 12363-74100
12371A	Engine rear mount vibration isolation pad	12371-62030 · 12371-62040 · 12371-64180 · 12371-64190 · 12371-74280 · 12371-74290
12372A	Engine left-side mounting vibration isolation pad (for transversely mounted engines)	12372-62050 · 12372-62060 · 12372-64160 · 12372-74300 · 12372-74320 · 12372-74330 · 12372-74420
12511	No. 1 generator bracket	12511-64020 · 12511-64060 · 12511-74020 · 12511-74051 · 12511-74060
12511A	Generator bracket bushing	27351-70010
12514	Generator belt adjustment lever	12514-74010 · 12514-74011 · 16381-64020 · 16381-64080
12514A	Fan belt adjustment slider	16385-64011 · 16385-64020
12516	No. 2 generator bracket	12512-74030
