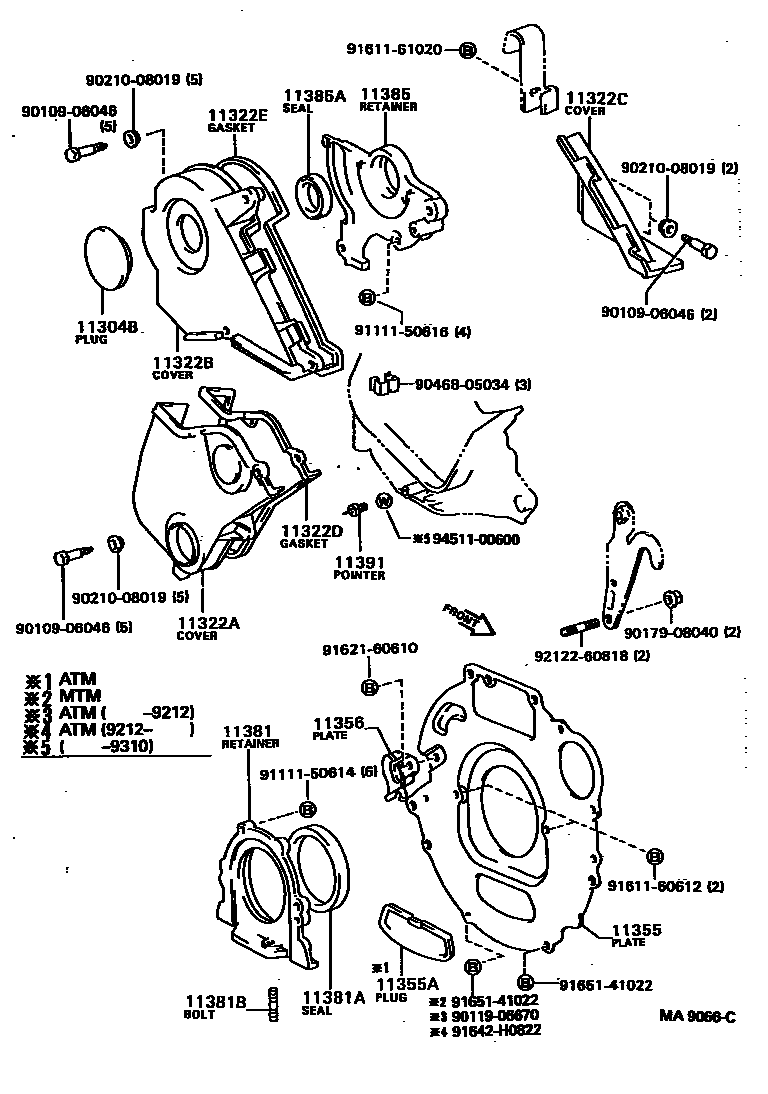

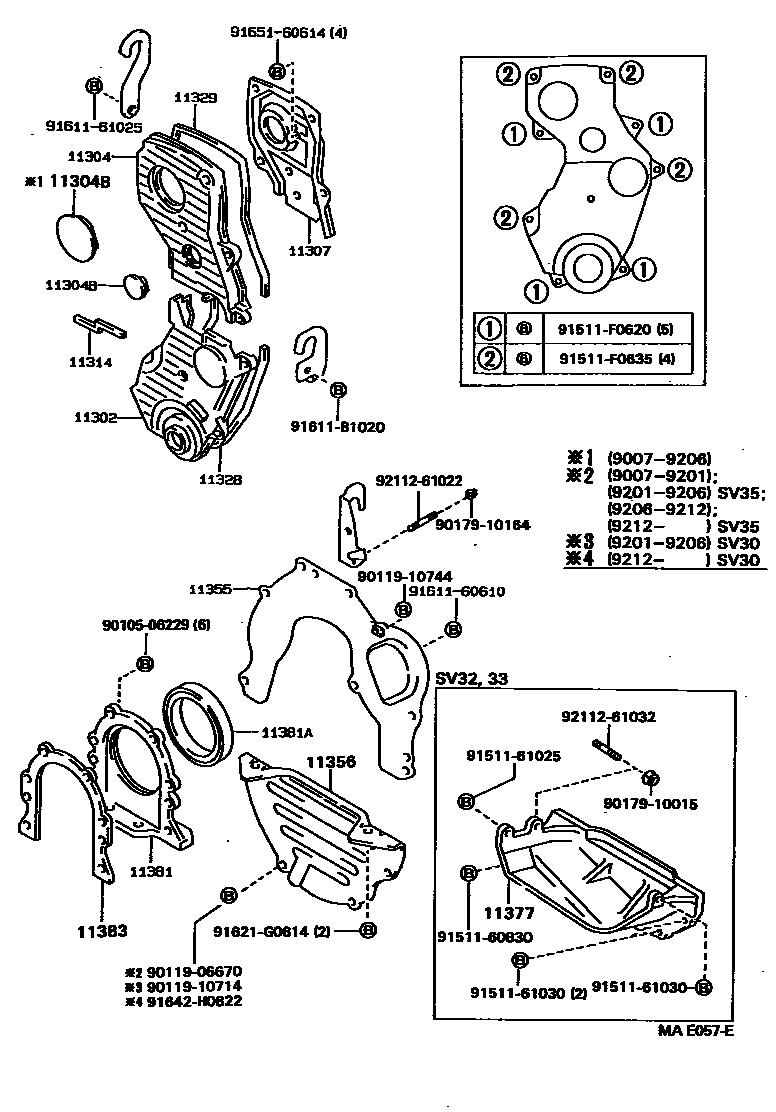

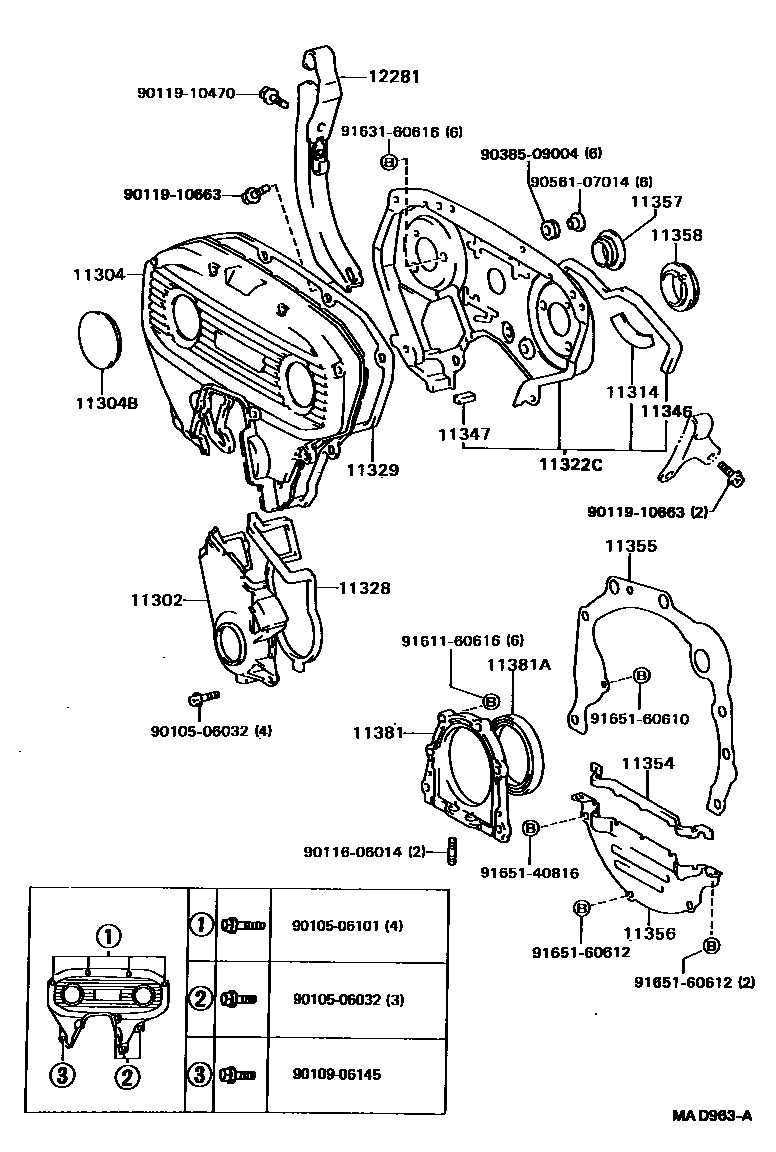

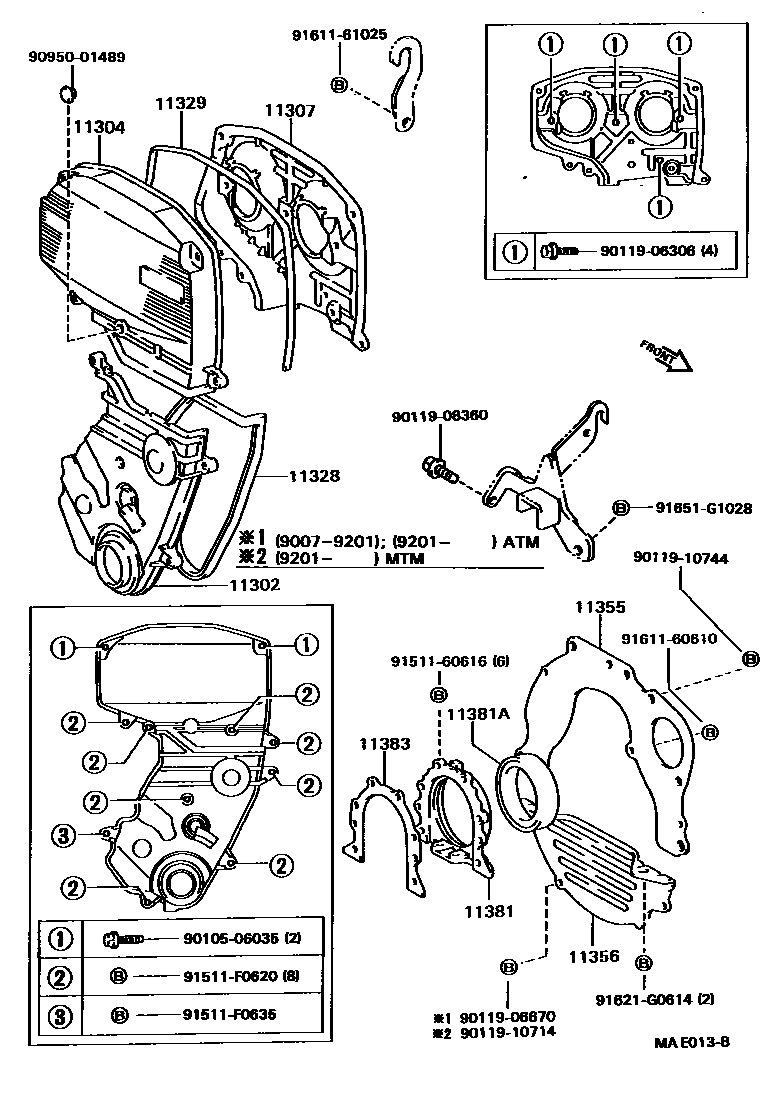

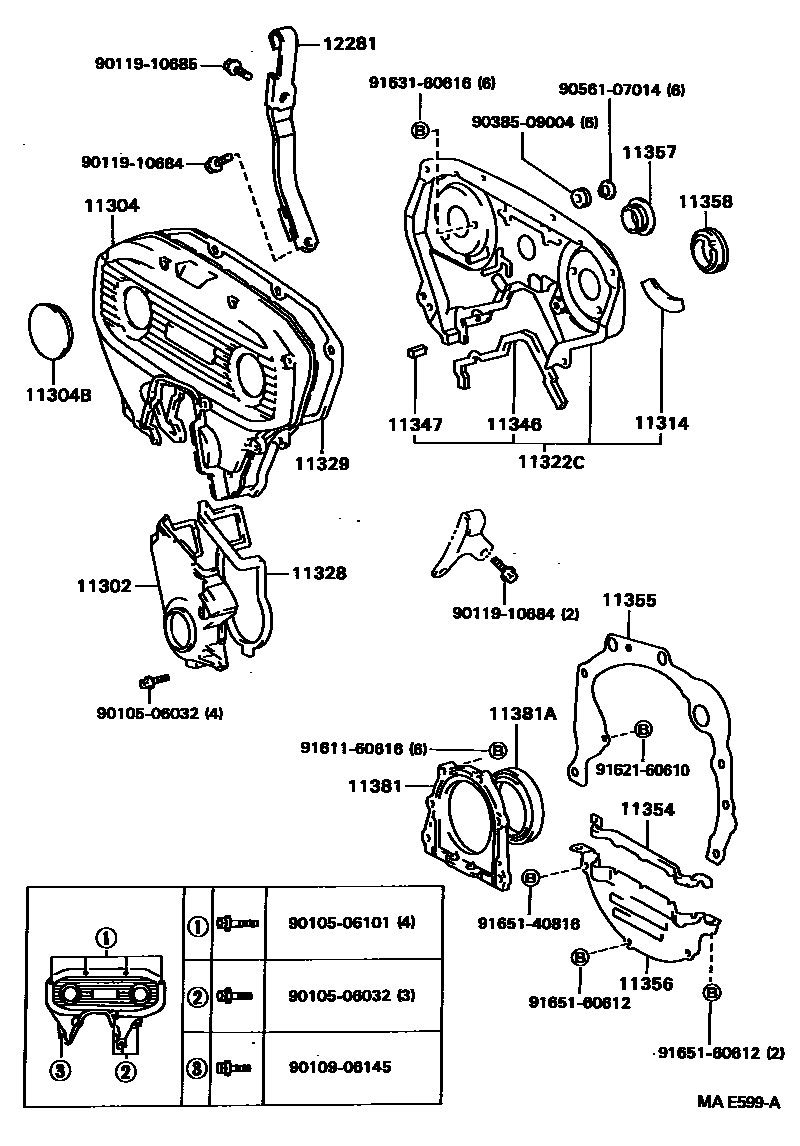

Toyota CAMRY Timing Gear Cover & Rear End Plate — Figure 1106
Toyota CAMRY EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 5 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11302 | TIMING CHAIN OR BELT COVER SUB-ASSY | 11302-62020 · 11302-74011 · 11321-74031 |
| 11304 | No. 2 timing chain or timing belt cover | 11303-62020 · 11303-74010 · 11303-74030 · 11322-88361 |
| 11304B | Half-round plug (for No. 2 timing chain cover) | 90950-01357 · 90950-01489 · 90950-01497 · 90950-01554 |
| 11307 | No. 3 timing belt cover sub-assembly | 11304-74010 · 11304-74030 · 11323-74050 |
| 11314 | No. 2 timing chain cover gasket | 11319-62010 · 11319-62020 · 11319-63010 |
| 11322A | No. 1 timing belt cover | 11321-64020 |
| 11322B | No. 2 timing belt cover | 11322-64010 |
| 11322C | No. 3 timing belt cover | 11304-62020 · 11304-62021 · 11304-62040 · 11323-64011 |
| 11322D | No. 1 timing belt cover gasket | 11328-64040 |
| 11322E | No. 2 timing belt cover gasket | 11329-64020 |
| 11328 | GASKET, TIMING GEAR OR CHAIN COVER | 11328-62020 · 11328-74010 · 11328-88361 |
| 11329 | Timing gear rear cover gasket | 11329-62010 · 11329-74010 · 11329-74050 · 11329-88360 |
| 11346 | No. 4 timing belt cover gasket | 11346-62010 · 11346-62011 · 11346-62030 |
| 11347 | No. 5 timing belt cover gasket | 11347-62010 |
| 11354 | Flywheel housing dust seal | 11354-62020 |
| 11355 | rear end plate | 11355-62010 · 11355-64050 · 11355-64051 · 11355-64060 · 11355-64061 · 11355-74010 · 11355-74040 |
| 11355A | Hole plug (for rear end plate) | 90950-01738 |
| 11356 | No. 2 rear end plate | 11356-62010 · 11356-63031 · 11356-64040 · 11356-74030 |
| 11357 | No. 6 timing belt cover gasket | 11357-62010 |
| 11358 | No. 7 timing belt cover gasket | 11358-62010 |
| 11377 | Rear end plate reinforcement | 11377-74010 |
| 11381 | RETAINER, ENGINE REAR OIL SEAL | 11381-62010 · 11381-63012 · 11381-64012 |
| 11381A | SEAL, ENGINE REAR OIL | 90311-85003 · 90311-85006 · 90311-89001 · 90311-90005 · 90311-92005 |
| 11381B | Stud bolts (for engine rear oil seal race) | 90116-06033 · 90116-06134 |
| 11383 | Engine rear oil seal seat gasket | 11383-63011 · 11383-74020 · 11383-74021 |
| 11385 | Camshaft oil seal race | 11382-64011 |
| 11385A | Oil seal (for camshaft) | 90311-38025 · 90311-38044 |
| 11391 | Timing pointer | 11391-64010 |
| 12281 | Engine No. 1 hanger | 12281-62012 · 12281-62013 · 12281-62040 |
