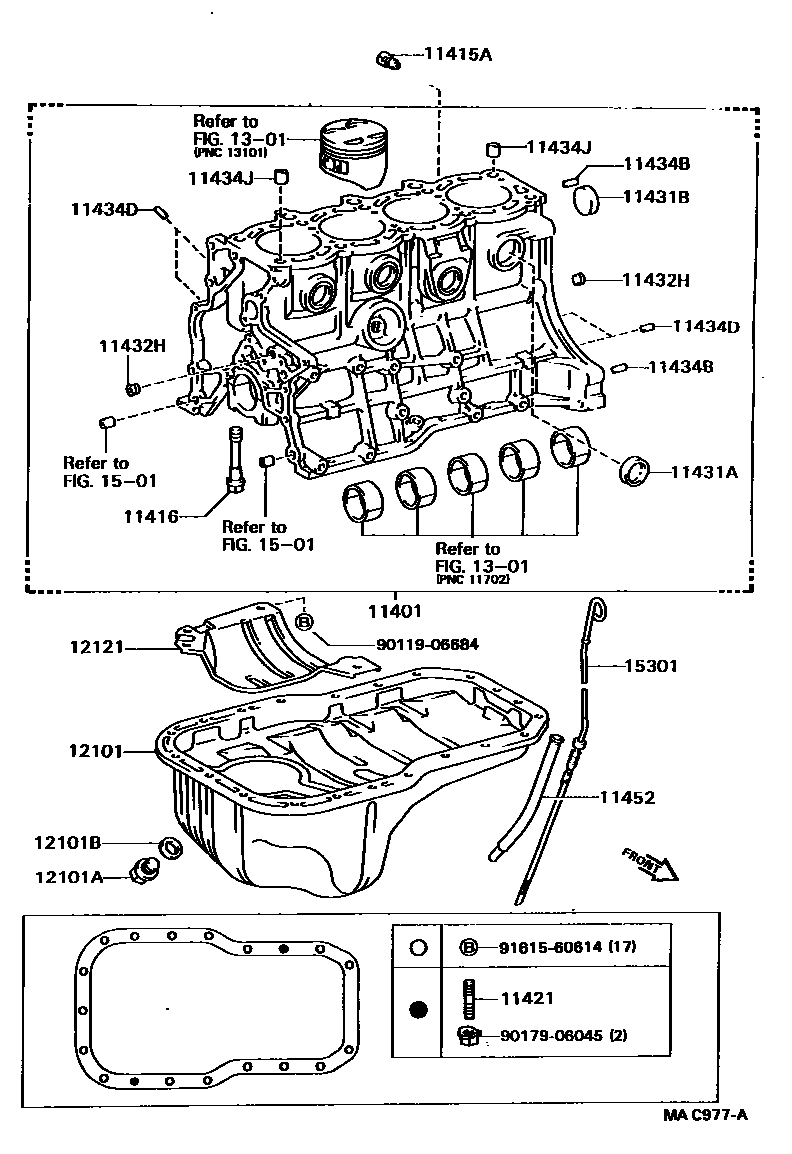

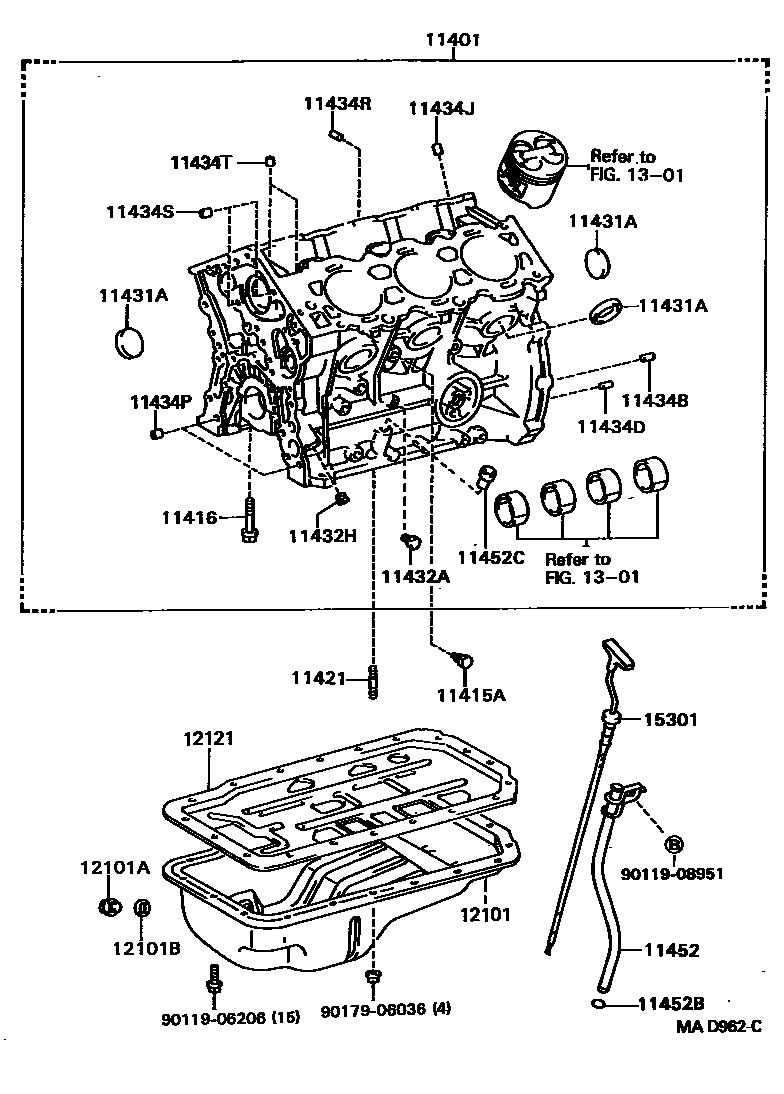

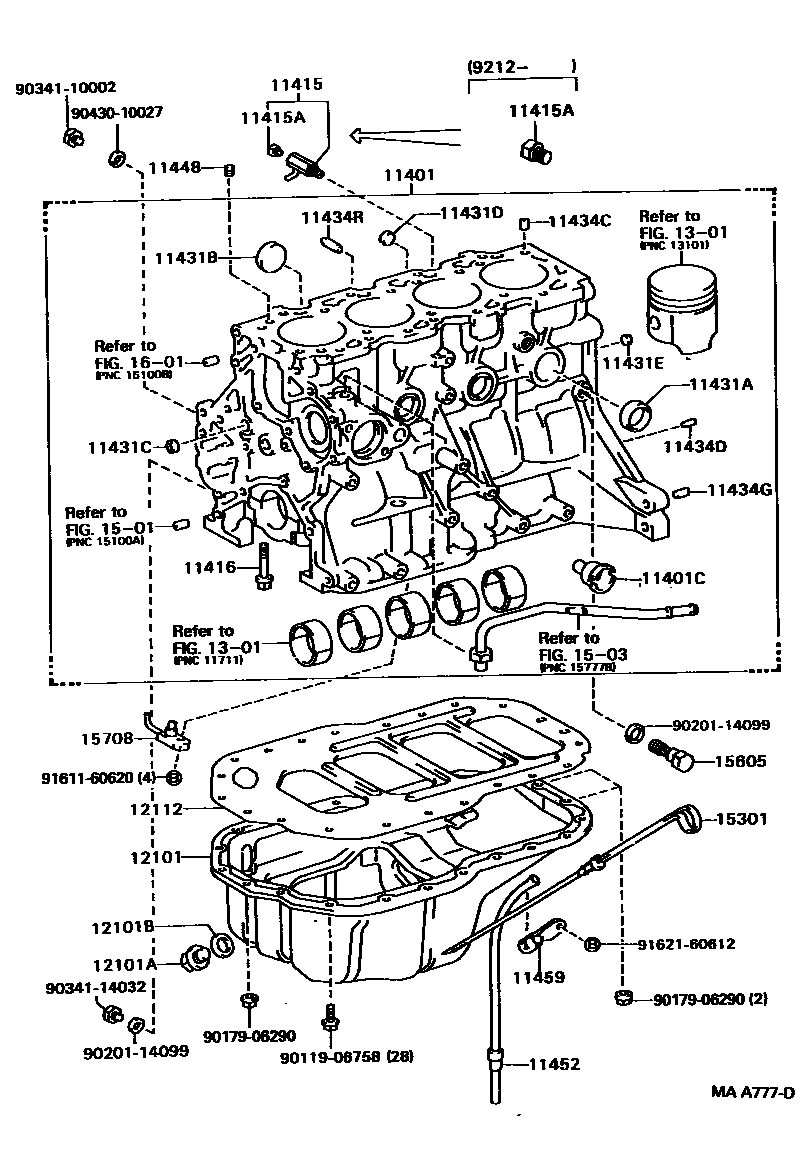

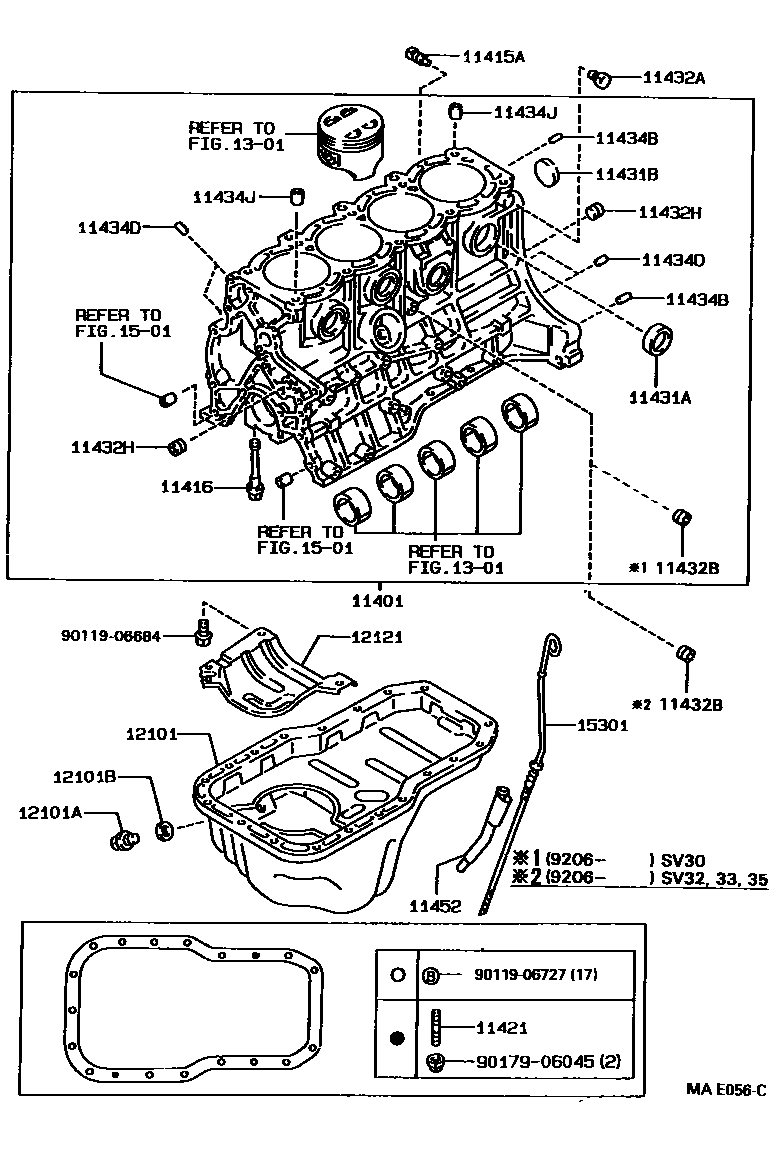

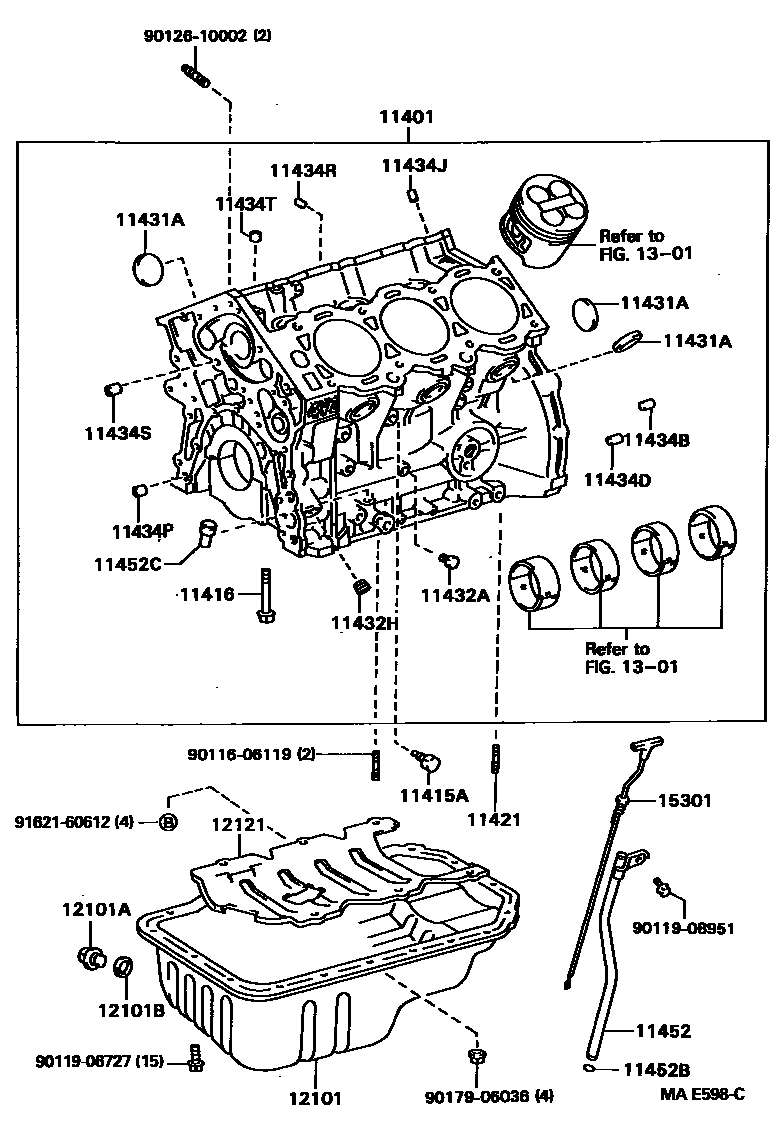

Toyota CAMRY Cylinder Block — Figure 1105
Toyota CAMRY EPC diagram 1105, Cylinder Block, with 5 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11401 | Cylinder block sub-assembly | 11401-69355 · 11401-69356 · 11401-69405 · 11401-69406 · 11401-69485 · 11401-69486 · 11401-69487 · 11401-79179 · 11401-79366 · 11401-79367 · 11401-79515 · 11401-79525 · 11401-79595 |
| 11401C | Flange (for water bypass pipe) | 16353-64010 · 16353-64011 |
| 11415 | Water release switch sub-assembly (for cylinder block) | 90910-09088 |
| 11415A | Water drain switch screw plug (for cylinder block) | 90345-52001 · 90345-52003 · 90910-09087 · 96431-23814 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90105-10028 · 90910-02061 · 90910-02072 |
| 11421 | Stud bolts (for oil pan) | 90116-06014 · 90116-06022 · 90116-06119 |
| 11431A | No. 1 sealing plug (for cylinder block) | 96411-43500 |
| 11431B | No. 2 sealing plug (for cylinder block) | 96411-43000 · 96411-44000 |
| 11431C | No. 3 sealing plug (for cylinder block) | 96411-41800 |
| 11431D | No. 4 sealing plug (for cylinder block) | 96411-41800 |
| 11431E | No. 5 sealing plug (for cylinder block) | 96411-41800 |
| 11432A | No. 1 headed tapered thread plug | 90345-51006 · 90345-51008 |
| 11432B | No. 2 headed tapered thread plug | 90344-52003 |
| 11432H | No. 5 headed tapered thread plug | 90344-53006 · 90344-53015 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-10113 |
| 11434C | Direct sales (for cylinder head components) | 90253-14001 · 90253-14002 |
| 11434D | Direct sales (for engine rear oil seal) | 90250-06003 · 90250-06068 |
| 11434G | Direct sales (for end plates) | 90250-10113 |
| 11434J | Ring pin (for cylinder head assembly) | 90253-13017 · 90253-16001 |
| 11434P | Direct sales (for oil pump components) | 90253-11021 |
| 11434R | Direct selling (for drive shaft bearing bracket) | 90250-06003 |
| 11434S | Ring pin (for water pump assembly) | 90253-11021 |
| 11434T | Ring pin (for timing belt idler bracket assembly) | 90253-11021 |
| 11448 | Cylinder block oil orifice | 11448-54010 · 11448-54020 · 11448-64020 |
| 11452 | Engine oil level gauge guide | 11452-62020 · 11452-62040 · 11452-64030 · 11452-74030 · 11452-74031 · 11452-88361 |
| 11452B | O-ring (for oil level gauge guide) | 96721-19010 |
| 11452C | Connector (for oil level gauge tube) | 90405-10033 |
| 11459 | Oil level gauge guide bracket | 90929-01049 |
| 12101 | Oil pan sub-assembly | 12101-62040 · 12101-62041 · 12101-62042 · 12101-64110 · 12101-64130 · 12101-64131 · 12101-74050 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12012 · 90341-12026 |
| 12101B | Gasket (for oil pan drain plug) | 90430-12019 · 90430-12020 · 90430-12027 · 90430-12028 · 90430-12031 |
| 12112 | No. 2 oil pan | 12112-64040 |
| 12121 | No. 1 oil pan baffle | 12122-62010 · 12122-62020 · 12123-74040 |
| 15301 | Engine oil level scoring assembly | 15301-62030 · 15301-62050 · 15301-64041 · 15301-64042 · 15301-74010 · 15301-88363 |
| 15605 | Oil check valve sub-assembly | 15605-64020 |
| 15708 | No. 1 oil nozzle sub-assembly | 15790-64020 · 15790-64021 |
