Toyota CAMRY Engine Overhaul Gasket Kit — Figure 1103

Toyota CAMRY EPC diagram 1103, Engine Overhaul Gasket Kit, with 4 images and 2 PNC and OE references.

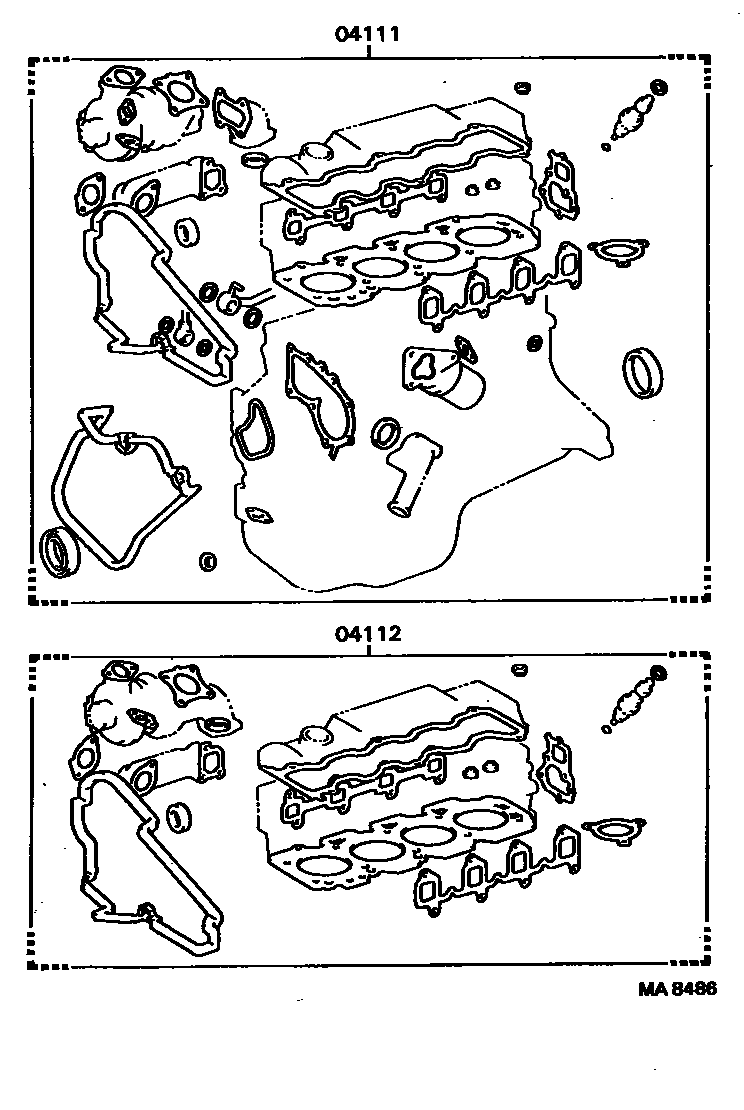

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — MA8486
Engine Overhaul Gasket Kit — MA8486 (199007 – 999999)

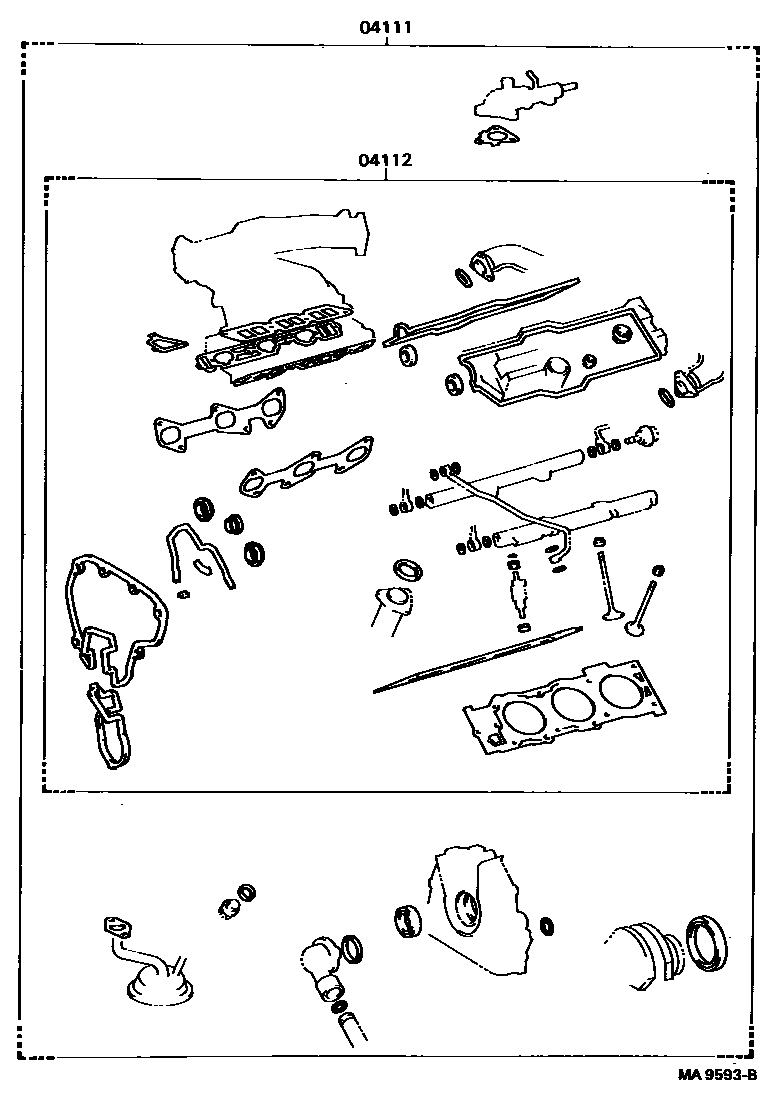

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — MA9593B
Engine Overhaul Gasket Kit — MA9593B (199007 – 999999)

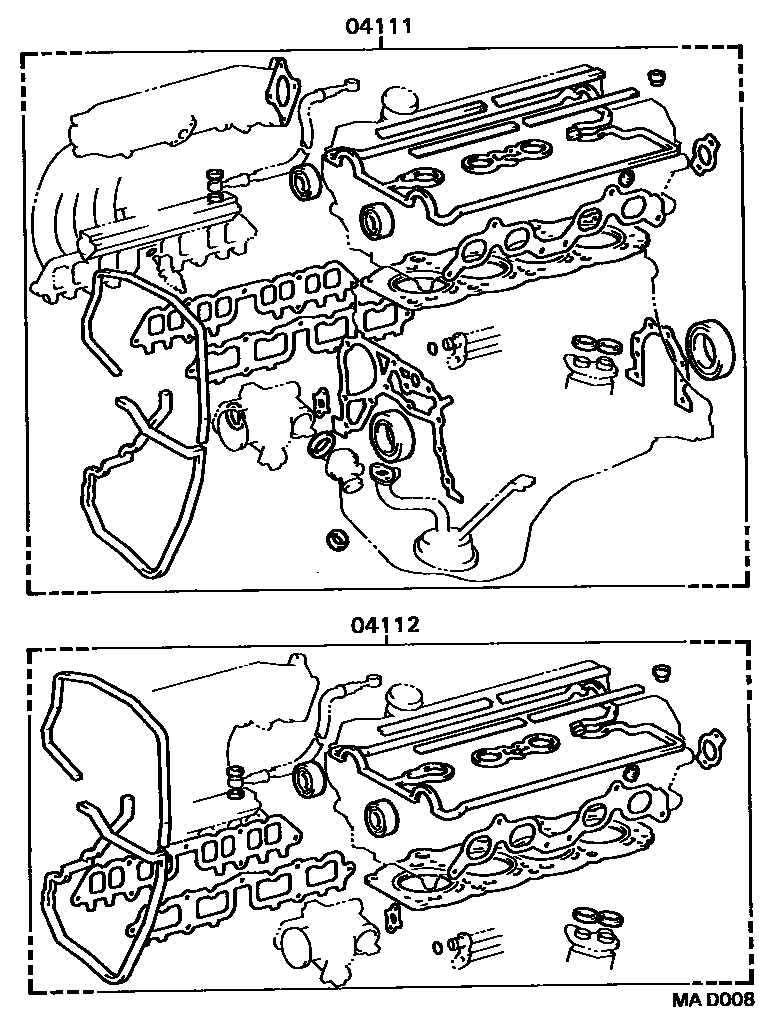

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — MAD008
Engine Overhaul Gasket Kit — MAD008 (199007 – 199206)

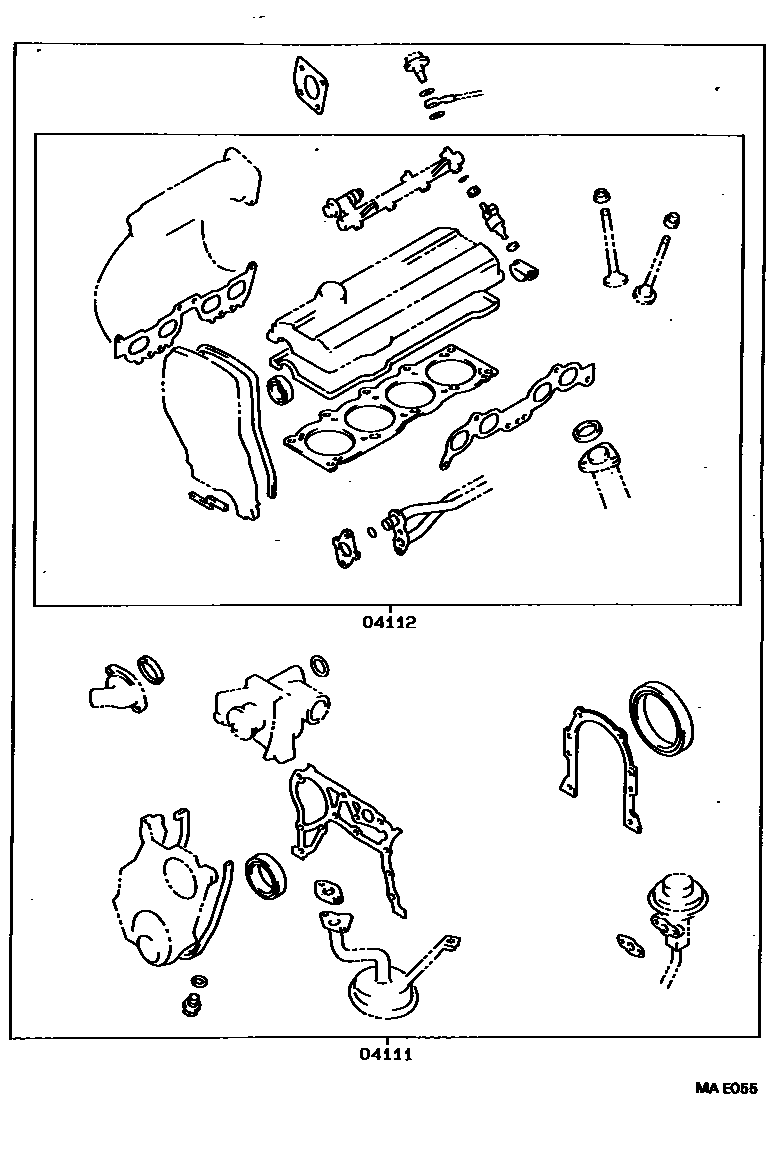

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — MAE055
Engine Overhaul Gasket Kit — MAE055 (199007 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-62040 · 04111-62041 · 04111-62060 · 04111-64130 · 04111-64131 · 04111-64190 · 04111-74250 · 04111-74260 · 04111-74270 · 04111-74460
04112Engine valve grinding pad assembly04112-62030 · 04112-62031 · 04112-62050 · 04112-64090 · 04112-64091 · 04112-64130 · 04112-74250 · 04112-74260 · 04112-74270 · 04112-74460
