Toyota CAMRY 暖风和空调系统 - 控制器和风管 — Figure 8715

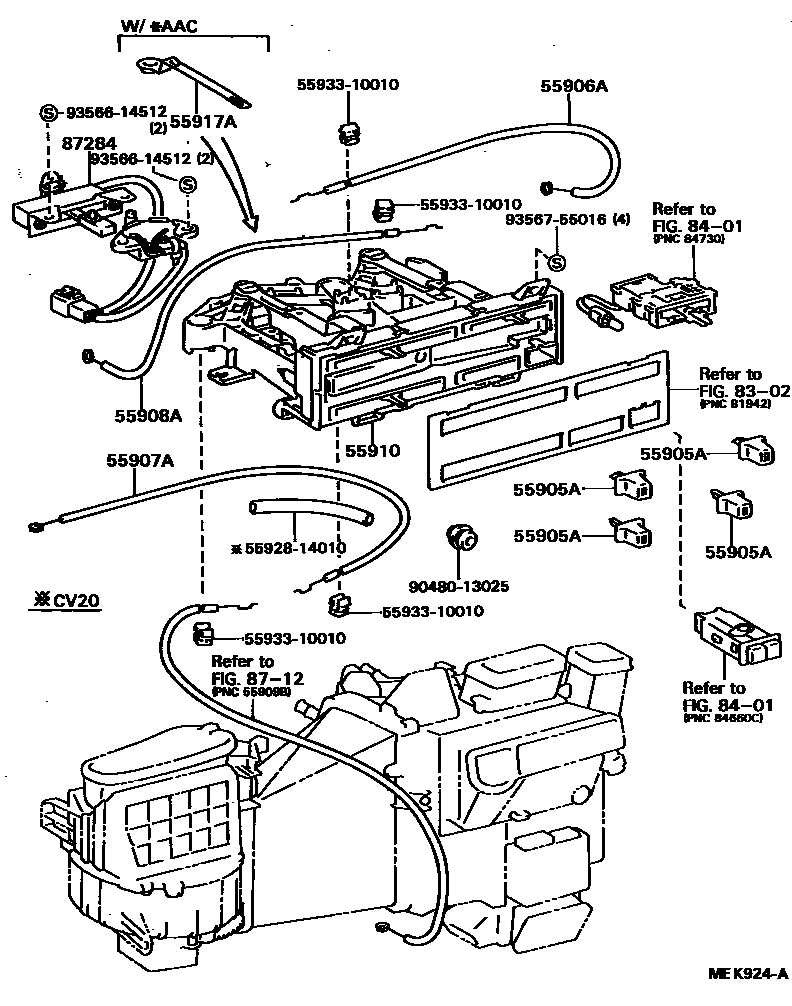

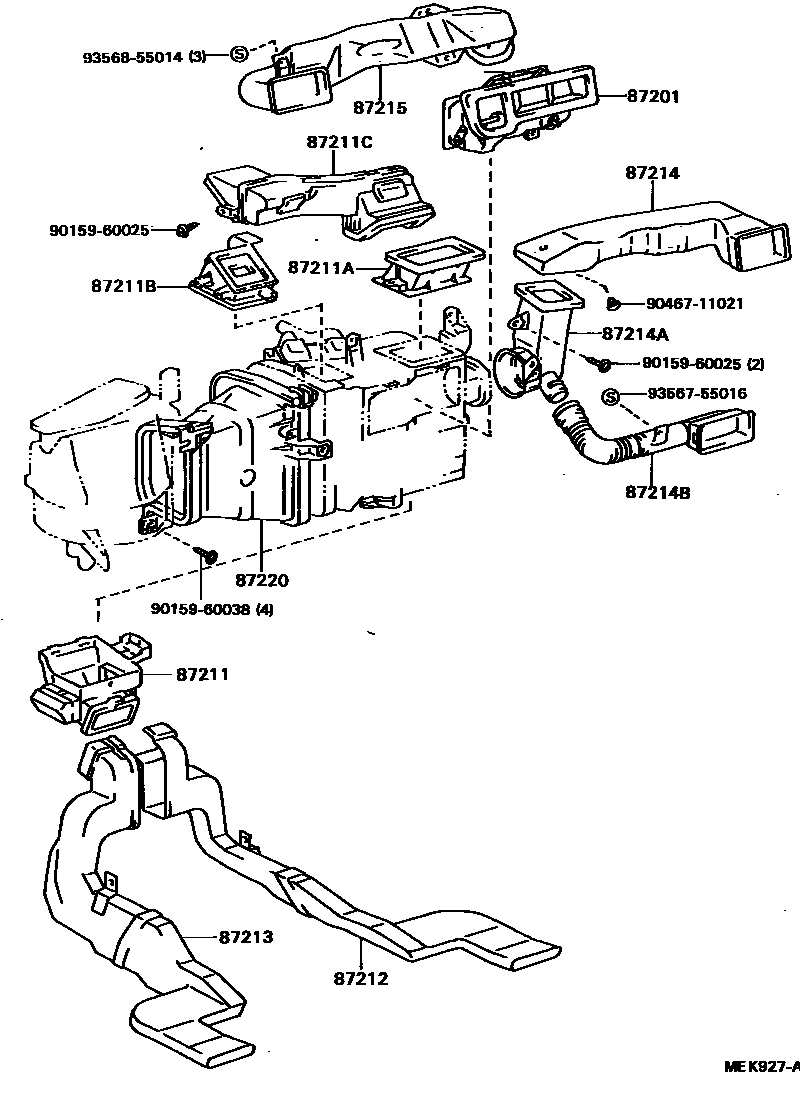

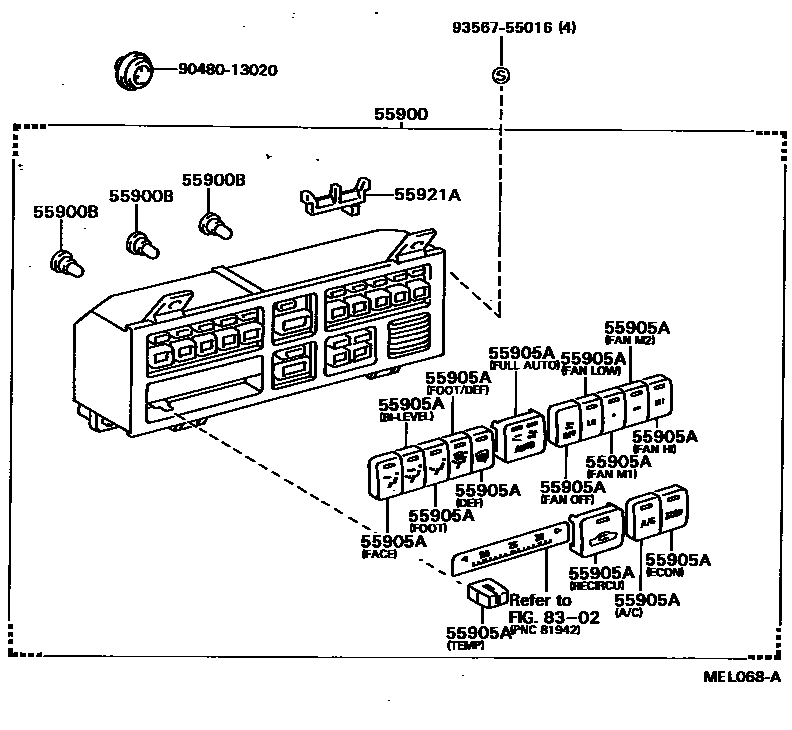

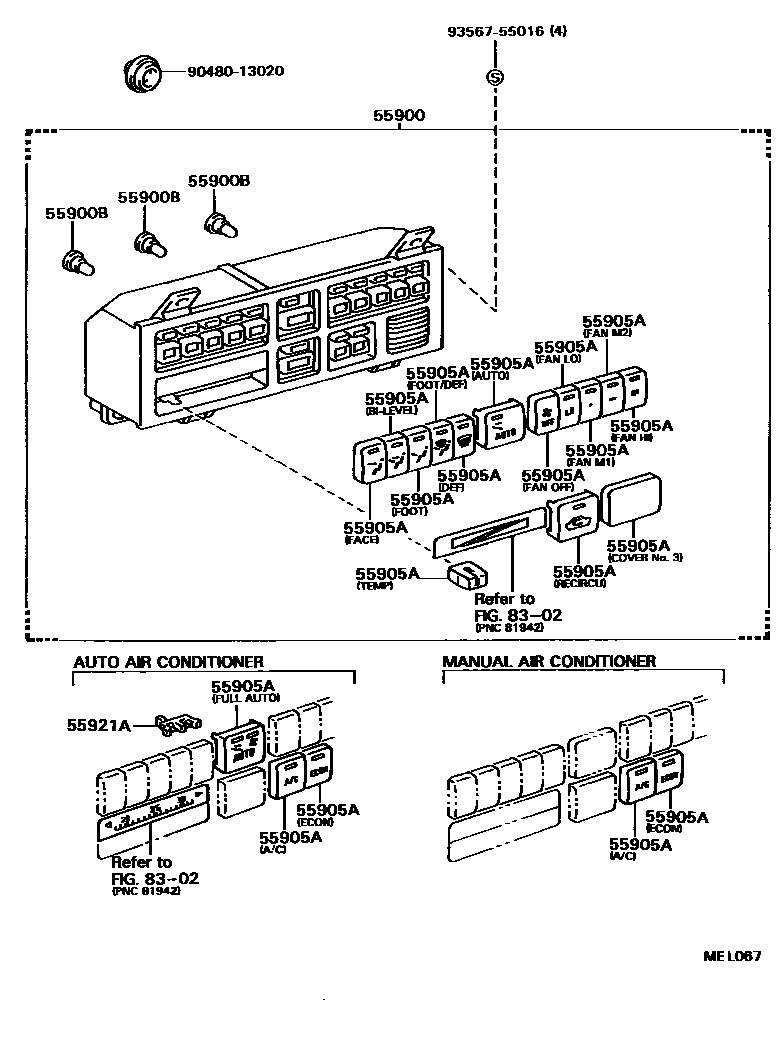

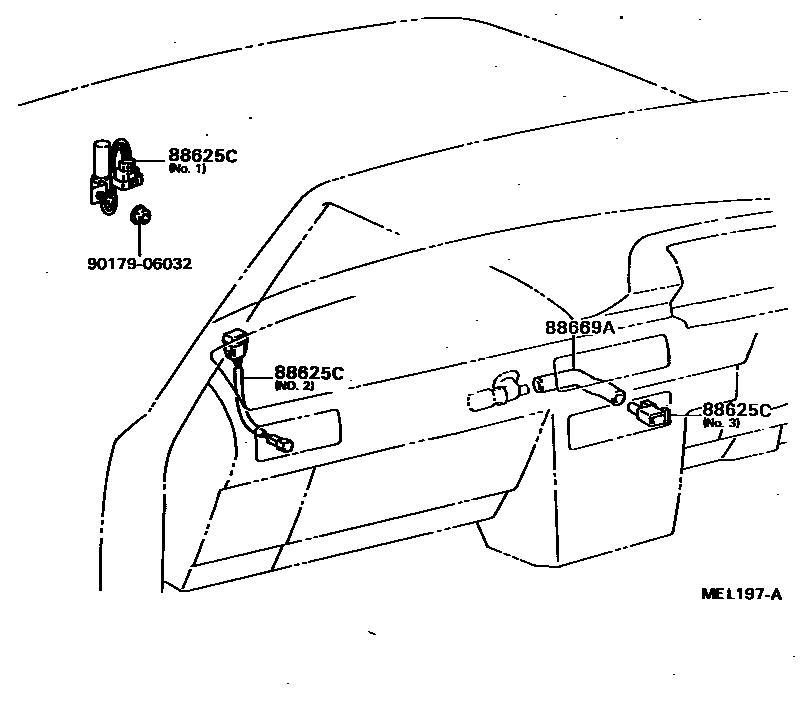

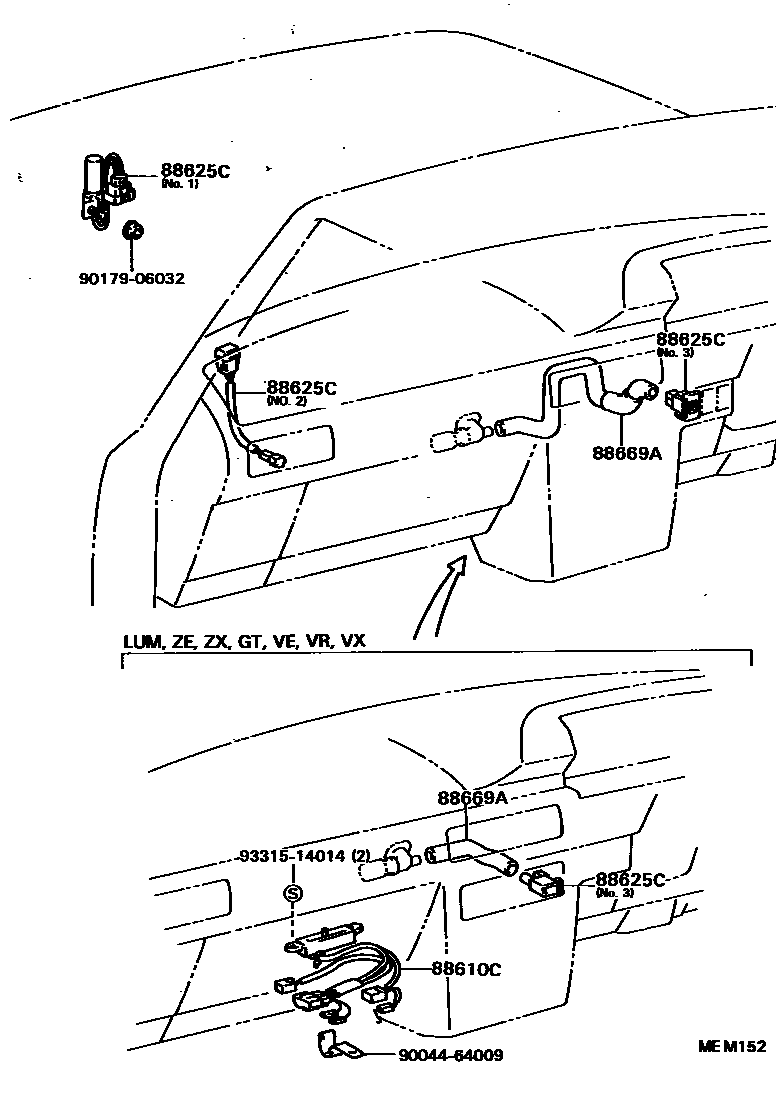

Toyota CAMRY EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 6 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55900 | Air conditioning control assembly | 55900-32180 · 55900-32190 |
| 55900B | air conditioning control light bulb | 81850-32150 |
| 55905A | Heater control button | 55905-32180 · 55905-32190 · 55905-32200 · 55905-32210 · 55905-32220 · 55905-32230 · 55905-32250 · 55905-32260 · 55905-32270 · 55905-32280 · 55905-32290 · 55905-32320 · 55905-32330 · 55905-32340 · 55905-32350 · 55905-32360 · 55905-32370 · 55905-32380 |
| 55906A | Defroster damper control cable sub-assembly | 55906-32050 |
| 55907A | Water valve control cable sub-assembly | 55907-32030 |
| 55908A | Intake air valve control cable sub-assembly | 55908-32050 |
| 55910 | Heater or auxiliary ventilation control assembly | 55910-32060 |
| 55917A | Temperature damper control lever | 55917-32030 |
| 55921A | Heater Controller Fixing | 55921-32010 |
| 87201 | No. 1 air duct sub-assembly | 87201-32130 |
| 87211 | No. 1 air duct | 87201-32160 |
| 87211A | Duct No. 2 | 87211-32030 |
| 87211B | No. 3 air duct | 87201-32180 |
| 87211C | No. 4 air duct | 87201-32200 |
| 87212 | No. 1 rear air duct | 87212-32010 · 87212-32020 |
| 87213 | No. 2 rear air duct | 87213-32010 |
| 87214 | Air duct No. 1 on the right | 55084-32040 |
| 87214A | Air duct No. 2 on the right | 55085-32070 · 55085-32091 |
| 87214B | Air duct No. 3 on the right | 55088-32041 |
| 87215 | Air duct No. 1 on the left | 55086-32031 |
| 87220 | Air duct assembly | 87220-32010 |
| 87284 | Variable resistor sub-assembly | 88032-32060 |
| 88610C | Cooler control switch assembly | 88610-32061 |
| 88625C | Cooler thermistor | 88625-20130 · 88625-32050 · 88625-32060 · 88625-32070 · 88625-32090 |
| 88669A | Hoses (for cooler thermistor) | 88669-32020 · 88669-32030 |
