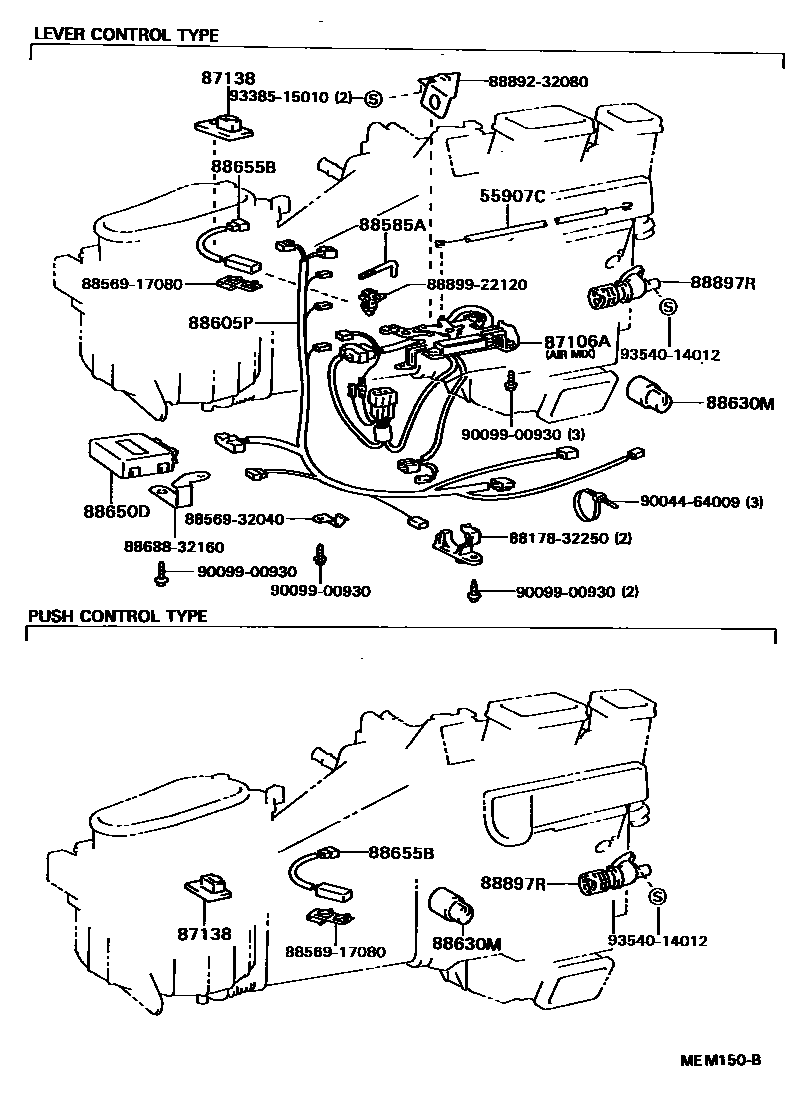

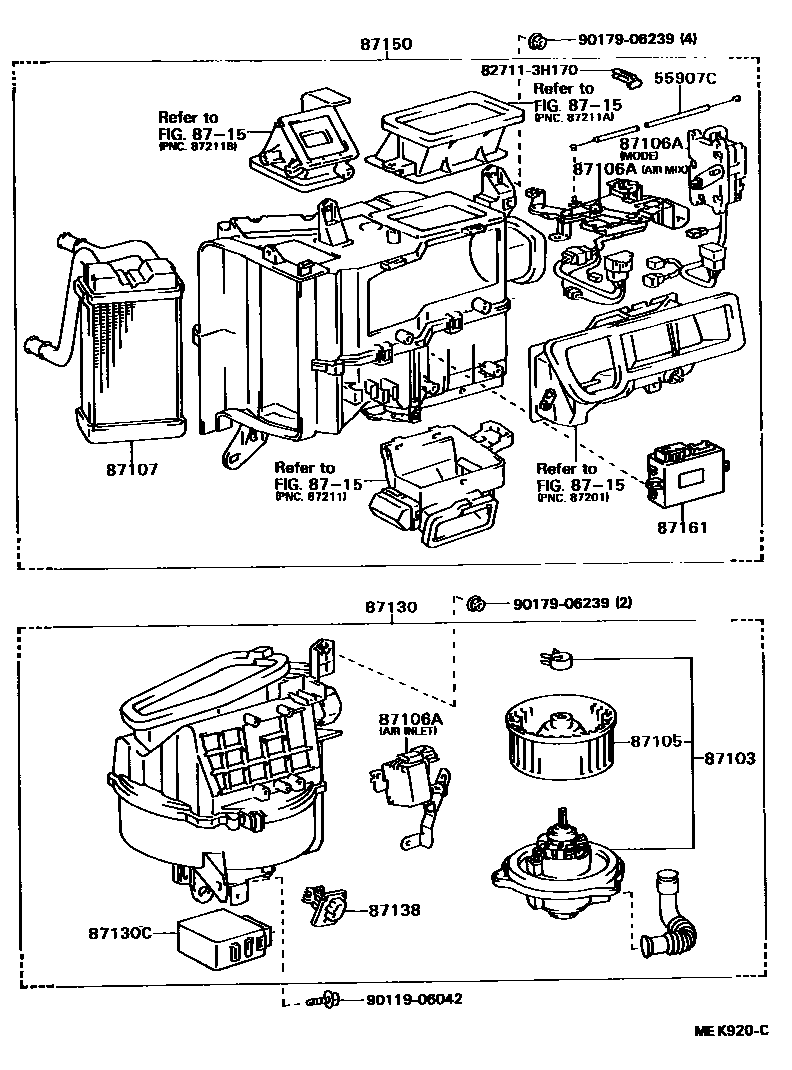

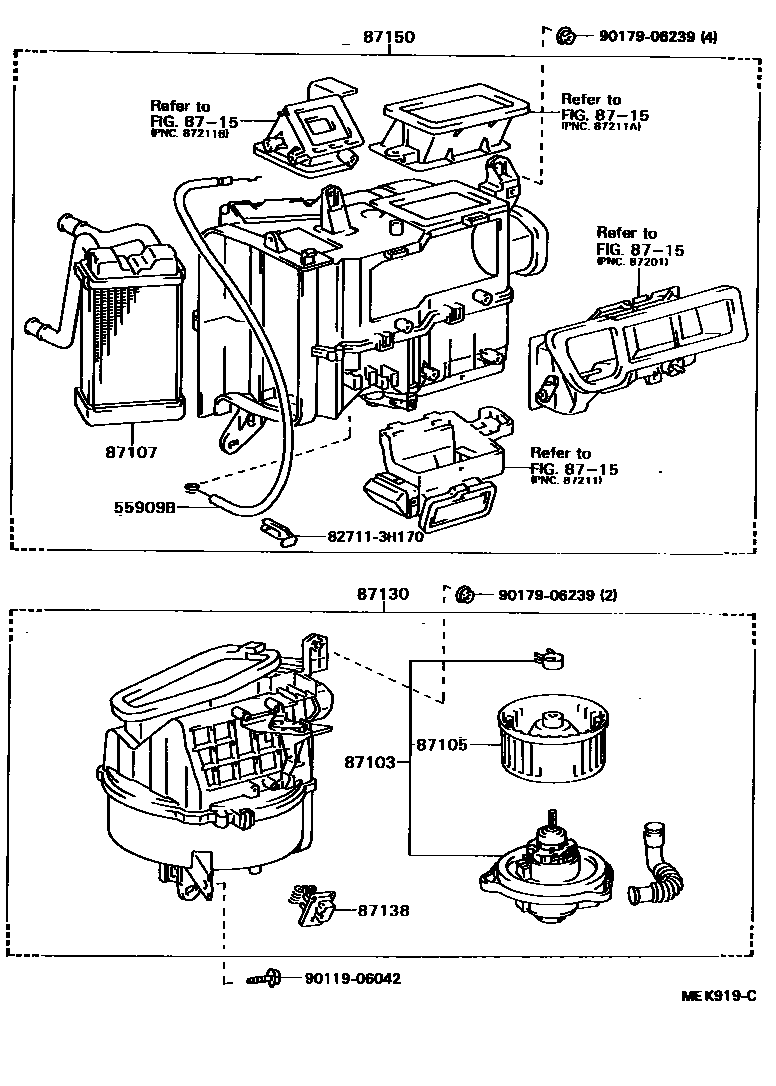

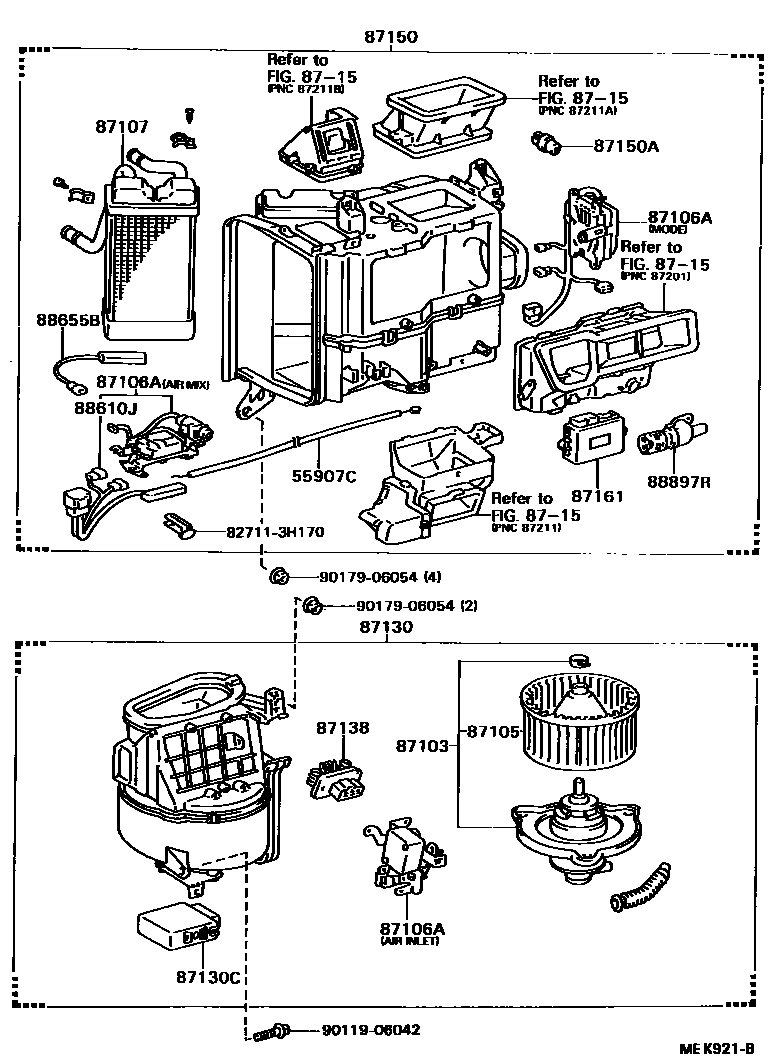

Toyota CAMRY 暖风和空调系统 - 加热装置和鼓风机 — Figure 8712
Toyota CAMRY EPC diagram 8712, 暖风和空调系统 - 加热装置和鼓风机, with 4 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55907C | Water valve control cable sub-assembly | 87286-32010 |
| 55909B | Air mix damper control cable sub-assembly | 55909-32100 |
| 87103 | Heater blower motor sub-assembly with fan | 87103-32010 |
| 87105 | Heater blower fan sub-assembly | 87105-32010 |
| 87106A | Damper servo mechanism sub-assembly | 87106-32010 · 87106-32030 · 87106-32050 · 87106-32060 · 88660-32090 |
| 87107 | Heater radiator device sub-assembly | 87107-32050 · 87107-32060 |
| 87130 | Front heater blower assembly | 87130-32070 · 87130-32080 · 87130-32120 |
| 87130C | Heater Blower Motor Relay | 88630-20020 |
| 87138 | Heater Blower Resistor | 87138-32030 · 87138-32040 · 88635-32020 |
| 87150 | Heater radiator assembly | 87150-32070 · 87150-32071 · 87150-32080 · 87150-32081 · 87150-32091 · 87150-32092 · 87150-32101 · 87150-32102 · 87150-32141 · 87150-32142 · 87150-32151 · 87150-32152 |
| 87150A | heater radiator relay | 88630-32040 |
| 87161 | Heater servo motor amplifier | 87161-32020 |
| 88585A | Heater choke shaft | 88585-32010 |
| 88605P | Air conditioning wiring harness sub-assembly | 88605-32340 |
| 88610J | Control switch assembly | 88610-32060 · 88610-32061 |
| 88630M | Cooler relay assembly | 88630-95702 |
| 88650D | amplifier assembly | 88650-32140 |
| 88655B | Water temperature switch | 88655-22020 |
| 88897R | aspirator | 88897-32010 |
