Toyota CAMRY 后视镜 — Figure 8701

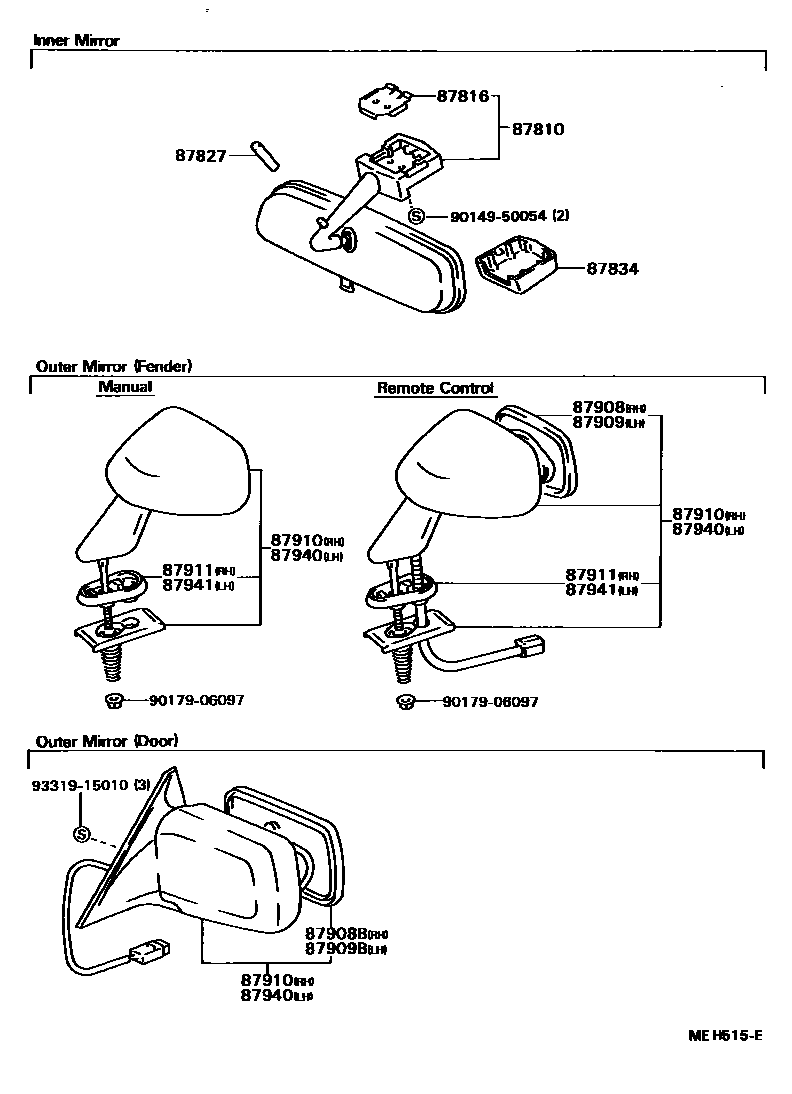

Toyota CAMRY EPC diagram 8701, 后视镜, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87816 | Interior rearview mirror spring | 74372-30030 |
| 87827 | Interior rearview mirror shock absorber | 87828-23010 · 87828-87003 · 87828-87005 |
| 87908 | Right exterior rearview mirror actuator assembly | 87908-32300 |
| 87908B | Right rearview mirror sub-assembly | 87931-32181 · 87931-32240 |
| 87909 | Left exterior rearview mirror actuator assembly | 87909-32310 |
| 87909B | Left rearview mirror sub-assembly | 87961-32180 · 87961-32191 |
| 87910 | Right exterior rearview mirror assembly | 87910-32240 · 87910-32241 · 87910-32270 · 87910-32280 · 87910-32281 · 87910-32290 · 87910-32300 |
| 87911 | Right exterior mirror pad | 87911-32020 · 87911-32030 |
| 87940 | Left exterior rearview mirror assembly | 87940-32180 · 87940-32181 · 87940-32280 · 87940-32290 · 87940-32291 · 87940-32300 · 87940-32310 |
| 87941 | Left exterior mirror pad | 87941-32020 · 87941-32030 |
