Toyota CAMRY antenna — Figure 8604

Toyota CAMRY EPC diagram 8604, antenna, with 2 images and 3 PNC and OE references.

Toyota CAMRY antenna EPC diagram — MEJ011
antenna — MEJ011 (198808 – 999999)

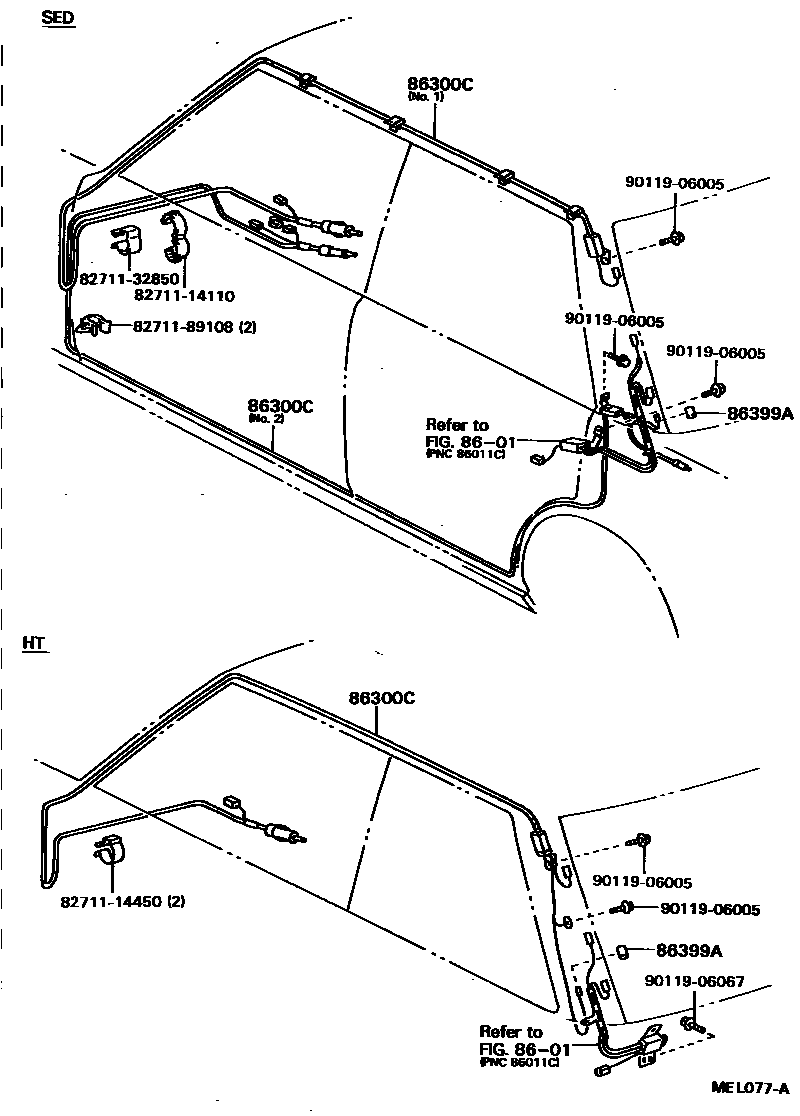

Toyota CAMRY antenna EPC diagram — MEL077A
antenna — MEL077A (198808 – 999999)

PNC and OE references

PNCPart nameOE numbers
86300Antenna assembly with fixing parts86300-20461 · 86300-32101
86300CAmplifier antenna assembly86300-32091 · 86300-32110 · 86300-32150 · 86300-32160 · 86300-32170 · 86300-32180 · 86300-32190
86399Aantenna cover86399-22010
