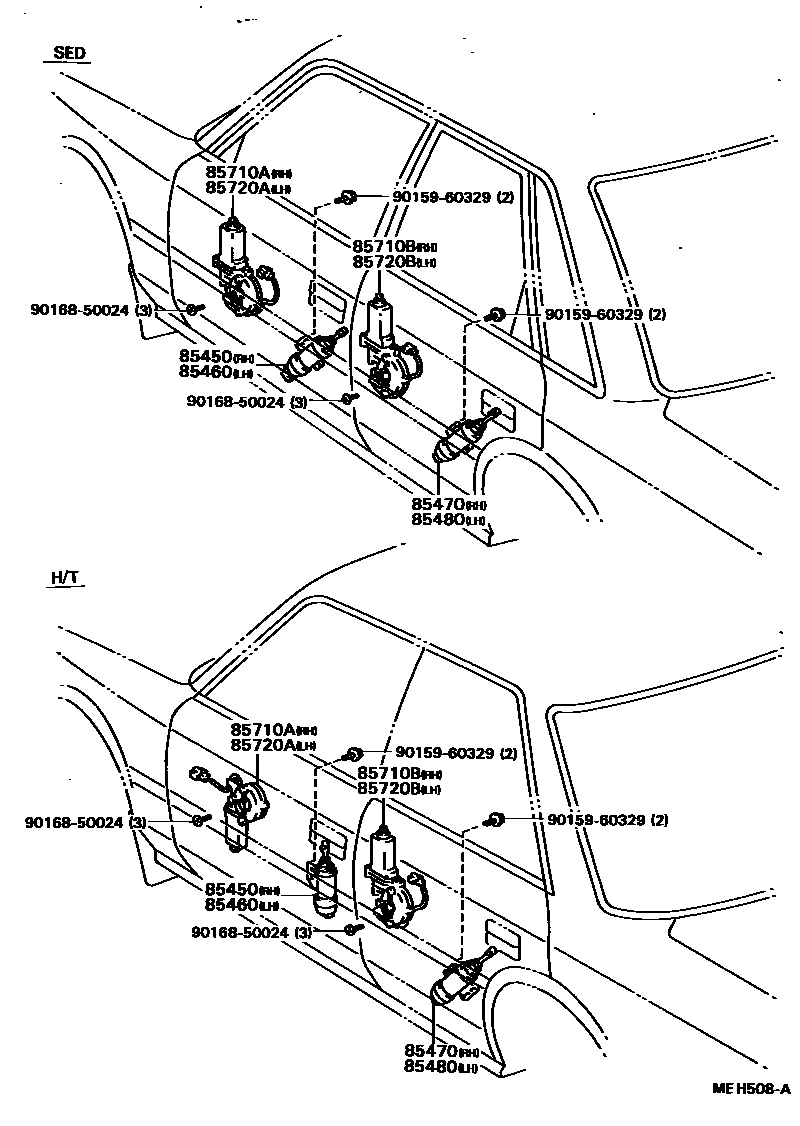

Toyota CAMRY 车门电机和车门电磁阀 — Figure 8511
Toyota CAMRY EPC diagram 8511, 车门电机和车门电磁阀, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85450 | Right front door control solenoid valve assembly | 85450-17010 · 85450-17030 · 85450-32110 |
| 85460 | Left front door control solenoid valve assembly | 85450-17020 · 85450-17040 · 85450-32090 · 85450-32100 |
| 85470 | Right rear door control solenoid valve assembly | 85450-22540 · 85450-30530 · 85450-30610 · 85450-32120 · 85450-32140 |
| 85480 | Left rear door control solenoid valve assembly | 85450-22550 · 85450-30540 · 85450-30620 · 85450-32130 · 85450-32150 |
| 85710A | Right front electric window lift motor assembly | 85710-32040 · 85720-32060 |
| 85710B | Right rear electric window lift motor assembly | 85710-32050 |
| 85720A | Left front electric window lift motor assembly | 85710-32060 · 85720-32040 |
| 85720B | Left rear electric window lift motor assembly | 85720-32050 |
