Toyota CAMRY 遥控门锁 — Figure 8420

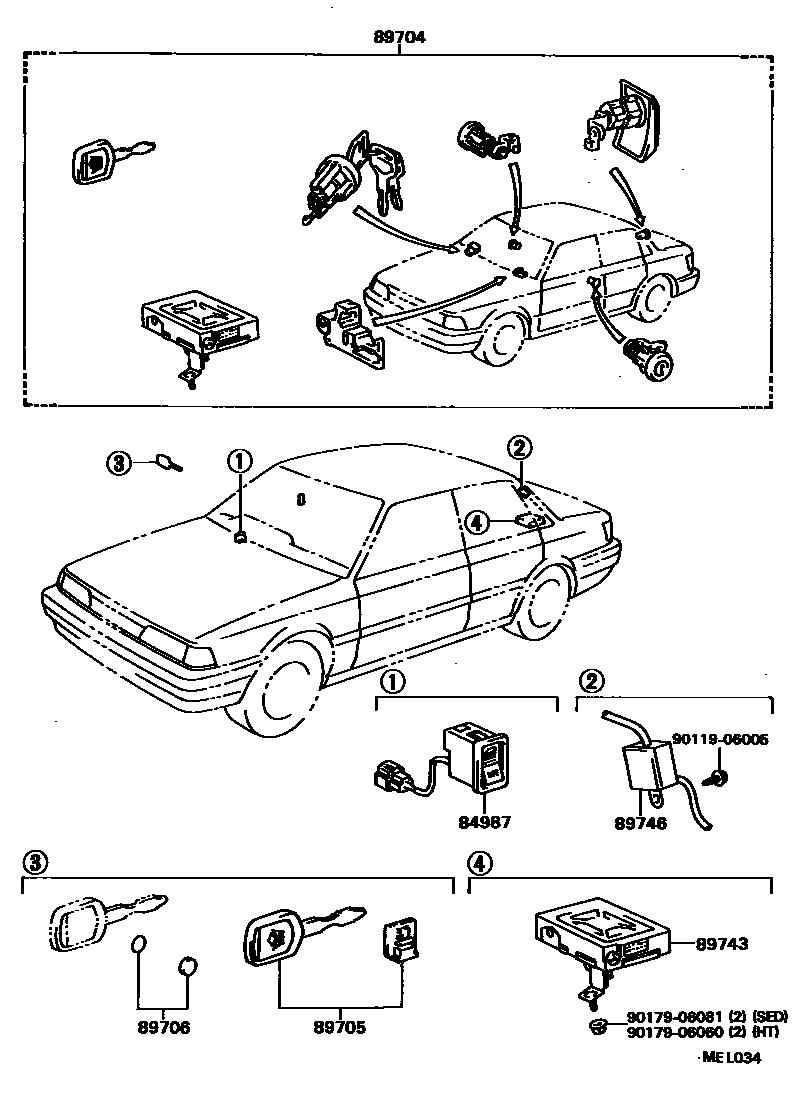

Toyota CAMRY EPC diagram 8420, 遥控门锁, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84987 | Remote door lock main switch | 84987-32010 |
| 89704 | Remote door lock control components | 89704-32010 · 89704-32020 · 89704-32030 · 89704-32040 · 89704-32050 · 89704-32060 · 89704-32110 |
| 89705 | remote key | 89705-32010 · 89705-32020 |
| 89706 | Transmitter battery pack | 89706-30010 |
| 89743 | door control receiver | 89743-32010 · 89743-32020 |
| 89746 | Remote door lock filter | 89746-32010 |
