Toyota CAMRY 电子燃油喷射系统 — Figure 8404

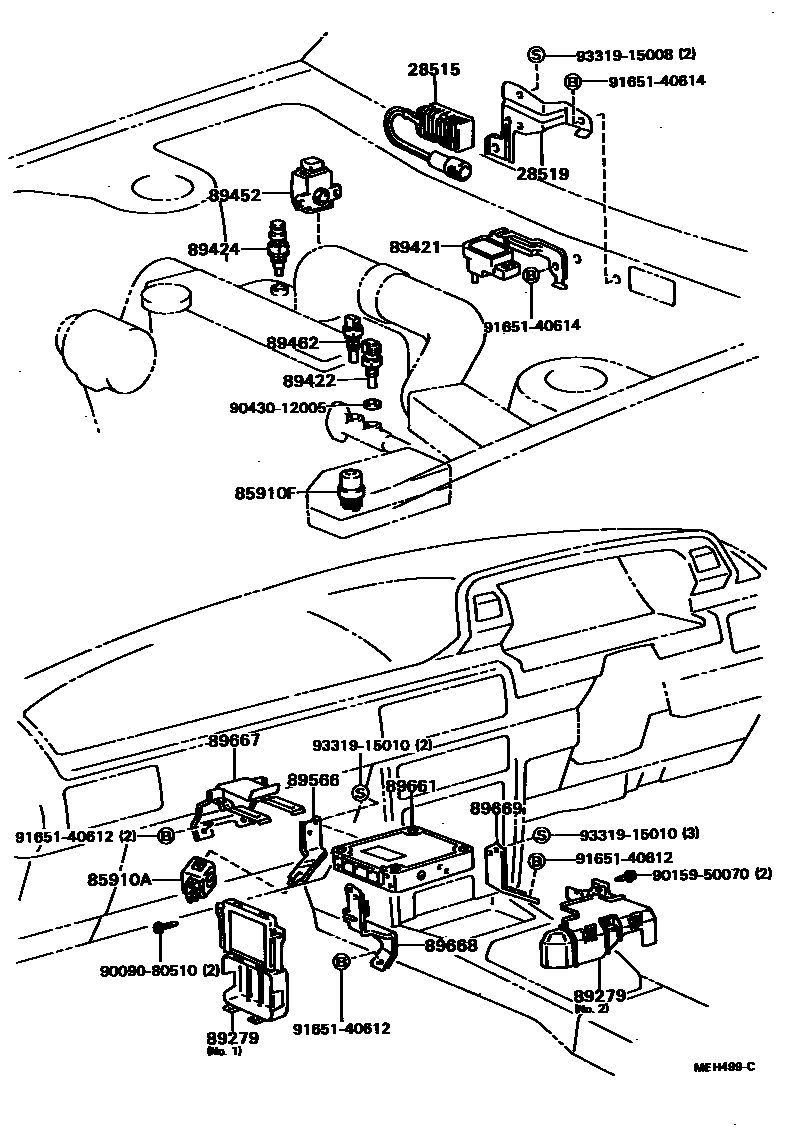

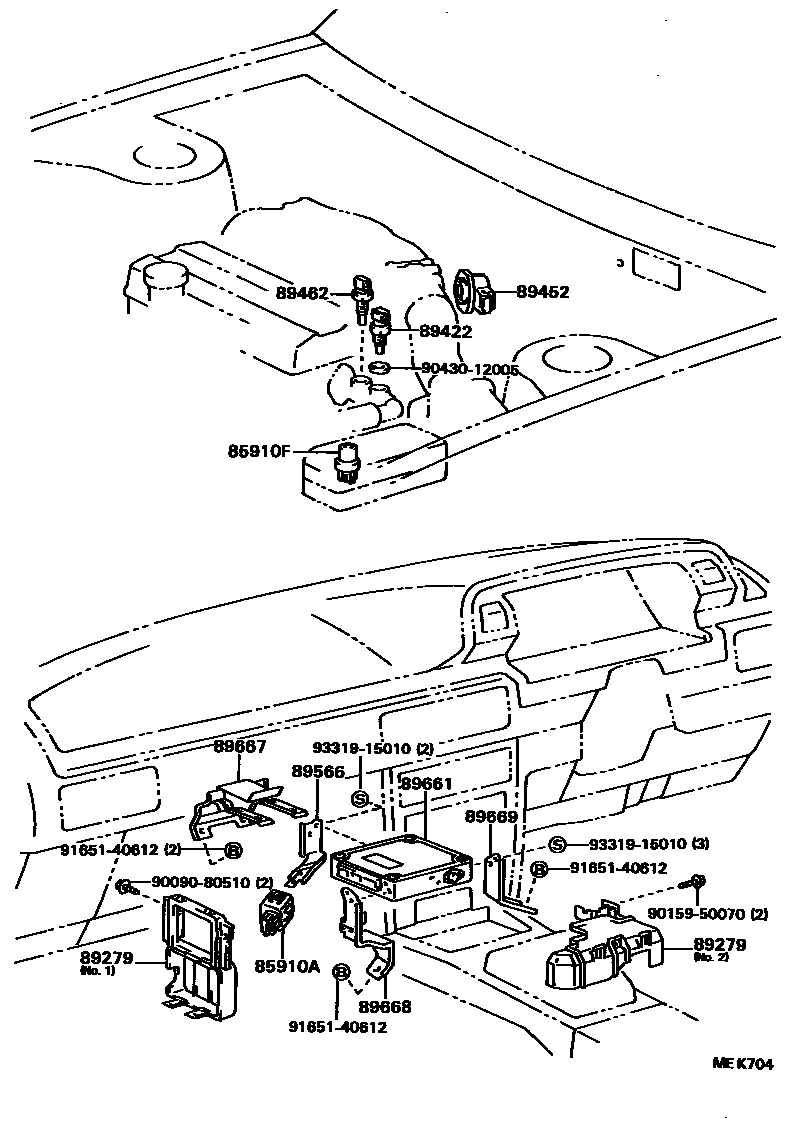

Toyota CAMRY EPC diagram 8404, 电子燃油喷射系统, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28515 | Solenoid valve resistor | 28515-74040 |
| 28519 | Solenoid valve resistor bracket | 28519-63040 |
| 85910A | Circuit breaking relay assembly (for EFI) | 85910-30050 |
| 85910F | ECU relay (for EFI) | 90987-02004 |
| 89279 | Engine control ECU cover | 89279-32070 · 89279-32080 · 89279-32090 |
| 89421 | Vacuum sensor assembly (for E.F.I.) | 89420-32010 · 89420-32020 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-20010 |
| 89424 | Intake air temperature sensor (for E.F.I.) | 89424-28010 |
| 89452 | Throttle position sensor (for E.F.I.) | 89452-14050 · 89452-20050 · 89452-20080 · 89452-28030 · 89452-32020 · 89452-32030 |
| 89462 | Start injector timing switch | 89462-20020 · 89462-20040 |
| 89566 | Fuel injection ECU bracket | 89566-32020 |
| 89661 | Engine control ECU | 89661-32041 · 89661-32340 · 89661-32390 · 89661-32391 · 89661-32410 · 89661-32411 · 89661-32420 · 89661-32421 · 89661-32430 |
| 89667 | Engine control ECU bracket | 89667-32020 |
| 89668 | No. 2 engine control ECU bracket | 89668-32010 |
| 89669 | No. 3 engine control ECU bracket | 89669-32030 |
