Toyota CAMRY indicator light — Figure 8302

Toyota CAMRY EPC diagram 8302, indicator light, with 1 images and 5 PNC and OE references.

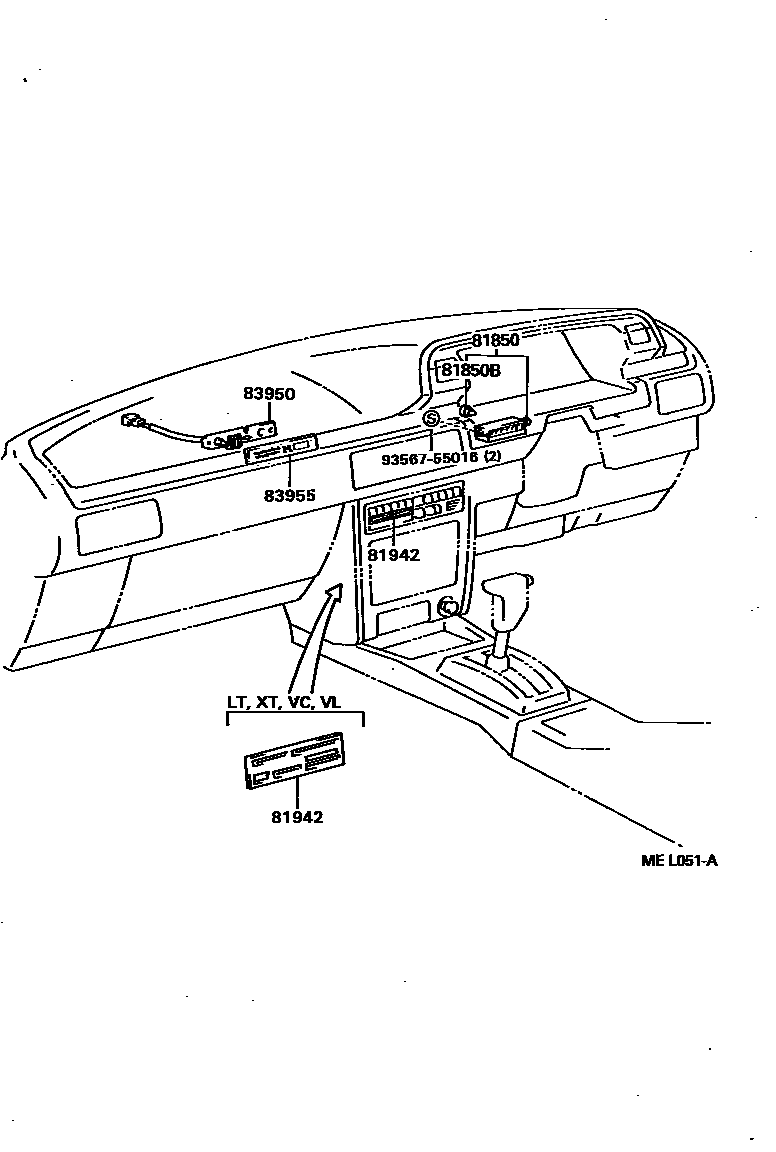

Toyota CAMRY indicator light EPC diagram — MEL051A
indicator light — MEL051A (198808 – 999999)

PNC and OE references

PNCPart nameOE numbers
81850Indicator light assembly81850-32071 · 81850-32091
81850Bpilot light bulb84999-20090 · 84999-20100
81942Heater control nameplate81942-32031 · 81942-32051 · 81942-32060 · 81942-32070
83950Warning light assembly83950-32010 · 83950-32020
83955warning light shade83955-32010 · 83955-32020 · 83955-32050
