Toyota CAMRY 后牌照灯 — Figure 8113

Toyota CAMRY EPC diagram 8113, 后牌照灯, with 3 images and 7 PNC and OE references.

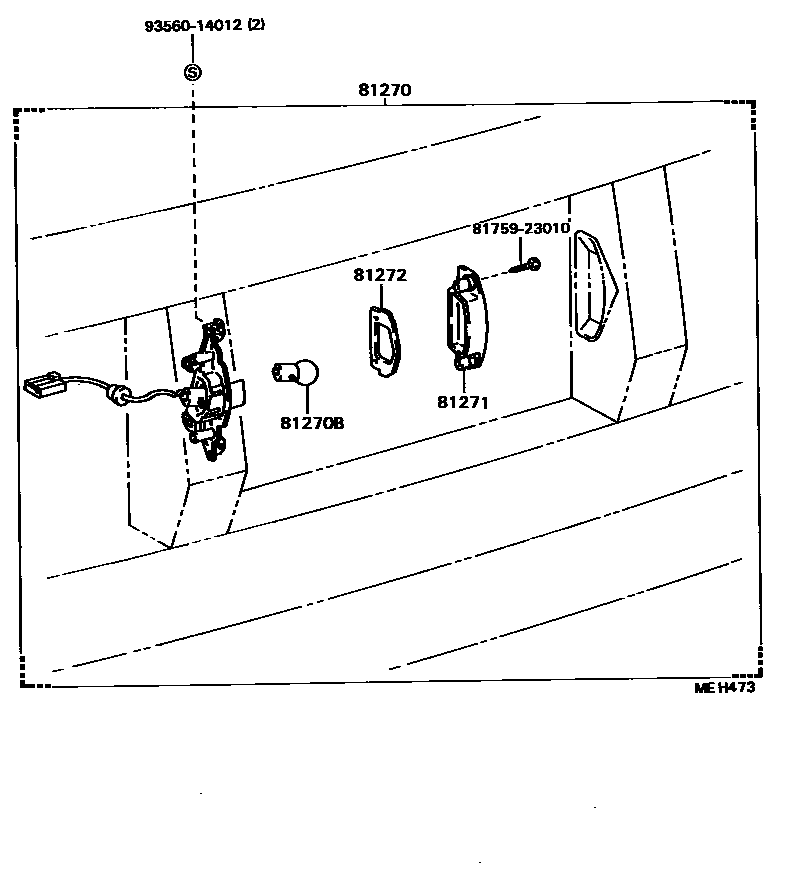

Toyota CAMRY 后牌照灯 EPC diagram — MEH473
后牌照灯 — MEH473 (198808 – 999999)

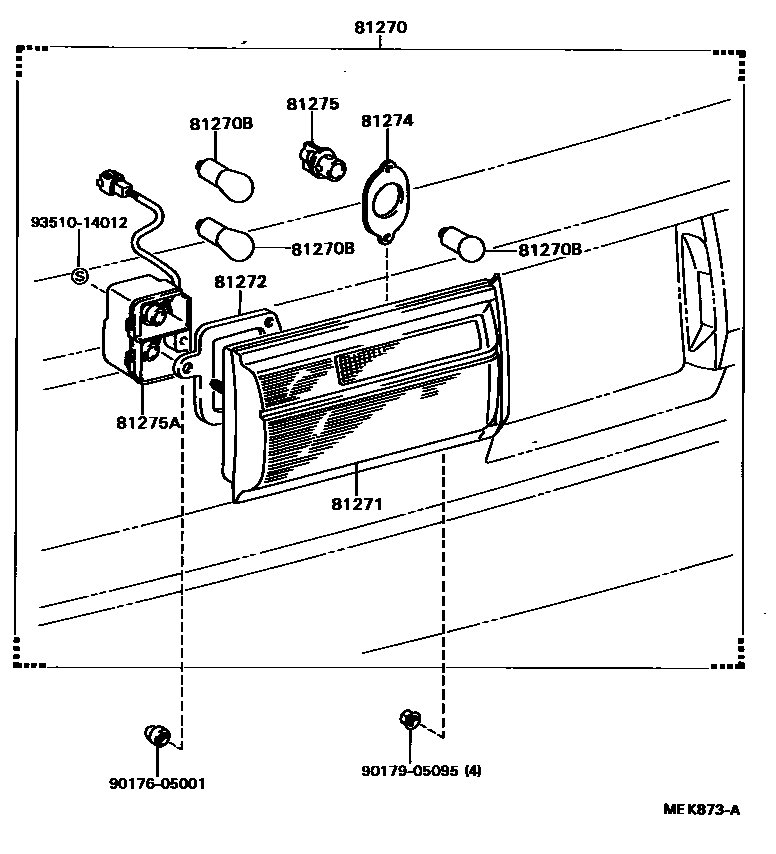

Toyota CAMRY 后牌照灯 EPC diagram — MEK873A
后牌照灯 — MEK873A (198808 – 999999)

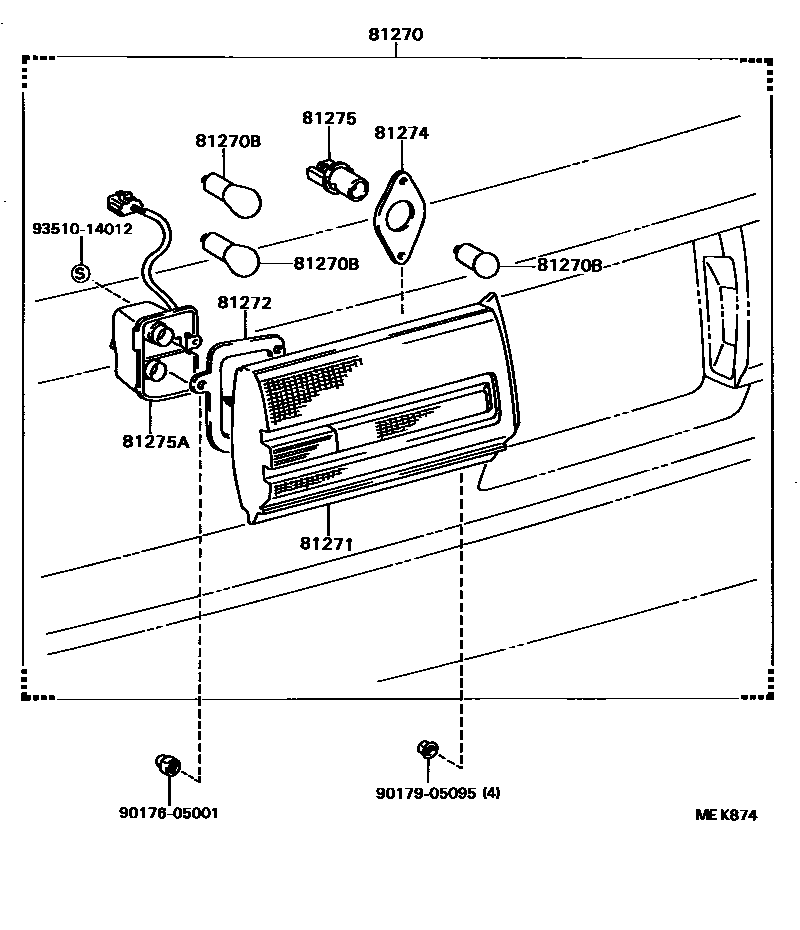

Toyota CAMRY 后牌照灯 EPC diagram — MEK874
后牌照灯 — MEK874 (198808 – 999999)

PNC and OE references

PNCPart nameOE numbers
81270License plate light assembly81270-32061 · 81270-32111 · 81270-32150 · 81270-32170 · 81690-32031 · 81690-32081
81270BBulb (for license plate light)90981-12012 · 90981-12019 · 99132-11100 · 99132-11210 · 99132-21210
81271license plate lamp shade81271-16151 · 81271-20210 · 81271-32061 · 81271-32111 · 81691-32031 · 81691-32081
81272License plate lamp shade gasket81272-20210 · 81272-32060 · 81272-32110
81274License plate light body gasket81274-32060 · 81274-32110
81275License plate lamp holder and wiring harness81275-12260 · 81275-32110
81275ALicense plate light wire81275-32061 · 81278-32111 · 81695-32031 · 81698-32081
