Toyota CAMRY 后组合灯 — Figure 8111

Toyota CAMRY EPC diagram 8111, 后组合灯, with 4 images and 9 PNC and OE references.

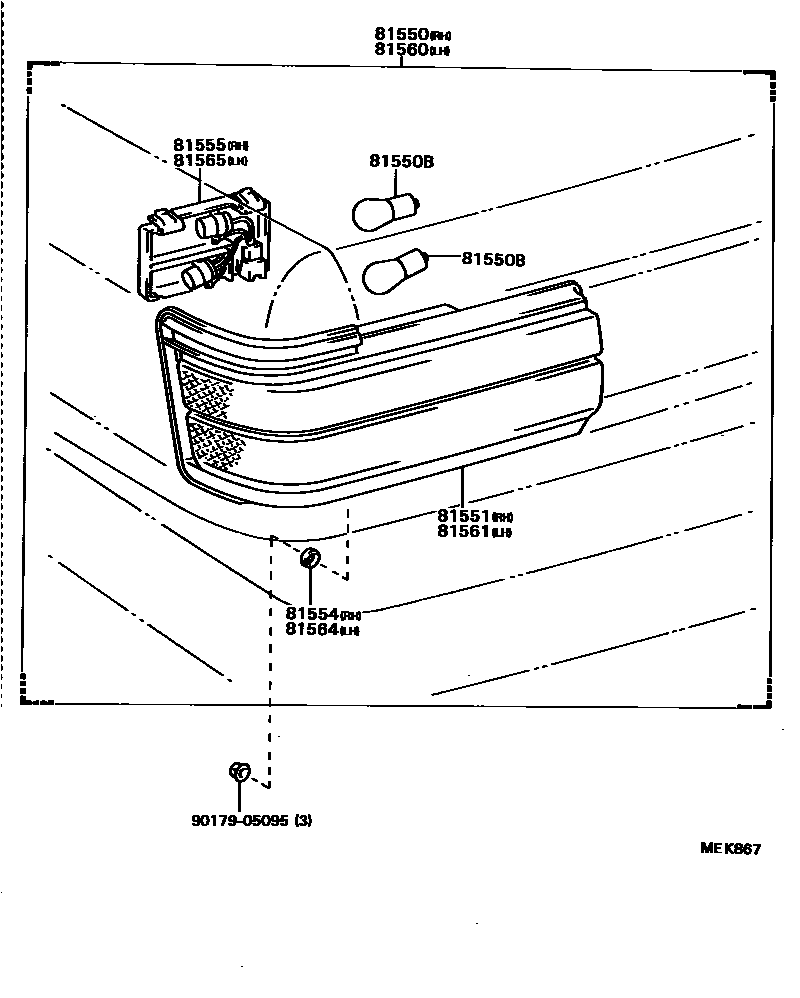

Toyota CAMRY 后组合灯 EPC diagram — MEK867
后组合灯 — MEK867 (198808 – 999999)

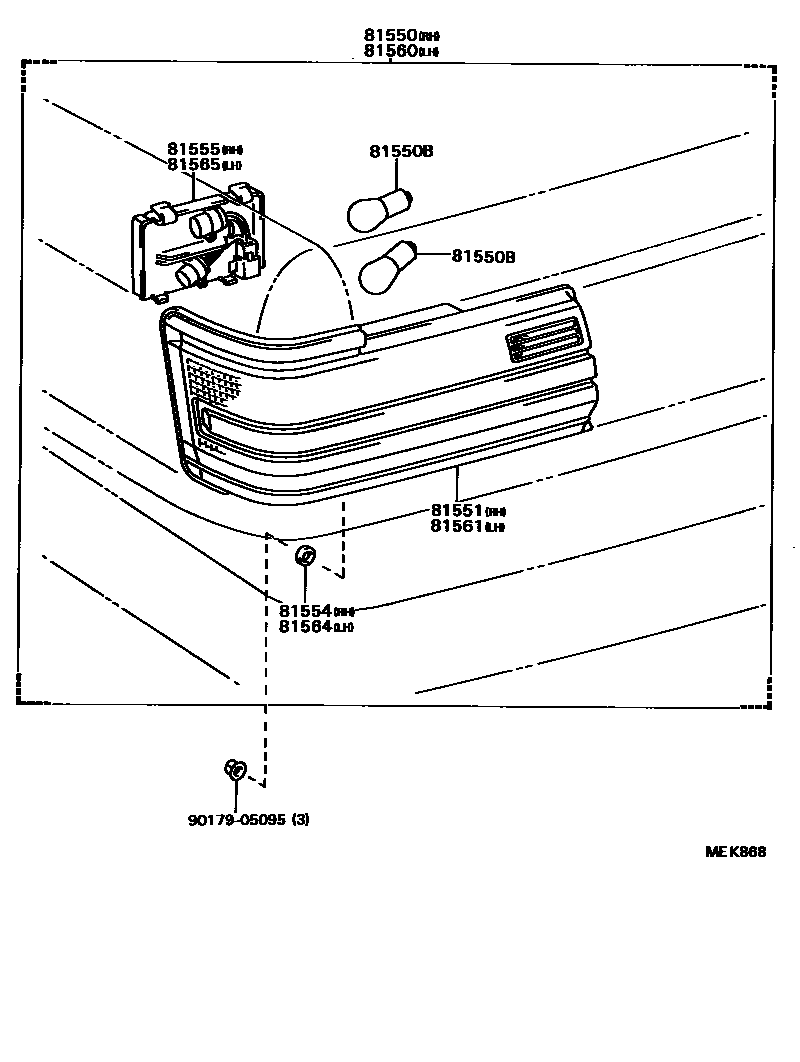

Toyota CAMRY 后组合灯 EPC diagram — MEK868
后组合灯 — MEK868 (198808 – 999999)

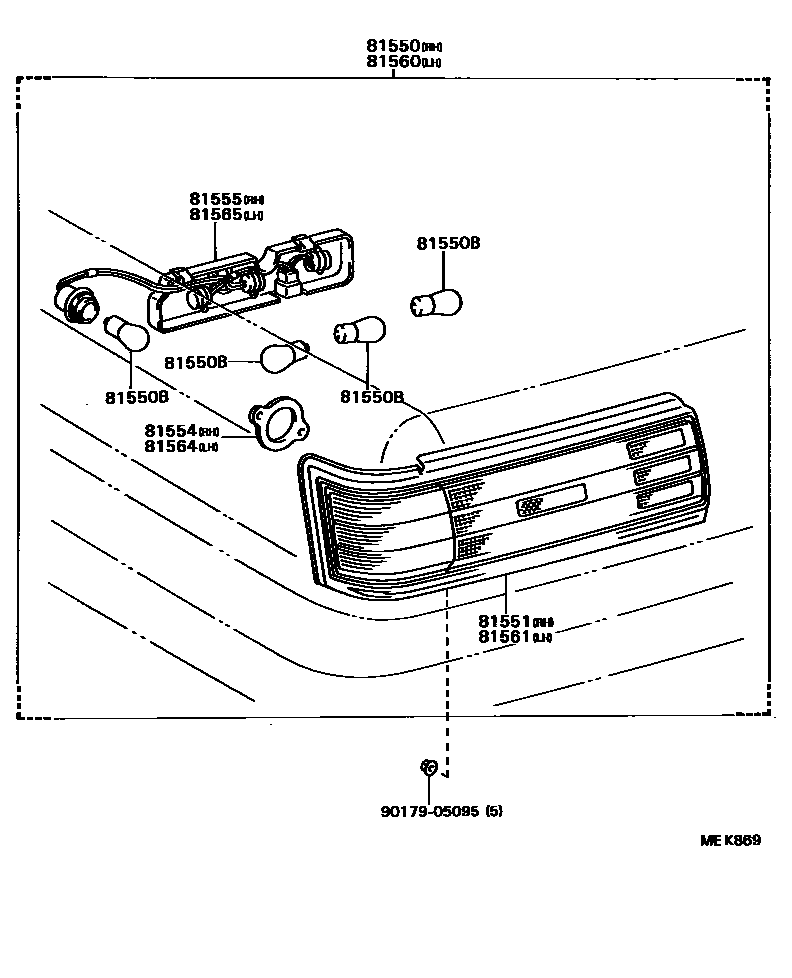

Toyota CAMRY 后组合灯 EPC diagram — MEK869
后组合灯 — MEK869 (198808 – 999999)

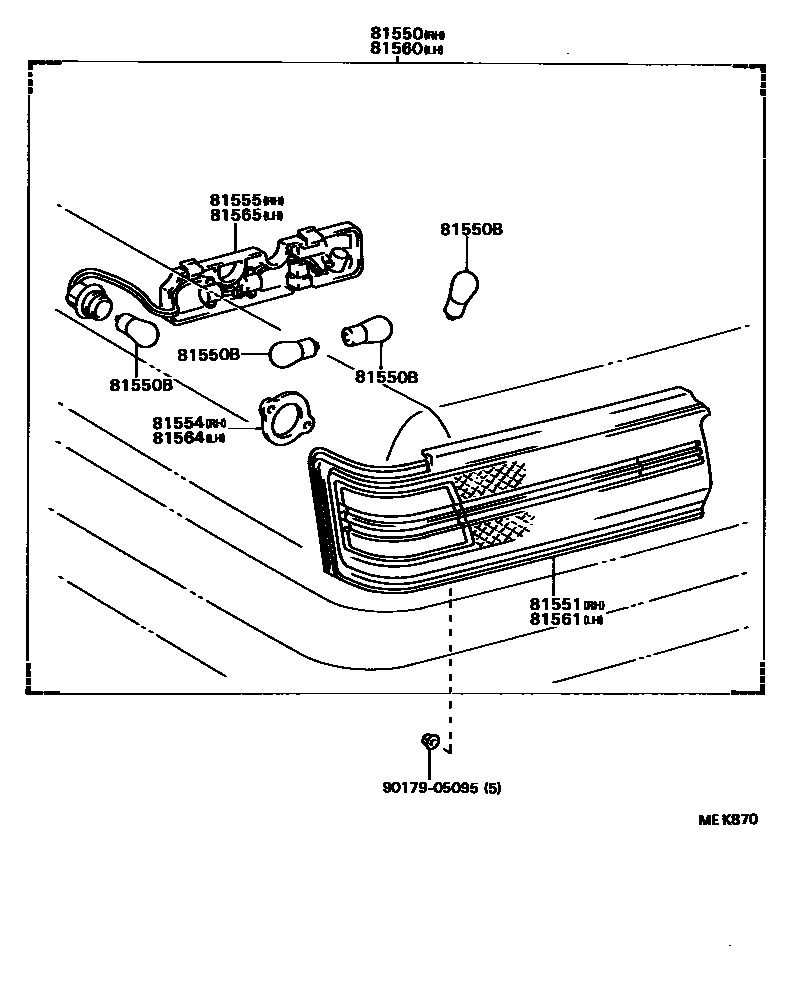

Toyota CAMRY 后组合灯 EPC diagram — MEK870
后组合灯 — MEK870 (198808 – 999999)

PNC and OE references

PNCPart nameOE numbers
81550Right rear combination light assembly81550-32051 · 81550-32151 · 81550-32152 · 81550-32181 · 81550-32200
81550BBulb (for rear combination lights)99132-11210 · 99132-21210
81551Right rear combination lamp shade81551-32051 · 81551-32151 · 81551-32152 · 81551-32181 · 81551-32200
81554Right rear combination lamp body gasket81552-30450 · 81554-32150 · 81558-20720
81555Right rear combination lamp lamp holder and wiring harness sub-assembly81555-32051 · 81555-32151 · 81555-32152 · 81555-32181 · 81555-32200
81560Left rear combination light assembly81560-32051 · 81560-32151 · 81560-32152 · 81560-32181 · 81560-32200
81561Left rear combination lamp shade81561-32051 · 81561-32151 · 81561-32152 · 81561-32181 · 81561-32200
81564Left rear combination lamp body gasket81552-30450 · 81554-32150 · 81558-20720
81565Left rear combination lamp lamp holder and wiring harness sub-assembly81565-32051 · 81565-32151 · 81565-32152 · 81565-32181 · 81565-32200
