Toyota CAMRY 前转向灯 — Figure 8103

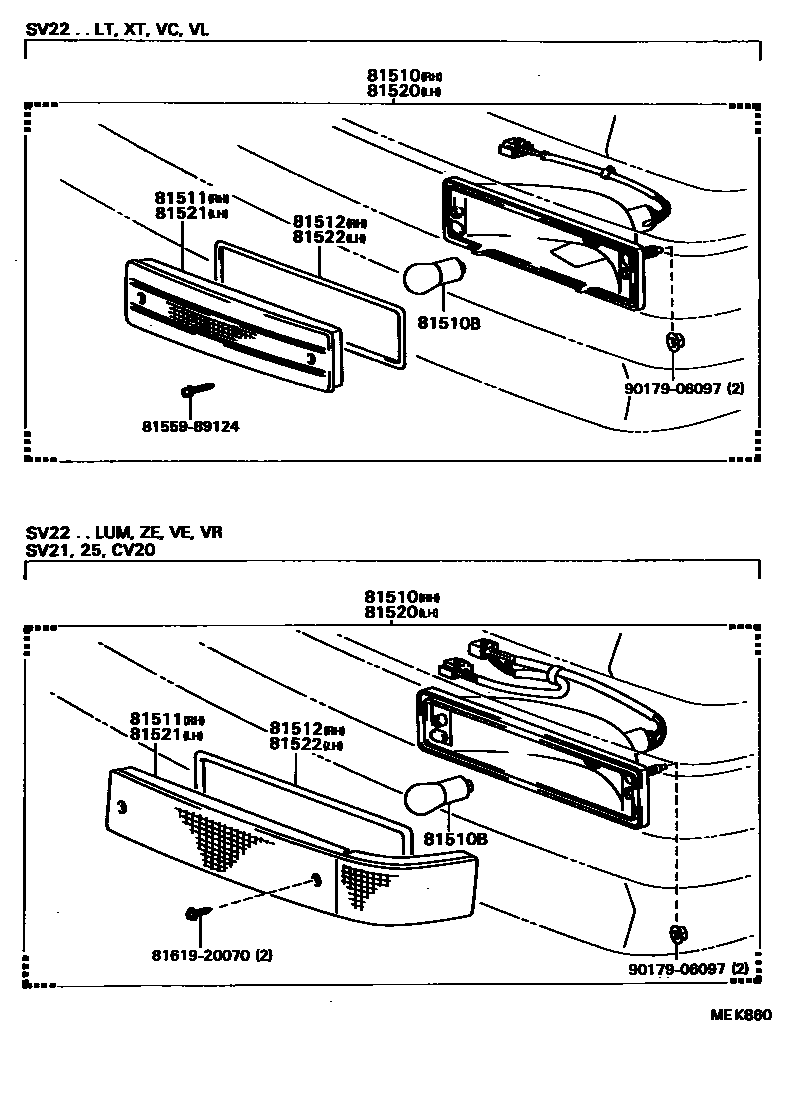

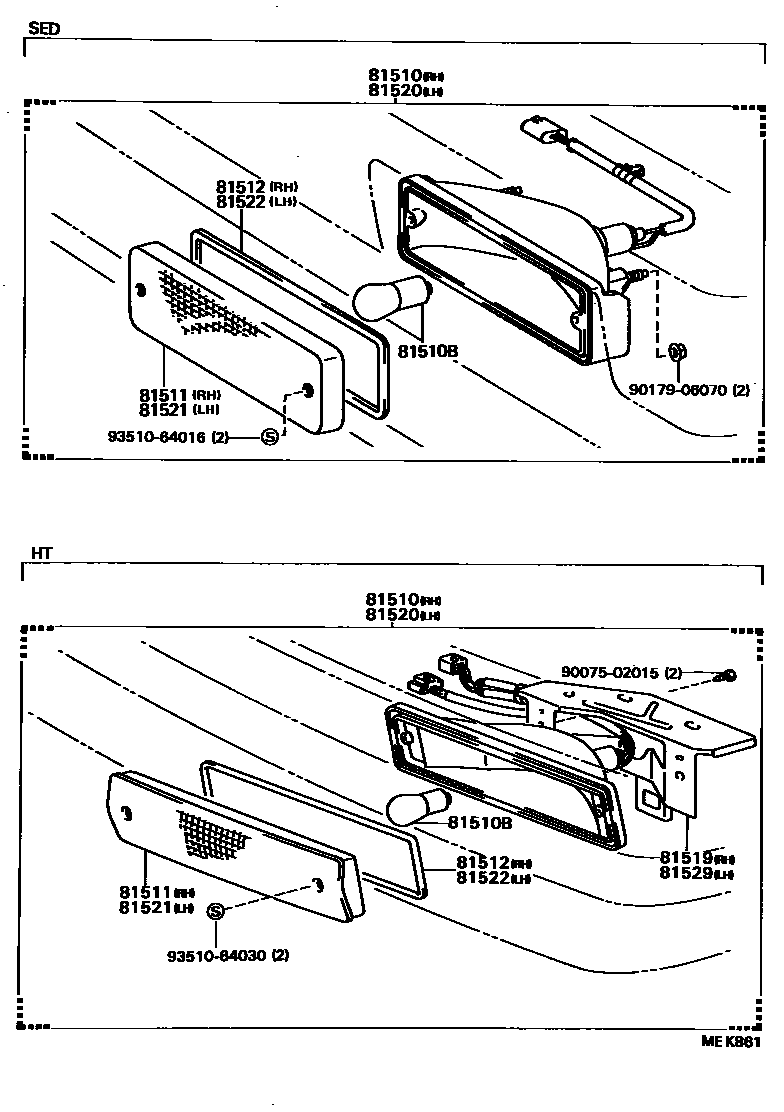

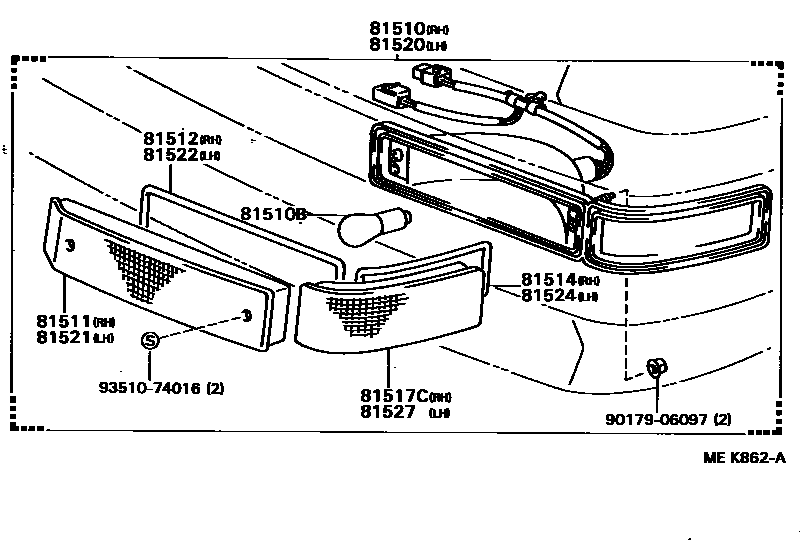

Toyota CAMRY EPC diagram 8103, 前转向灯, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81510 | Right front turn signal lamp assembly | 81510-39606 · 81510-39635 · 81510-39685 · 81510-39705 · 81510-39715 |
| 81510B | Bulb (for front turn signal lamp) | 99132-11210 · 99132-11230 |
| 81511 | Right front turn signal lamp cover | 81511-22221 · 81511-32050 · 81511-32081 · 81511-32110 · 81511-32130 |
| 81512 | Right front turn signal lamp housing gasket | 81512-14140 · 81512-32050 · 81512-32081 · 81512-32110 · 81512-32130 |
| 81514 | Right front turn signal light body gasket | 81514-32081 |
| 81517C | Right front turn signal light cover | 81517-32081 |
| 81519 | Right front turn signal lamp bracket | 81519-32110 |
| 81520 | Left front turn signal lamp assembly | 81520-39606 · 81520-39635 · 81520-39685 · 81520-39705 · 81520-39715 |
| 81521 | Left front turn signal lamp cover | 81521-22221 · 81521-32050 · 81521-32081 · 81521-32110 · 81521-32130 |
| 81522 | Left front turn signal lamp housing gasket | 81512-14140 · 81512-32050 · 81512-32081 · 81512-32110 · 81512-32130 |
| 81524 | Left front turn signal light body gasket | 81514-32081 |
| 81527 | Front turn signal lamp cover | 81527-32081 |
| 81529 | Left front turn signal light side bracket | 81529-32110 |
