Toyota CAMRY Headlamp — Figure 8101

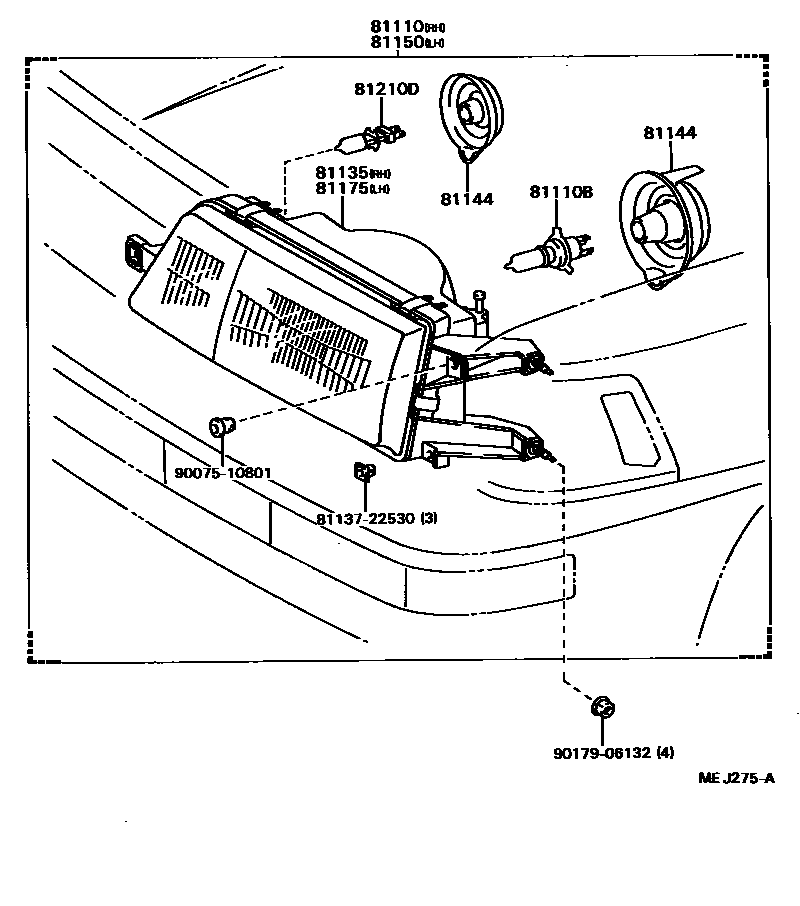

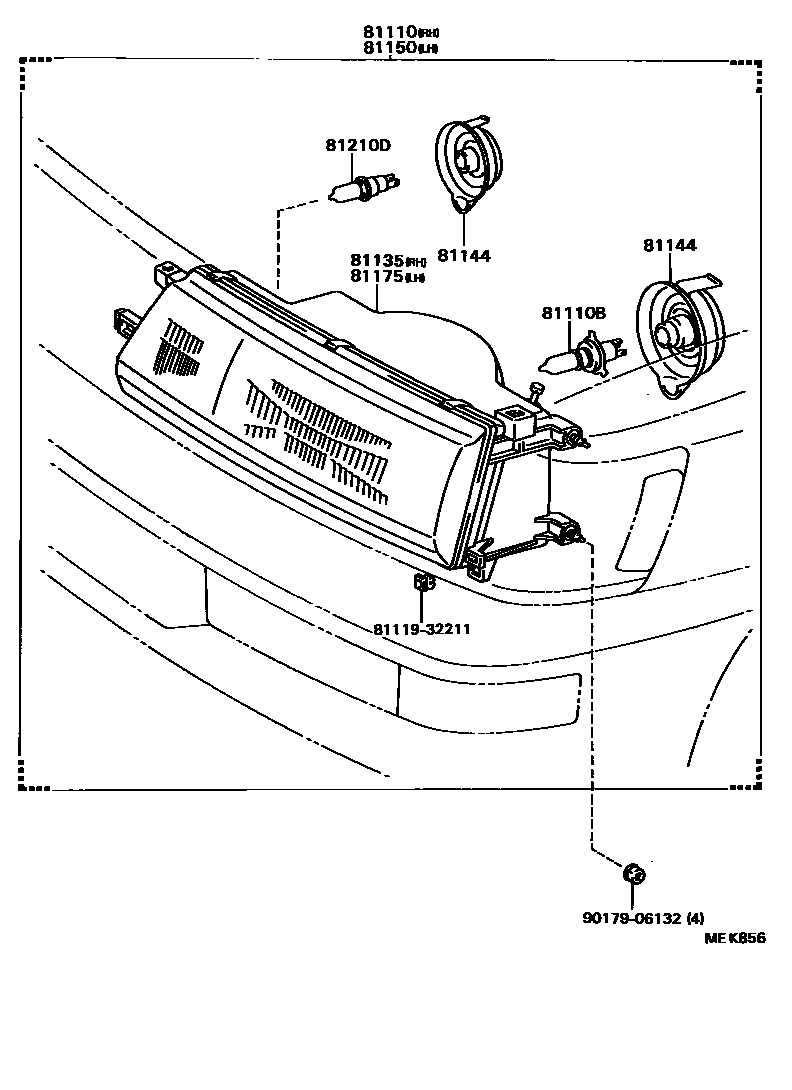

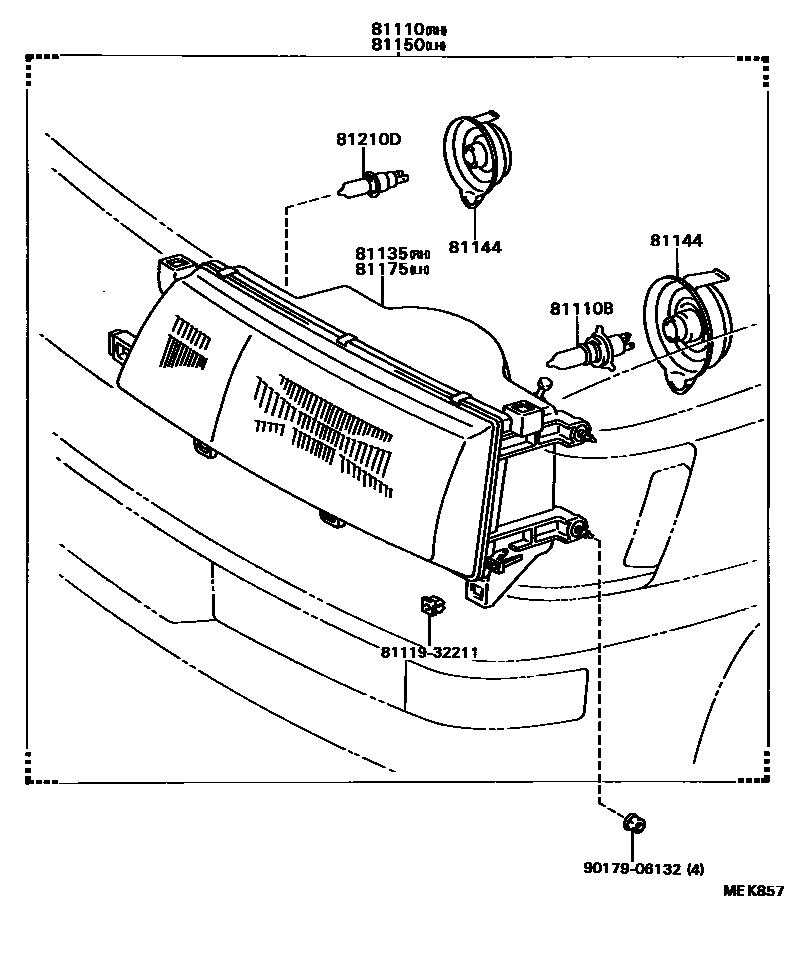

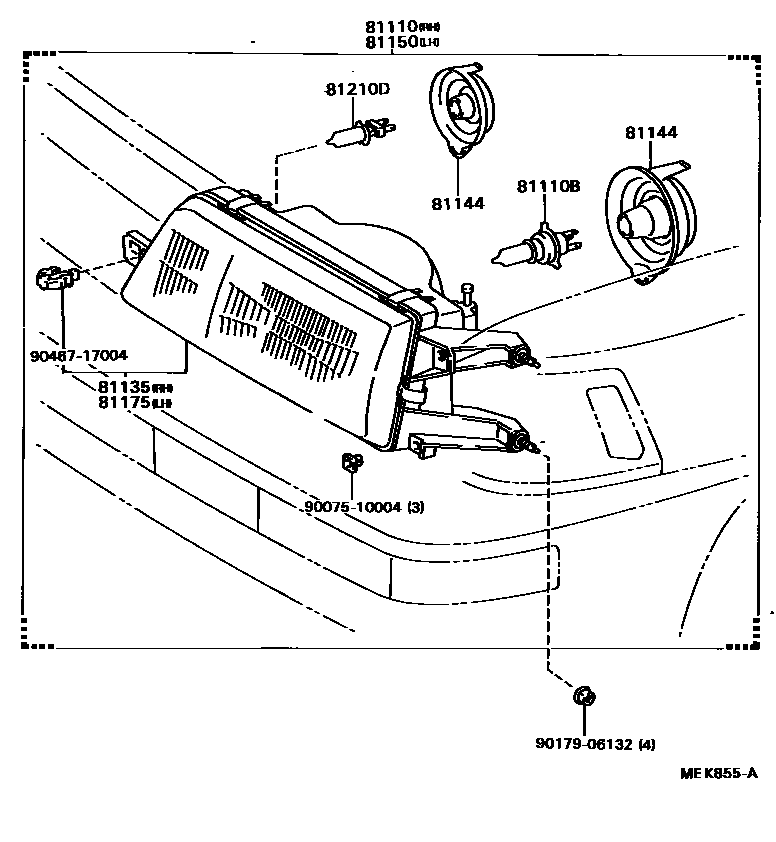

Toyota CAMRY EPC diagram 8101, Headlamp, with 4 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81110-32151 · 81110-32211 · 81110-32220 · 81110-32230 |
| 81110B | Bulb (for headlight No. 1) | 90981-13015 |
| 81135 | Right headlight assembly | 81130-32151 · 81130-32212 · 81130-32220 · 81130-32230 |
| 81144 | No. 1 headlight cover | 81139-16340 · 81139-20730 · 81139-32210 · 90075-99002 |
| 81150 | Left headlight assembly | 81150-32151 · 81150-32211 · 81150-32220 · 81150-32230 |
| 81175 | Left headlight assembly | 81170-32151 · 81170-32212 · 81170-32220 · 81170-32230 |
| 81210D | fog light bulb | 90981-13031 · 90981-13039 |
