Toyota CAMRY 后防护条 — Figure 7504

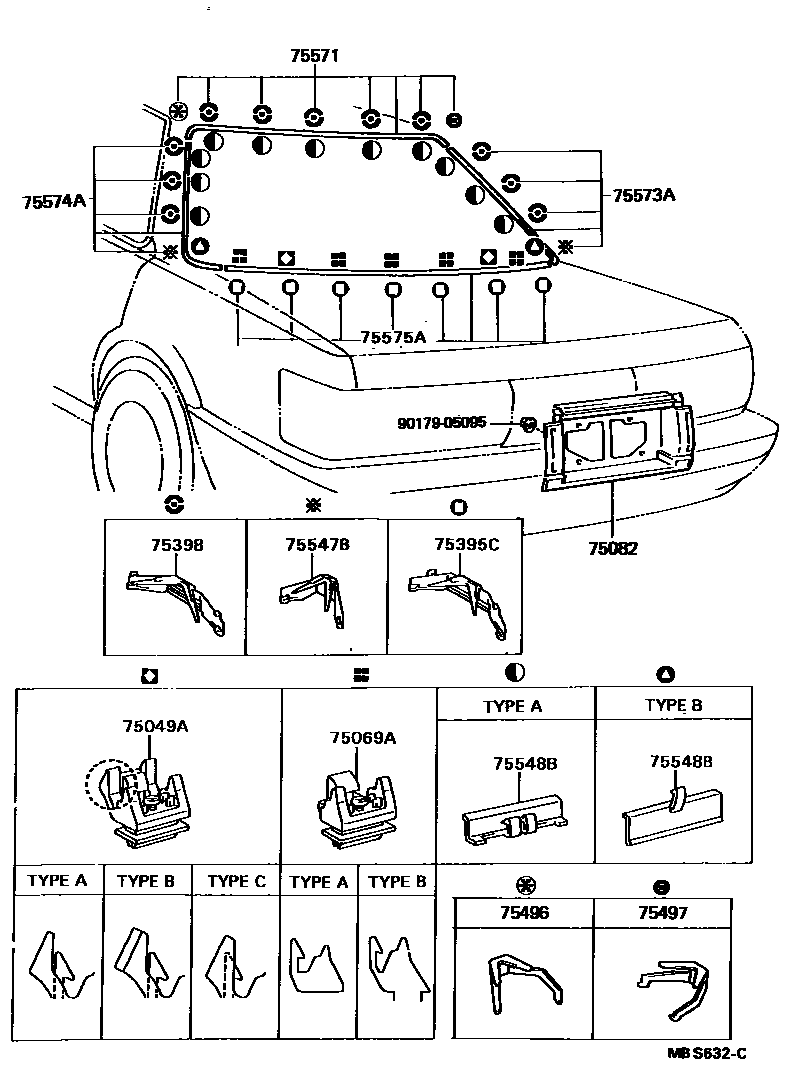

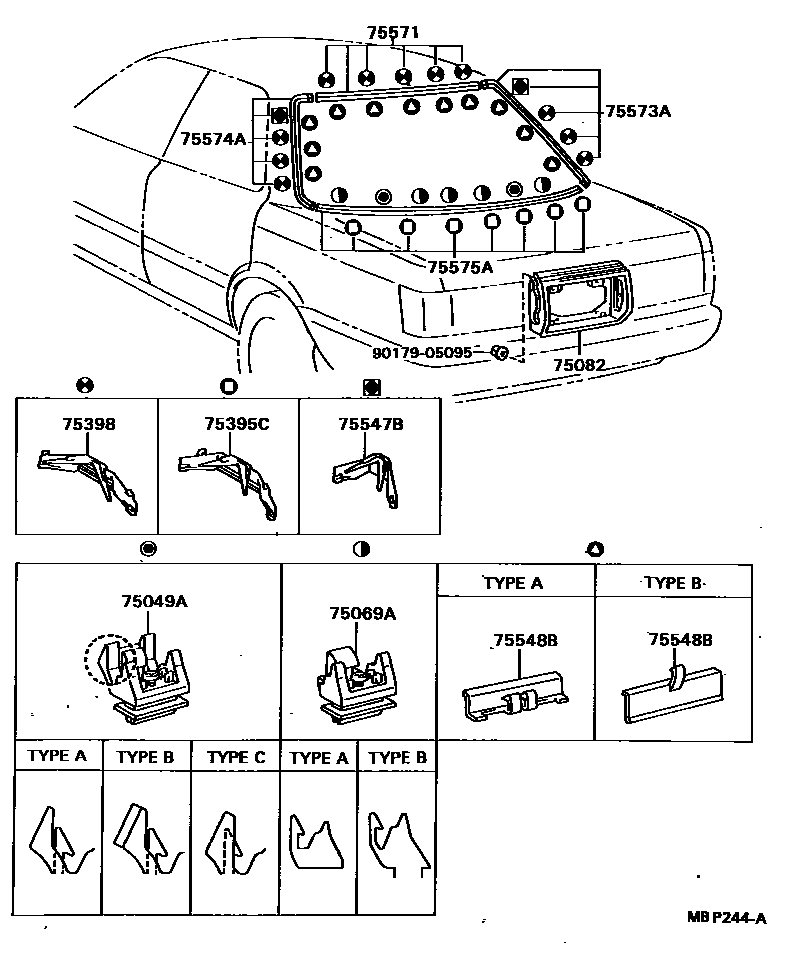

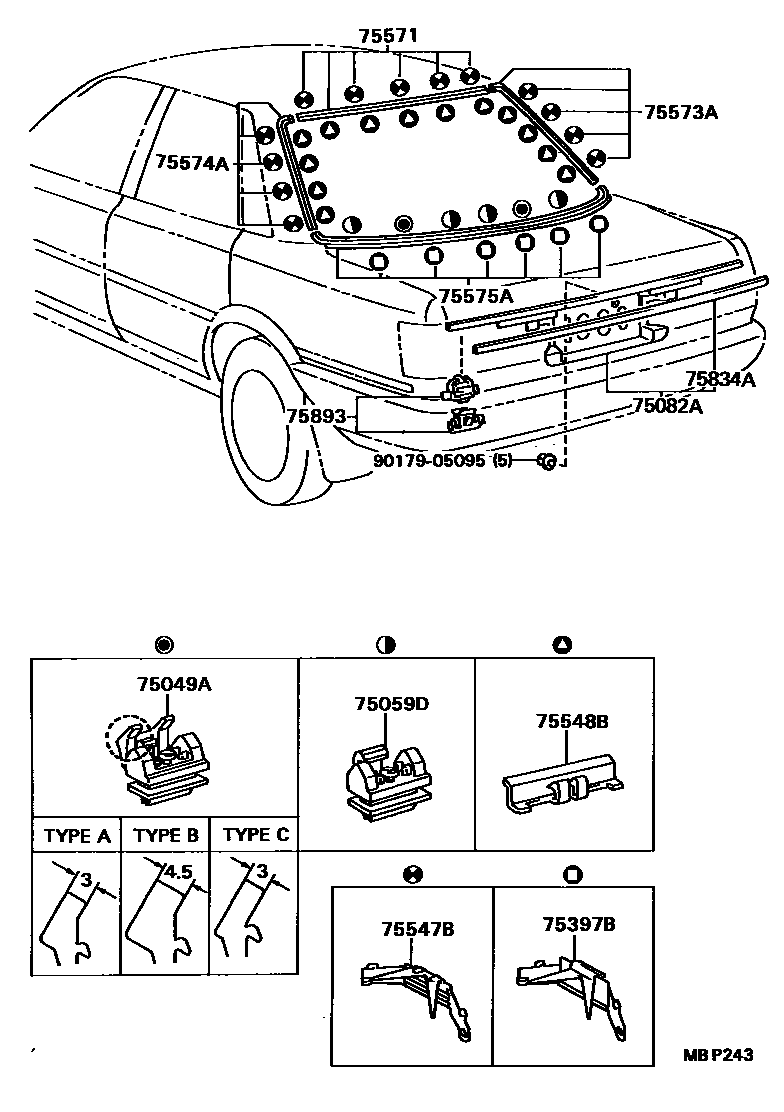

Toyota CAMRY EPC diagram 7504, 后防护条, with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75049A | No. 2 clip sub-assembly of outer protective strip | 75049-32010 · 75049-32041 · 75049-32050 · 75049-32060 · 75049-32070 · 75049-32080 · 75049-32081 |
| 75059D | No. 3 clip sub-assembly of outer protective strip | 75059-32010 |
| 75069A | No. 4 clip sub-assembly of outer protective strip | 75069-32021 · 75069-32030 |
| 75082 | Center rear lower decorative panel sub-assembly | 75082-32140 · 75082-32150 |
| 75082A | Trunk door decorative panel sub-assembly | 75082-32130 · 75082-32160 |
| 75395C | No. 1 outer protective strip clip | 75395-32080 |
| 75397B | No. 3 rear window protective strip clip | 75397-32010 |
| 75398 | No. 5 outer protective strip clip | 75398-32010 |
| 75496 | No. 1 rear window protective strip clip | 75496-32020 |
| 75497 | No. 2 rear window protective strip clip | 75497-32020 |
| 75547B | No. 3 windshield outer protective strip clip | 75547-32010 · 75547-32030 |
| 75548B | Rear window protective strip fasteners | 75548-20060 · 75548-32040 |
| 75571 | Protective strips on the outside of the rear window | 75501-32070 · 75501-32080 · 75571-32030 · 75571-32040 · 75571-32060 · 75571-32070 |
| 75573A | Right outer protective strip of back window | 75501-32010 · 75501-32020 · 75501-32040 · 75501-32050 · 75573-32080 · 75573-32100 |
| 75574A | Rear window left outer protective strip | 75502-32010 · 75502-32020 · 75502-32040 · 75502-32050 · 75574-32070 · 75574-32090 |
| 75575A | Lower protective strip on the outside of the rear window | 75507-32010 · 75507-32020 · 75575-32050 · 75575-32070 |
| 75834A | Rear lower decorative panel protective strip | 75834-32030 · 75834-32040 |
| 75893 | Trunk door protective strip fixings | 75893-32020 |
