Toyota CAMRY 侧防护条 — Figure 7503

Toyota CAMRY EPC diagram 7503, 侧防护条, with 2 images and 24 PNC and OE references.

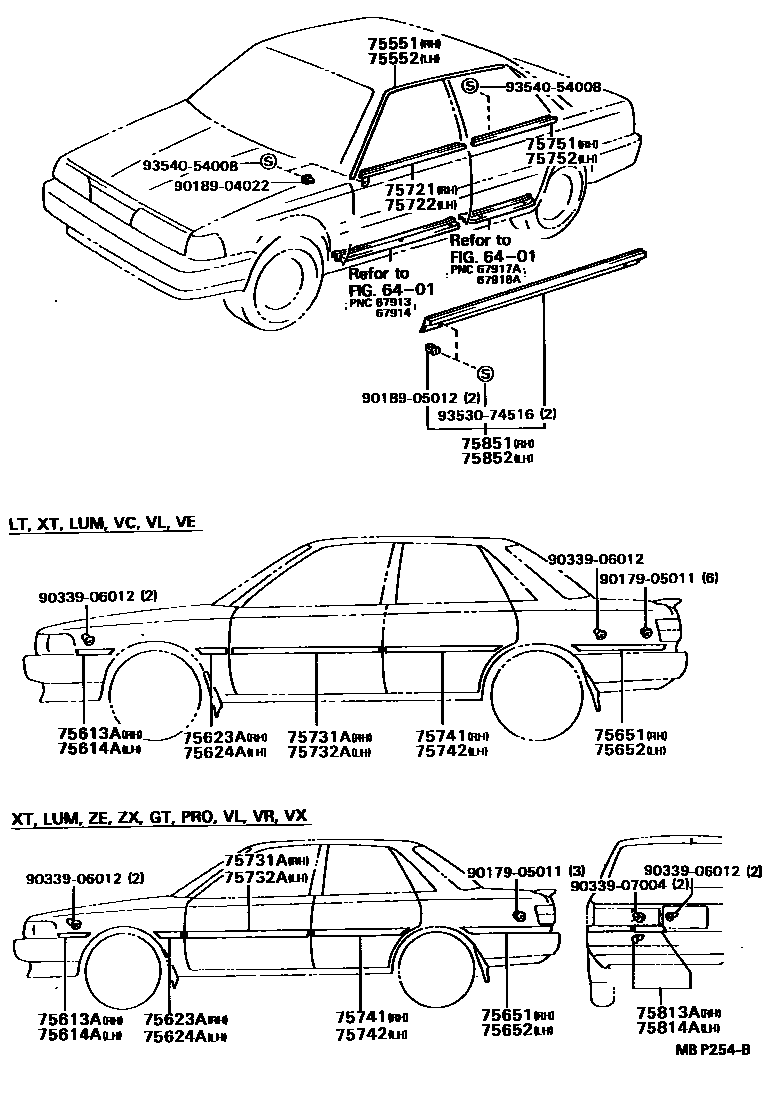

Toyota CAMRY 侧防护条 EPC diagram — MBP254B
侧防护条 — MBP254B (198808 – 999999)

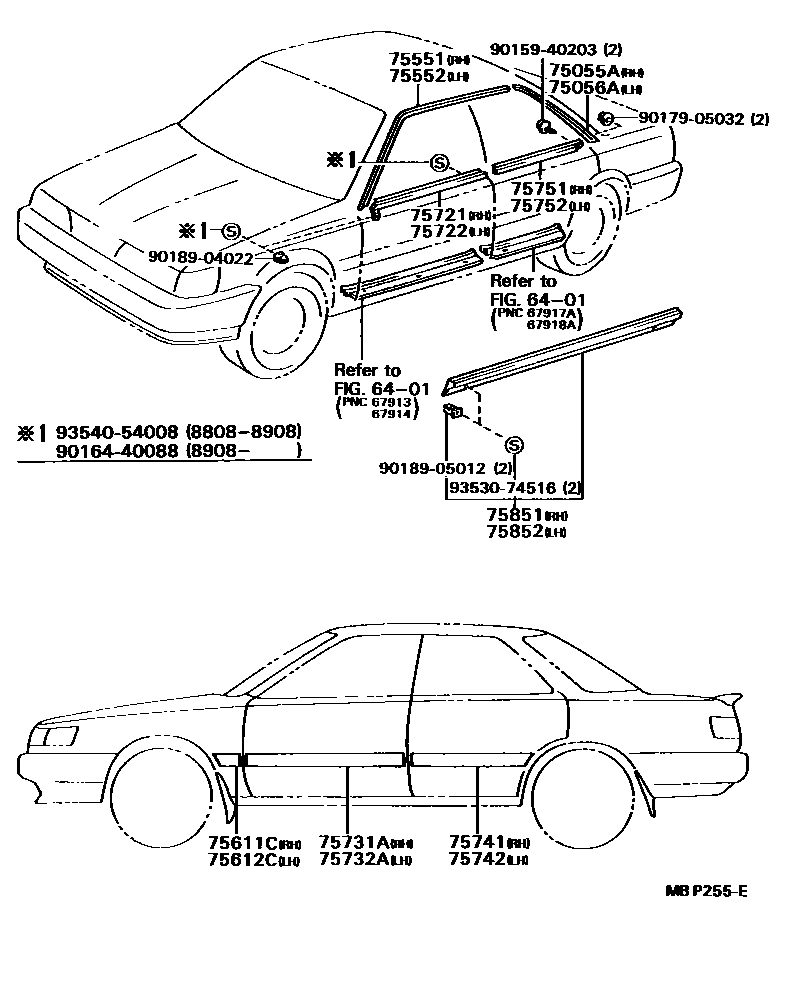

Toyota CAMRY 侧防护条 EPC diagram — MBP255E
侧防护条 — MBP255E (198808 – 999999)

PNC and OE references

PNCPart nameOE numbers
75055ARight side enclosure outer decorative panel sub-assembly75055-32010 · 75055-32020 · 75055-32021 · 75055-32030 · 75055-32031
75056ALeft side enclosure outer decorative panel sub-assembly75056-32010 · 75056-32020 · 75056-32021 · 75056-32030 · 75056-32031
75551Drainage groove side decorative strip on the right side of the roof75551-32030 · 75551-32050 · 75551-32060 · 75551-32070 · 75551-32080 · 75551-32090
75552Drainage groove side decorative strip on the left side of the roof75552-32030 · 75552-32050 · 75552-32060 · 75552-32070 · 75552-32080 · 75552-32090
75611CRight front fender outer protective strip75611-32120 · 75611-32130
75612CLeft front fender outer protective strip75612-32120 · 75612-32130
75613ARight front fender front protective strip75613-32010
75614ALeft front fender front protective strip75614-32010
75623ARight front fender outer rear protective strip75623-32040
75624ALeft front fender outer rear protective strip75624-32040
75651Right side outer protective strip75651-32011 · 75651-32060
75652Left side outer protective strip75652-32011 · 75652-32060
75721Right front door waistline protection strip75710-32030 · 75710-32040 · 75710-32050 · 75710-32060 · 75710-32070 · 75710-32080 · 75710-32100 · 75710-32110
75722Left front door waistline protection strip75720-32030 · 75720-32040 · 75720-32050 · 75720-32060 · 75720-32070 · 75720-32080 · 75720-32100 · 75720-32110
75731ARight front door outer protective strip75731-32120 · 75731-32190 · 75731-32200
75732ALeft front door outer protective strip75732-32120 · 75732-32190 · 75732-32200
75741Right rear door outer protective strip75741-32150 · 75741-32240 · 75741-32250 · 75741-32260
75742Left rear door outer protective strip75742-32150 · 75742-32240 · 75742-32250 · 75742-32260
75751Right rear door waistline protection strip75730-32020 · 75730-32030 · 75730-32040 · 75730-32050 · 75730-32070 · 75730-32080
75752Left rear door waistline protection strip75740-32020 · 75740-32030 · 75740-32040 · 75740-32050 · 75740-32070 · 75740-32080
75813ALuggage door right side protective strip75813-32030
75814ALuggage door left protective strip75814-32010
75851Right side door sill panel protective strip75850-39065 · 75850-39066 · 75850-39085 · 75850-39086
75852Left side door sill panel protective strip75850-39065 · 75850-39066 · 75850-39085 · 75850-39086
