Toyota CAMRY 丰田徽标和铭牌(车外和车内) — Figure 7501

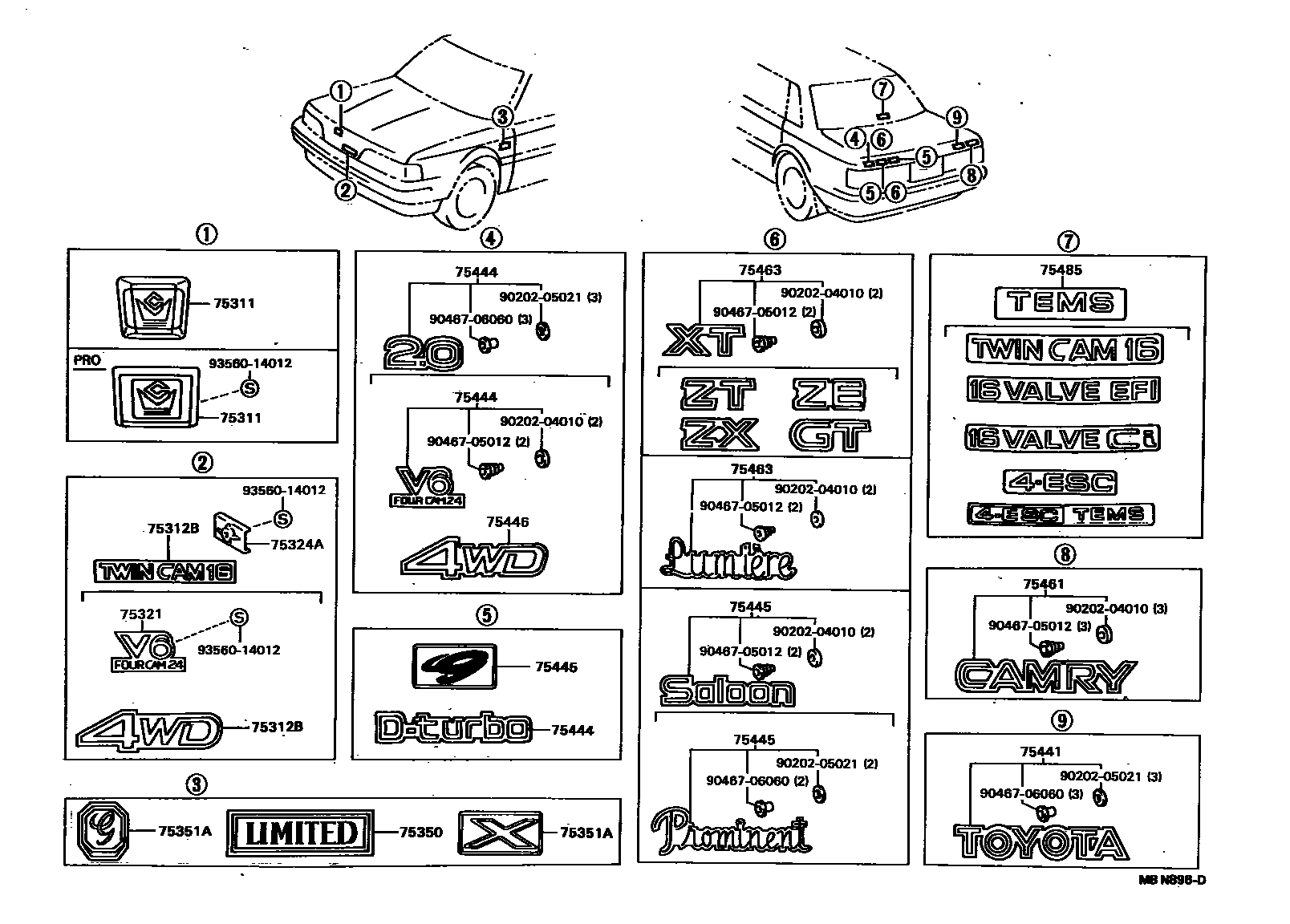

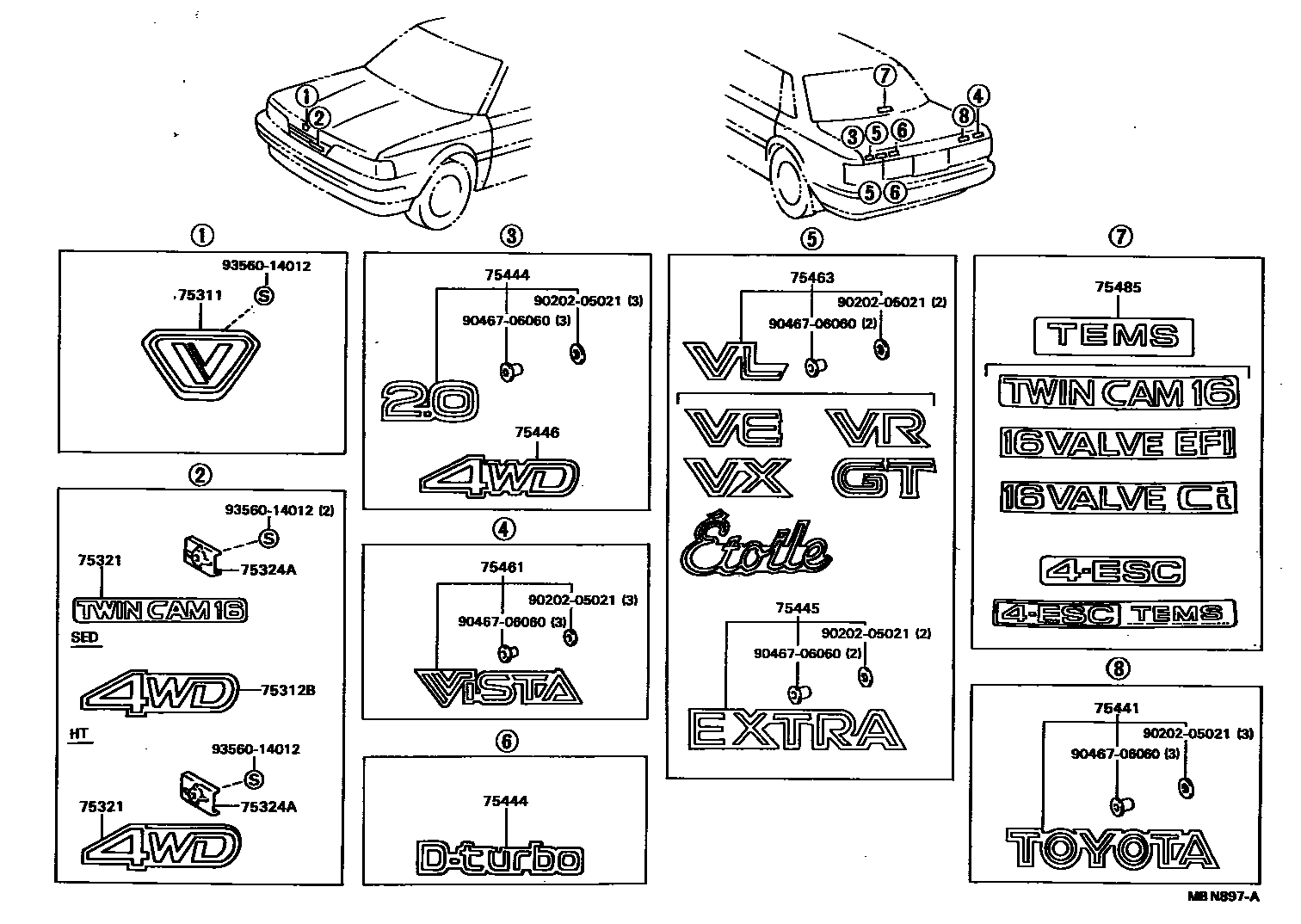

Toyota CAMRY EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 75301-32021 · 75301-32030 · 75301-32040 · 75301-32050 · 75301-32060 |
| 75312B | Radiator grille number 2 plate | 75312-32090 · 75312-32100 · 75312-32110 |
| 75321 | Radiator grille or front plate | 75321-32020 · 75321-32030 · 75321-32060 · 75321-32070 |
| 75324A | Radiator grille nameplate fasteners | 75324-12170 · 75324-30120 · 75324-32050 · 75324-32090 |
| 75350 | Front fender sign assembly | 75350-22010 |
| 75351A | Front fender label | 75350-22010 · 75351-32010 · 75351-32020 |
| 75441 | Rear No. 1 nameplate (factory mark) | 75441-32020 · 75441-32040 · 75441-32050 · 75441-32110 |
| 75444 | Trunk door No. 4 nameplate | 75444-32060 · 75444-32090 · 75444-32120 · 75444-32130 · 75444-32140 · 75444-32200 |
| 75445 | Trunk door No. 5 name plate | 75445-32020 · 75445-32030 · 75445-32040 · 75445-32050 |
| 75446 | Trunk door No. 6 nameplate | 75446-32010 |
| 75461 | Rear No. 2 nameplate (model mark) | 75442-32050 · 75442-32060 · 75442-32080 · 75442-32090 · 75442-32100 |
| 75463 | Rear No. 4 nameplate (grade mark) | 75443-32190 · 75443-32210 · 75443-32220 · 75443-32230 · 75443-32240 · 75443-32250 · 75443-32260 · 75443-32270 · 75443-32400 · 75443-32410 · 75443-32430 · 75443-32440 · 75443-32710 |
| 75485 | Back window nameplate | 75471-32010 · 75485-20300 · 75485-32030 · 75485-32040 · 75485-32060 · 75485-32070 |
