Toyota CAMRY 前排座椅和座椅滑轨 — Figure 7101

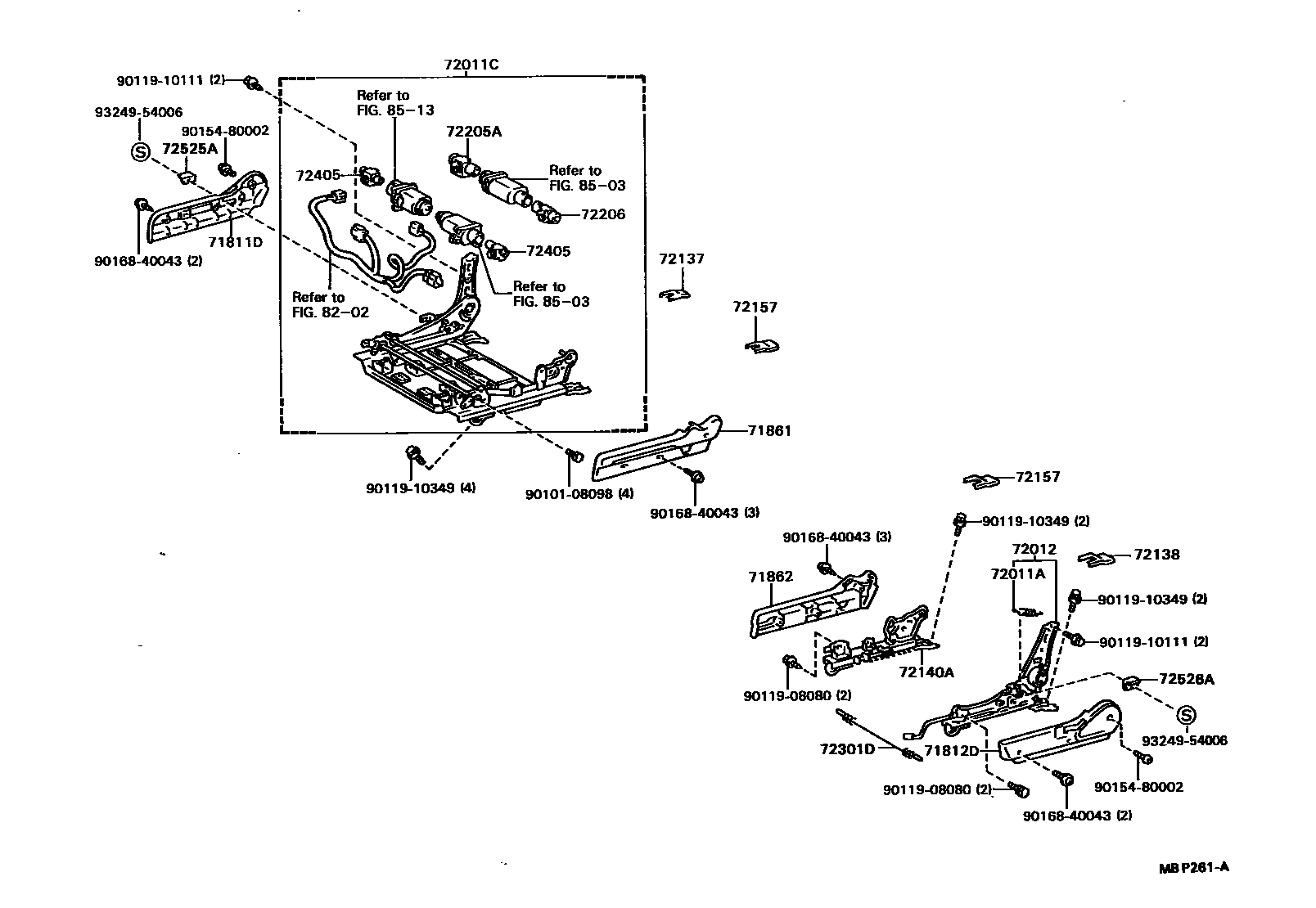

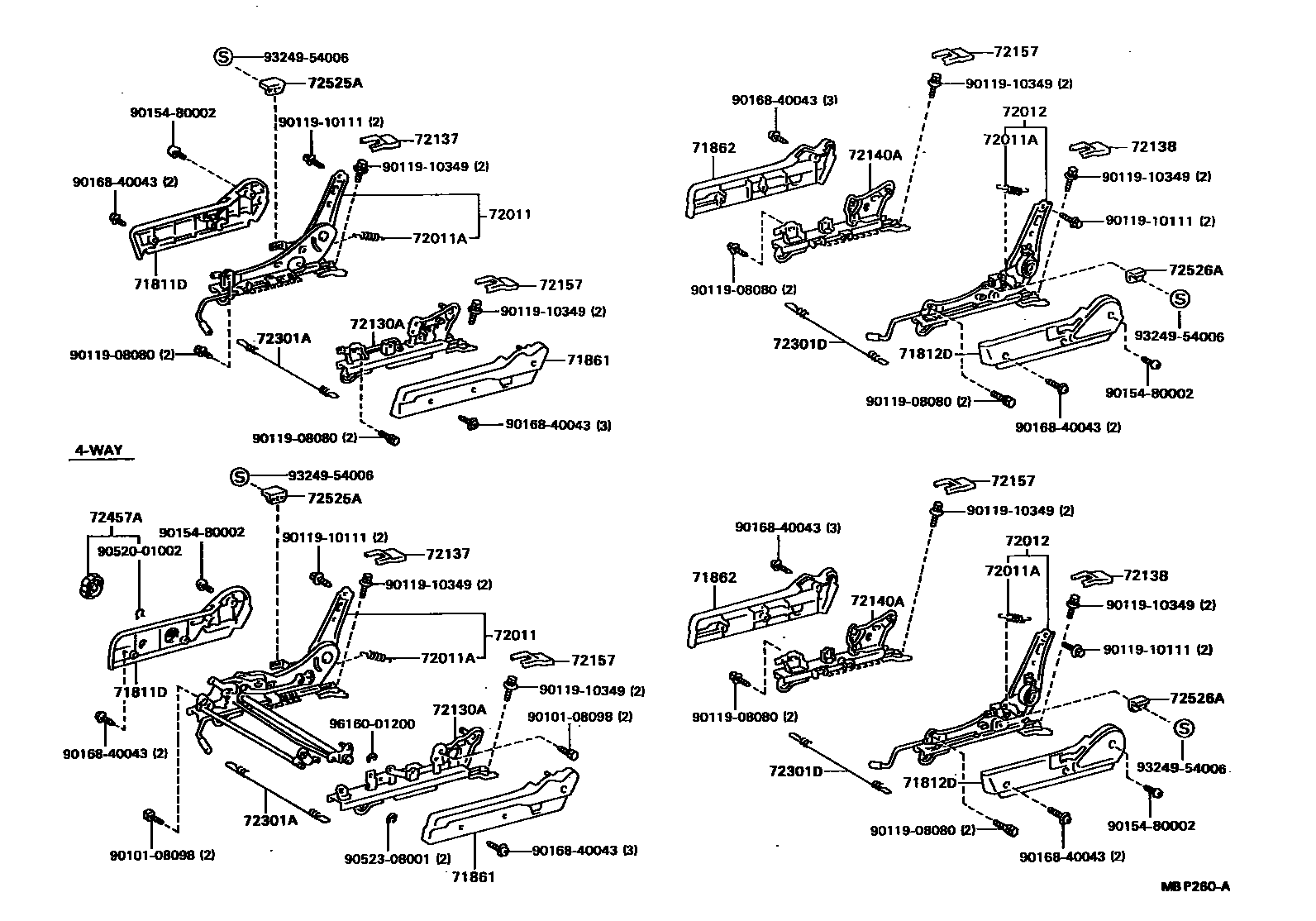

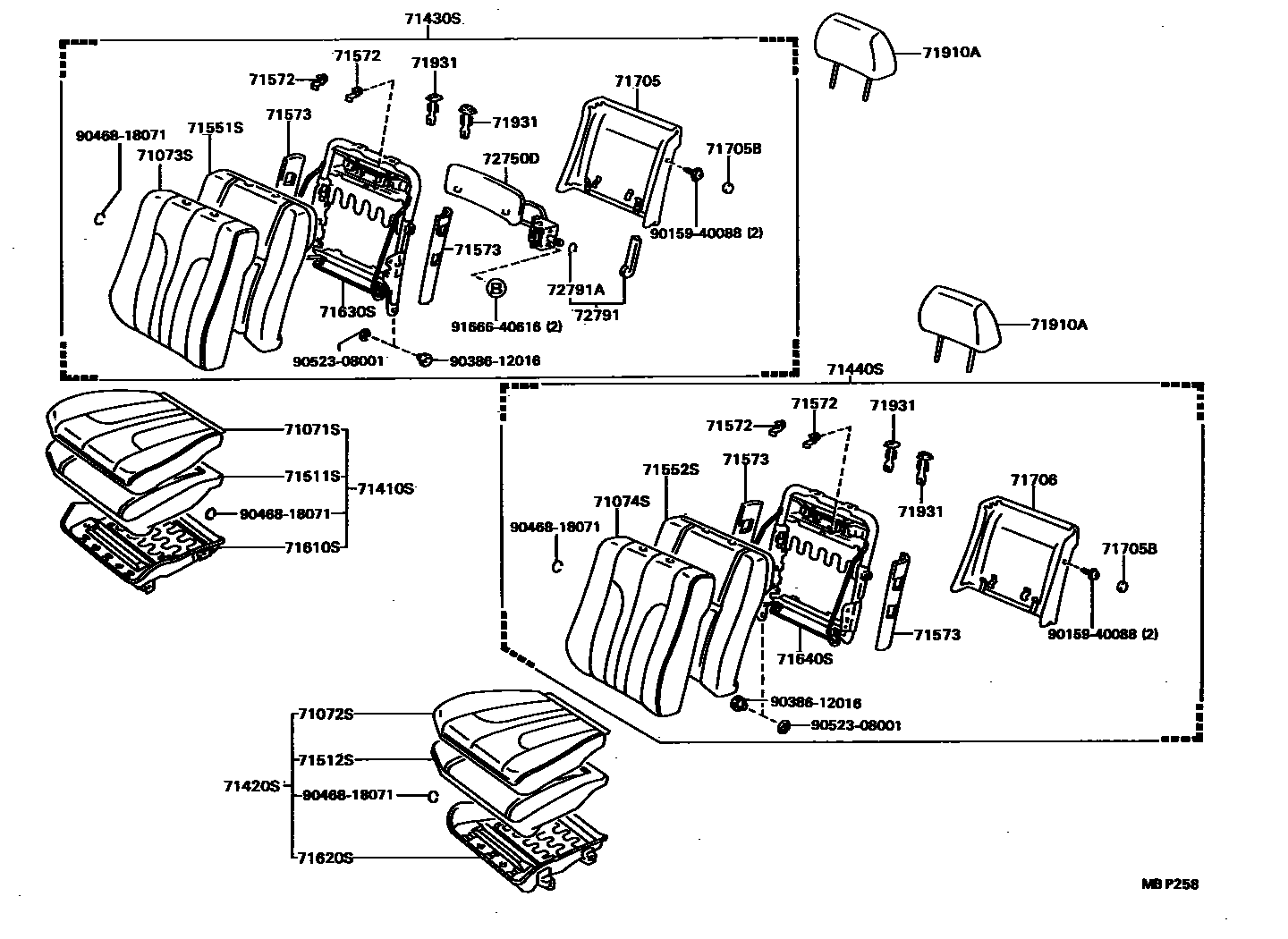

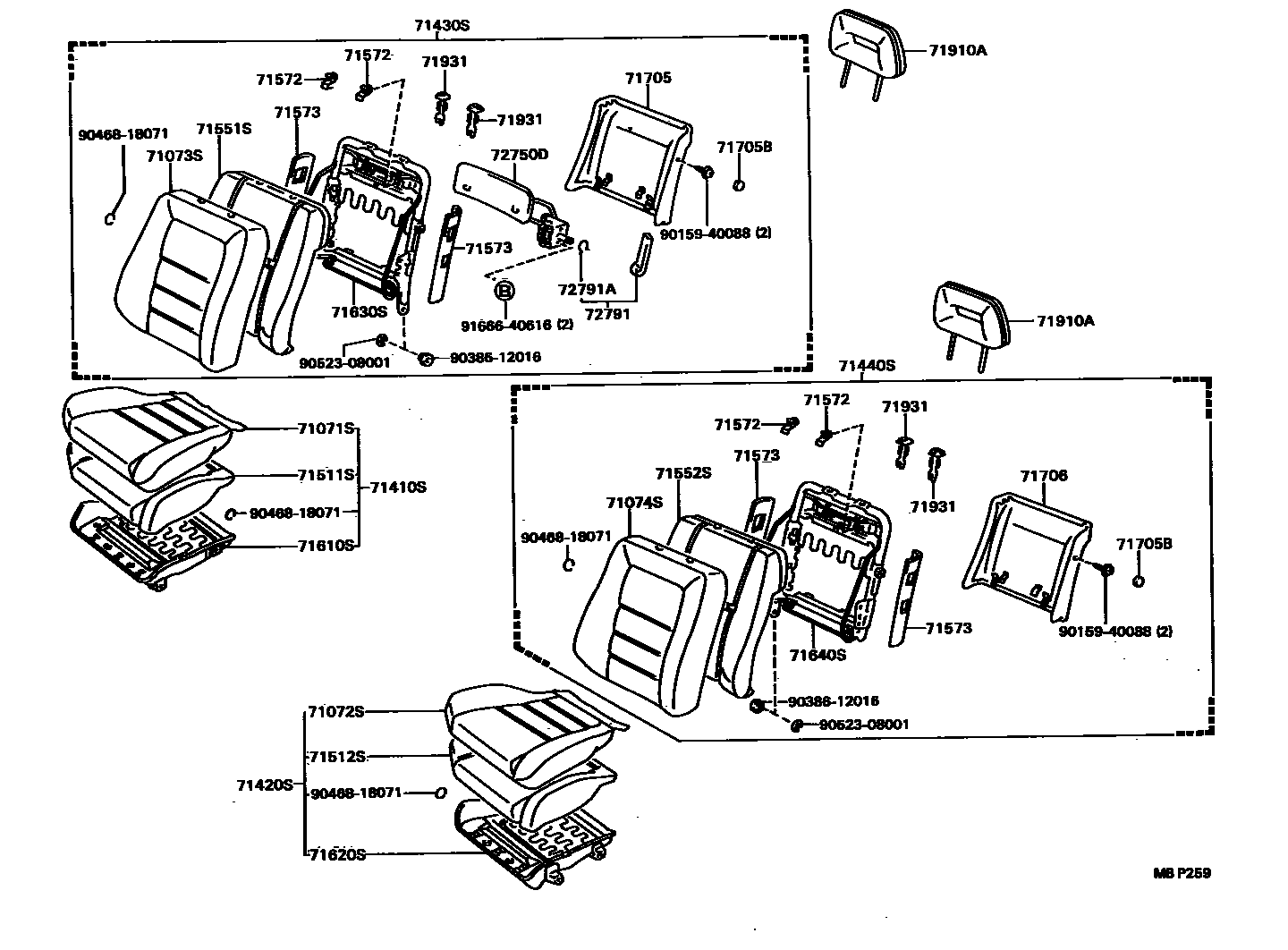

Toyota CAMRY EPC diagram 7101, 前排座椅和座椅滑轨, with 4 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71071S | Front right seat cushion cover (for split seats) | 71071-32680 |
| 71072S | Front left seat cushion cover (for split seats) | 71072-32660 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-32080 · 71511-32100 |
| 71512S | Front left seat cushion cushion (for split seats) | 71511-32100 · 71511-32130 |
| 71551S | Front right seat back cushion (for split seats) | 71551-32080 · 71551-32090 |
| 71552S | Front left seat back cushion (for split seats) | 71551-32080 · 71551-32090 |
| 71572 | Front B seat back muffler | 71572-30040 |
| 71573 | Front C seat back muffler | 71583-32030 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-32030 · 71610-32040 · 71610-32080 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71610-32030 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-32070 · 71630-32080 · 71630-32090 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-32030 · 71640-32040 |
| 72011 | Front right seat outer adjuster sub-assembly | 72010-32020 · 72010-32030 |
| 72011A | Tension spring (for front seat outer adjusters) | 90506-20045 |
| 72011C | Front right seat adjuster sub-assembly | 72010-32011 |
| 72012 | Front left seat outer adjuster sub-assembly | 72020-32010 |
| 72130A | Front right seat inner slide rail assembly | 72130-32010 · 72130-32020 |
| 72140A | Front left seat inner slide rail assembly | 72140-32010 |
| 72205A | No. 1 electric seat shell sub-assembly | 72205-30040 |
| 72206 | No. 2 electric seat shell sub-assembly | 72206-30030 |
| 72301A | Right seat slide rail balance harness sub-assembly | 72301-32020 |
| 72301D | Left seat slide rail balance harness sub-assembly | 72301-32020 |
| 72405 | Front vertical seat shell sub-assembly | 72405-24020 |
| 72750D | Right lumbar support adjuster assembly | 72750-32020 |
| 72791A | Shaft snap ring (for lumbar support rod) | 90520-01002 |
