Toyota CAMRY 锁芯组件 — Figure 6712

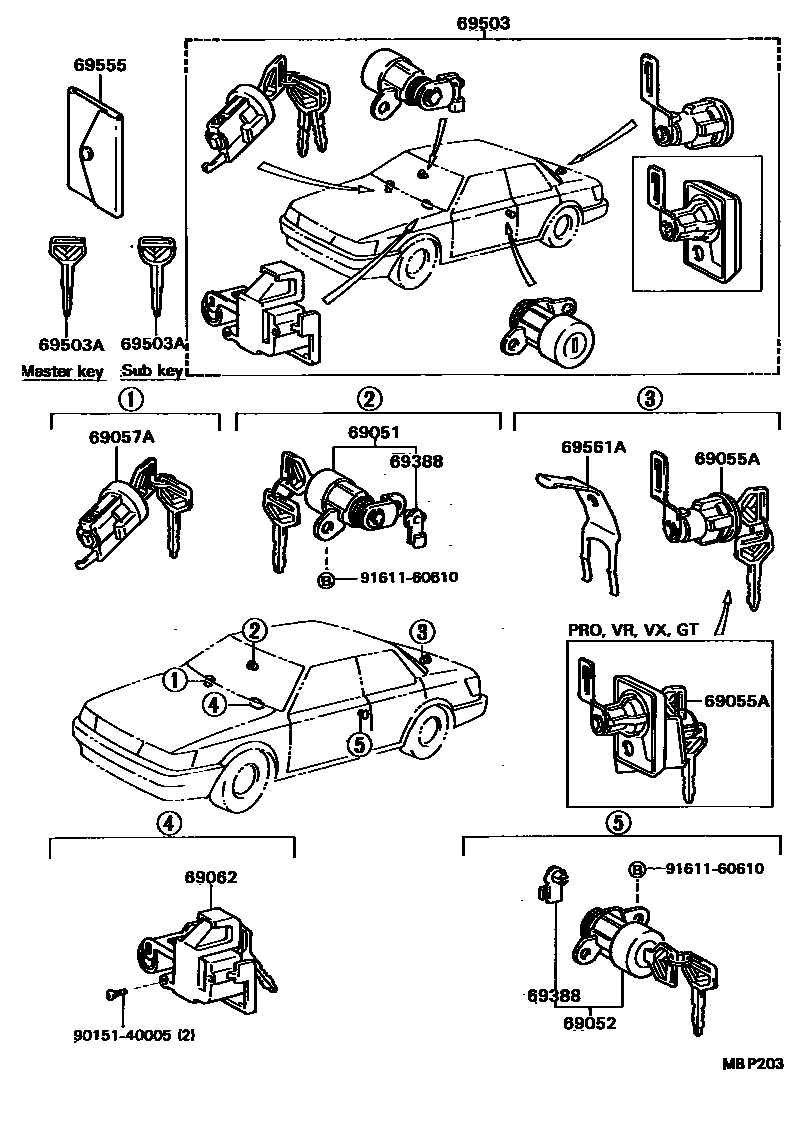

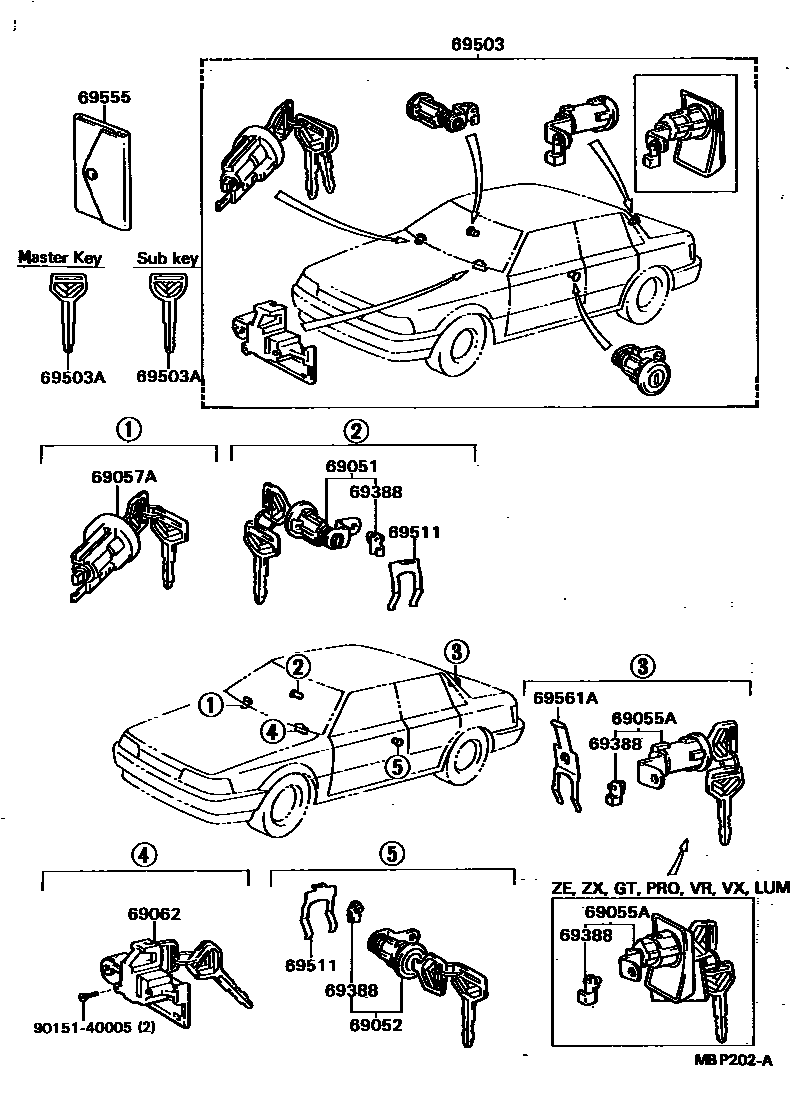

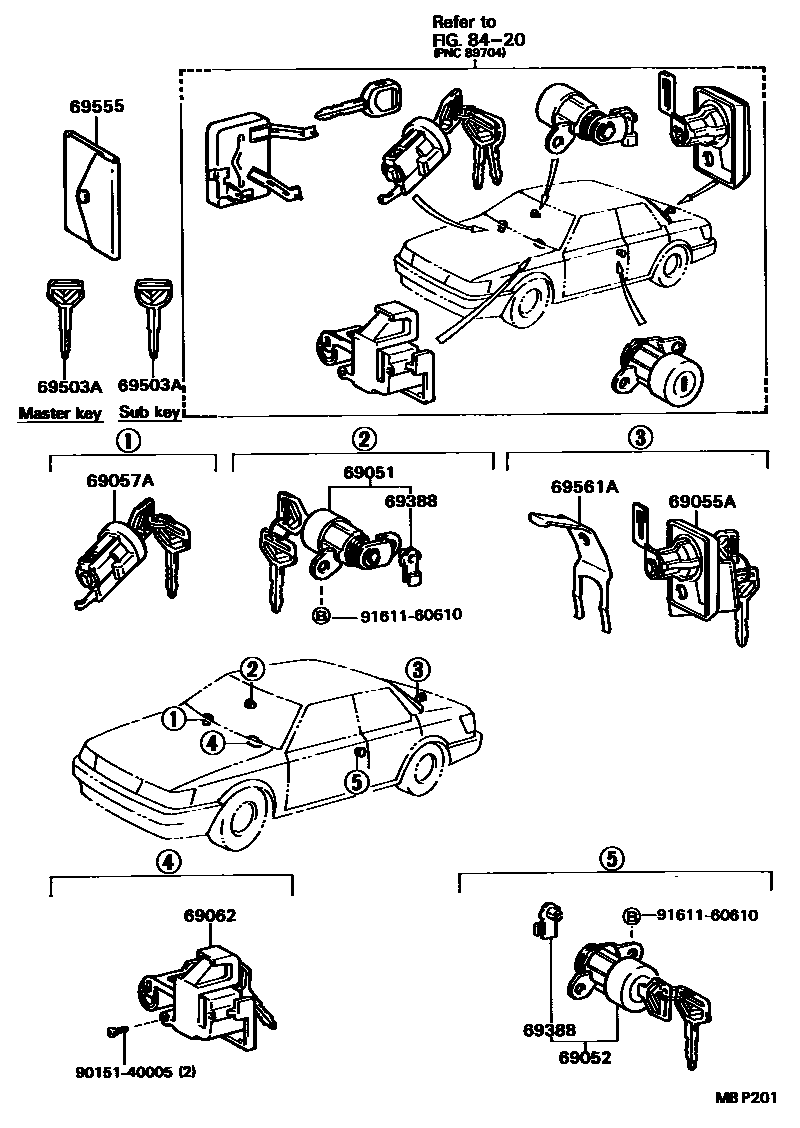

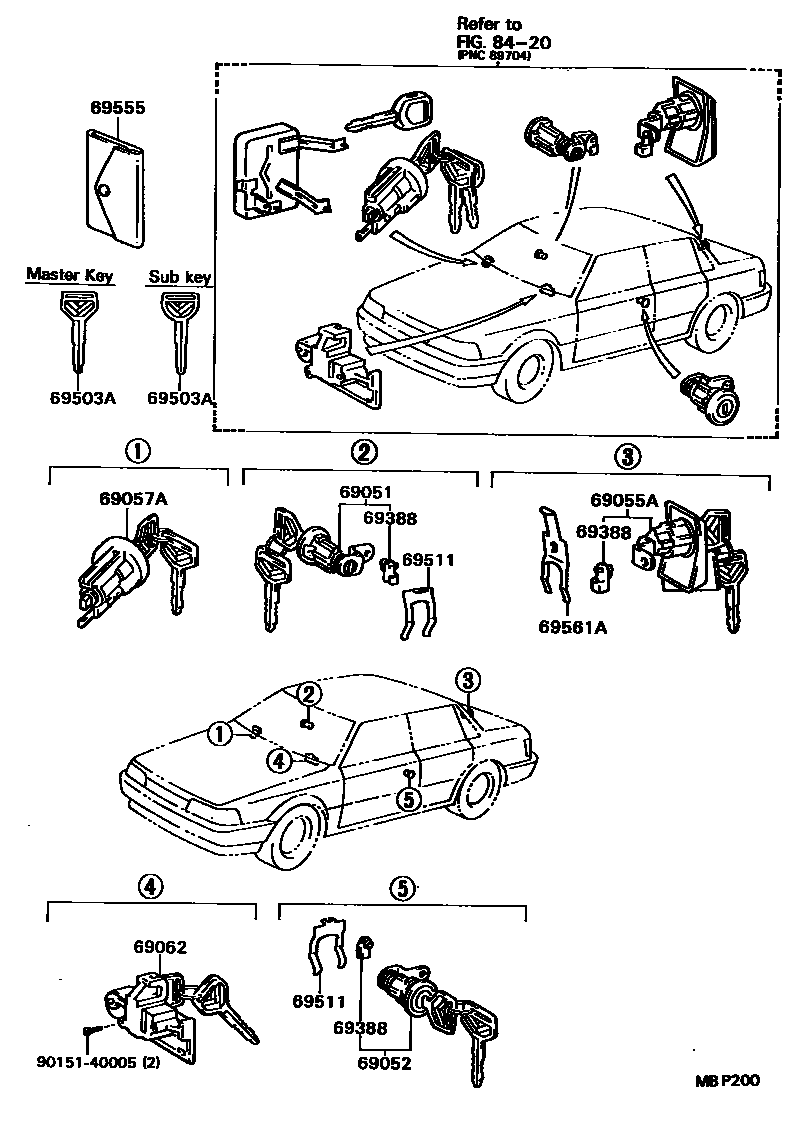

Toyota CAMRY EPC diagram 6712, 锁芯组件, with 4 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-32060 · 69051-32080 · 69051-32100 · 69051-32160 |
| 69052 | Left door lock cylinder and key assembly | 69052-32060 · 69052-32100 · 69052-32150 |
| 69055A | Luggage lock cylinder and key assembly | 69055-32100 · 69055-32120 · 69055-32130 · 69055-32200 · 69055-32210 · 69055-32220 · 69055-32270 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-32060 · 69057-32070 |
| 69062 | Glove box lock cylinder and key assembly | 69056-32050 |
| 69388 | Lever clip (for door lock) | 69759-24080 · 69759-32070 · 69759-32080 |
| 69503 | Door lock cylinder components | 69005-32210 · 69005-32220 · 69005-32420 · 69005-32430 · 69005-32450 · 69005-32460 · 69005-32490 · 69005-32590 · 69005-32710 · 69005-32730 |
| 69503A | external tooth key | 90999-00099 · 90999-00100 · 90999-00118 |
| 69511 | Front door lock cylinder fixing parts | 69511-32020 |
| 69555 | key cover | 69555-20010 |
| 69561A | Luggage lock core fixing parts | 69561-32020 · 69561-32030 |
