Toyota CAMRY 后门锁和后门把手 — Figure 6706

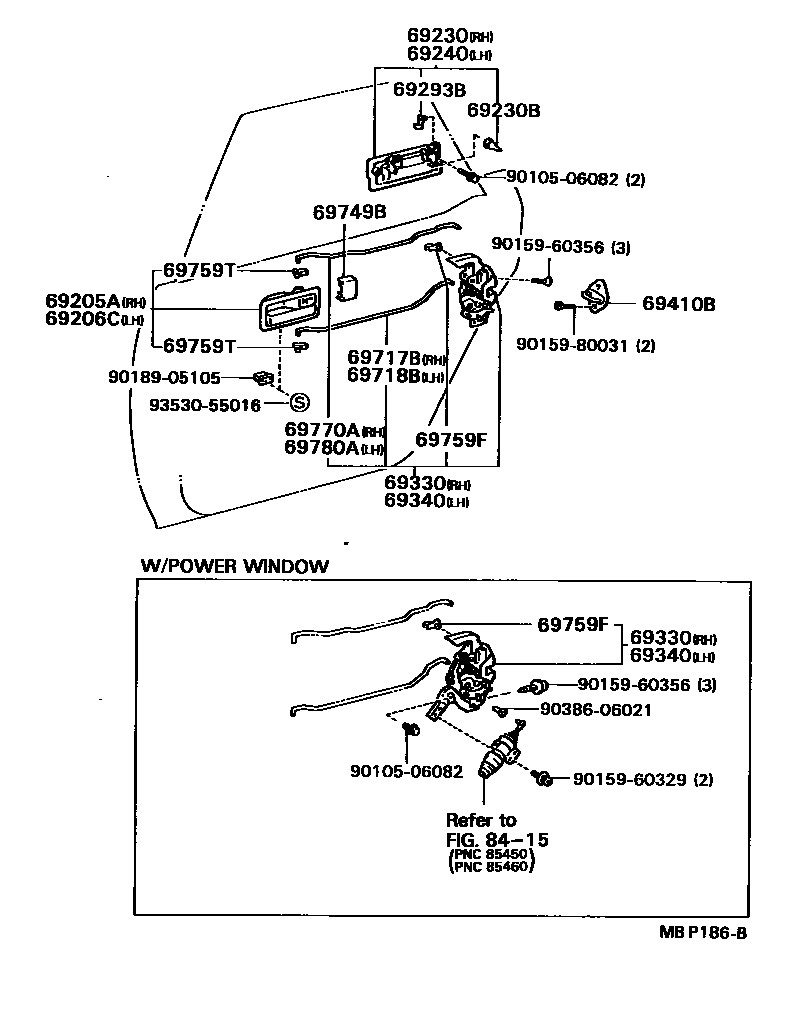

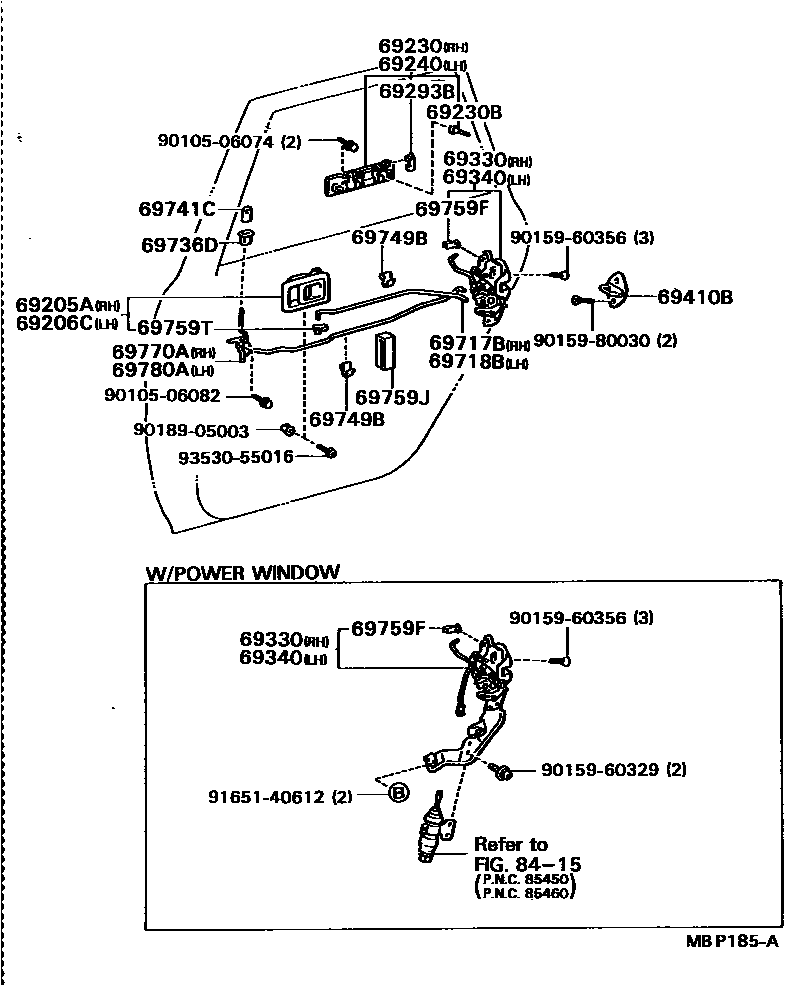

Toyota CAMRY EPC diagram 6706, 后门锁和后门把手, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69230 | Right rear door outer handle assembly | 69210-32030 · 69230-32020 |
| 69230B | Cushion pad (for rear door outer handle) | 90541-03021 · 90541-04018 |
| 69240 | Left rear door outer handle assembly | 69220-32030 · 69240-32020 |
| 69293B | Rear door outer handle buckle | 69293-12050 · 69293-12060 |
| 69330 | Right rear door door lock assembly | 69330-32191 · 69330-32201 · 69330-32210 · 69330-32220 |
| 69340 | Left rear door lock assembly | 69340-32191 · 69340-32201 · 69340-32210 · 69340-32220 |
| 69410B | Rear door lock plate assembly | 69410-87001 |
| 69717B | Right rear door lock remote control lever | 69713-32020 · 69713-32040 |
| 69718B | Left rear door lock remote control lever | 69714-32020 · 69714-32040 |
| 69736D | Rear door locking link guide block | 69736-12030 |
| 69749B | Rear door lock link clamp | 69749-30020 · 69749-32010 |
| 69759F | Rear door lock control link buckle | 69759-22030 · 69759-24050 · 69759-24060 |
| 69759J | Door lock link silencer | 69759-30021 |
| 69759T | Rear door inner handle buckle | 69759-14050 · 69759-24010 · 69759-24020 · 69759-24070 |
| 69770A | Right rear door inner locking link assembly | 69737-32051 · 69770-32030 |
| 69780A | Left rear door inner locking link assembly | 69738-32051 · 69780-32030 |
