Toyota CAMRY 后门板和后门玻璃 — Figure 6705

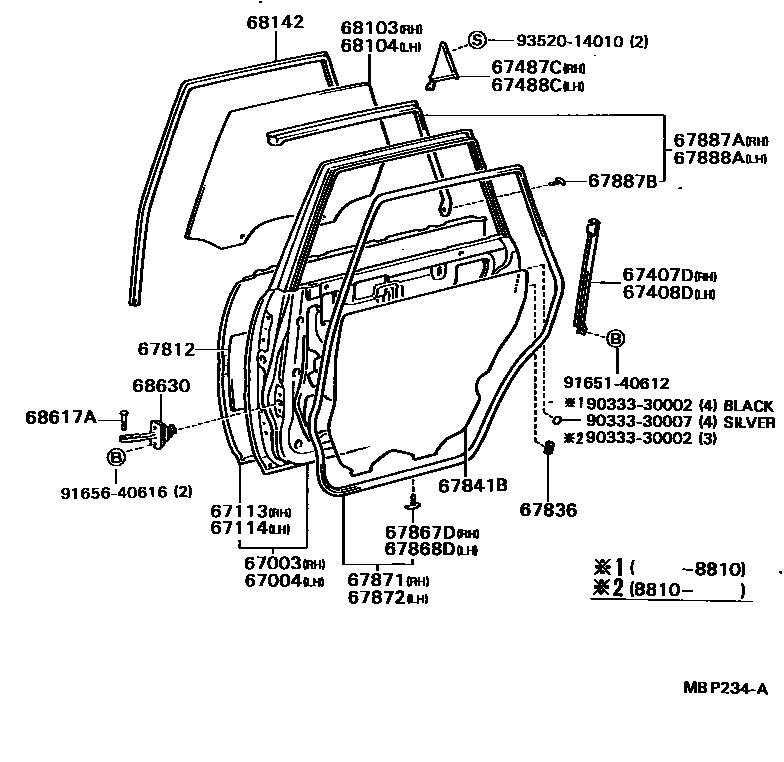

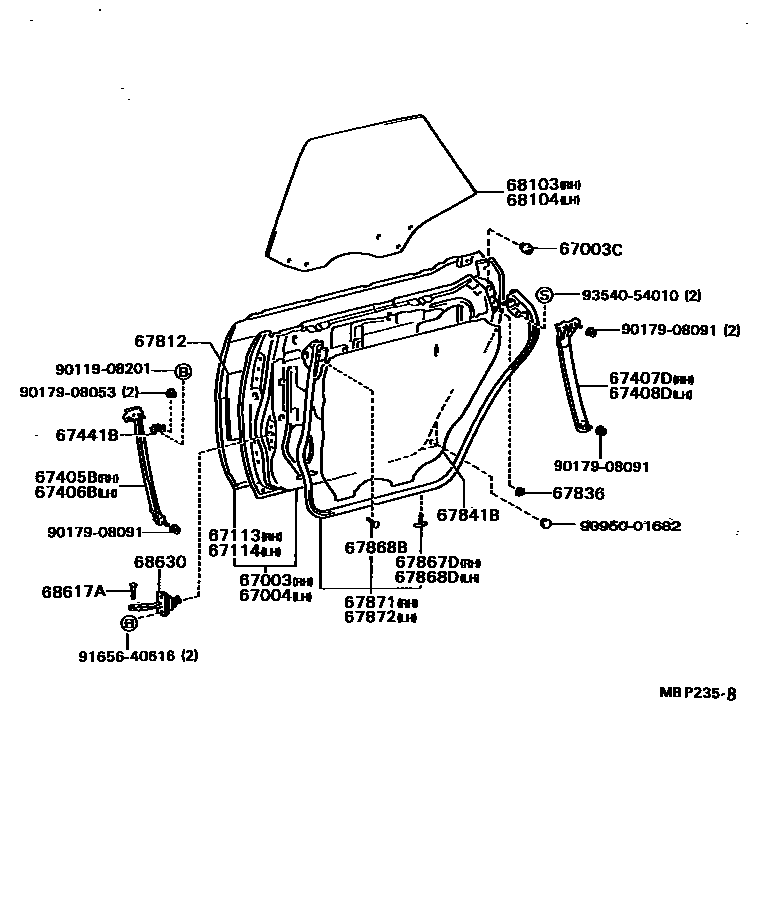

Toyota CAMRY EPC diagram 6705, 后门板和后门玻璃, with 3 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-32130 · 67003-32200 · 67003-32280 |
| 67003C | Rear door panel cushion | 90541-09054 · 90541-09069 |
| 67004 | Left rear door panel sub-assembly | 67004-32130 · 67004-32200 · 67004-32280 |
| 67113 | Right rear door outer panel | 67113-32040 · 67113-32060 |
| 67114 | Left rear door outer panel | 67114-32040 · 67114-32060 |
| 67405B | Right rear door window glass front guide groove sub-assembly | 67405-32010 · 67405-32020 |
| 67406B | Left rear door window glass front guide groove sub-assembly | 67406-32010 · 67406-32020 |
| 67407D | Right rear door window glass rear guide channel sub-assembly | 67407-32030 · 67407-32040 · 67407-32050 |
| 67408D | Left rear door window glass rear guide channel sub-assembly | 67408-32030 · 67408-32040 · 67408-32050 |
| 67441B | Rear door front guide channel upper plate | 67441-32020 |
| 67487C | Right rear door rear rail seal | 67487-32030 |
| 67488C | Left rear door rear rail seal | 67488-32030 |
| 67603A | Fixings (for rear door trim) | 67771-14040 |
| 67812 | Rear door silencer pad | 67812-12010 |
| 67836 | Right rear door lock child restraint cover | 67836-14010 · 67836-20060 · 67836-32010 |
| 67841B | Rear door access hole cover | 67841-32050 · 67841-32060 |
| 67867D | Right rear door seal strip fixing | 67867-20010 · 67868-30050 · 67868-32030 |
| 67868B | Door glass seal strip clip (for rear door) | 67869-30020 |
| 67868D | Left rear door seal strip fixing | 67868-20010 · 67868-30050 · 67868-32030 |
| 67871 | Right rear door sealing strip | 67871-32050 · 67871-32060 |
| 67872 | Left rear door sealing strip | 67872-32050 · 67872-32060 |
| 67887A | Right rear door seal No. 2 | 67887-32010 |
| 67887B | Catch (for rear door seal strip) | 67869-20020 · 67869-30020 |
| 67888A | Left rear door seal No. 2 | 67888-32010 |
| 68103 | Right rear door glass sub-assembly | 68113-32050 · 68113-32060 · 68113-32070 · 68113-32080 |
| 68104 | Left rear door glass sub-assembly | 68114-32050 · 68114-32060 · 68114-32070 · 68114-32080 |
| 68142 | Rear door glass lift chute | 68142-32050 · 68152-32010 |
| 68190 | Rear door glass inner sealing strip assembly | 68190-32030 · 68190-32040 · 68240-32020 |
| 68617A | Rear door opening limiter pin | 68617-20011 · 68617-32010 |
| 68630 | Rear door opening limiter assembly | 68630-32031 |
