Toyota CAMRY 前门锁和车门把手 — Figure 6703

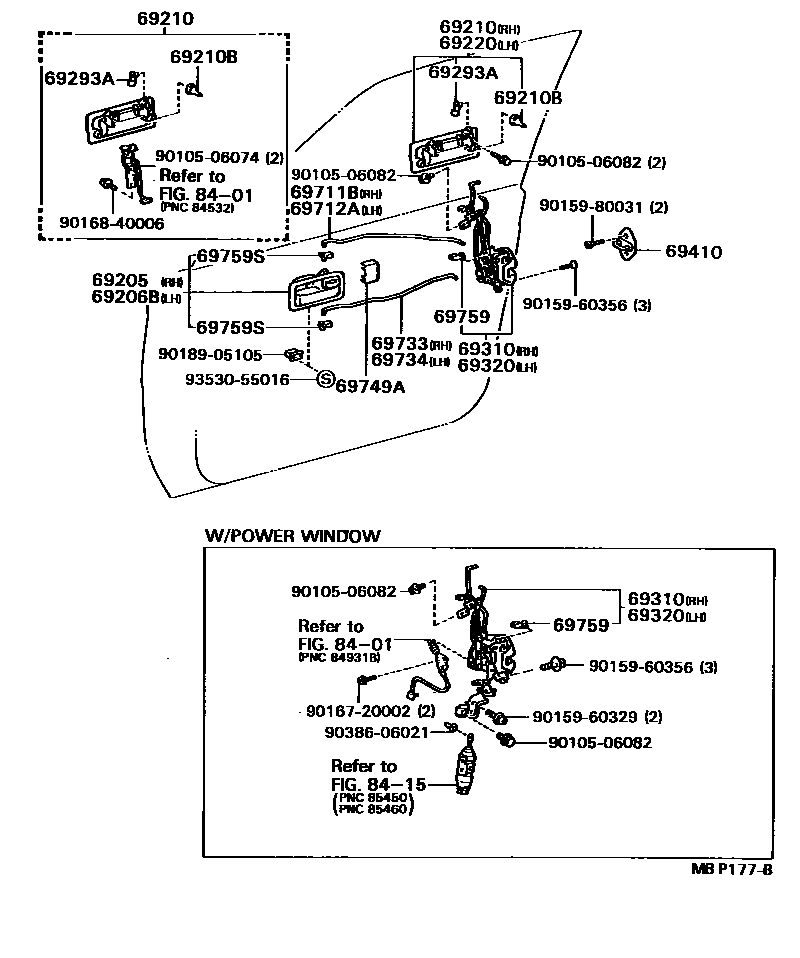

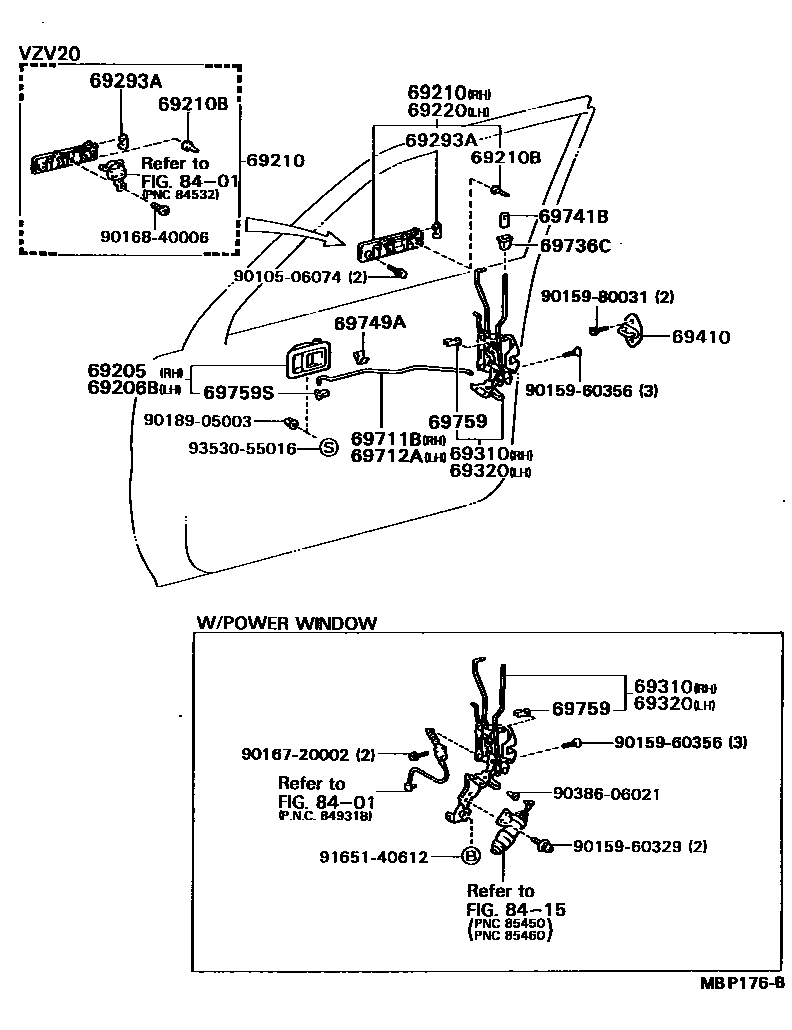

Toyota CAMRY EPC diagram 6703, 前门锁和车门把手, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69210 | Right front door outer handle assembly | 69210-32030 · 69210-32040 · 69210-32050 · 69210-32060 |
| 69210B | Cushion pad (for front door outer handle) | 90541-03021 · 90541-04018 |
| 69220 | Left front door outer handle assembly | 69220-32030 · 69220-32050 |
| 69293A | Front door outer handle buckle | 69293-12050 · 69293-12060 |
| 69310 | Right front door lock assembly | 69310-32121 · 69310-32261 · 69310-32270 · 69310-32280 |
| 69320 | Left front door lock assembly | 69320-32251 · 69320-32261 · 69320-32270 · 69320-32280 |
| 69410 | Front door lock plate assembly | 69410-87001 |
| 69711B | Right front door lock remote control lever | 69711-32030 · 69711-32050 |
| 69712A | Left front door lock remote control lever | 69712-32020 · 69712-32040 |
| 69733 | Right front door inner locking link | 69733-32031 |
| 69734 | Left front door inner locking link | 69734-32031 |
| 69736C | Front door locking link guide block | 69736-12030 |
| 69749A | Front door lock No. 1 link clamp | 69749-30020 · 69749-32010 |
| 69759 | Rear door lock No. 1 control link buckle | 69759-20020 · 69759-20030 · 69759-20040 · 69759-20050 · 69759-24030 · 69759-24040 · 69759-24050 · 69759-24060 |
| 69759S | Front door inner handle buckle | 69759-14050 · 69759-24010 · 69759-24020 · 69759-24070 |
