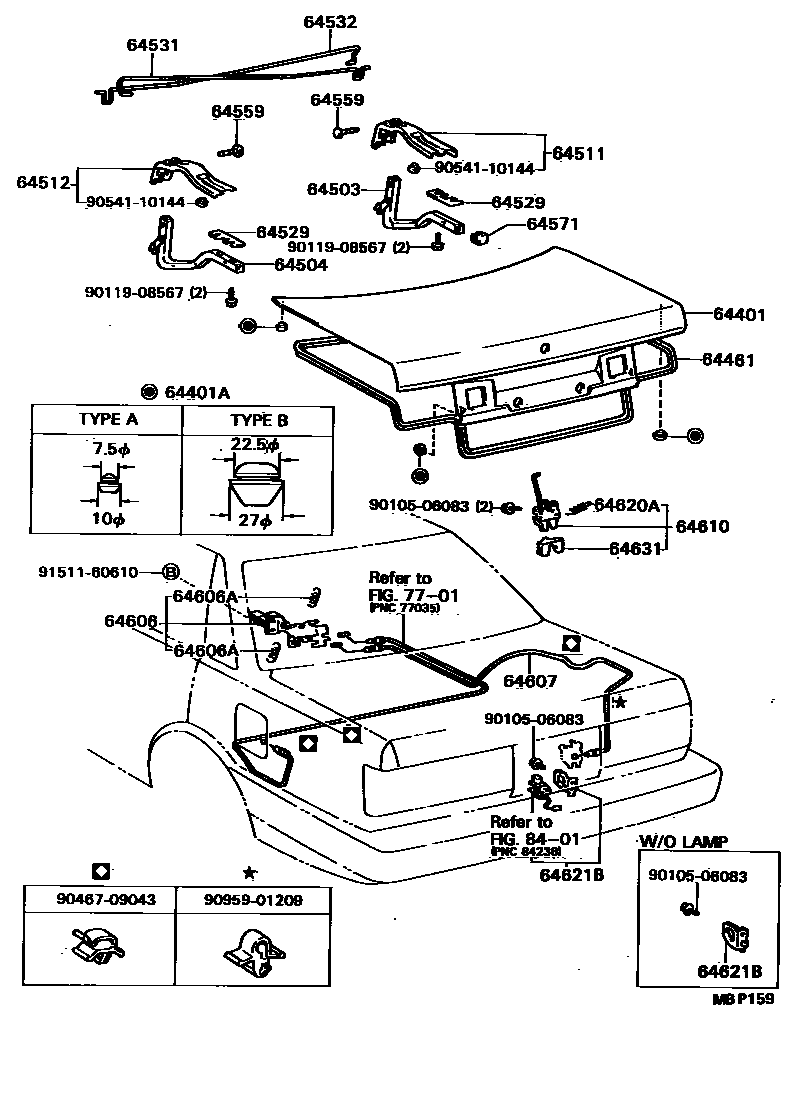

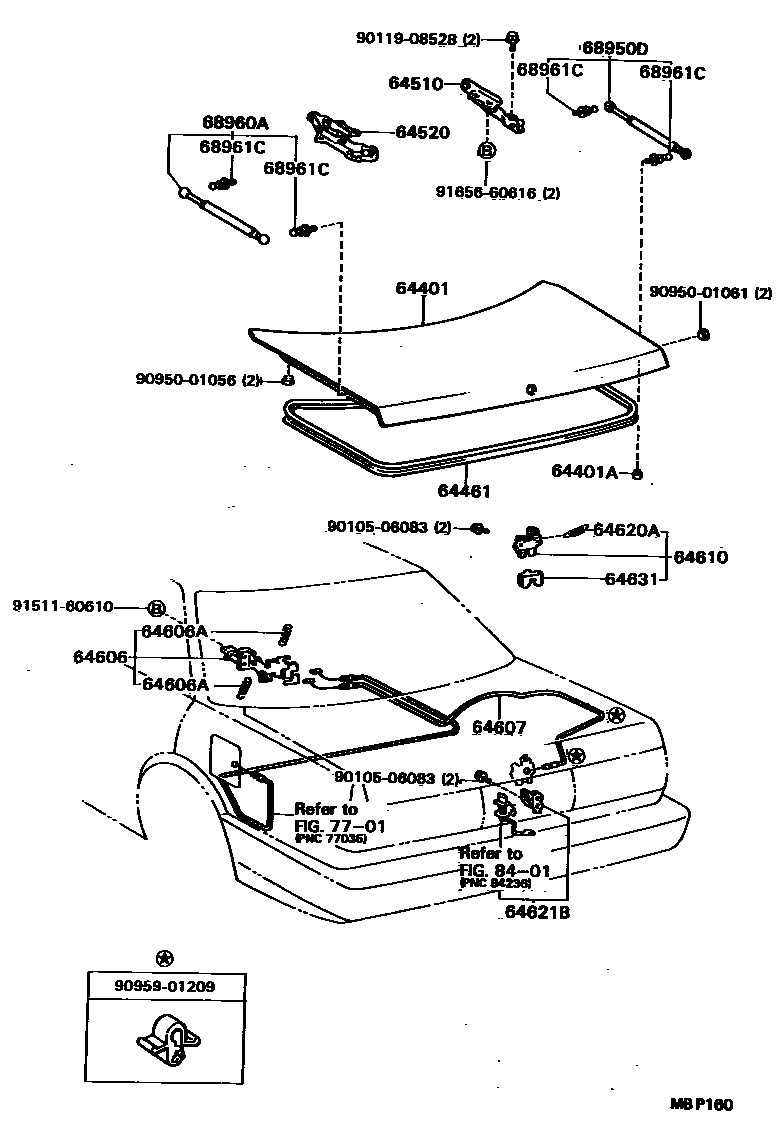

Toyota CAMRY 行李箱门和行李箱锁 — Figure 6105
Toyota CAMRY EPC diagram 6105, 行李箱门和行李箱锁, with 2 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64401 | Trunk door panel sub-assembly | 64401-32180 · 64401-32201 · 64401-32211 · 64401-32221 · 64401-32230 · 64401-32241 · 64401-32290 · 64401-32350 · 64401-32370 · 64401-32380 · 64401-32400 · 64401-32410 |
| 64401A | Cushion pad (for luggage compartment door panel) | 90541-06076 · 90541-09043 · 90541-09055 · 90541-19001 |
| 64461 | Trunk door seal | 64461-32040 · 64461-32050 · 64461-32060 |
| 64503 | Trunk door right hinge arm sub-assembly | 64503-32010 |
| 64504 | Trunk door left hinge arm sub-assembly | 64503-32010 |
| 64510 | Trunk door right hinge assembly | 64510-32021 |
| 64511 | Trunk door right hinge bracket | 64511-32020 |
| 64512 | Trunk door left hinge bracket | 64512-32020 |
| 64520 | Trunk door left hinge assembly | 64520-32021 |
| 64529 | Trunk door hinge spacer | 64529-14010 |
| 64531 | Trunk door right hinge torsion bar | 64531-32030 · 64531-32040 |
| 64532 | Trunk door left hinge torsion bar | 64532-32030 · 64532-32040 |
| 64559 | Trunk door hinge pin | 64559-32010 |
| 64571 | Trunk door hinge cover | 64571-30020 |
| 64606 | Trunk door lock opening lever sub-assembly | 64606-14070 |
| 64606A | Tension spring (for trunk door lock opening lever) | 90506-09004 |
| 64607 | Trunk door lock control cable sub-assembly | 64607-32100 · 64607-32130 · 64607-32191 |
| 64610 | Trunk door lock assembly | 64610-32030 · 64610-32050 |
| 64620A | Tension spring (for trunk door lock) | 90506-08001 · 90507-08008 |
| 64621B | Trunk door latch | 64620-20050 · 64621-12060 |
| 64631 | Trunk door lock protector | 64631-12010 · 64631-91D01 |
| 68950D | Trunk door right bracket assembly | 68950-39156 · 68950-39165 · 68950-39176 · 68950-39215 |
| 68960A | Trunk door left bracket assembly | 68950-39156 · 68950-39165 · 68950-39176 · 68950-39215 |
| 68961C | luggage compartment door bracket bolts | 68961-20040 · 68961-20051 |
