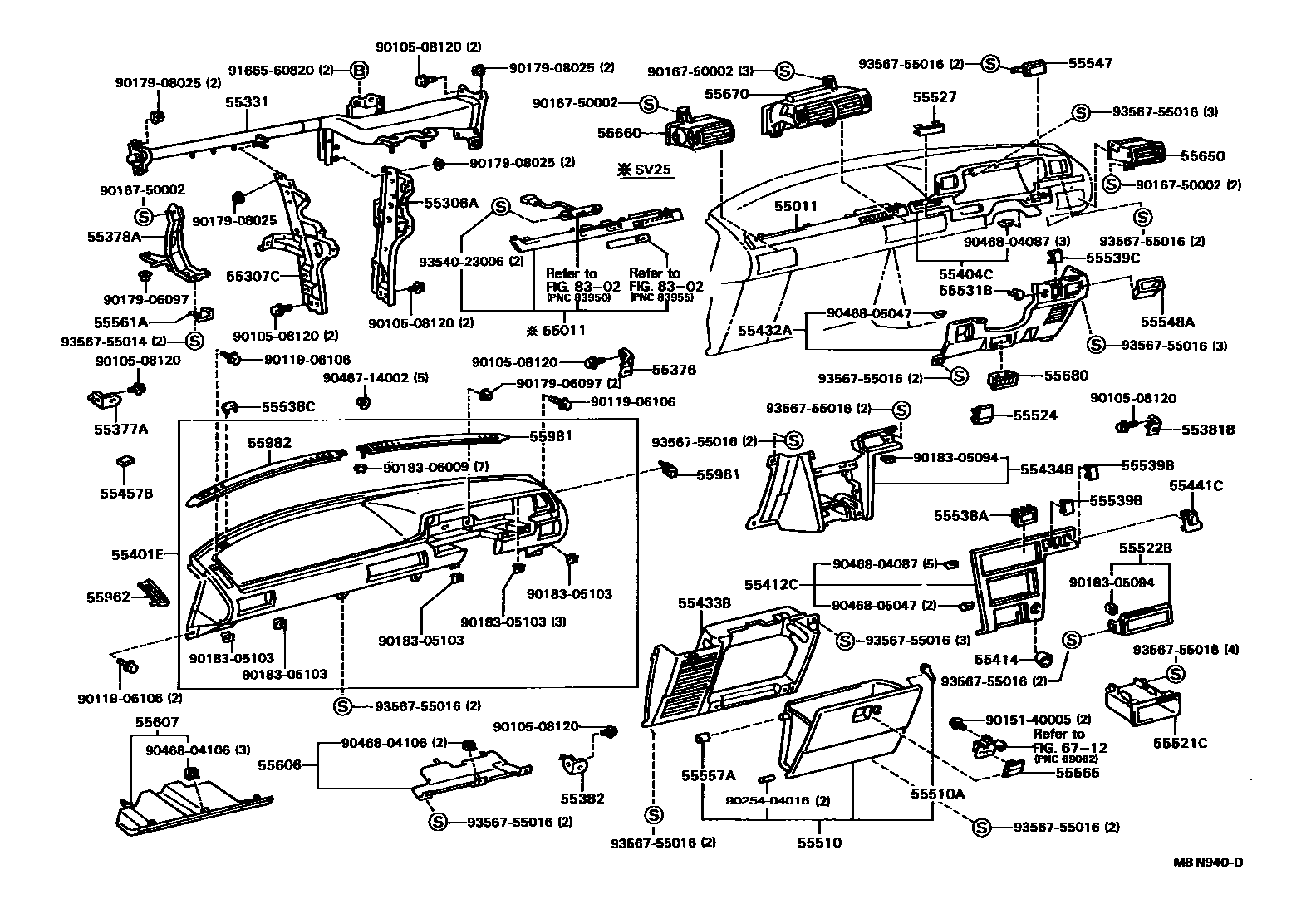

Toyota CAMRY 仪表板和手套箱 — Figure 5501
Toyota CAMRY EPC diagram 5501, 仪表板和手套箱, with 1 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55011 | Dashboard safety pad trim sub-assembly | 55011-32110 · 55011-32130 · 55011-32140 · 55011-32170 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-32070 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-32040 |
| 55331 | Dashboard reinforcement | 55330-32060 |
| 55376 | Instrument panel mounting bracket No. 1 | 55376-32030 |
| 55377A | Instrument panel mounting bracket No. 2 | 55377-32030 |
| 55378A | Glovebox lid lock mounting bracket | 55378-32040 |
| 55381B | No. 1 decorative panel mounting bracket | 55381-32040 |
| 55382 | No. 2 decorative panel mounting bracket | 55382-32020 |
| 55412C | Center instrument cluster No. 1 decorative panel | 55412-32070 · 55412-32112 |
| 55414 | Cigarette lighter hole frame | 55477-12060 |
| 55457B | Dashboard safety pad spacer | 55457-22030 |
| 55510A | Cushion (for glovebox lid) | 90541-03015 |
| 55522B | Radio tuner opening cover | 55522-32010 |
| 55531B | Choke knob hole cover | 55531-32020 |
| 55538A | Cooler switch hole cover | 55538-16020 |
| 55539B | No. 2 spare switch hole cover | 55539-32021 |
| 55539C | Spare switch hole cover | 55539-32021 |
| 55548A | Dashboard hole cover | 55548-32040 |
| 55557A | Glove box cover limit pad | 55557-16010 |
| 55561A | Glove box lid lock | 55561-32020 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-32010 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-32010 |
