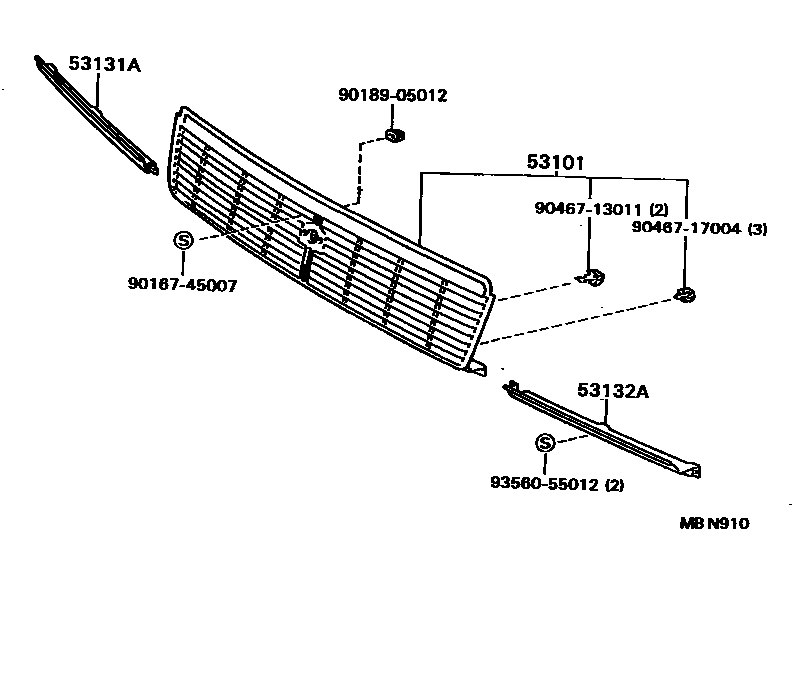

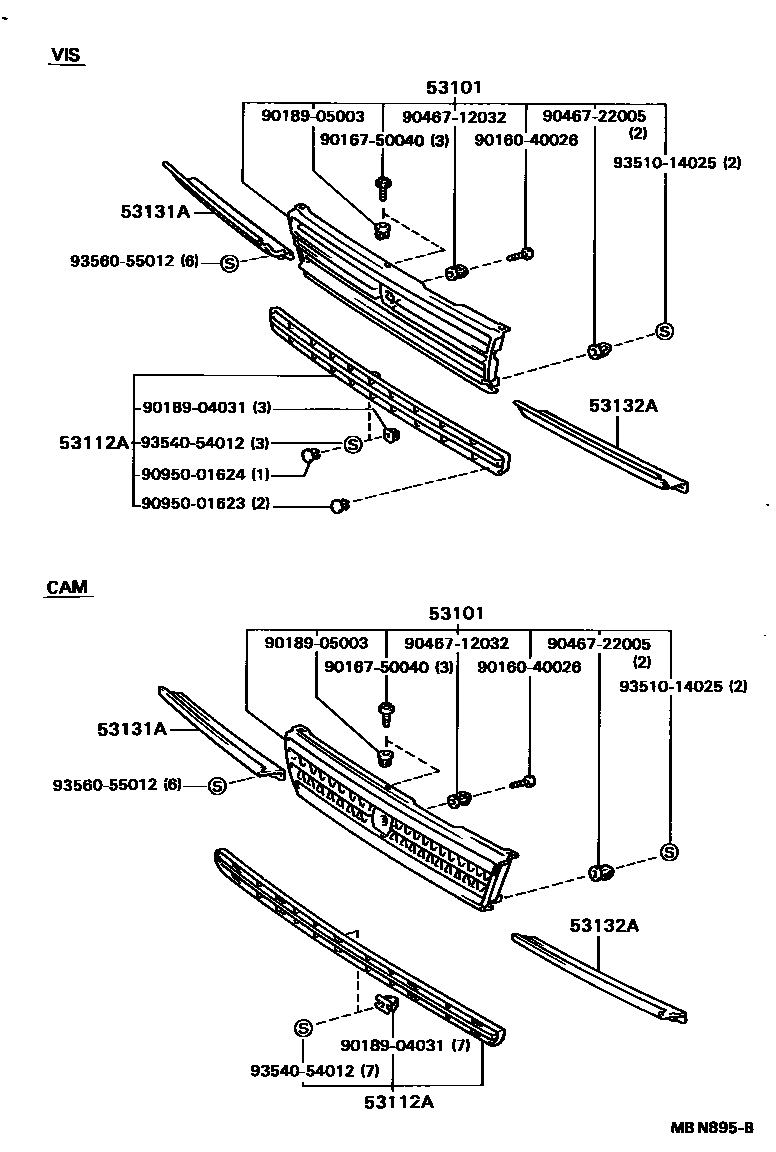

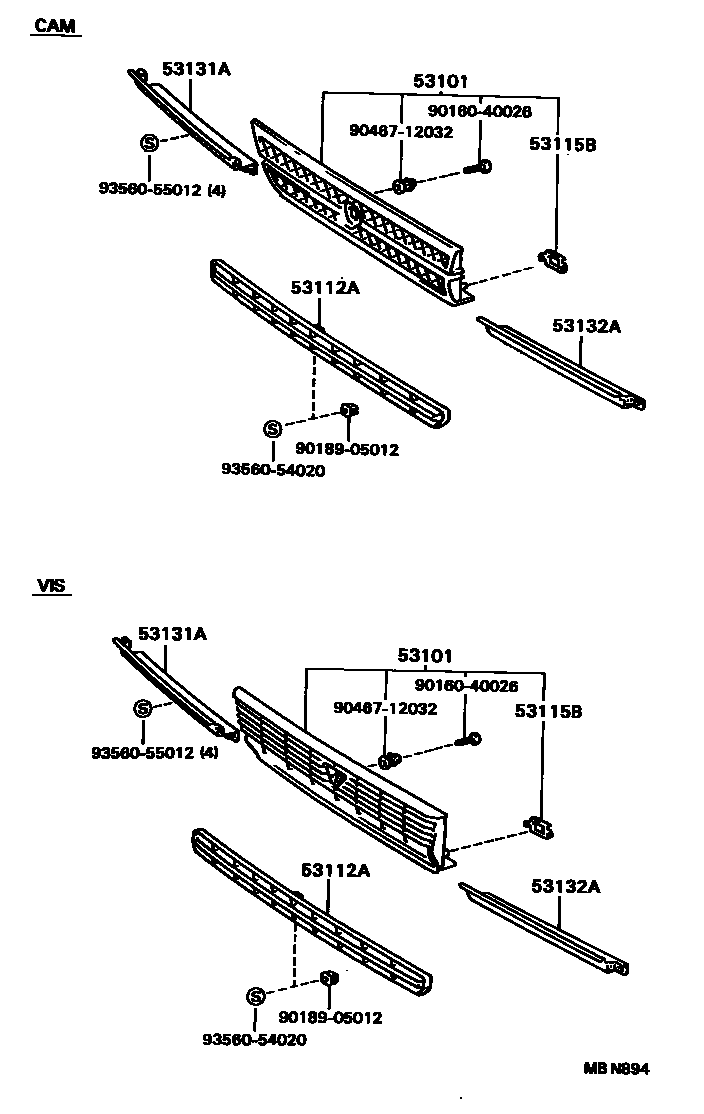

Toyota CAMRY radiator grille — Figure 5301
Toyota CAMRY EPC diagram 5301, radiator grille, with 3 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53101 | Radiator grille sub-assembly | 53101-32110 · 53101-32130 · 53101-32140 · 53101-32150 · 53101-32160 |
| 53112A | Lower radiator grille | 53112-32030 · 53112-32040 · 53112-32050 |
| 53115B | Radiator grille bracket | 53115-32010 |
| 53131A | Right headlight lampshade | 53131-32100 · 53131-32110 · 53131-32120 · 53131-32130 |
| 53132A | Left headlight lampshade | 53132-32100 · 53132-32110 · 53132-32120 · 53132-32130 |
